Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC2D09B7V

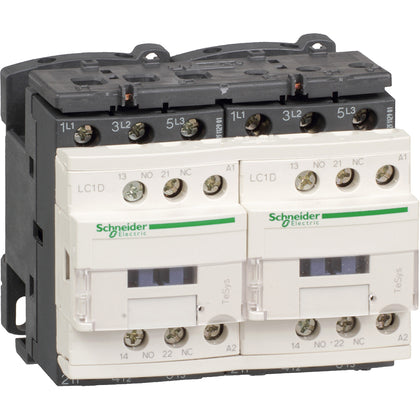

LC2D09B7V is a TeSys Deca reversing contactor from Schneider Electric designed for motor control applications. This contactor features a 24V AC coil and is suitable for industrial and HVAC systems requiring reliable switching. The LC2D09B7V provides 3 poles (3NO) and is rated for up to 9A at 440V AC-3, making it ideal for motor control up to 4kW at 400V. It includes built-in mechanical and electrical interlocking for safe operation and features screw clamp terminals for easy installation.
- Part Number: LC2D09B7V
- Manufacturer: Schneider Electric
- Series: TeSys Deca
- Application: Motor Control
- Amperage: 9A
- Voltage: 440V AC-3
- Poles: 3P (3NO)
- Coil Voltage: 24V AC
- Frequency: 50/60 Hz
- Mounting Type: Screw Clamp Terminals
- Interlocking: Mechanical and Electrical
- Motor Rating: 4kW @ 400V
Additional Information
This TeSys D IEC Contactor includes a 24 VAC coil.
Specifications
- Part Number: LC2D09B7V
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Poles : 3
- Aux Contacts : 3 NO
- Frequency : AC 50/60 Hz
Product Data
- UPC : 785901207368
- GTIN : 03389110407136
- Country of Origin : France
- Dimensions : 3.54 in x 3.54 in
- Weight : 1.803
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
