LC2D09B7 - Schneider Electric TeSys D Reversing Contactor, 9A, 3P, 24V AC Coil, 690V, Screw Clamp, Mechanical Interlock, IEC

LC2D09B7

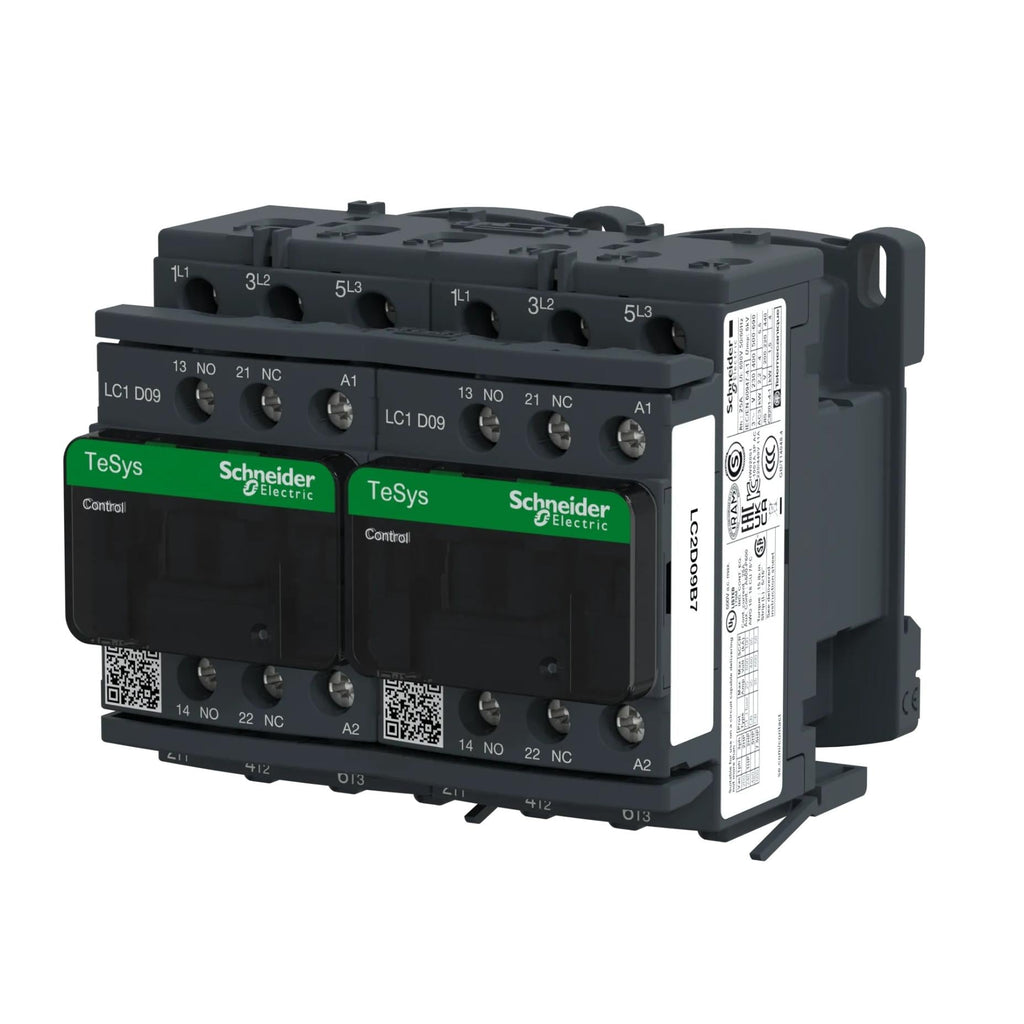

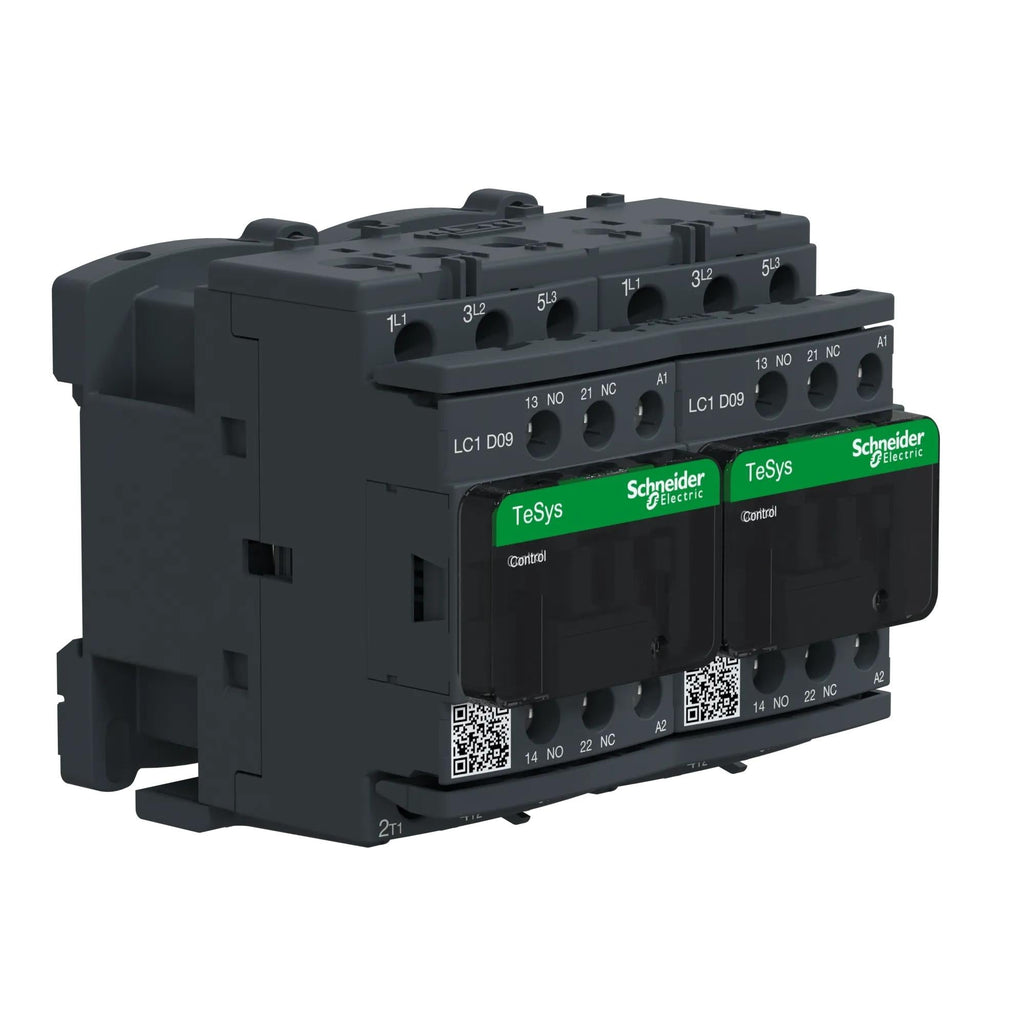

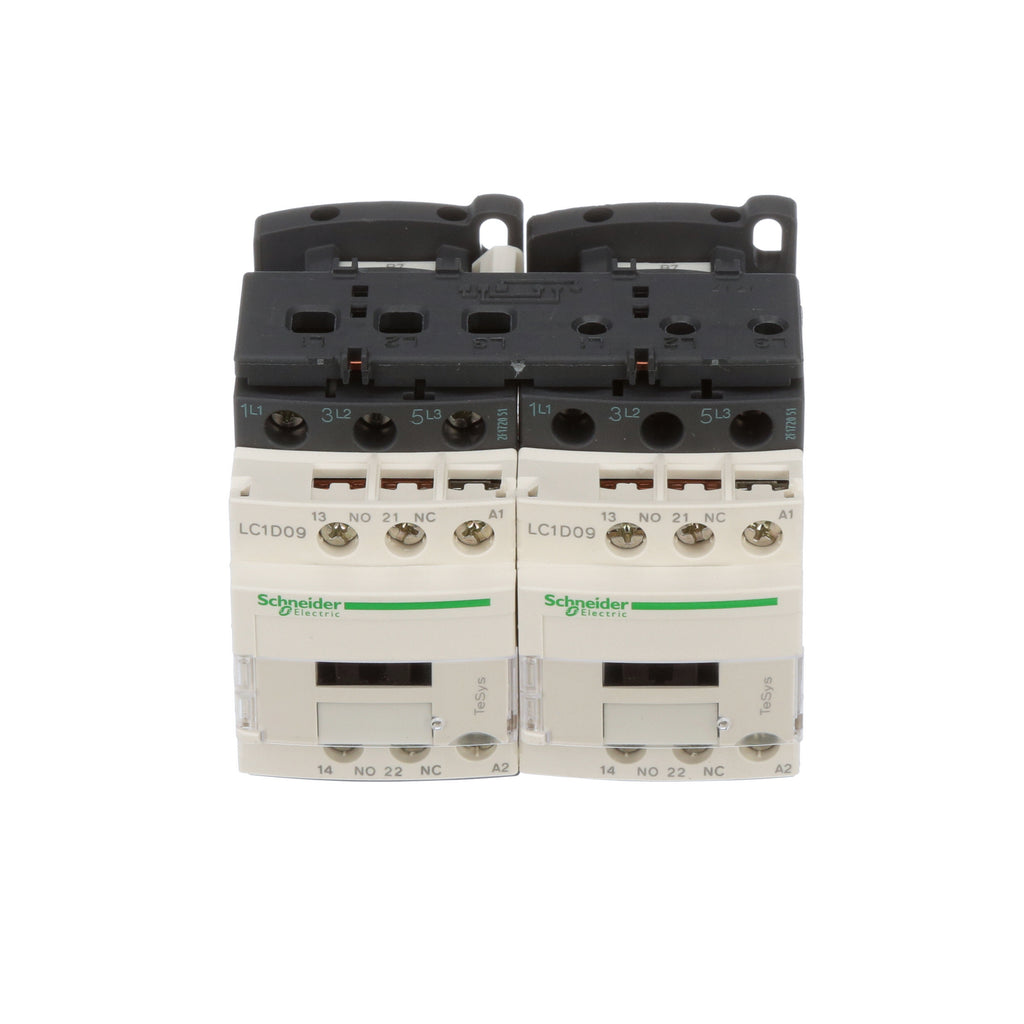

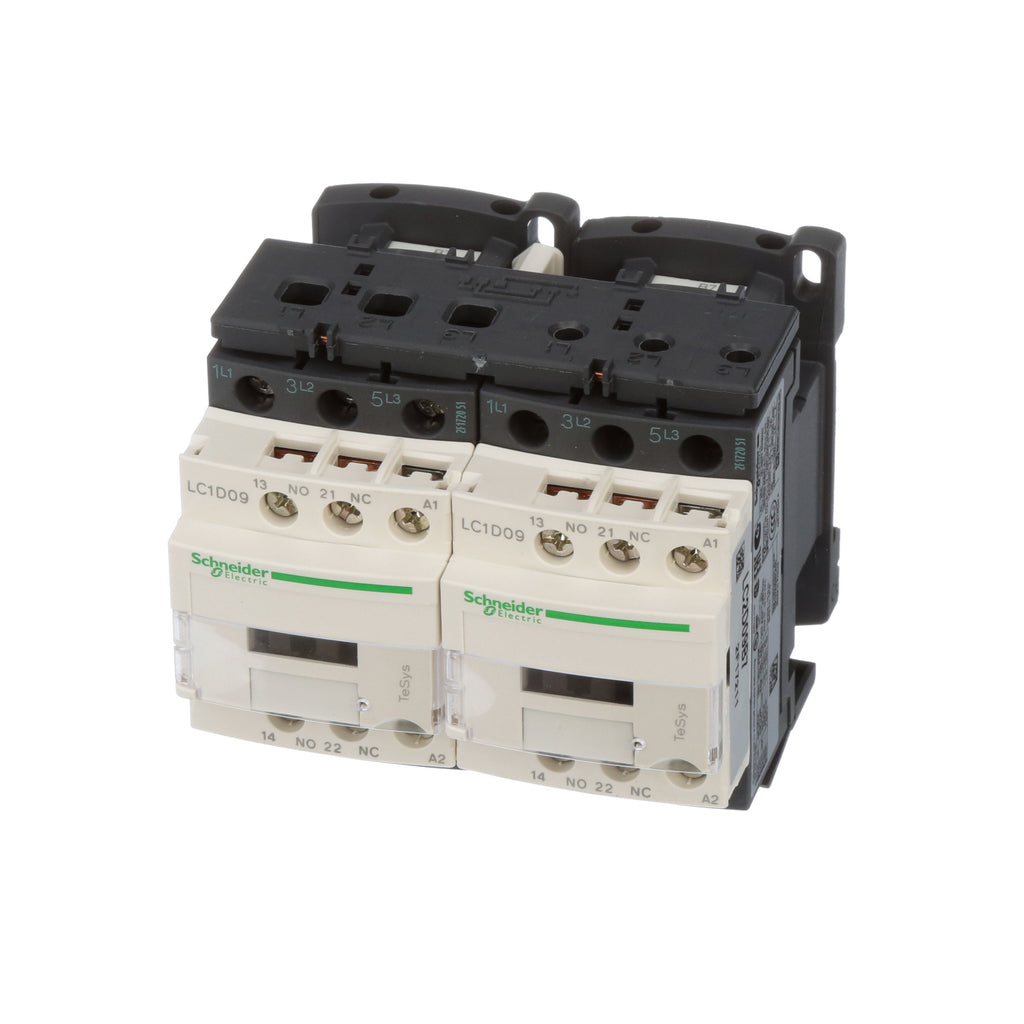

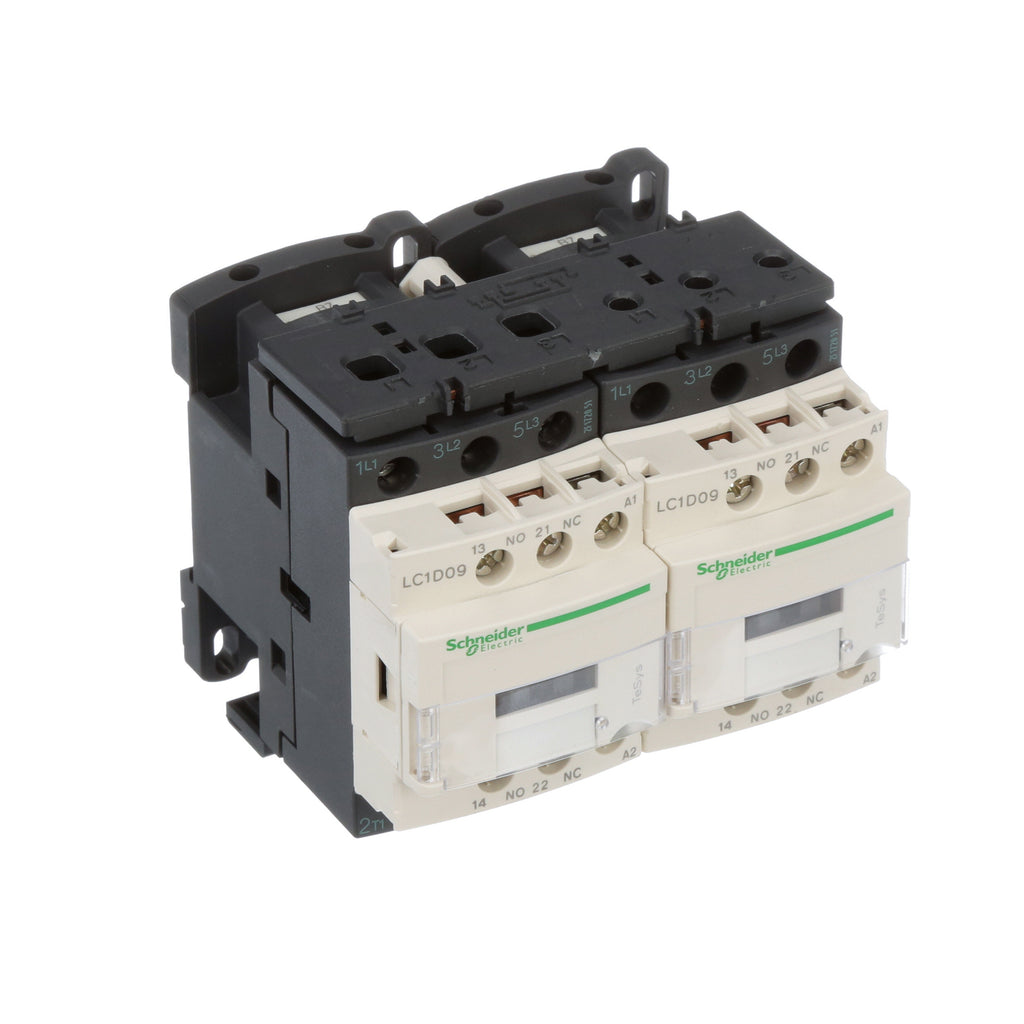

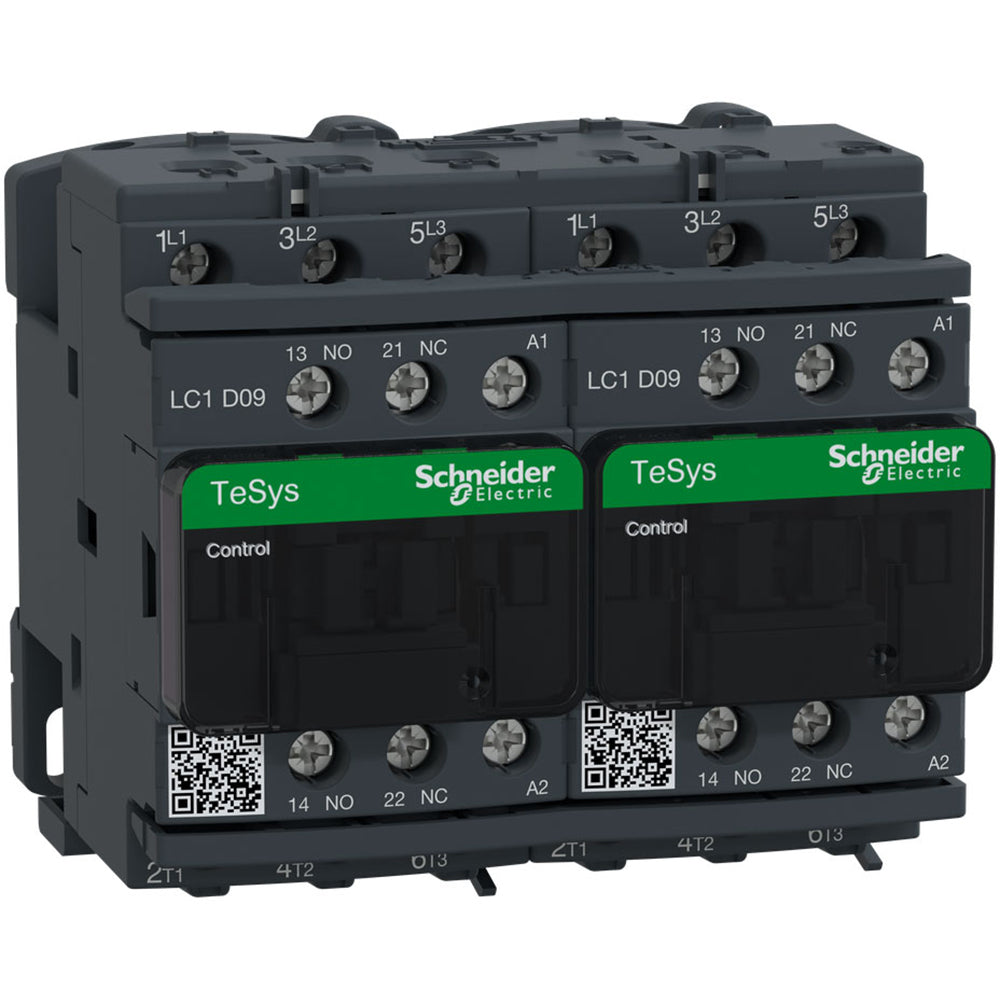

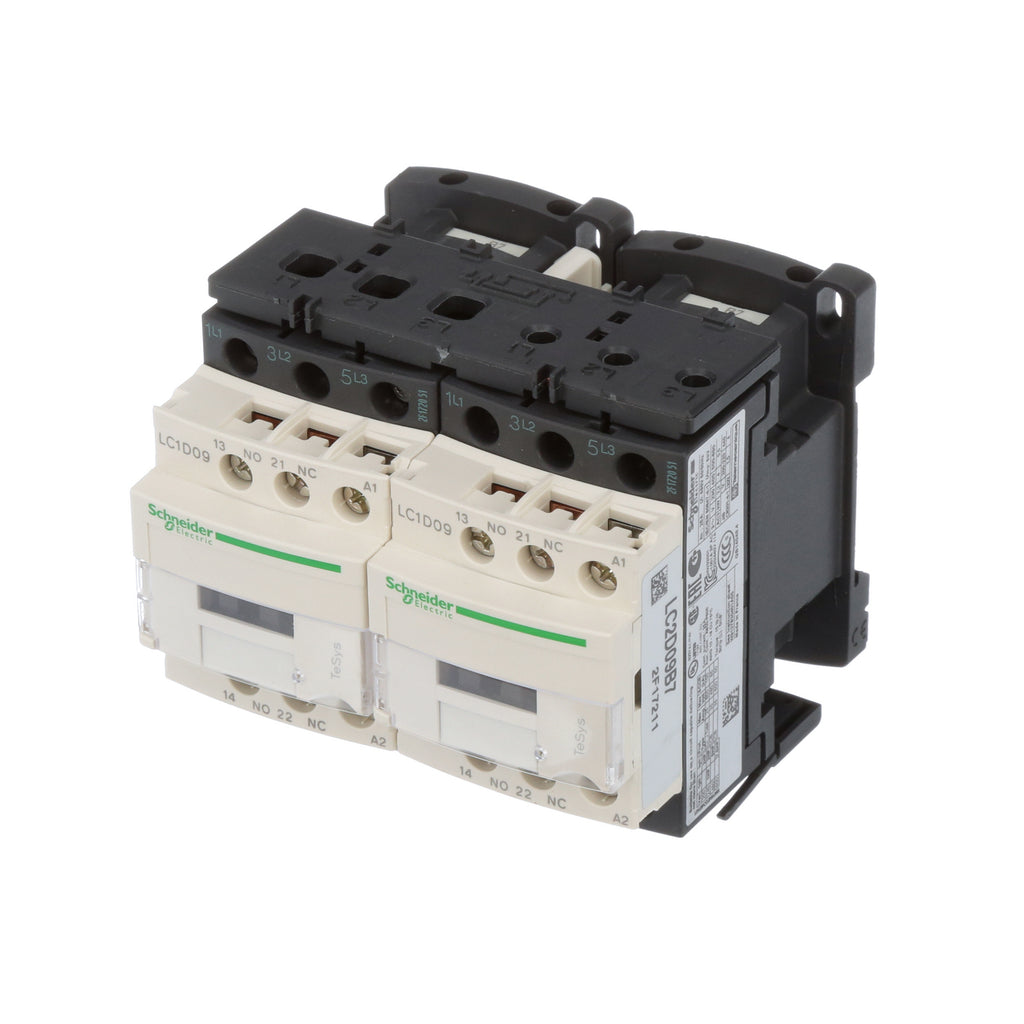

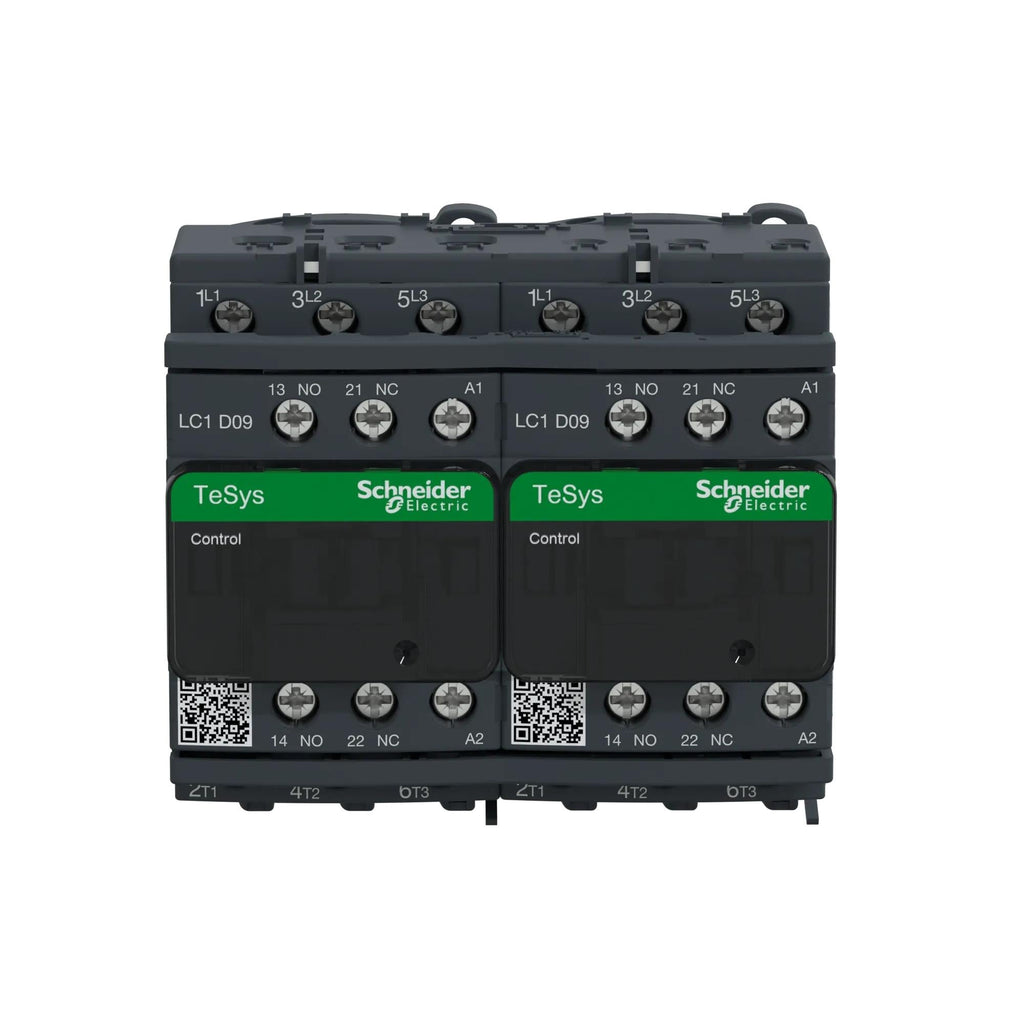

LC2D09B7 Schneider Electric TeSys D reversing contactor for reliable motor control in industrial and HVAC applications.

This 3-pole (3NO) IEC contactor is designed for reversing motor circuits, offering a 9A AC-3 rating up to 690V, 24V AC 50/60Hz coil, and built-in mechanical interlocking for safety. It features screw clamp terminals, 2NO+2NC auxiliary contacts, and is suitable for rail or surface mounting. The unit is engineered for high electrical endurance and easy integration with a range of accessories.

Key Specifications
• Amperage: 9A AC-3 (motor)
• Voltage: Up to 690V AC, 300V DC
• Poles: 3 (3NO main contacts)

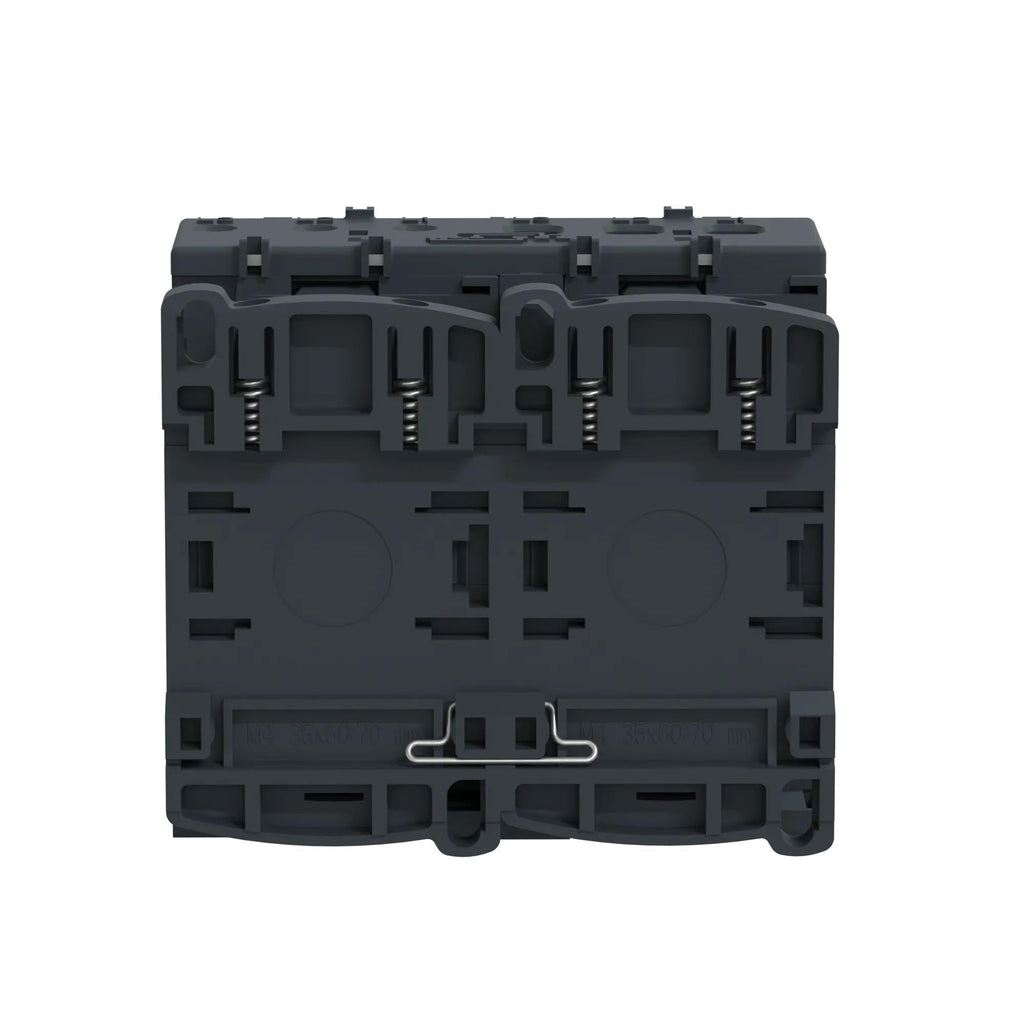

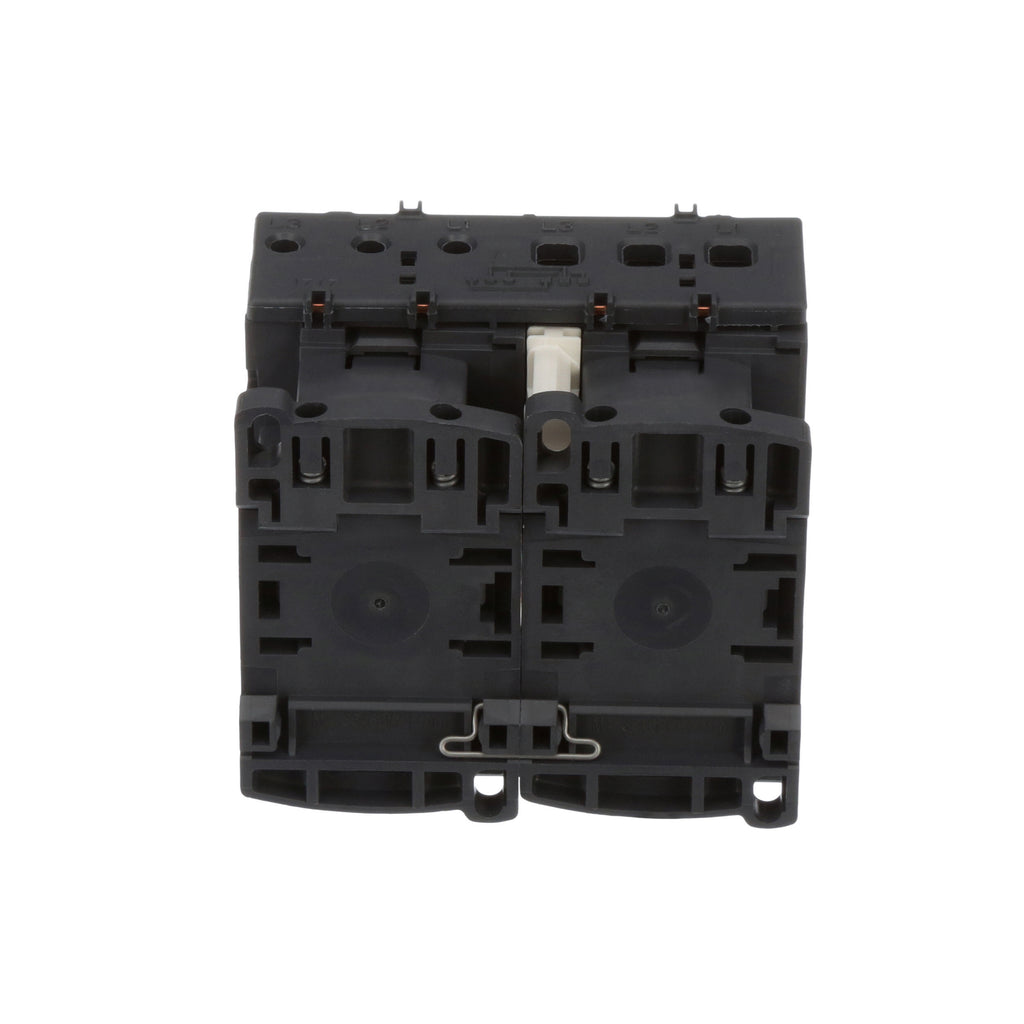

• Mounting Type: Rail or surface
• Interrupt Rating: 9A AC-3 @ 440V, 5 HP @ 460V 3-phase
• Series/Frame: TeSys D (LC1D series)
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: IEC rated
• Coil Voltage: 24V AC 50/60Hz
• Auxiliary Contacts: 2NO + 2NC (built-in)
• Termination: Screw clamp
• Operating Temperature: -40°C to 70°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC2D09B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Type : TeSys Deca Series
• Voltage : 600
• Amperage : 25
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : AC 50/60 Hz

Product Data

• UPC : 38911038320
• GTIN : 03389110383201
• Country of Origin : Indonesia
• Dimensions : 3.8 in x 3.8 in
• Weight : 1.788
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
