LC1K1210U7 - Schneider Electric TeSys K 3-Pole 12A 240VAC Contactor

LC1K1210U7

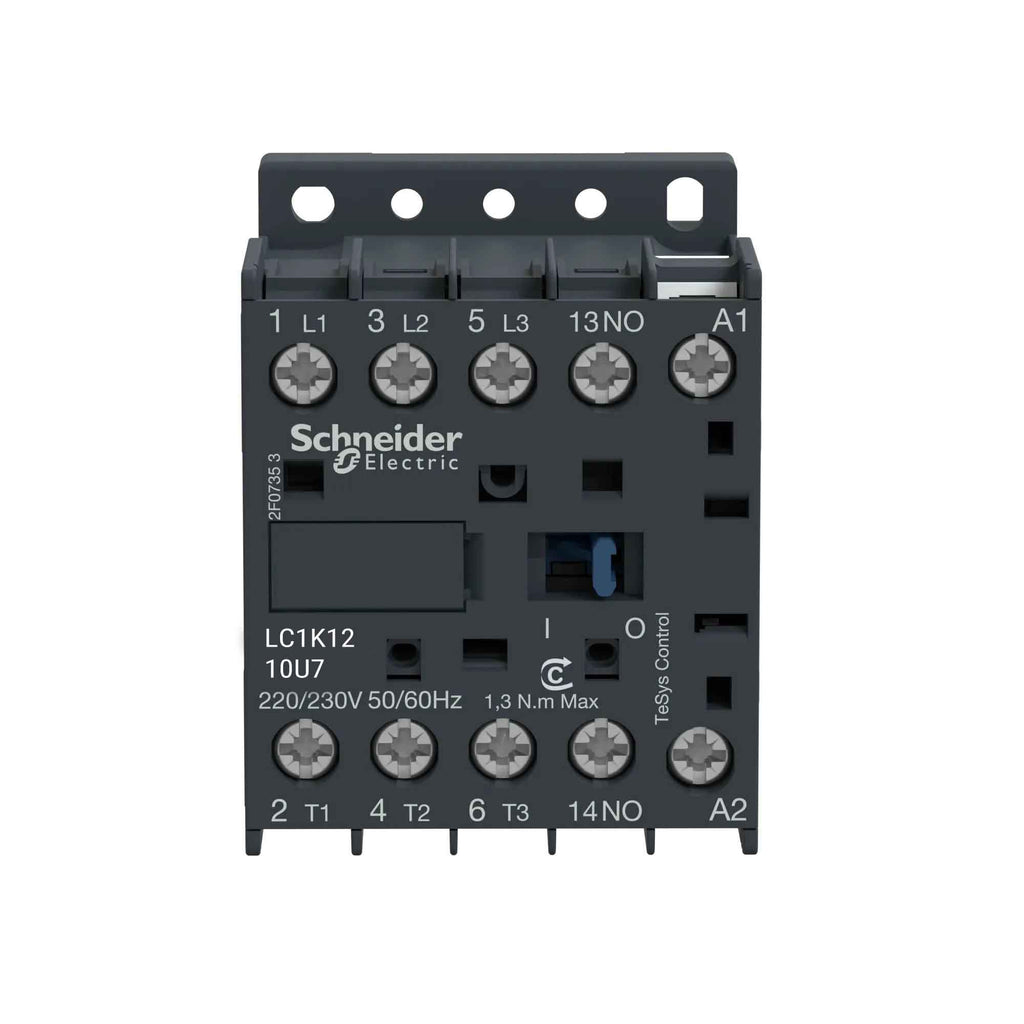

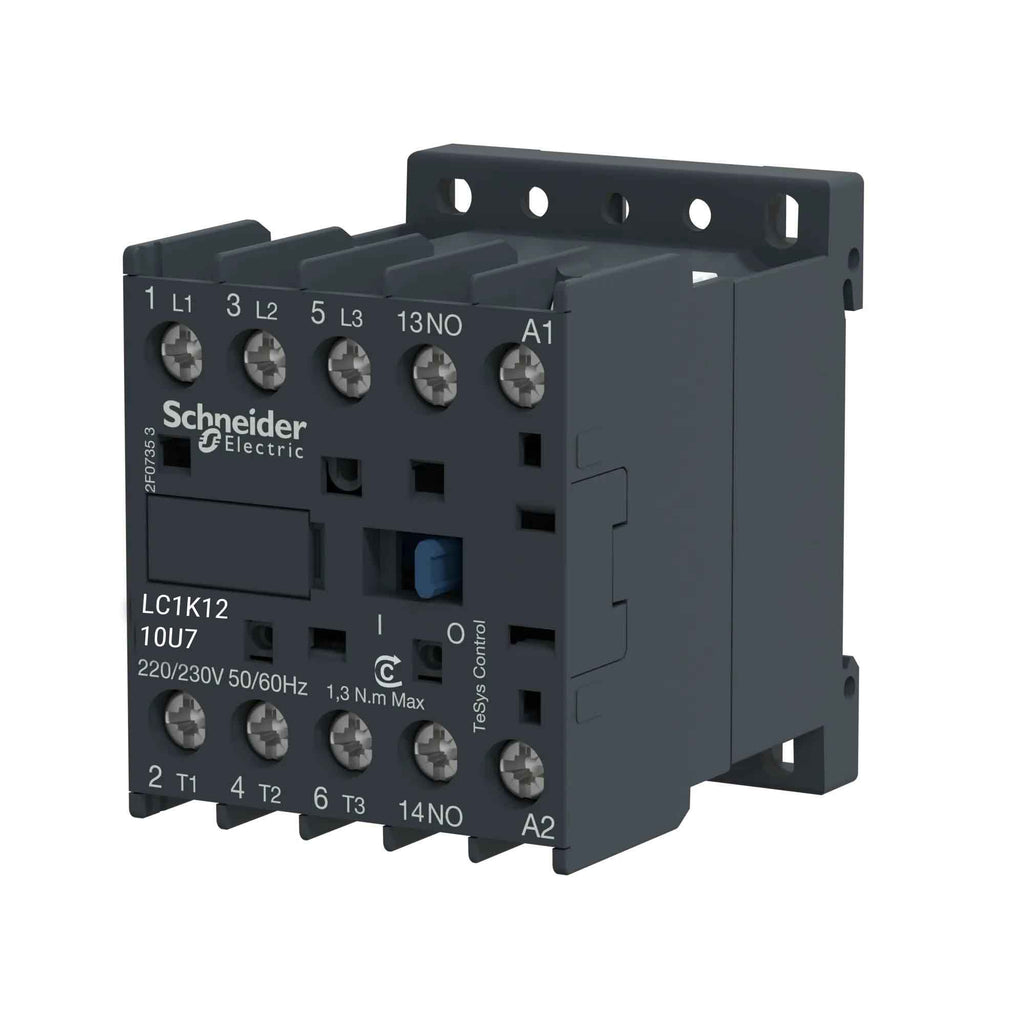

LC1K1210U7 is a compact 3-pole TeSys K contactor from Schneider Electric designed for motor control applications. This miniature IEC magnetic contactor delivers reliable performance in industrial and commercial motor switching applications with a rated current of 12A at AC-3 duty up to 440V and a power rating of 5.5kW at 400V. The contactor features a 230-240VAC 50/60Hz coil, screw terminal connections, and includes one normally open (1NO) auxiliary contact for signaling and control circuits.

• Part Number: LC1K1210U7
• Manufacturer: Schneider Electric
• Series: TeSys K
• Poles: 3
• Rated Current: 12A AC-3
• Coil Voltage: 230-240VAC 50/60Hz
• Maximum Voltage: 440V
• Power Rating: 5.5kW at 400V
• Terminal Type: Screw

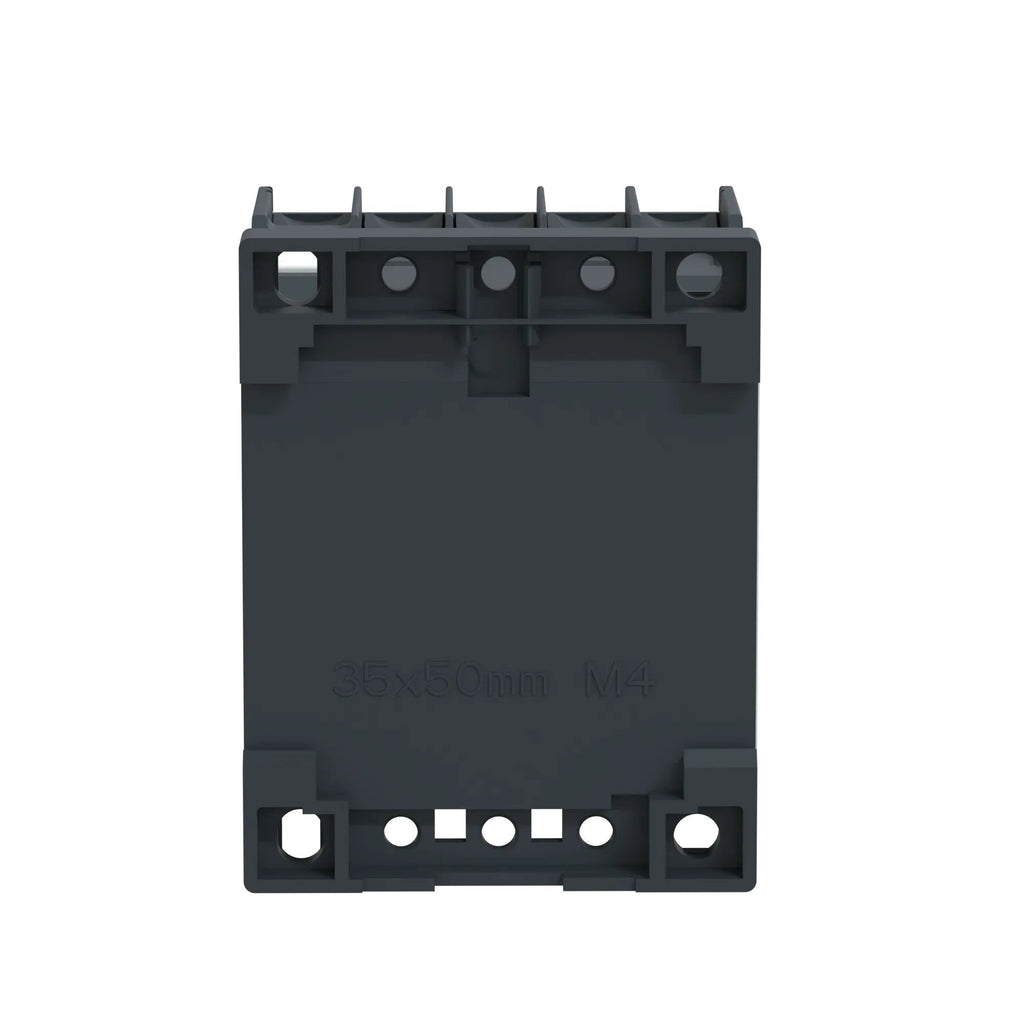

• Mounting: DIN Rail, Chassis Mount
• Auxiliary Contacts: 1NO
• Dimensions: Width 45mm, Depth 57mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 230-240 VAC coil.

Specifications

• Part Number: LC1K1210U7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 20A
• Coil Voltage Minimum : 240
• Mounting : Rail
• Frequency : AC 50/60 Hz

Product Data

• UPC : 038911034619
• GTIN : 03389110346190
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.392
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
