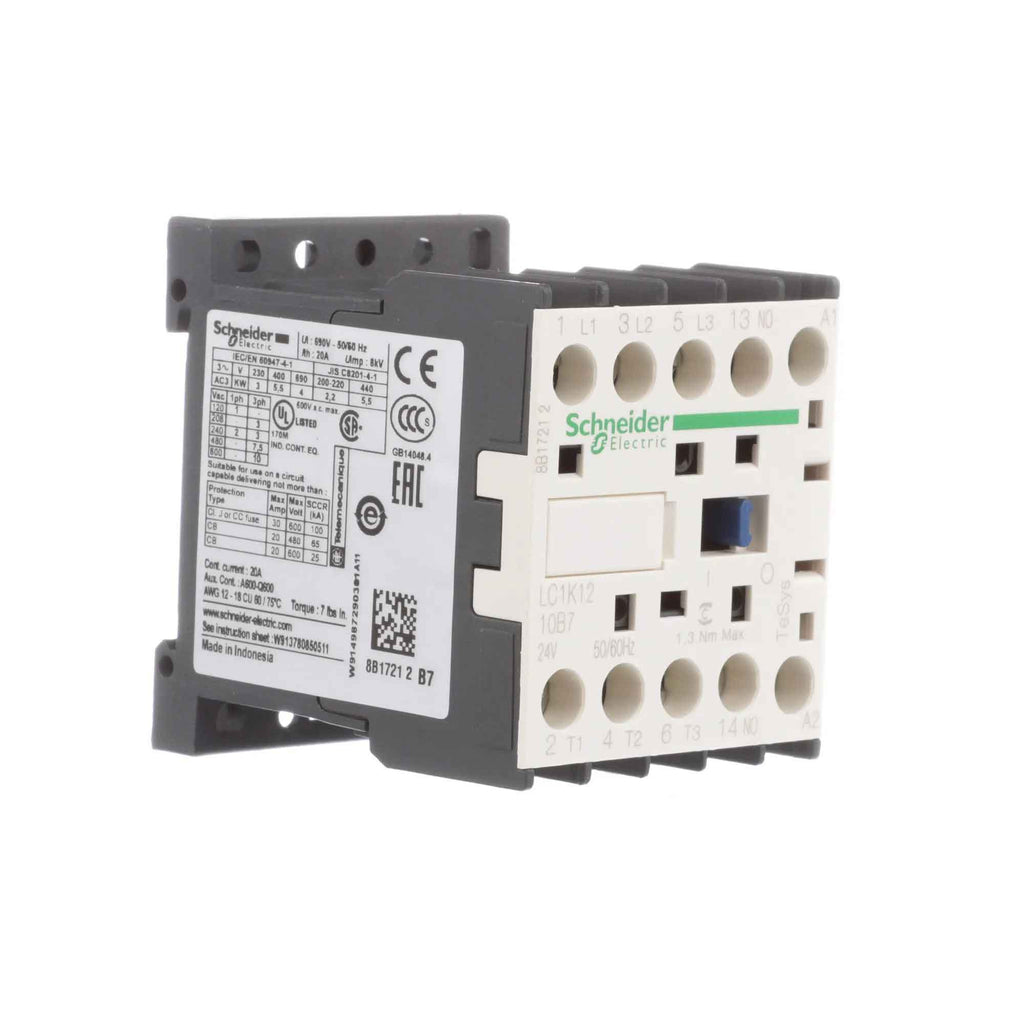

LC1K1210B7 - Schneider Electric 3P 12A AC-3 TeSys K Contactor 24V AC Coil 1NO Aux

LC1K1210B7

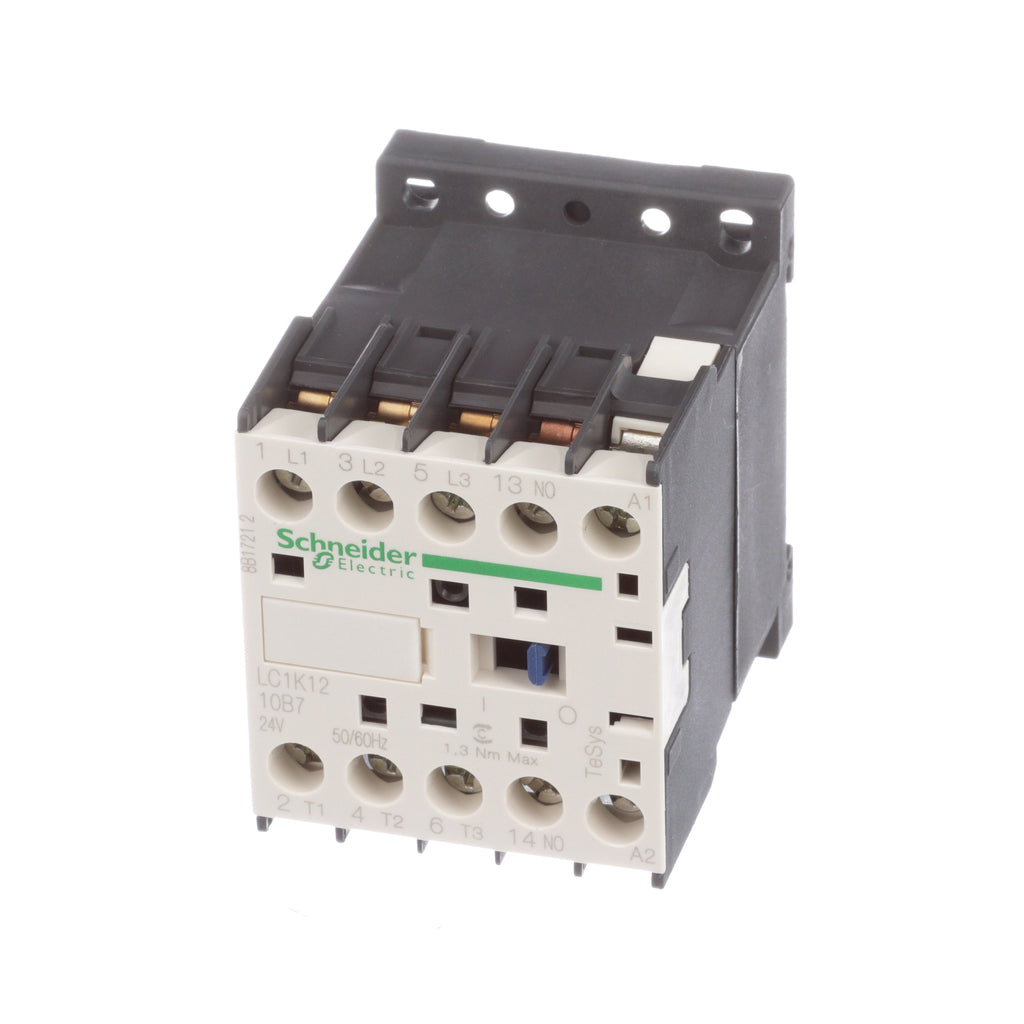

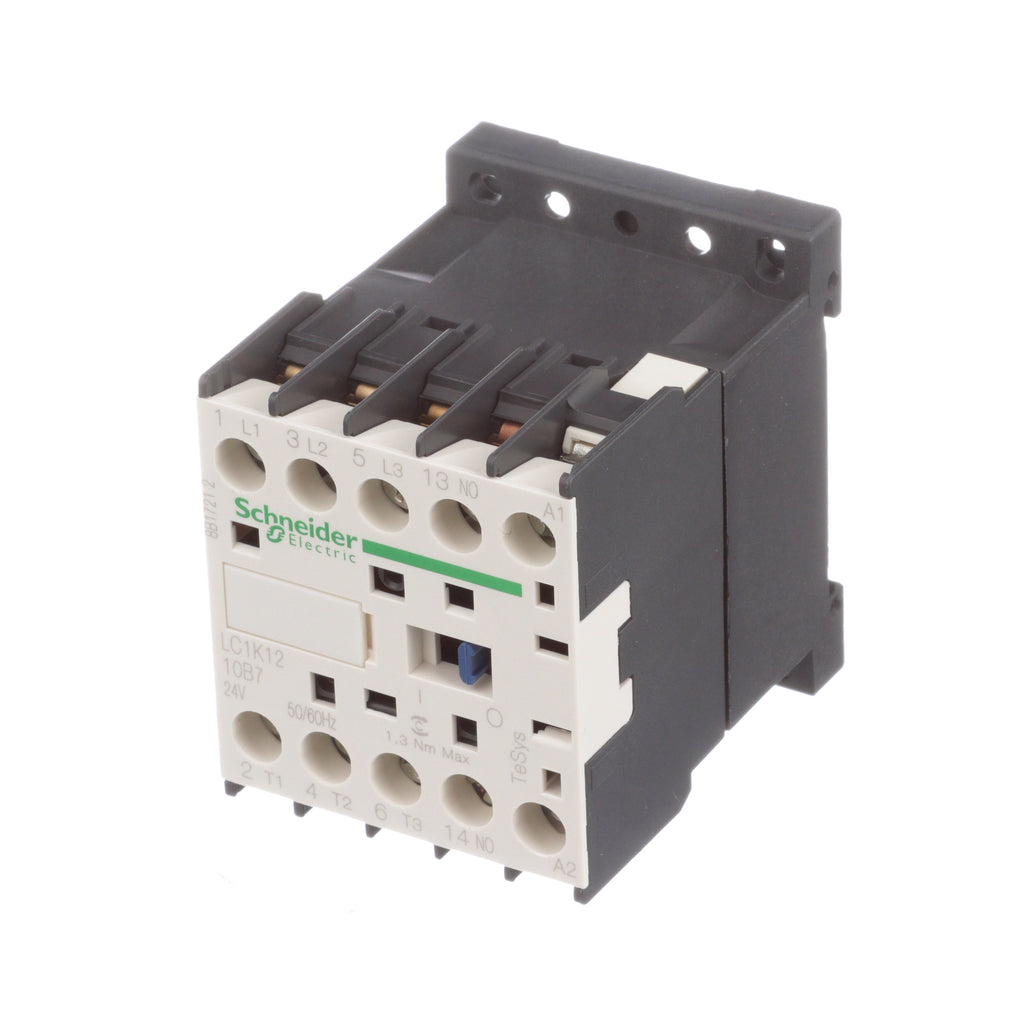

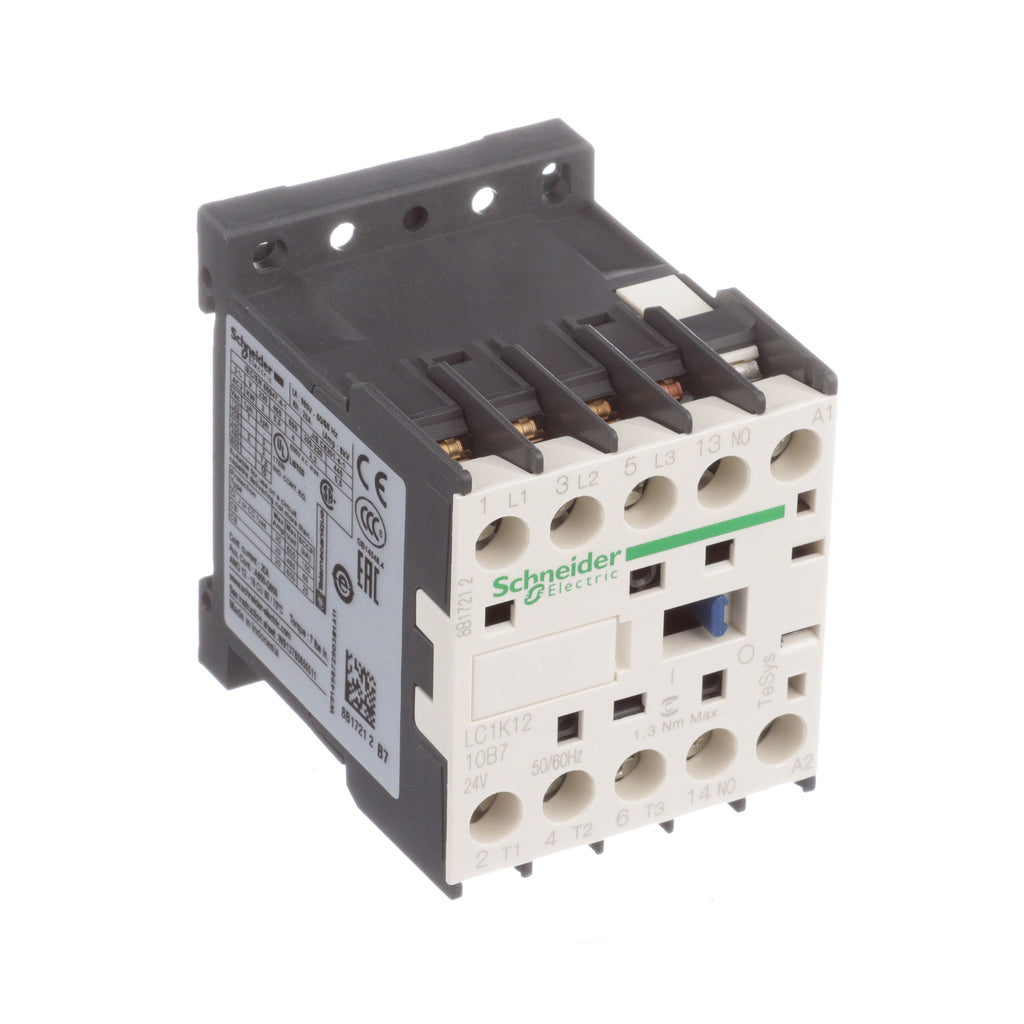

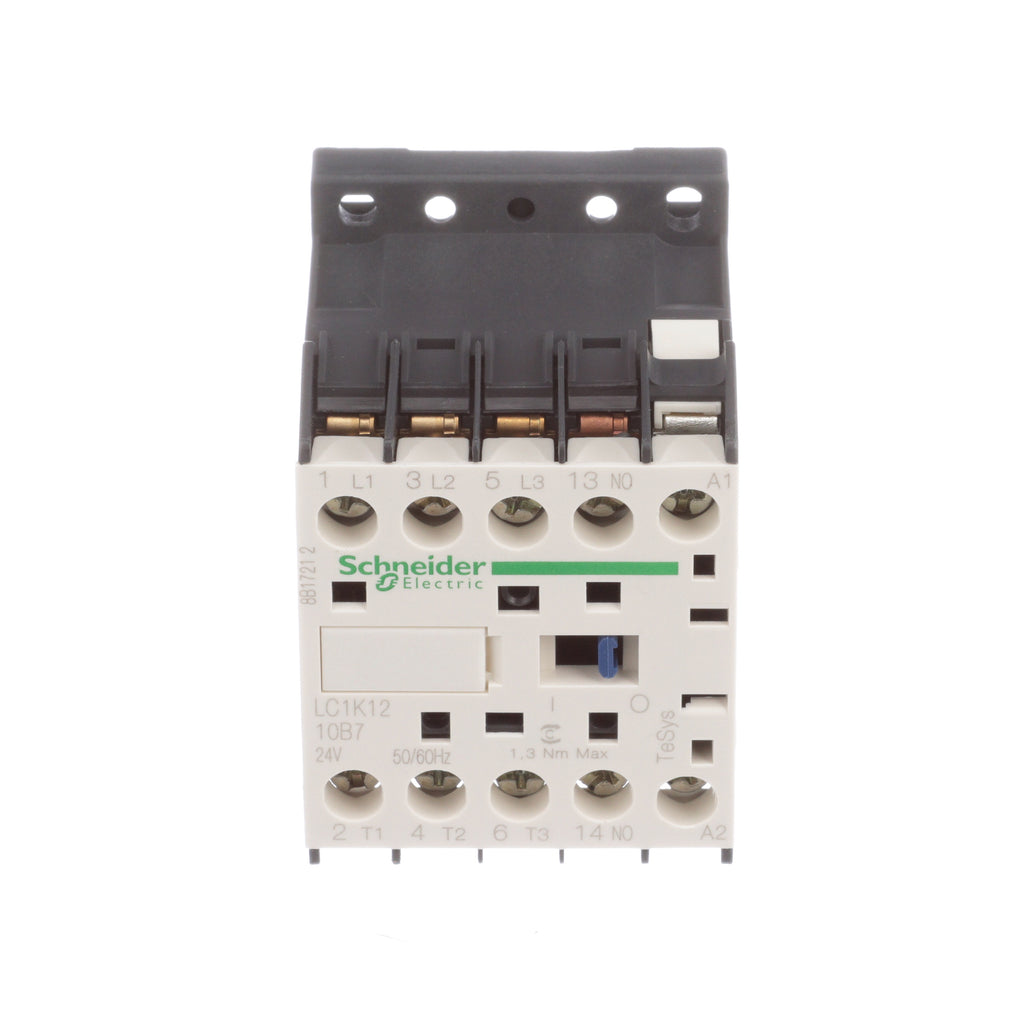

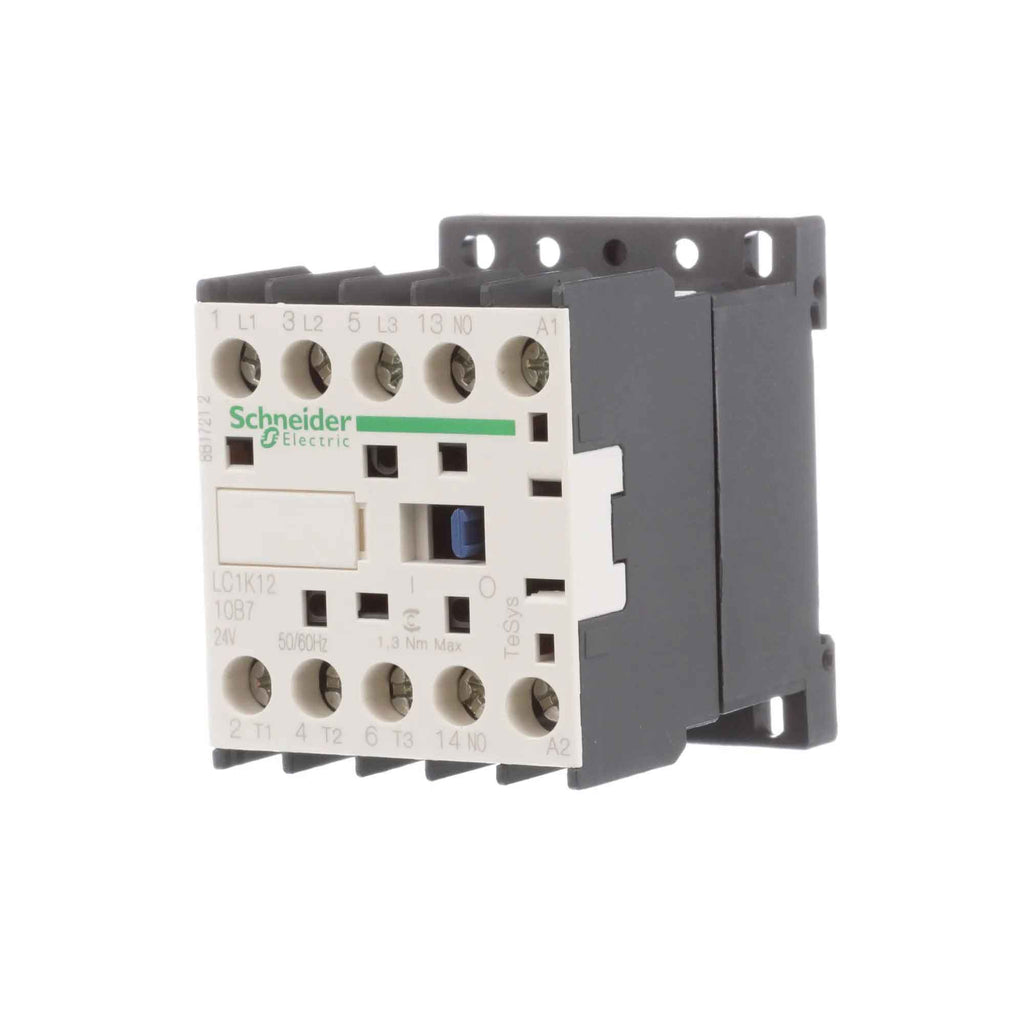

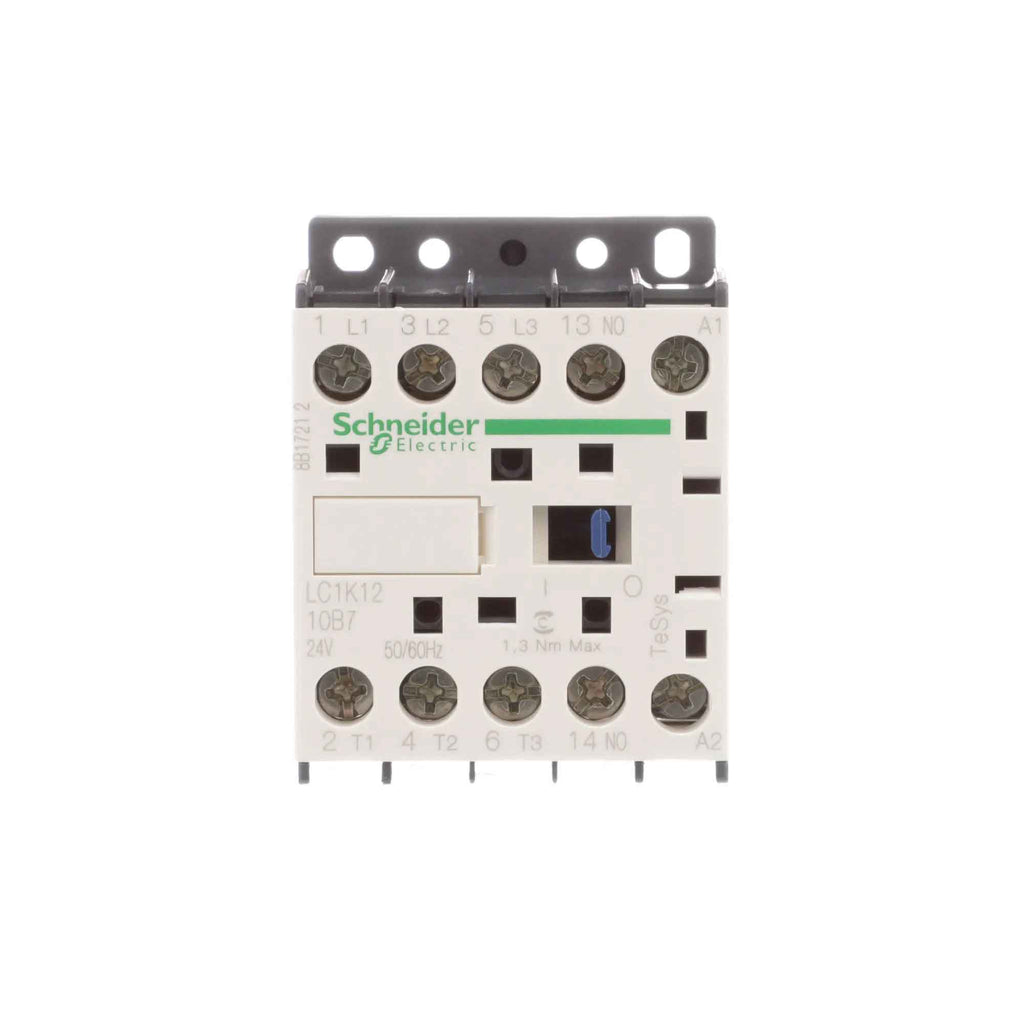

LC1K1210B7 is a compact 3-pole TeSys K contactor from Schneider Electric designed for motor control applications with a 24V AC coil and 1NO auxiliary contact. This contactor features a 12A AC-3 rating, suitable for motor loads up to 5.5kW at 400V. It is built for reliable operation in general-duty environments and offers easy DIN rail or panel mounting. The device is rated for up to 600V power circuits and includes touch-safe terminals for added safety.

• 3 poles
• 12A AC-3 rating
• 24V AC coil
• 1 NO auxiliary contact
• 600V power circuit
• UL 508 listed
• IP20 touch-safe terminals

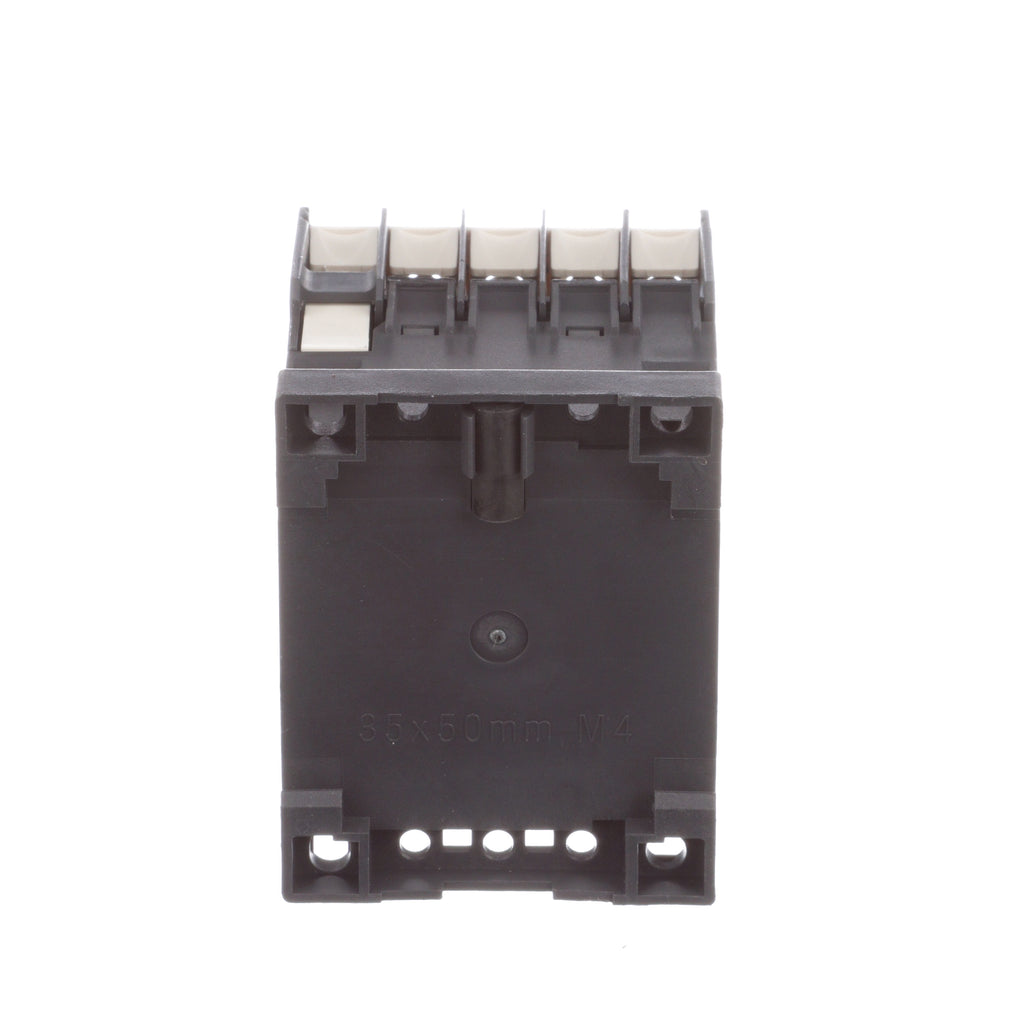

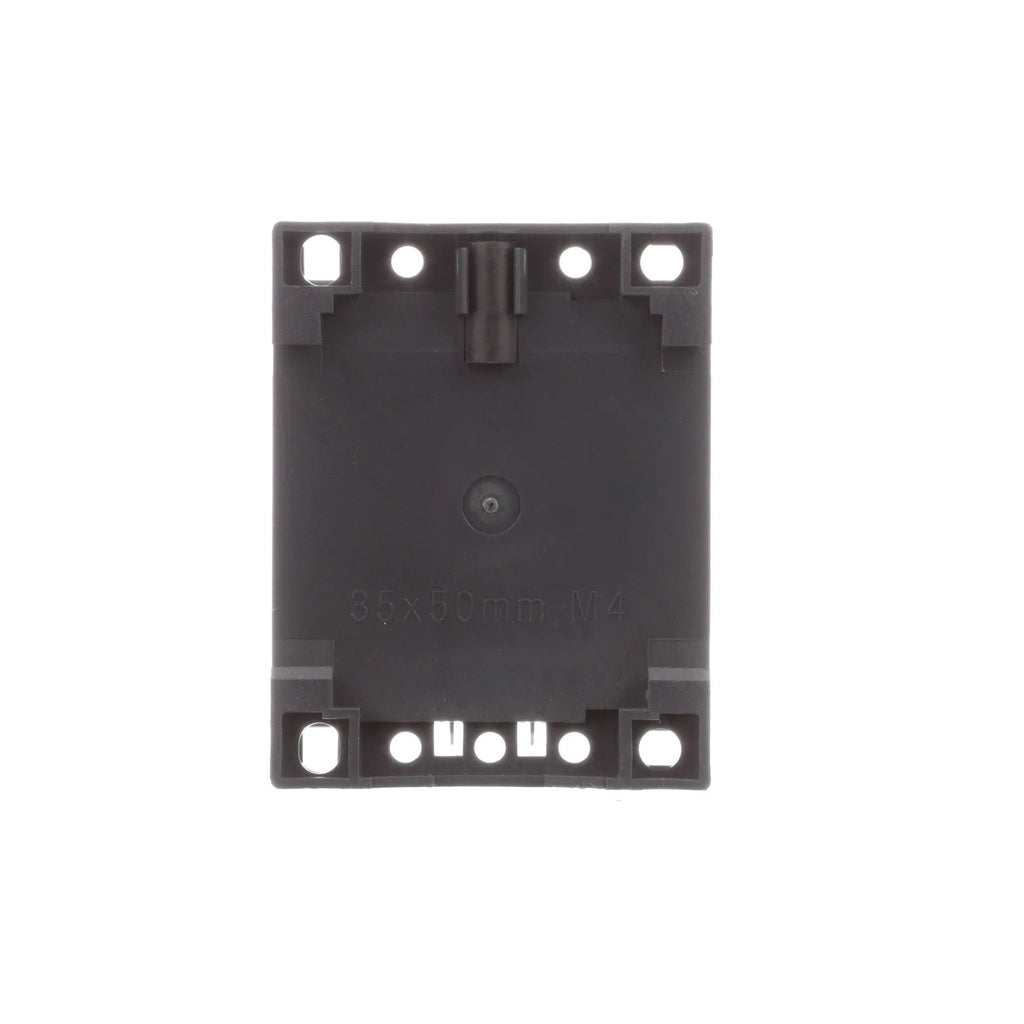

• 35mm DIN rail or panel mount
• Compact size: 45 x 57 x 58 mm
• Operating temperature: -25 to 50°C
• Rated impulse withstand voltage: 8 kV
• Overvoltage category III

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1K1210B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 20A
• Coil Voltage Minimum : 24
• Mounting : Plate
• Frequency : AC 50/60 Hz

Product Data

• UPC : 038911078974
• GTIN : 03389110789744
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.39
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
