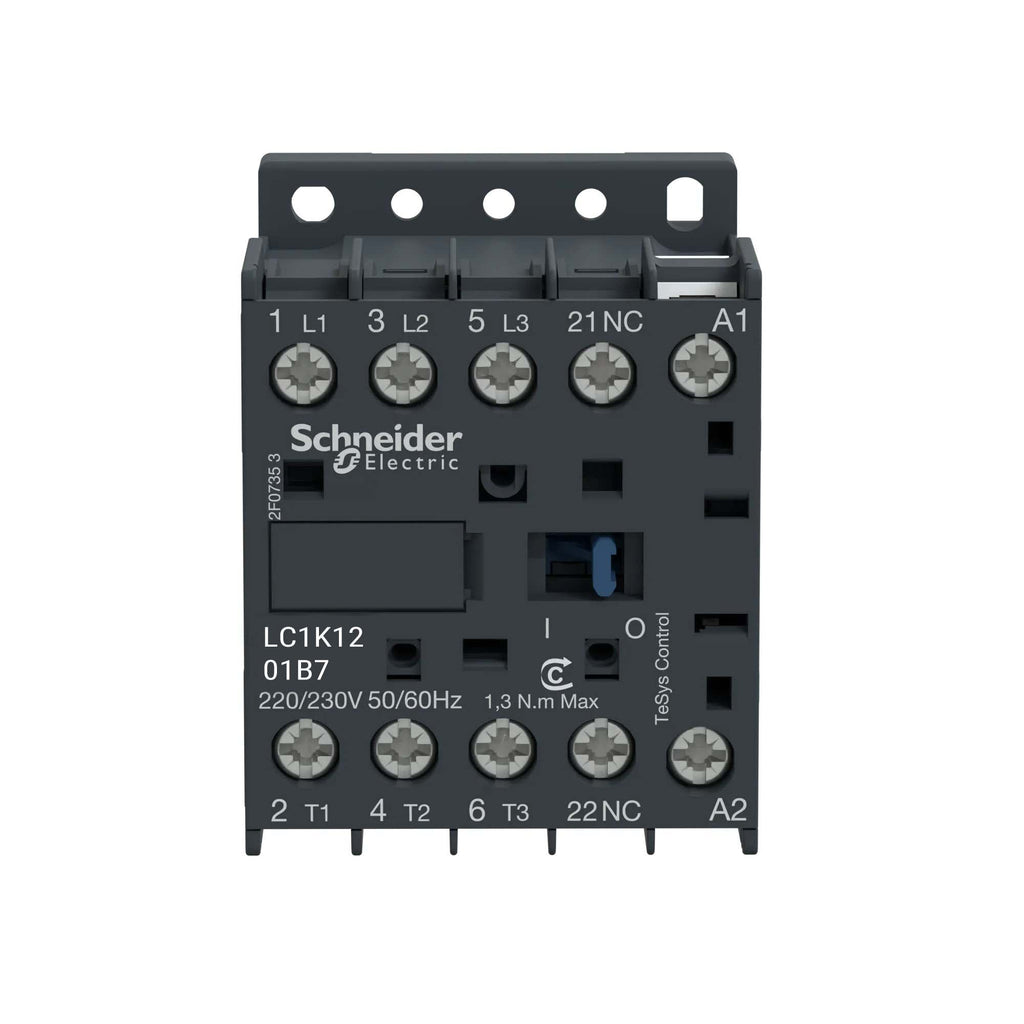

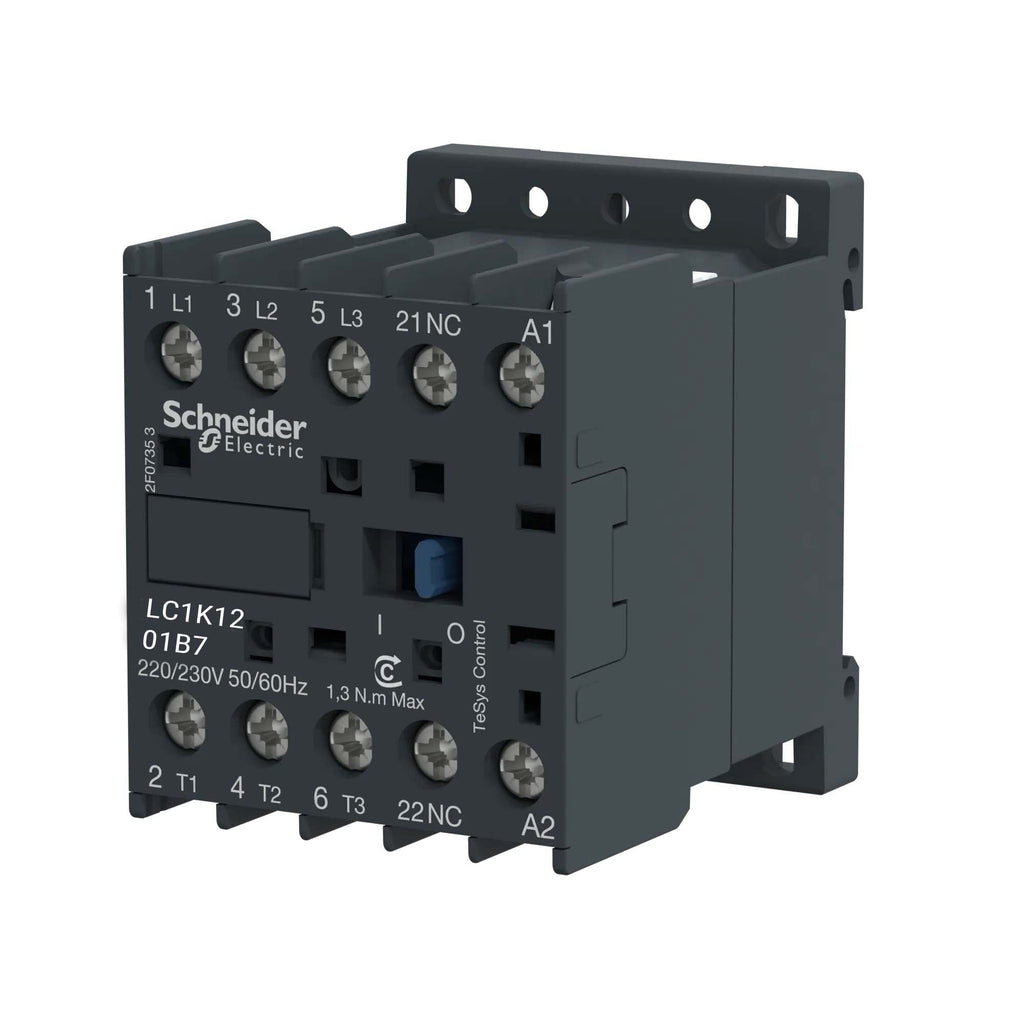

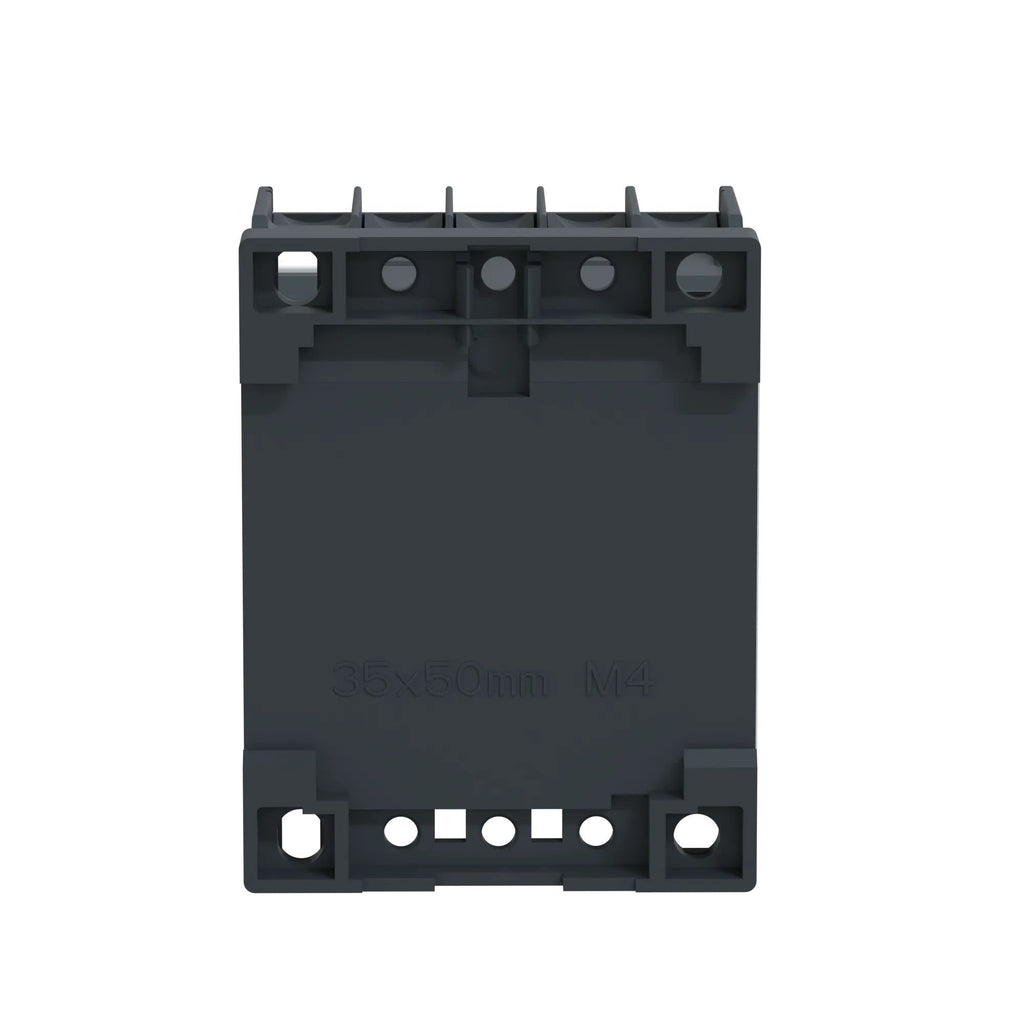

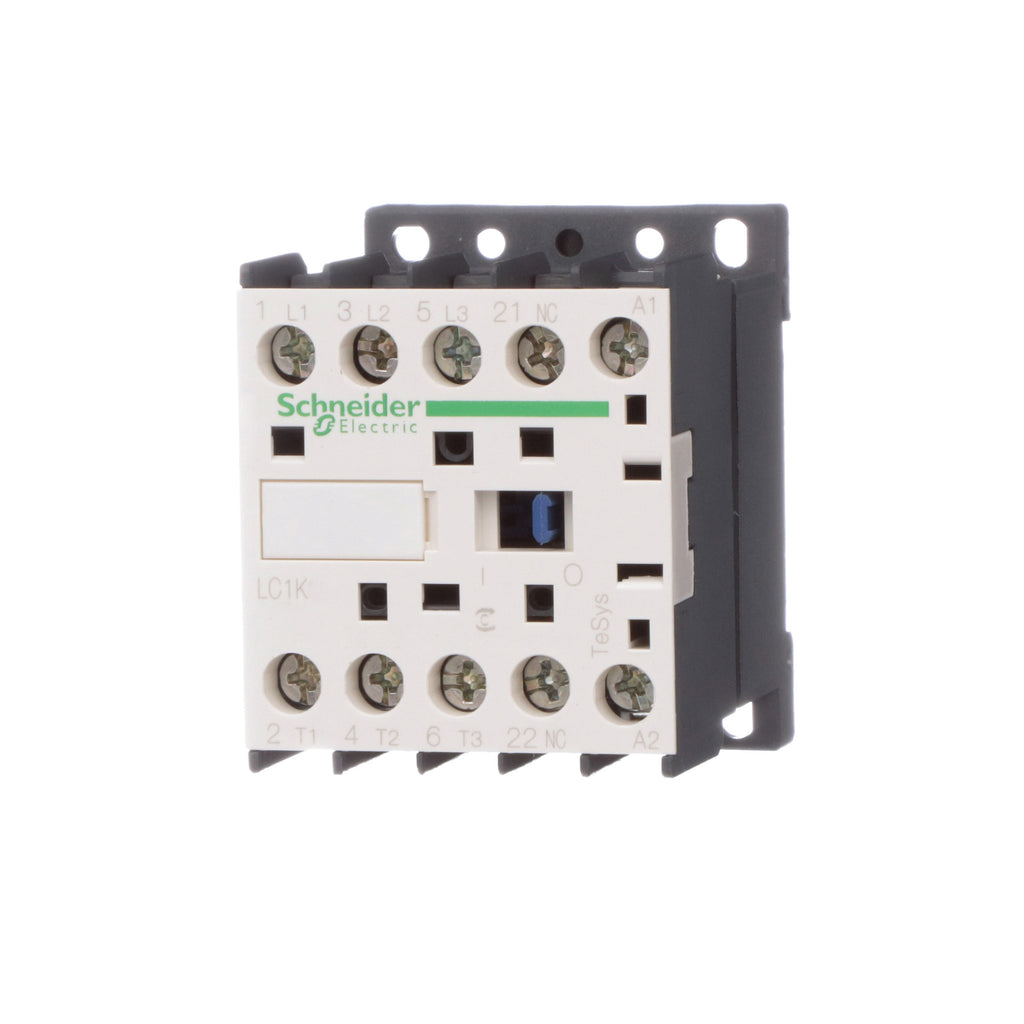

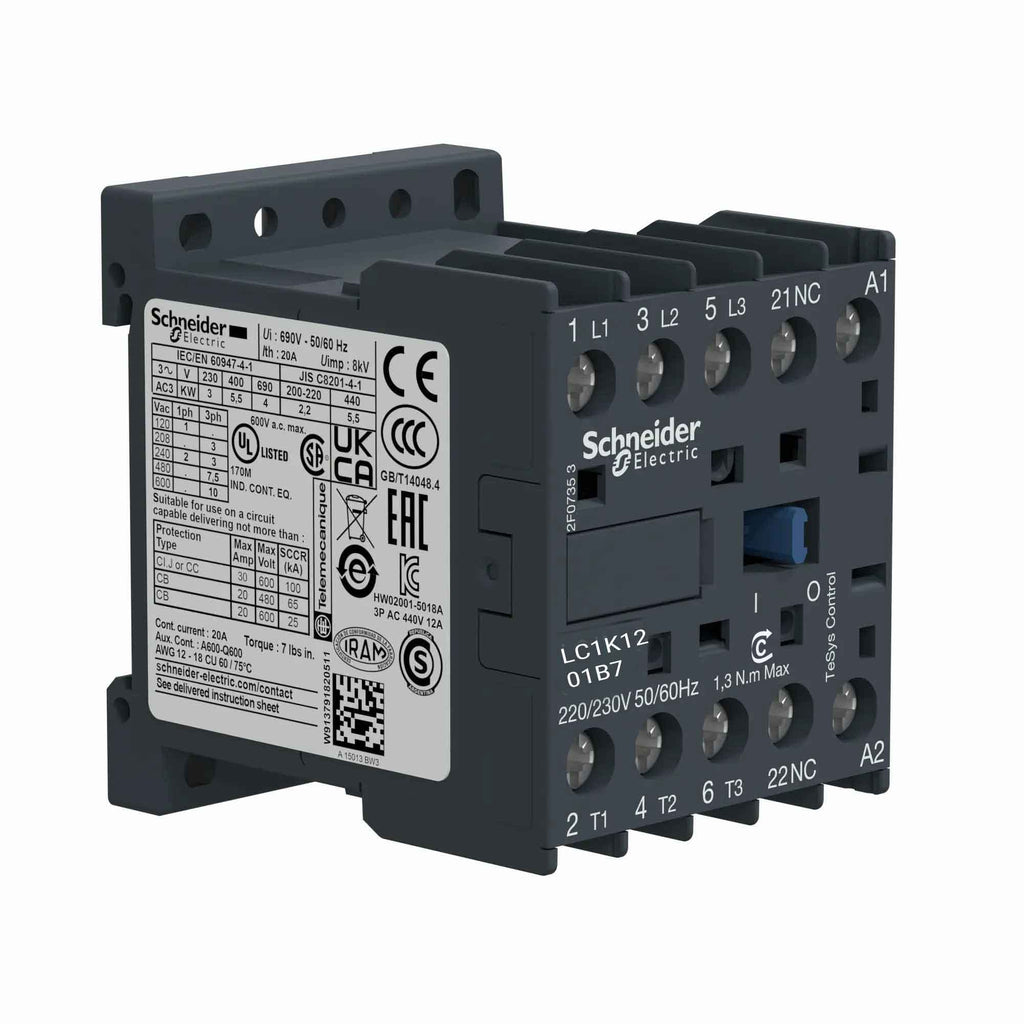

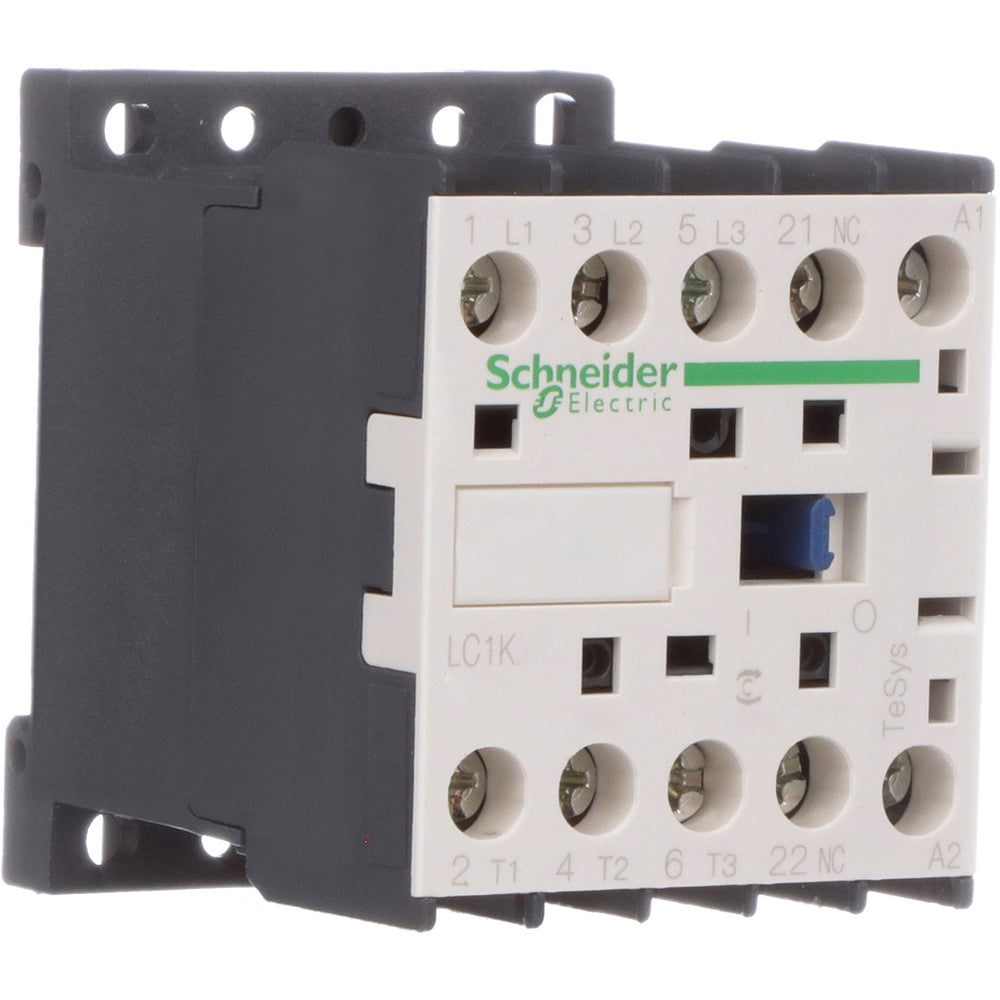

LC1K1201B7 - Schneider Electric 12A 3-Pole TeSys K Motor Contactor 24V AC Coil 690V AC-3

LC1K1201B7

LC1K1201B7 is a Schneider Electric TeSys K series 3-pole motor contactor with a 12 ampere rating and a 24V AC coil designed for reliable motor control applications.LC1K1201B7 features three normally open main contacts and one normally closed auxiliary contact, suitable for AC-3 duty up to 690V and 5.5 kW at 400V. It supports DIN rail or panel mounting with screw terminals and offers a compact design with IP20-rated touch-safe terminals.

• Contactor type: 3-pole (3 NO) with 1 NC auxiliary contact
• Rated current: 12 A AC-3
• Control coil voltage: 24 V AC
• Rated operational voltage: up to 690 V AC
• Power rating: 5.5 kW at 400 V
• Mounting: DIN rail or panel mount with screws
• Terminal type: screw terminals
• Operating temperature range: -25 to 50 °C
• Insulation voltage: 690 V
• Series/Frame: TeSys K
• Auxiliary contacts: 1 normally closed (NC)
• Certifications: UL, CSA, VDE compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1K1201B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : AC 50/60 Hz

Product Data

• UPC : 038911078962
• GTIN : 03389110789621
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.392
• Certification : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
