Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1K0910T7

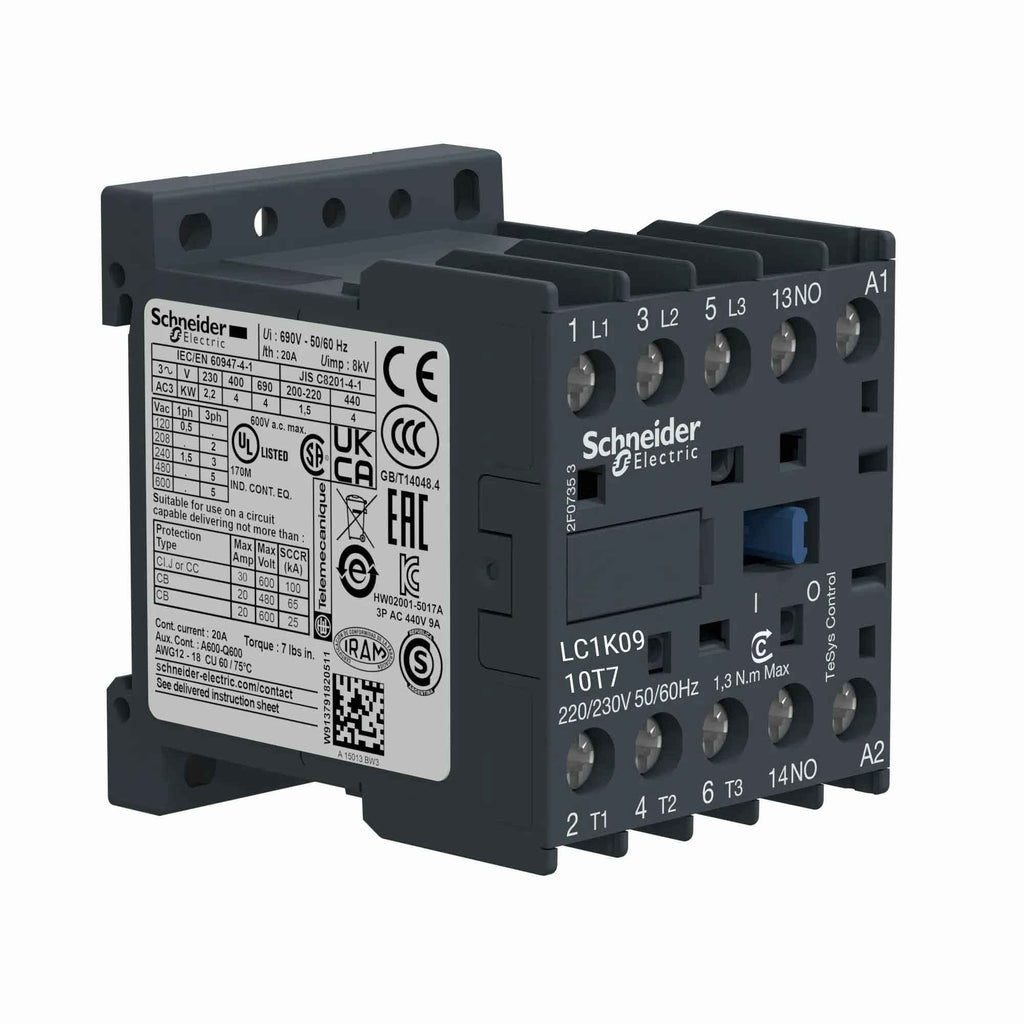

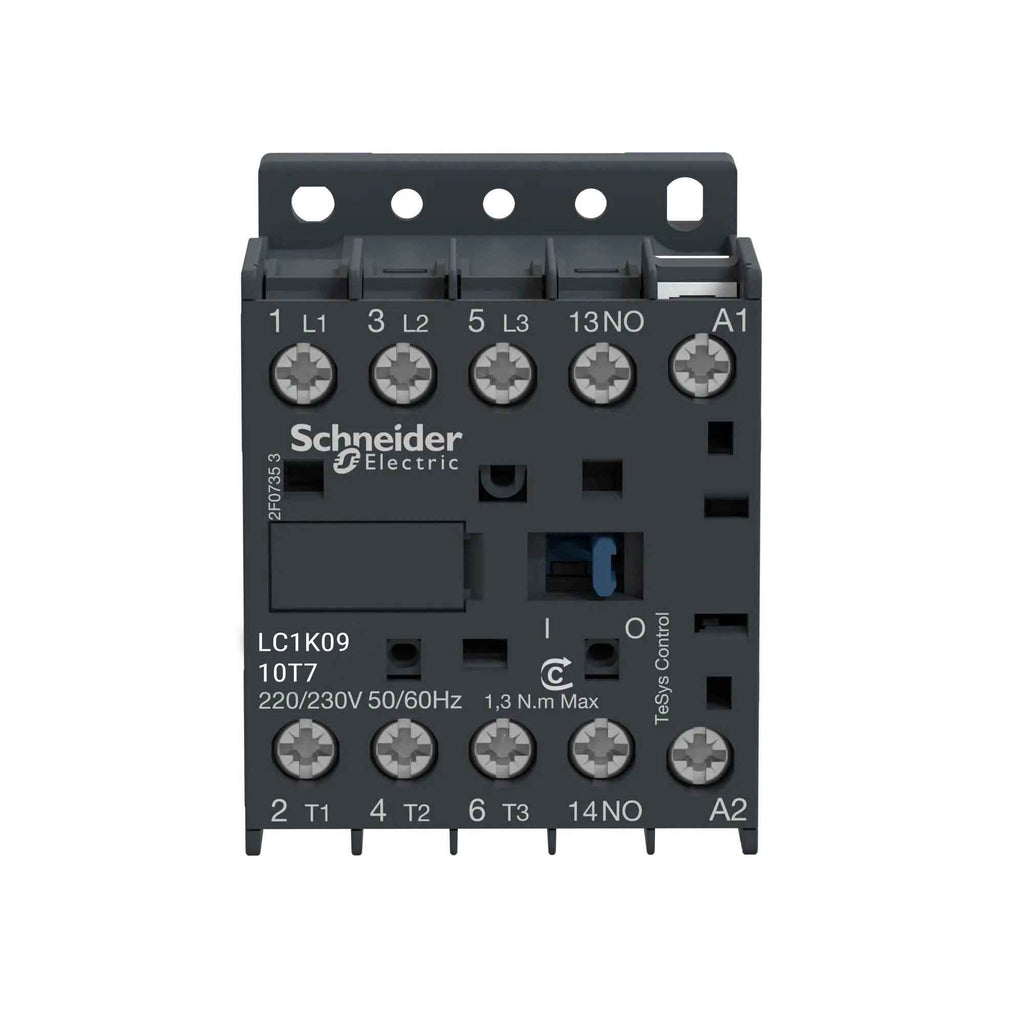

LC1K0910T7 is a three-pole TeSys K contactor from Schneider Electric designed for motor control applications with a 480V AC coil and 1 NO auxiliary contact. This IEC-rated contactor delivers reliable performance for AC-3 duty cycle applications up to 440V and 9A, making it suitable for controlling three-phase motors in industrial environments. The unit features screw terminals and mounts directly on standard 35mm DIN rail for flexible installation in control panels and motor starter assemblies. Key Specifications
- Part Number: LC1K0910T7
- Manufacturer: Schneider Electric
- Poles: 3 (3NO)
- Rated Current: 9A
- Rated Voltage: 440V AC-3
- Coil Voltage: 480V AC
- Auxiliary Contacts: 1 NO
- Motor Power Rating: 3 HP at 230V, 5 HP at 460V (3-phase)
- Terminal Type: Screw terminals

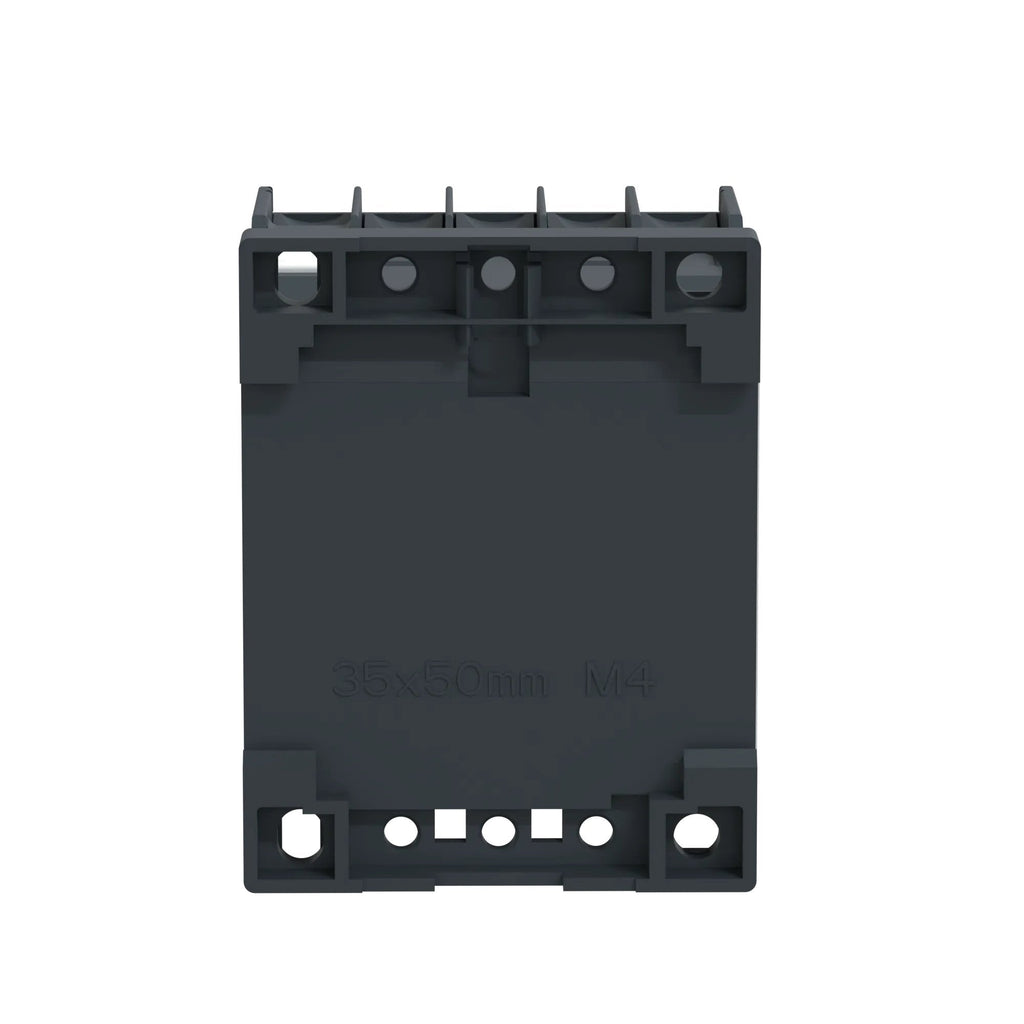

- Mounting: 35mm DIN rail
- Series: TeSys K
Specifications
- Part Number: LC1K0910T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 20
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 480
Product Data
- UPC : 785901653486
- GTIN : 03389118014275
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.397
- Certification : CB Scheme CCC UL CSA EAC CE UKCA
