Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

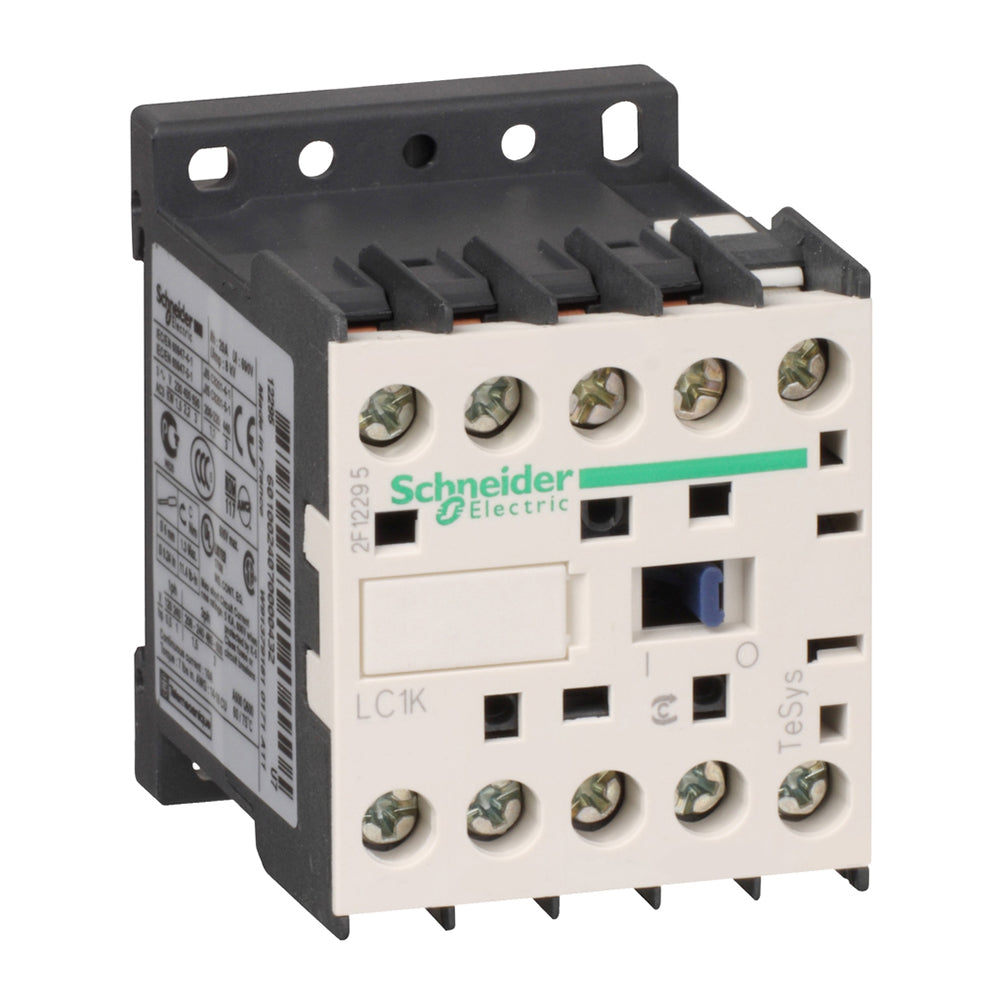

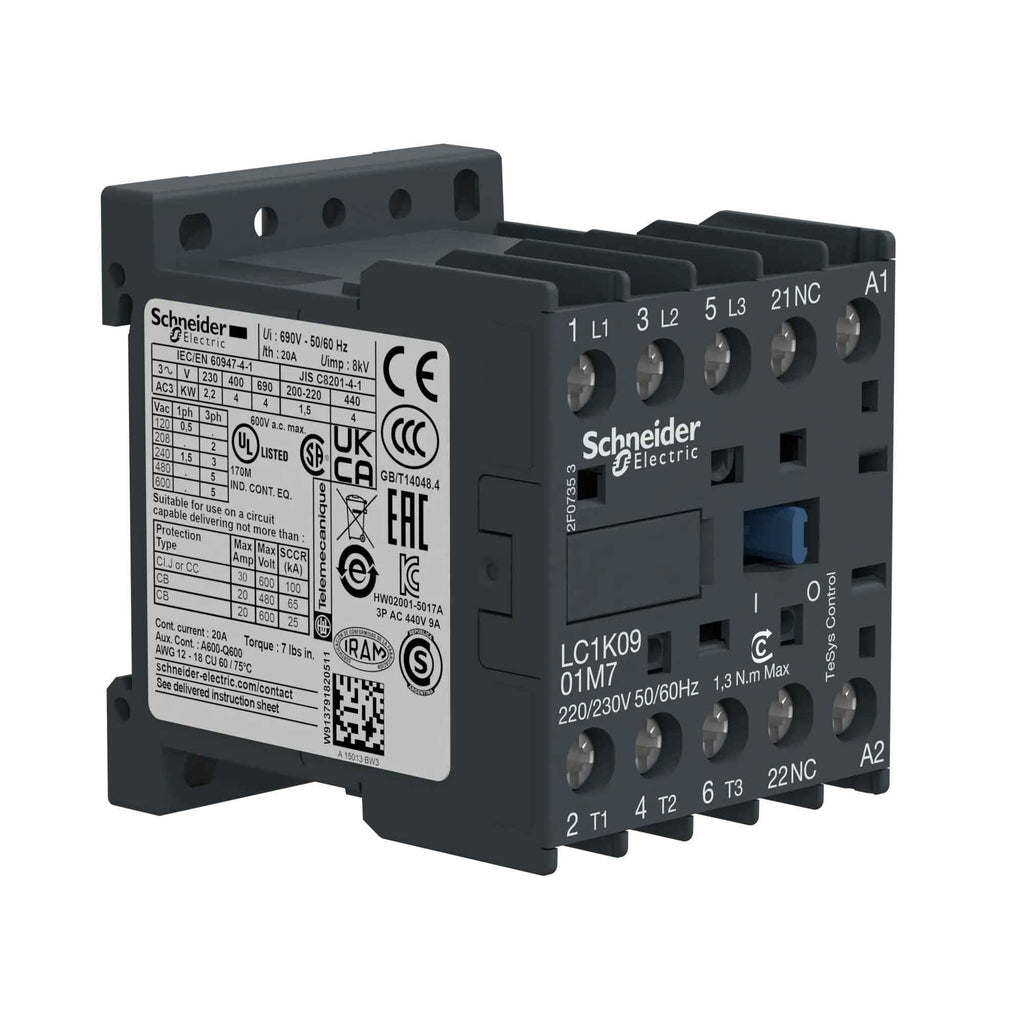

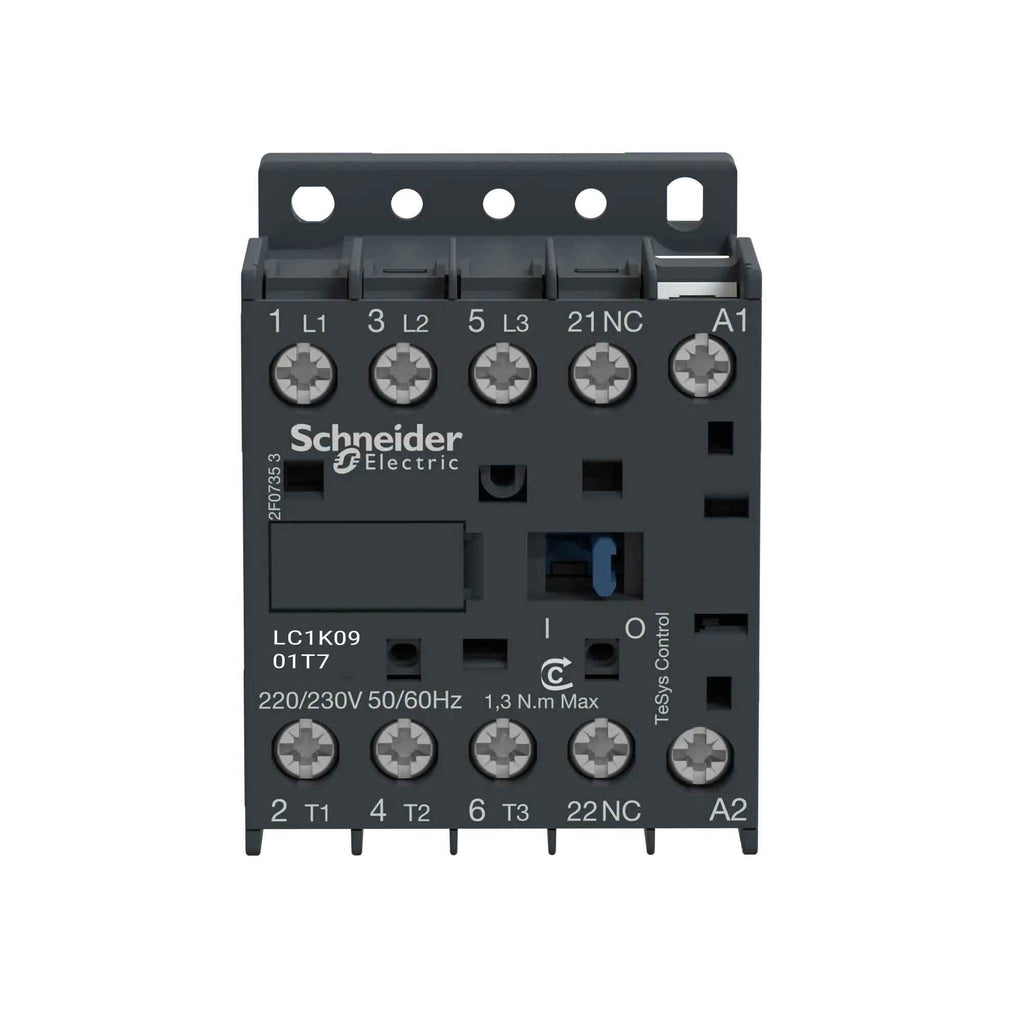

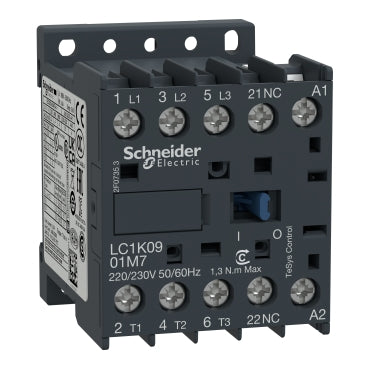

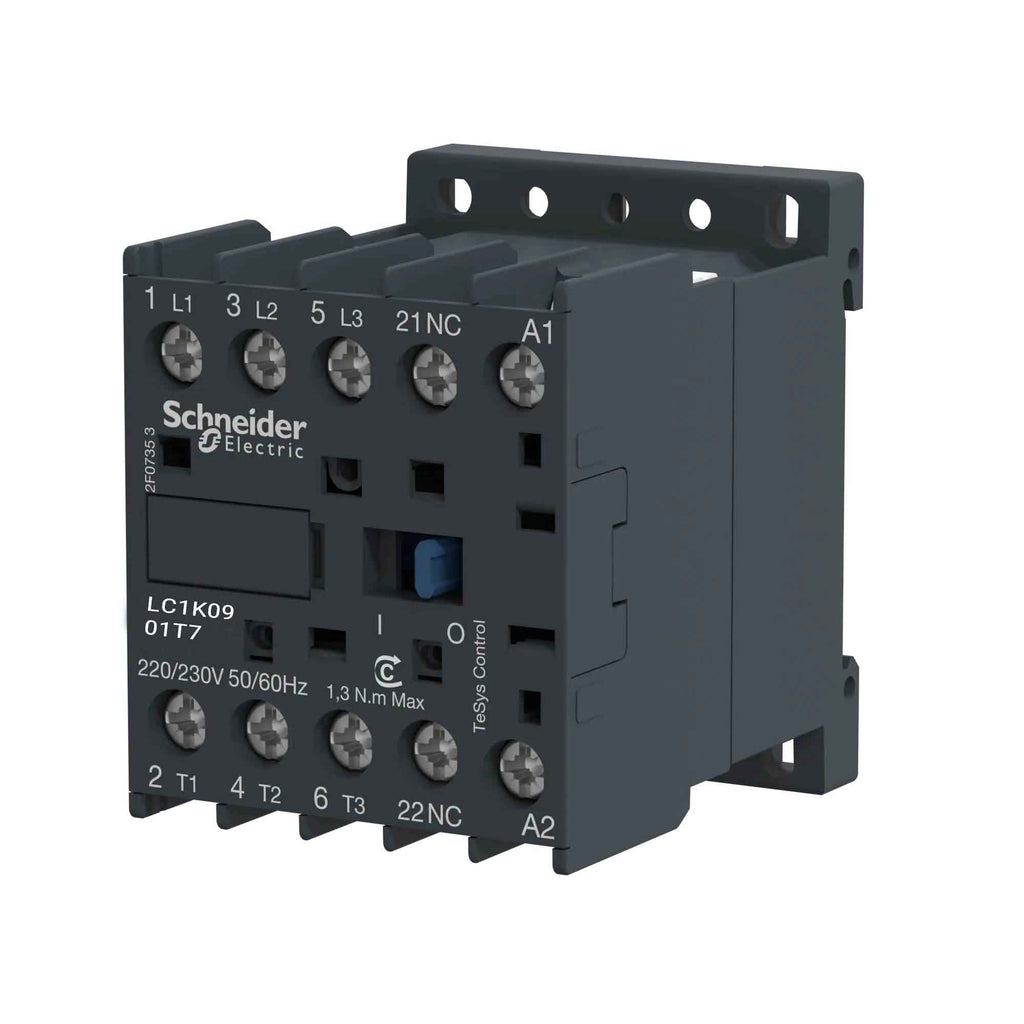

LC1K0901T7
LC1K0901T7 is a TeSys K series contactor designed for reliable motor control applications. This 3-pole contactor features a 480VAC coil and is suitable for use in industrial environments requiring efficient switching and control of motors and other loads.Engineered for durability and performance, the LC1K0901T7 contactor offers a robust solution for motor control up to 9A at 690VAC AC-3, with a 1 NC auxiliary contact. It is compatible with standard 35mm DIN rail mounting and features screw terminals for secure wiring. The contactor is ideal for both motor and non-inductive load control applications.
- Manufacturer: Schneider Electric
- Series: TeSys K
- Poles: 3
- Rated Current: 9A
- Rated Voltage: 690VAC AC-3
- Coil Voltage: 480VAC

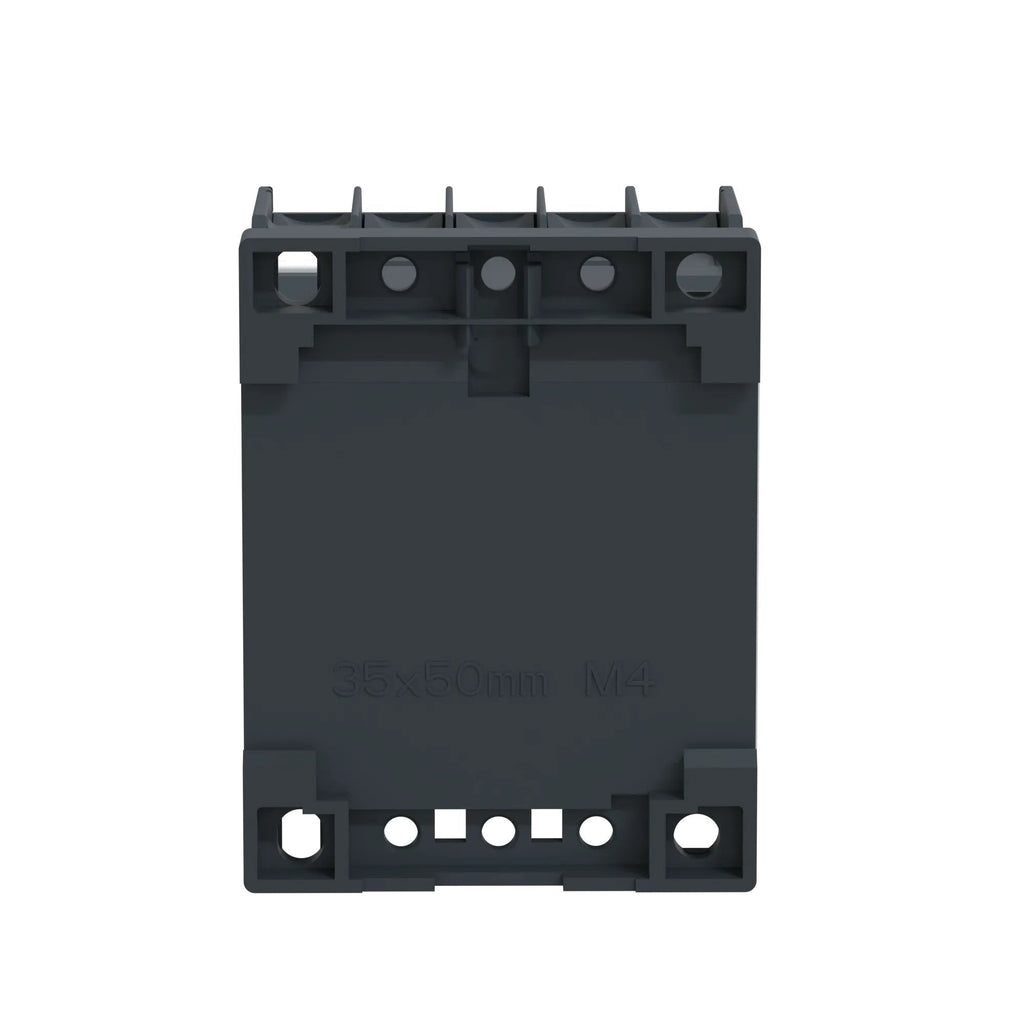

- Mounting Type: DIN Rail
- Terminal Type: Screw
- Application: Motor Control
- Control Type: Non-Reversing
- Number of Auxiliary Contacts: 1 NC
Additional Information
This TeSys K Miniature Contactor includes a 480 VAC coil.
Specifications
- Part Number: LC1K0901T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 20
- Poles : 3
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 480
- Frequency : AC 50/60 Hz
Product Data
- UPC : 38911801472
- GTIN : 03389118014725
- Country of Origin : France
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.4
- Certification : CSA-UL,V1 UL 94-REQUIREMENT 2 NF F 16-101-REQUIREMENT 2 NF F 16-102
