Product Info
- Manufacturer:Telemecanique||Schneider Electric
- Sub-Category:Contactor
Description
LC1K0610U7

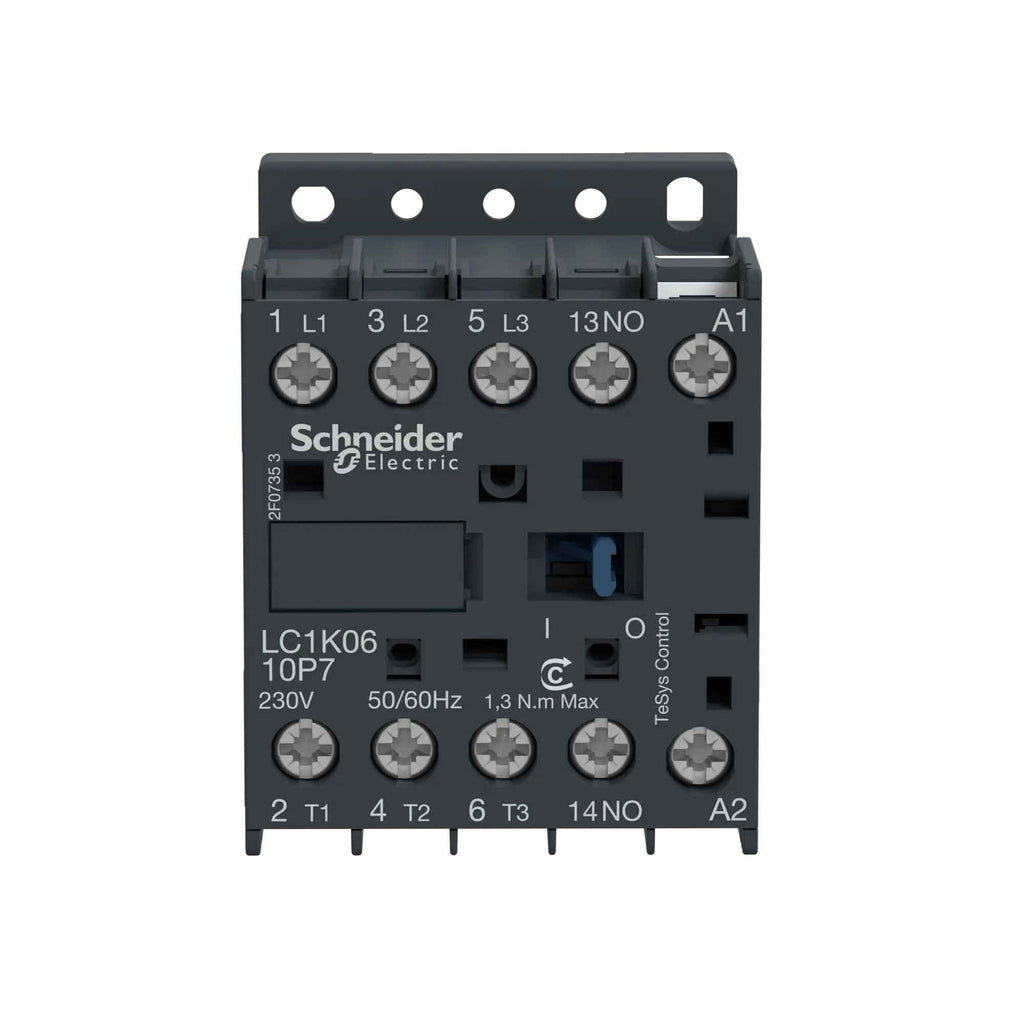

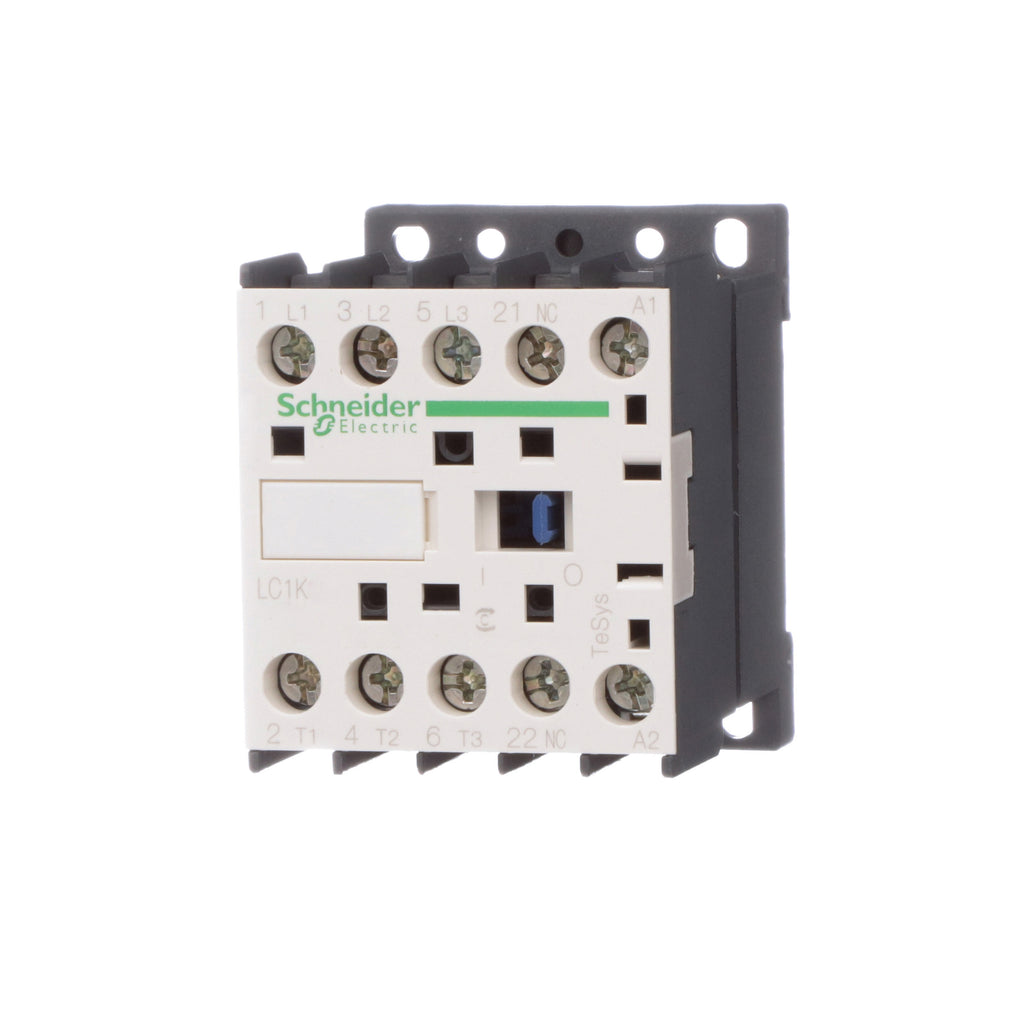

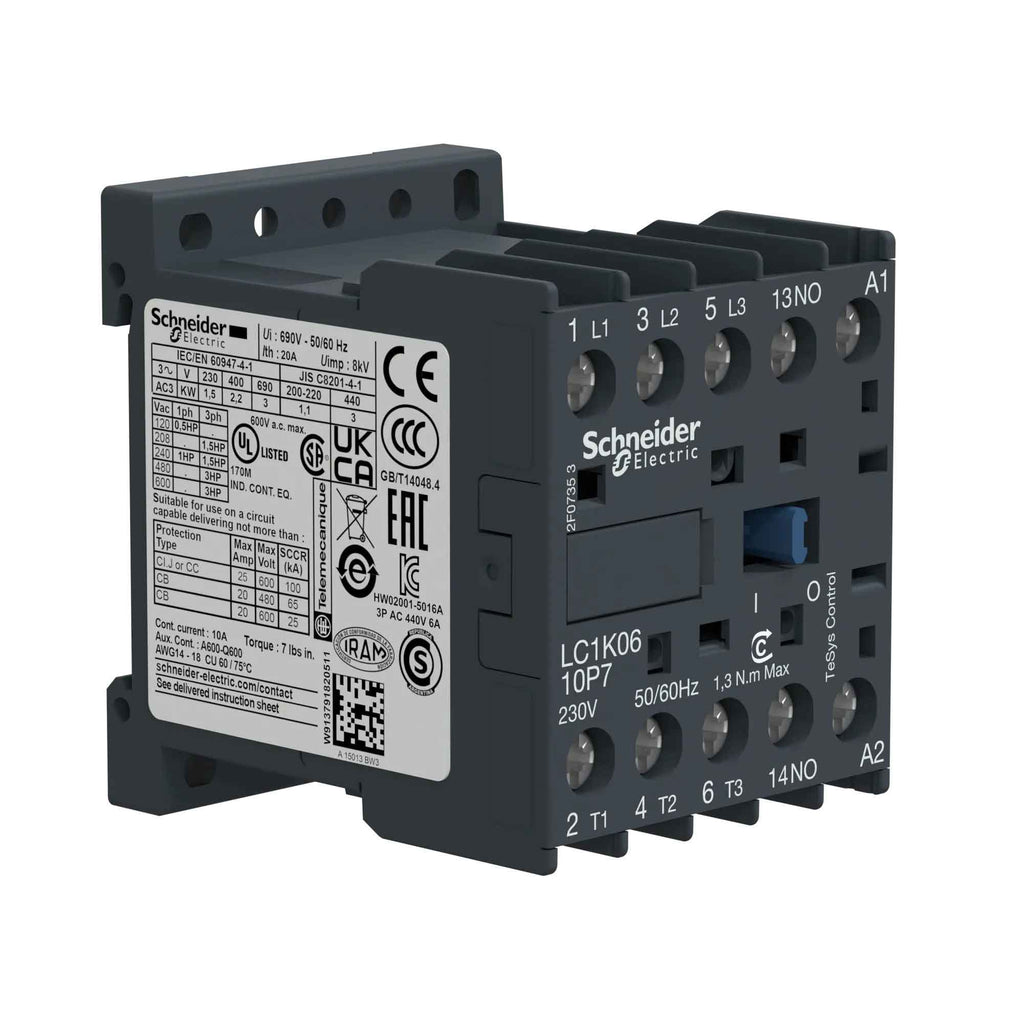

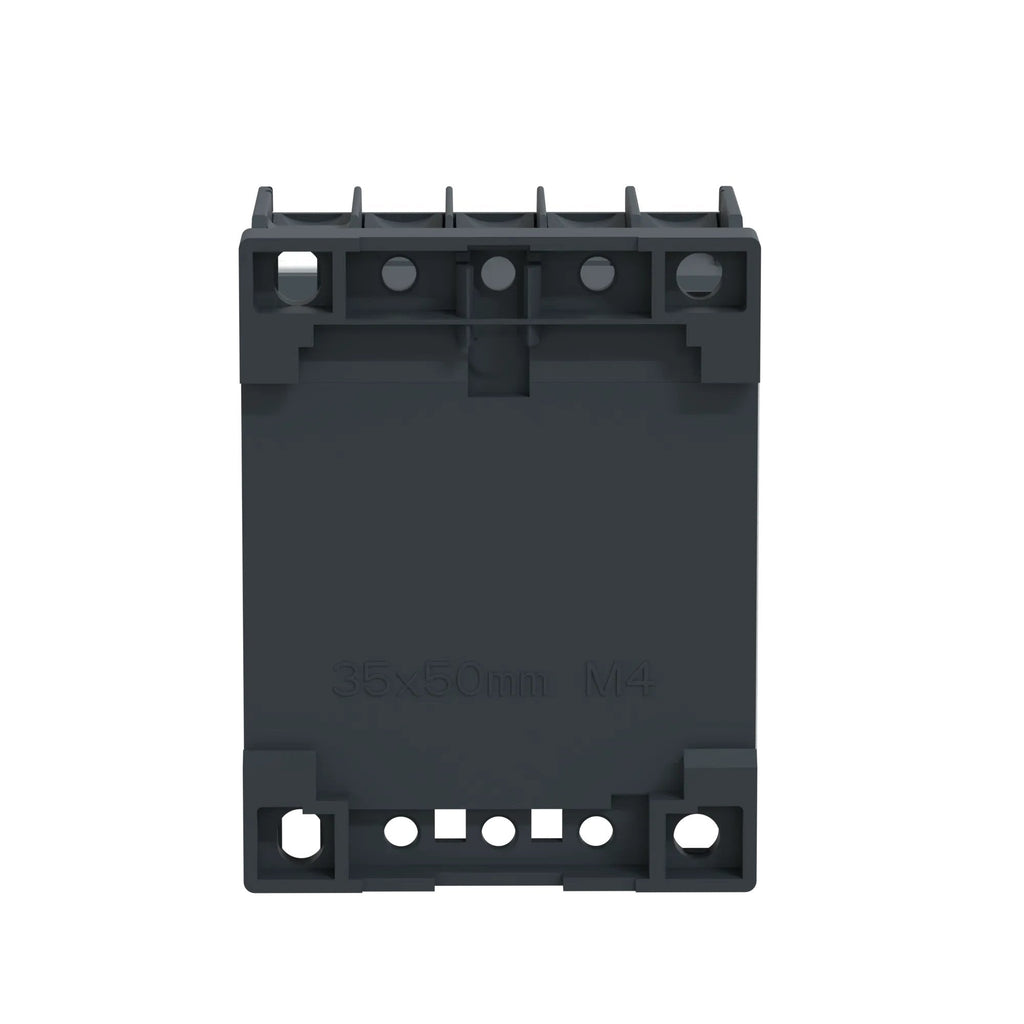

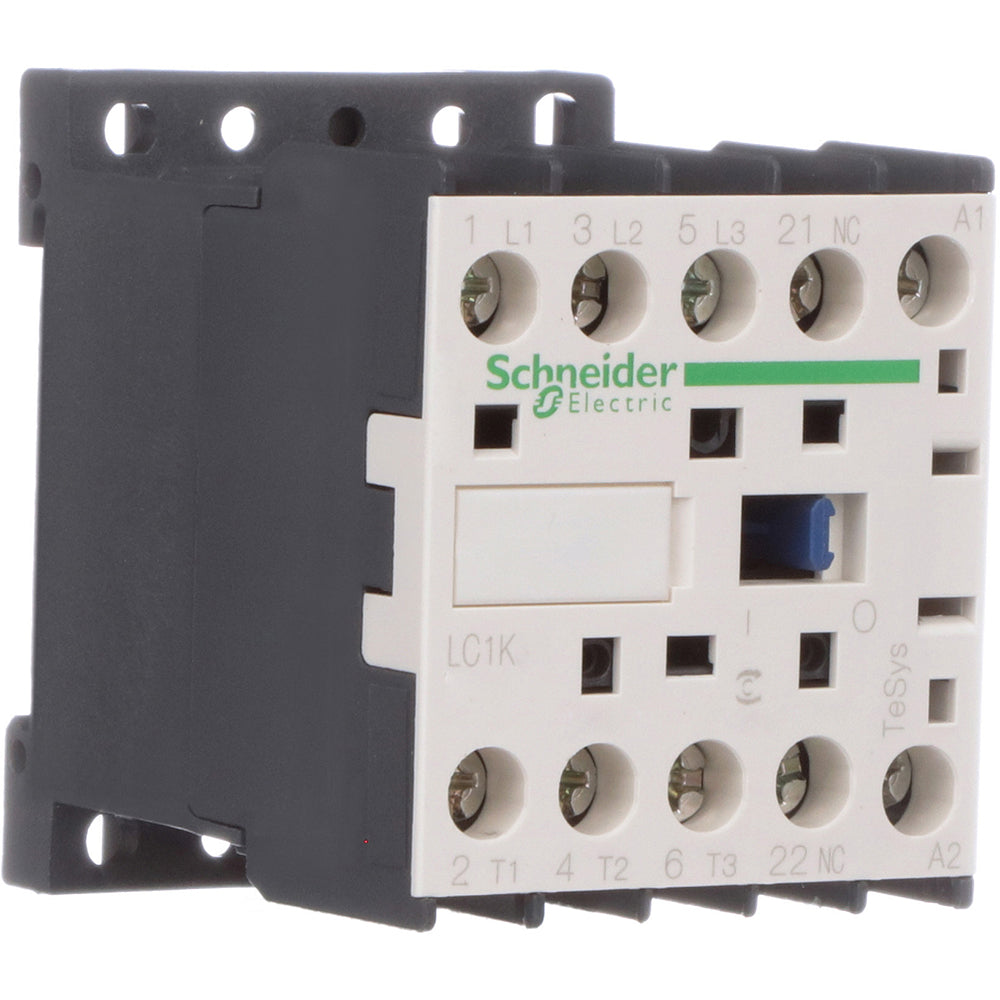

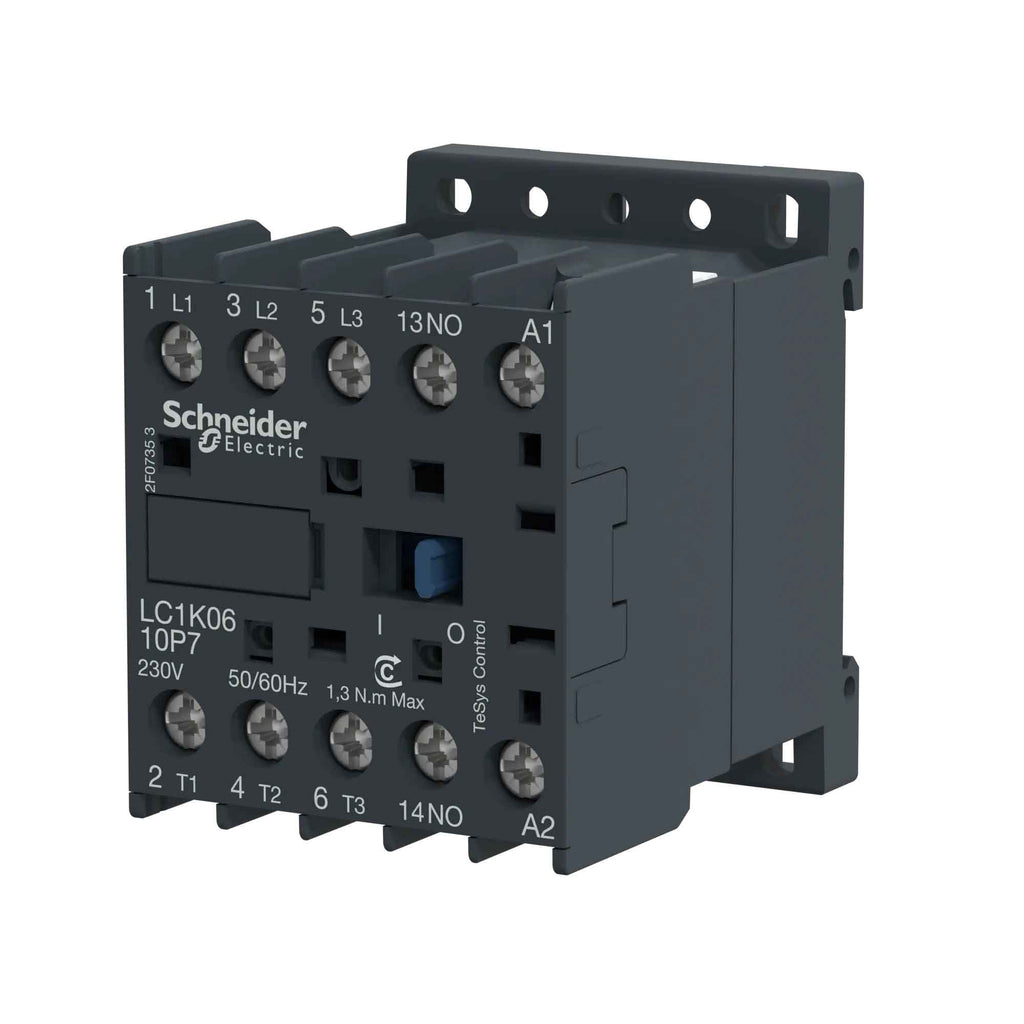

LC1K0610U7 is a Telemecanique by Schneider Electric 3-pole motor control contactor designed for reliable switching in industrial applications. This contactor features a 6A rated operational current and is suitable for AC-3 and AC-4 utilization categories. The LC1K0610U7 contactor is built for motor control duties with a 230-240VAC control circuit and a 690VAC rated operational voltage for the power circuit. It offers a robust design with screw clamp terminals and supports both rail and plate mounting for flexible installation. The contactor includes one instantaneous normally open auxiliary contact and is engineered for high reliability and durability in demanding environments.
- Manufacturer: Schneider Electric Telemecanique
- Part Number: LC1K0610U7
- Rated Operational Current: 6A
- Rated Operational Voltage: 690VAC
- Control Circuit Voltage: 230-240VAC
- Poles: 3P
- Mounting Type: Rail, Plate
- Utilization Category: AC-3, AC-4
- Motor Power: 1.5kW at 220-230VAC, 2.2kW at 380-415VAC
- Heat Dissipation: 1.3W
- Electrical Durability: 1.3 million cycles at 6A AC-3
- Hold-in Power Consumption: 4.5VA
Additional Information
This TeSys K Miniature Contactor includes a 230-240 VAC coil.
Specifications
- Part Number: LC1K0610U7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 20
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 3 hp
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 6A Full Load Amps-Resistive 15A
- Mounting : Rail
- Frequency : AC 50/60 Hz
Product Data
- UPC : 038911048769
- GTIN : 03389110487695
- Country of Origin : Indonesia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.39
- Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
