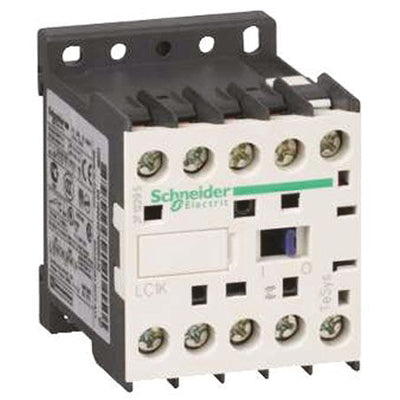

LC1K0610T7 - Schneider Electric TeSys K 3-Pole 6A 480VAC Motor Control Contactor

LC1K0610T7

LC1K0610T7 is a Schneider Electric TeSys K IEC contactor designed for motor control applications with a 3-pole, 3NO contact configuration and 480VAC coil voltage. This non-reversing contactor delivers reliable performance in industrial motor control systems with a maximum load current of 6A at 690V AC-3 utilization category, providing 3 kW power rating at 660 to 690 VAC. The unit features screw clamp terminals for secure connections, operates at 50/60 Hz frequency, and includes 1 NO auxiliary contact for signaling circuits. Built for durability with 3600 operating cycles per hour capability and operating temperature range from -25 to 50 degrees Celsius, this contactor is ideal for simple control systems and environments sensitive to noise or disturbed mains supplies.

• Part Number: LC1K0610T7
• Manufacturer: Schneider Electric
• Series: LC1K TeSys K
• Poles: 3-Pole
• Contact Configuration: 3NO with 1 NO Auxiliary Contact
• Coil Voltage: 480VAC
• Maximum Load Current: 6A
• Rated Voltage: 690V AC
• Utilization Category: AC-3
• Terminal Type: Screw Clamp
• Frequency: 50/60 Hz
• Operating Cycles: 3600 Cycles/hr
• Operating Temperature: -25 to 50 degrees Celsius

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 480 VAC coil.

Specifications

• Part Number: LC1K0610T7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 480
• Full Load Amps : Full Load Amps-Inductive 6A Full Load Amps-Resistive
• Coil Voltage Minimum : 480V

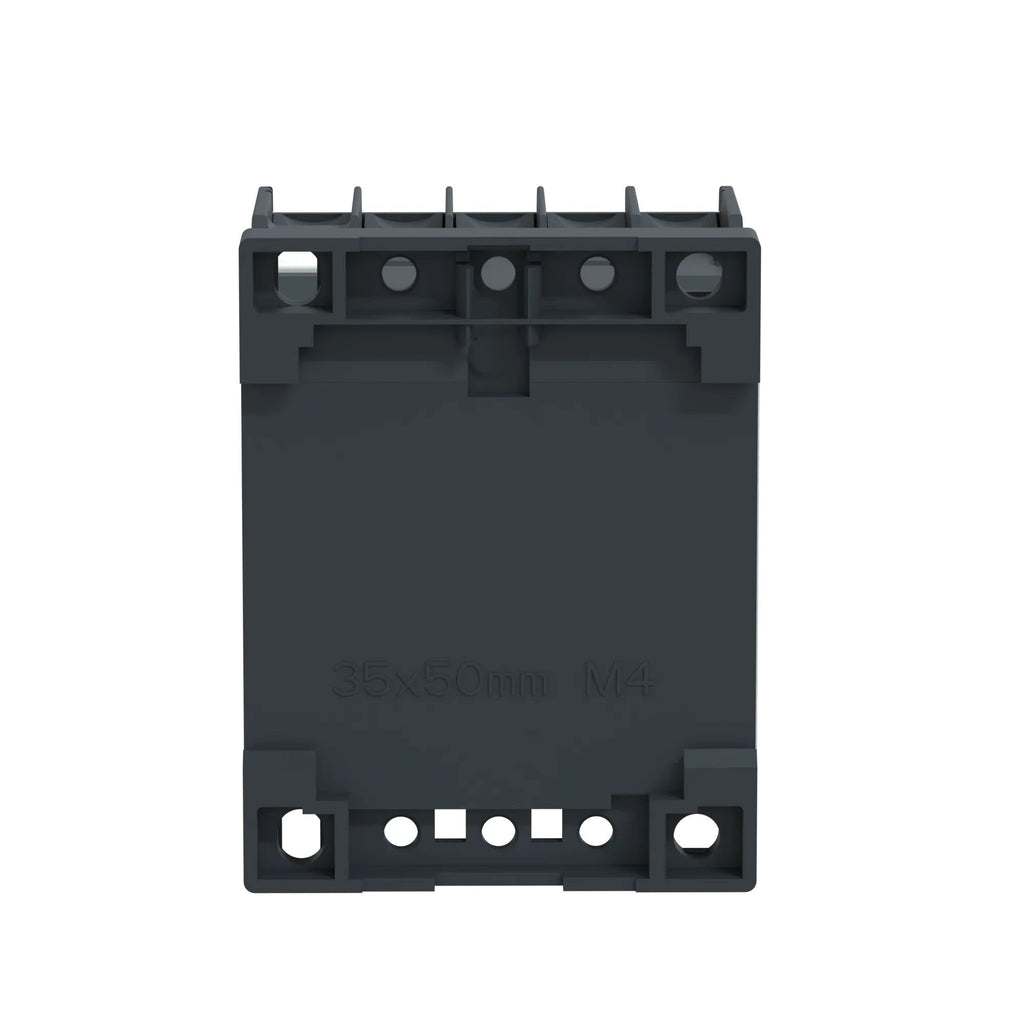

• Mounting : Rail
• Frequency : AC 50/60 Hz

Product Data

• UPC : 38911801540
• GTIN : 03389118015401
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.394
• Certification : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
