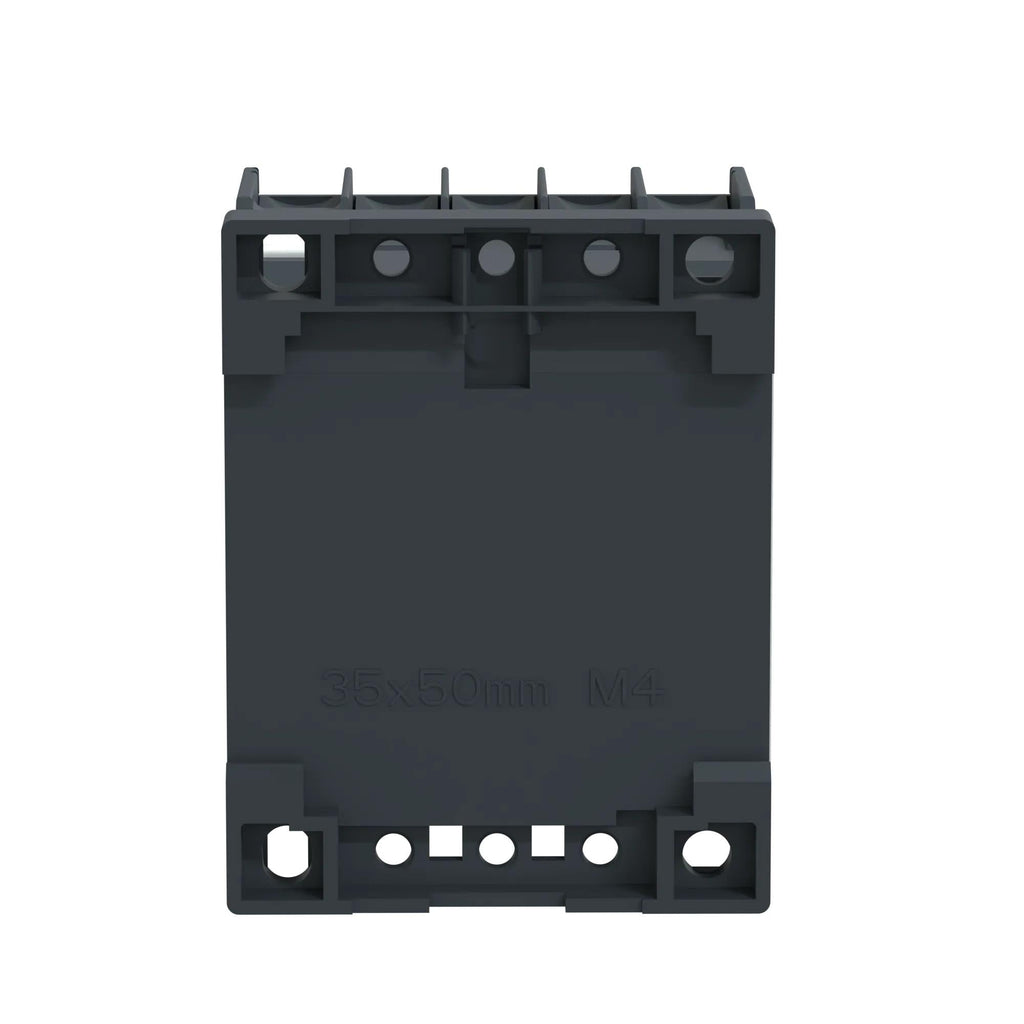

LC1K0610F7 - Square D 6A 3-Pole TeSys K Motor Contactor 110V AC Coil DIN Rail Mount

LC1K0610F7

LC1K0610F7 is a 3-pole TeSys K motor contactor from Square D designed for motor control applications with a 6 ampere rating and 110V AC coil.This compact contactor supports AC-3 utilization category up to 440V and is rated for 2.2 kW motor power at 400V AC. It features 3 normally open main contacts and 1 normally open auxiliary contact, suitable for DIN rail or panel mounting. The device complies with IEC, UL, CSA, CCC, and other international standards, and is RoHS compliant. It offers screw clamp terminals and is optimized for simple power applications.

Key Specifications
• Amperage: 6 A (AC-3)
• Voltage: Rated operational voltage up to 690 V AC
• Poles: 3 poles (3 NO main contacts)
• Auxiliary Contacts: 1 NO built-in
• Coil Voltage: 110 V AC 50/60 Hz
• Mounting Type: DIN rail and panel mount compatible
• Motor Power Rating: 2.2 kW at 400 V AC
• Standards: IEC 60947, UL, CSA, CCC, RoHS compliant
• Interrupt Rating: Suitable for AC-3 and AC-4 utilization categories
• Series/Frame: TeSys K

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 110 VAC coil.

Specifications

• Part Number: LC1K0610F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 120
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Aux Contacts : 3 NO
• Protection : Magnetic Only
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901883272
• GTIN : 00785901883272
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.394
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
