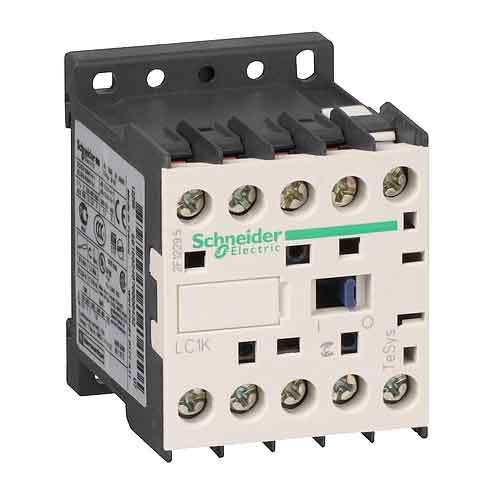

LC1K0601T7 - Schneider Electric TeSys K 3P 6A 480VAC Coil Contactor 3NO 1NC Auxiliary IP20

LC1K0601T7

LC1K0601T7 is a compact 3-pole TeSys K contactor from Schneider Electric designed for motor control applications. This contactor features a 480VAC coil, 3NO main contacts, and 1NC auxiliary contact for reliable switching and control. The LC1K0601T7 is engineered for industrial and infrastructure use, offering a rated operational current of 6A at up to 440VAC (AC-3), with a contact rating of 20A for AC-1. It provides screw clamp terminal connections for secure wiring and is rated for 50/60 Hz frequency. The contactor is built with a robust design for demanding environments and features an IP20 degree of protection.

• Part Number: LC1K0601T7
• Manufacturer: Schneider Electric
• Series: TeSys K
• Number of Poles: 3
• Main Contact Configuration: 3NO
• Auxiliary Contact: 1NC
• Coil Voltage: 480VAC
• Rated Operational Current: 6A AC-3 (up to 440VAC)
• Contact Rating: 20A AC-1
• Frequency: 50/60 Hz
• Terminal Type: Screw Clamp
• Protection Rating: IP20
• Operating Temperature: -25°C to 50°C
• Operating Altitude: Up to 2000m without derating
• Operating Rate: 3600 cycles/hour
• Insulation Resistance: >10 MOhm
• Non-overlap Distance: 0.5 mm
• Heat Dissipation: 1.3 W
• Hold-in Power: 4.5 VA
• Inrush Power: 30 VA
• Minimum Switching Voltage: 17 V
• Minimum Switching Current: 5 mA
• Protective Treatment: TC IEC 60068, TC DIN 50016

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1K0601T7
• Manufacturer : Schnieder Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480

Product Data

• GTIN : 00785901328285
• Dimensions : Depth 2.24 in (57 mm) Width 1.77 in (45 mm) Height 2.28 in (58 mm)
• Weight : 1.4
