LC1F500B6 - Telemecanique 3-Pole Motor Contactor 700A 500HP 440V AC-3 TeSys F Series

LC1F500B6

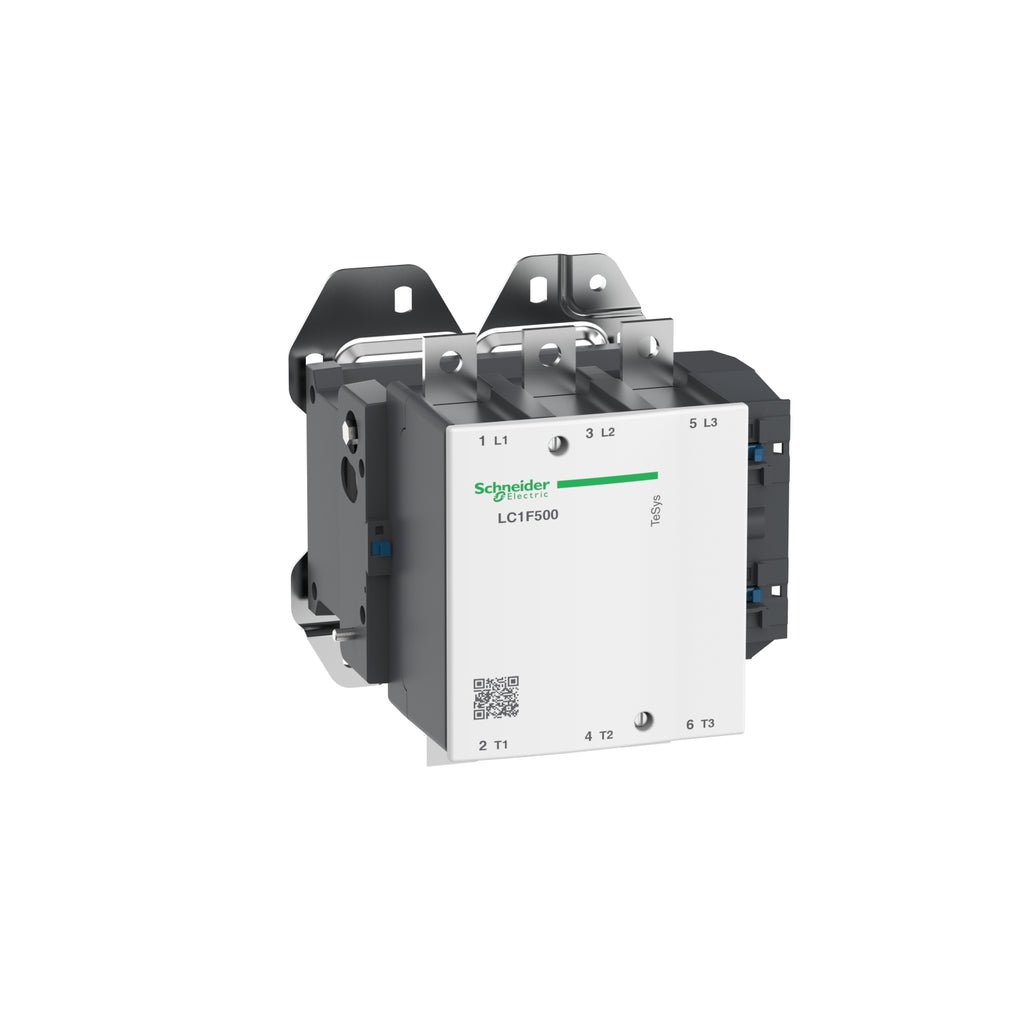

LC1F500B6 is a 3-pole motor contactor from Telemecanique's TeSys F series designed for heavy-duty motor control applications.

This contactor features a 700A rated operational current and supports motor power up to 500 HP at 440V AC under AC-3 utilization category. It is built for high reliability with a mechanical durability of 10 million cycles and can operate at temperatures up to 55°C. The contactor includes 3 normally open power poles and is suitable for use with coil voltages ranging from 48 to 1000V AC or 48 to 440V DC depending on coil type. It offers easy installation and maintenance with a drawer-mounted coil and a large selection of add-on blocks. The device is rated for 1100A with coil LX1/LX9 and supports frequencies from 40 to 400 Hz.

• Manufacturer: Telemecanique
• Series: TeSys F
• Poles: 3 (3 NO)
• Rated operational current: 700A
• Motor power rating: 500 HP at 440V AC (AC-3)
• Rated operational voltage: up to 1000V AC
• Mechanical durability: 10 million cycles
• Coil voltage range: 48–1000V AC or 48–440V DC
• Operating temperature tolerance: up to 55°C
• Mounting type: Drawer-mounted coil
• Interrupt rating: 1100A with coil LX1/LX9

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1F500B6
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys F
• Type : LC1F
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Compatible Frames : TJK,THJK

Product Data

• Weight : 32
