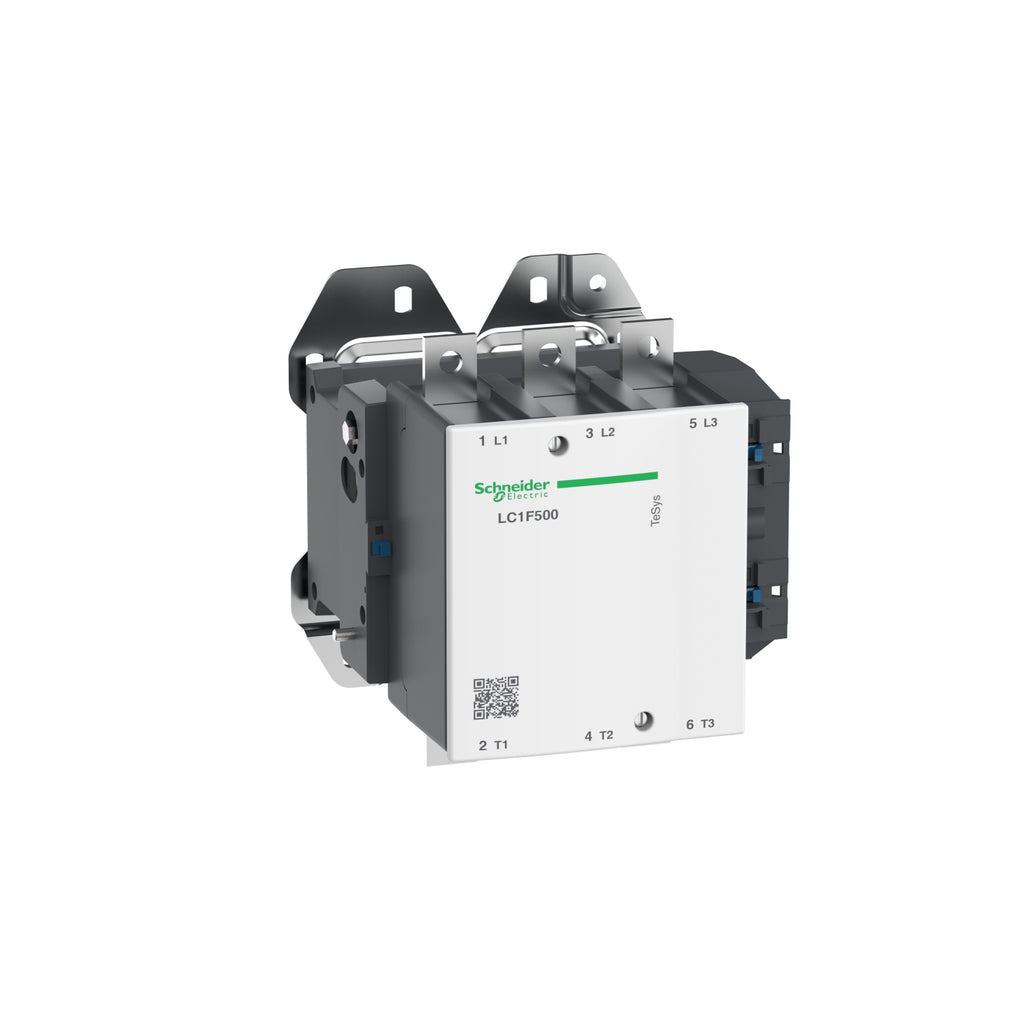

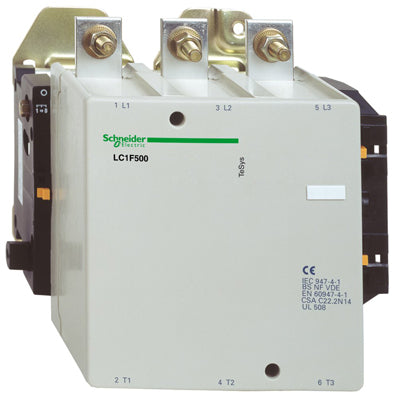

LC1F500 - Schneider Electric TeSys F 3P 3NO 500A 1000V AC-3 Motor Contactor Body No Coil

LC1F500

LC1F500 is a Schneider Electric TeSys F 3-pole (3NO) motor contactor body without coil, designed for demanding motor control applications. This contactor supports flexible coil selection and is suitable for use in industrial environments requiring reliable switching and control. The LC1F500 contactor is rated for AC-3 utilization, with a maximum operational voltage of 1000 V AC and a rated operational current of 500 A at up to 440 V AC. It is engineered for motor applications up to 250 kW at 400 V and features a robust design for high durability and performance.

• 3 poles (3NO)
• Rated operational current: 500 A (AC-3)
• Rated operational voltage: 1000 V AC
• Motor power: 250 kW at 400 V AC
• Control circuit voltage: 48–1000 V AC 40–400 Hz (with LX1/LX9 coil)
• Control circuit voltage: 48–440 V DC (with LX4 coil)
• Power circuit torque: 35 N.m
• Control circuit torque: 1.2 N.m
• Mechanical durability: 10 million cycles
• Inrush power: 1050–1150 VA (AC), 990–1220 VA (DC)
• Heat dissipation: 18 W
• Operating time: 40–75 ms closing, 100–170 ms opening

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1F500
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys F
• Type : LC1F
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120

Product Data

• UPC : 038911012216
• GTIN : 03389110122169
• Country of Origin : Czechia
• Weight : 22.924
