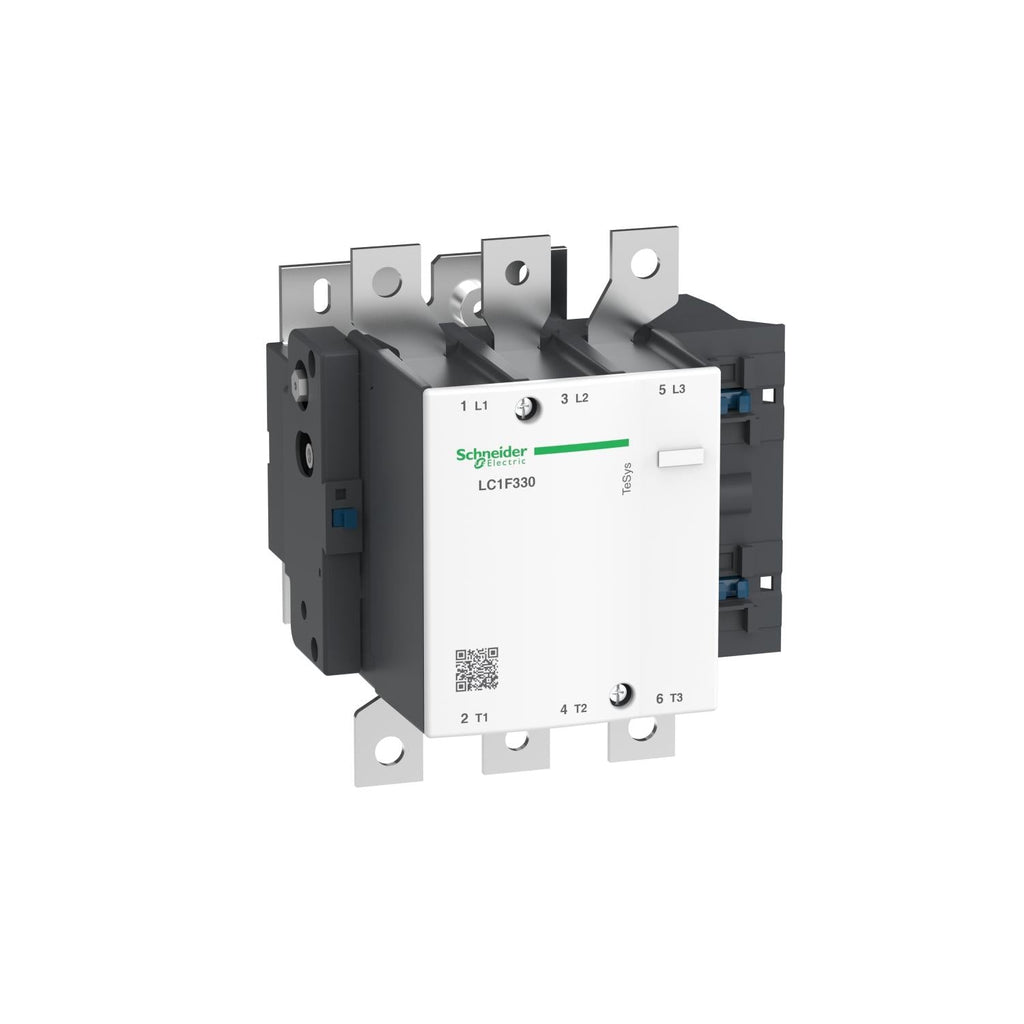

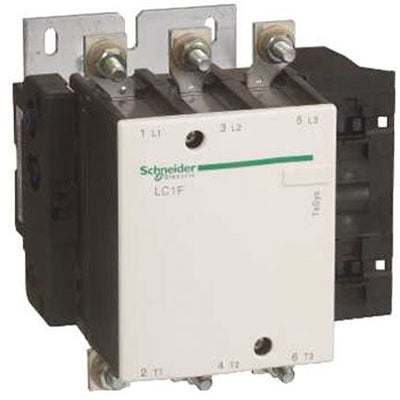

LC1F330F7 - Schneider Electric TeSys F 3-Pole 330A 440V AC Motor Contactor with 110V AC Coil

LC1F330F7

LC1F330F7 is a Schneider Electric TeSys F motor contactor designed for reliable motor control applications.This 3-pole contactor features 3 normally open (NO) power poles rated for 330 A at up to 440 V AC, suitable for AC-3 utilization category motor loads. It supports a coil voltage of 110 V AC and is rated for operational voltages up to 1000 V AC and 460 V DC. The contactor is designed for high motor power applications up to 160 kW at 400 V AC and offers robust performance in demanding environments up to 55°C. It includes screw clamp terminals for secure wiring and complies with multiple international standards including IEC, UL, CSA, CCC, and EAC.

Key Specifications
• Amperage: 330 A (AC-3, 440 V)
• Voltage Rating: Up to 1000 V AC / 460 V DC
• Poles: 3 poles (3 NO)
• Coil Voltage: 110 V AC
• Utilization Categories: AC-1, AC-3, AC-4
• Motor Power: Up to 160 kW at 400 V AC
• Mounting Type: Plate mounting
• Terminal Type: Screw clamp terminals
• Interrupt Rating: Suitable for motor control applications
• Operating Temperature: Up to 55°C
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
• Series/Frame: TeSys F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LC1F330F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys F
• Type : LC1F
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 110
• Coil Voltage Minimum : 110



Product Data

• UPC : 791617113299
• GTIN : 03389110460223
• Country of Origin : Czechia
• Dimensions : Depth 8.62 in (219 mm) Width 8.39 in (213 mm) Height 8.11 in (206 mm)
• Weight : 21.334
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN, JIS, IEC, BV, RINA, CSA, UL, DNV, RMRoS, CB, LROS, ABS, UKCA
