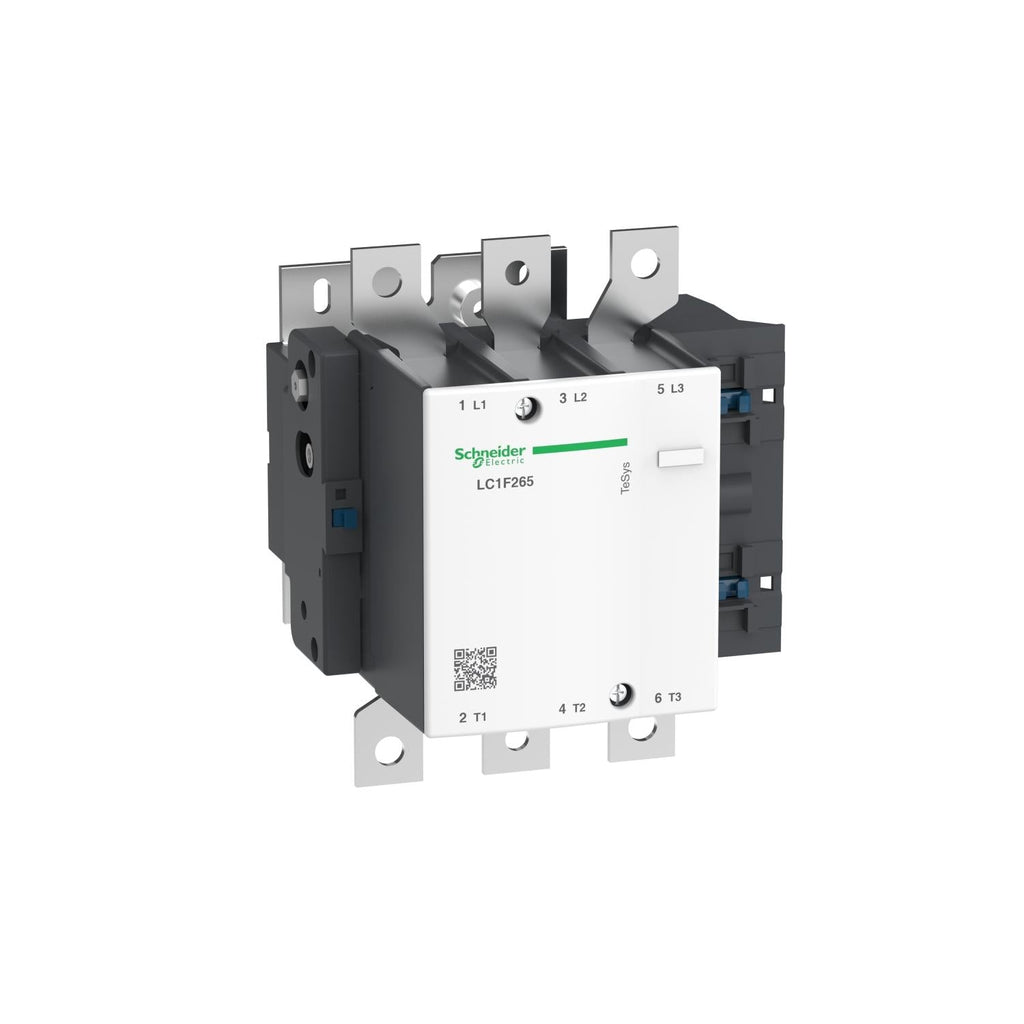

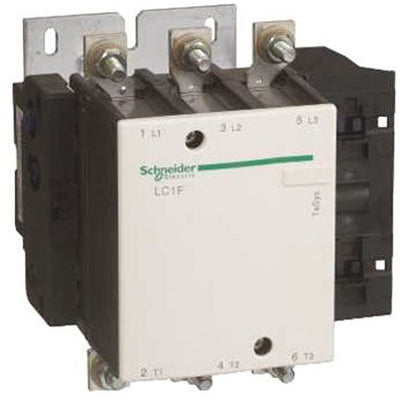

LC1F265F7 - Schneider Electric 265A 690VAC 3-Pole TeSys F Motor Contactor Plate Mount

LC1F265F7

LC1F265F7 is a Schneider Electric TeSys F 3-pole motor contactor rated for 265 amps and 690VAC, designed for reliable motor control applications.LC1F265F7 features a 3 NO (normally open) contact configuration, plate mounting type, and a 110V AC coil operating at 50/60 Hz. It supports motor loads up to 132 kW at 400V and complies with multiple international standards including UL, CSA, IEC, and RoHS.

• Amperage: 265 A
• Voltage: 690 VAC, 460 VDC
• Poles: 3 (3 NO)
• Mounting Type: Plate
• Coil Voltage: 110 V AC, 50/60 Hz
• Series/Frame: TeSys F
• Interrupt Rating: AC-3, up to 440 V
• Motor Power: Up to 132 kW at 400 V
• Connection Type: Screw clamp terminals
• Certifications: UL, CSA, IEC, EN, BV, RINA, DNV, RoHS, CCC, UKCA
• Operating Temperature: -5 to 80°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1F265F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys F
• Type : LC1F
• Voltage : 6
• Amperage : 35
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 11
• Coil Voltage Minimum : 110

Product Data

• UPC : 389110351609
• GTIN : 03389110000000
• Country of Origin : Czechia
• Weight : 17.613
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN, JIS, IEC, BV, RINA, CSA, UL, DNV, RMRoS, CB, LROS, ABS, UKCA
