Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

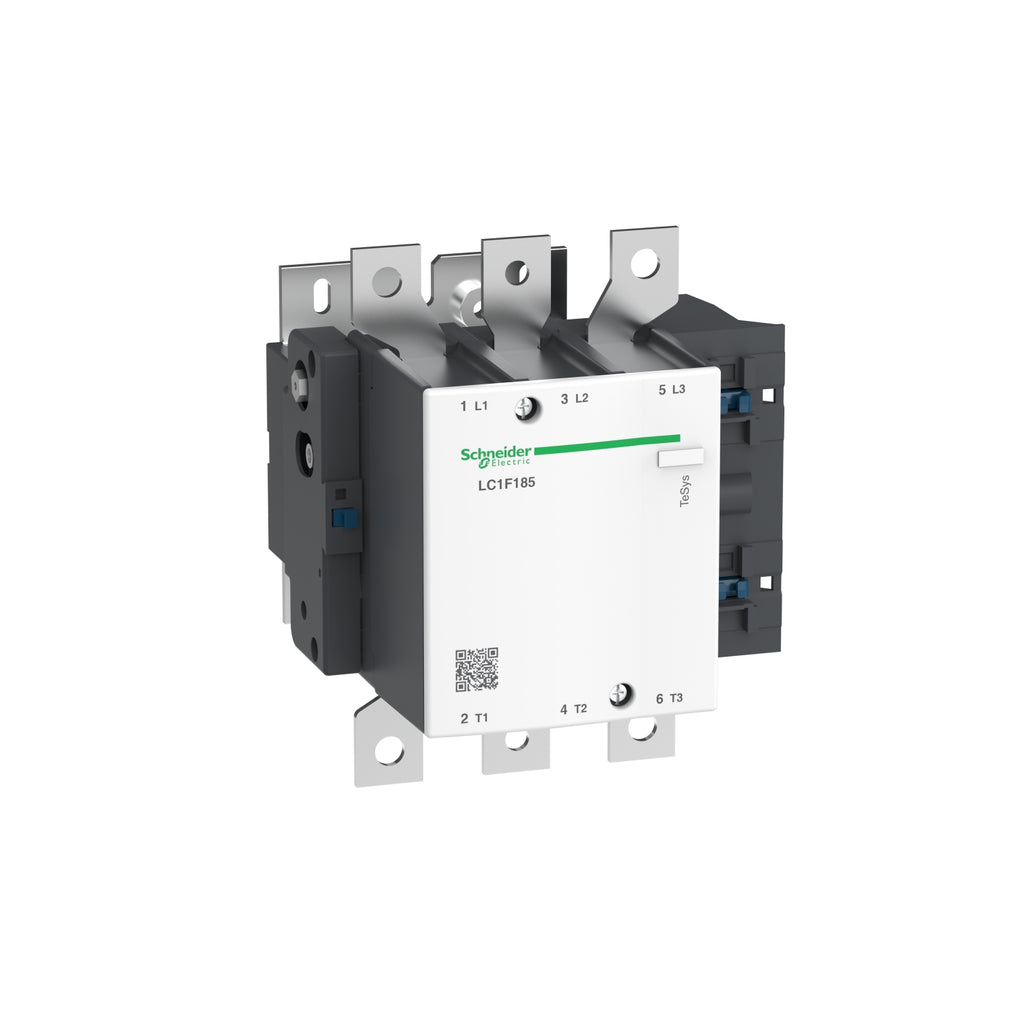

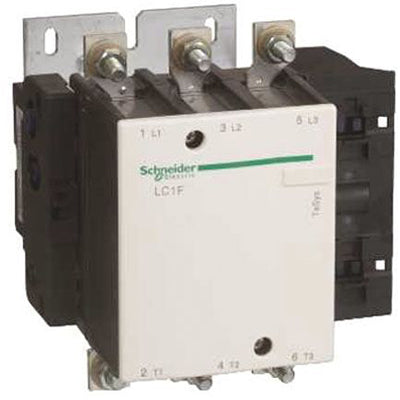

LC1F185G7
LC1F185G7 is a Schneider Electric TeSys F contactor designed for motor control applications, featuring a 185 amp rating and a 120V AC coil.This 3-pole contactor supports motor applications up to 90 kW at 400V and is rated for AC-3 utilization category up to 440V. It provides reliable motor control with 3 normally open (NO) power poles, screw clamp terminals, and a mechanical durability of 10 million cycles. The device is suitable for inductive motor loads up to 185A and offers a low sealed coil consumption at 120V AC, 40-400 Hz. It is part of the TeSys F series and includes features such as a 3 NO contact configuration, 3-phase operation, and is UL and CE certified.
- Key Specifications
- Amperage: 185 A
- Voltage Rating: Up to 440 V AC (AC-3)
- Poles: 3 (3 NO)
- Coil Voltage: 120 V AC
- Utilization Category: AC-3
- Mechanical Durability: 10 million cycles
- Mounting Type: Connector and lug terminals
- Interrupt Rating: Suitable for motor loads up to 90 kW @ 400 V
- Series/Frame: TeSys F
- Trip Unit: Not applicable (contactor only)
- Certifications: UL, CE
- Part Number: LC1F185G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys F
- Type : LC1F
- Voltage : 600
- Amperage : 275
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- UPC : 389110351507
- GTIN : 03389110351507
- Country of Origin : Czechia
- Dimensions : Height 6.85 inches x Width 6.63 inches 7.13 inches
- Weight : 11.023 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : IEC, UL, CSA, CCC, EAC, Marine, BV, RMRoS, CB, DNV, ABS, LROS, RINA, UKCA
Additional Information
This TeSys F Contactor includes a 120 VAC coil.
