Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1F185

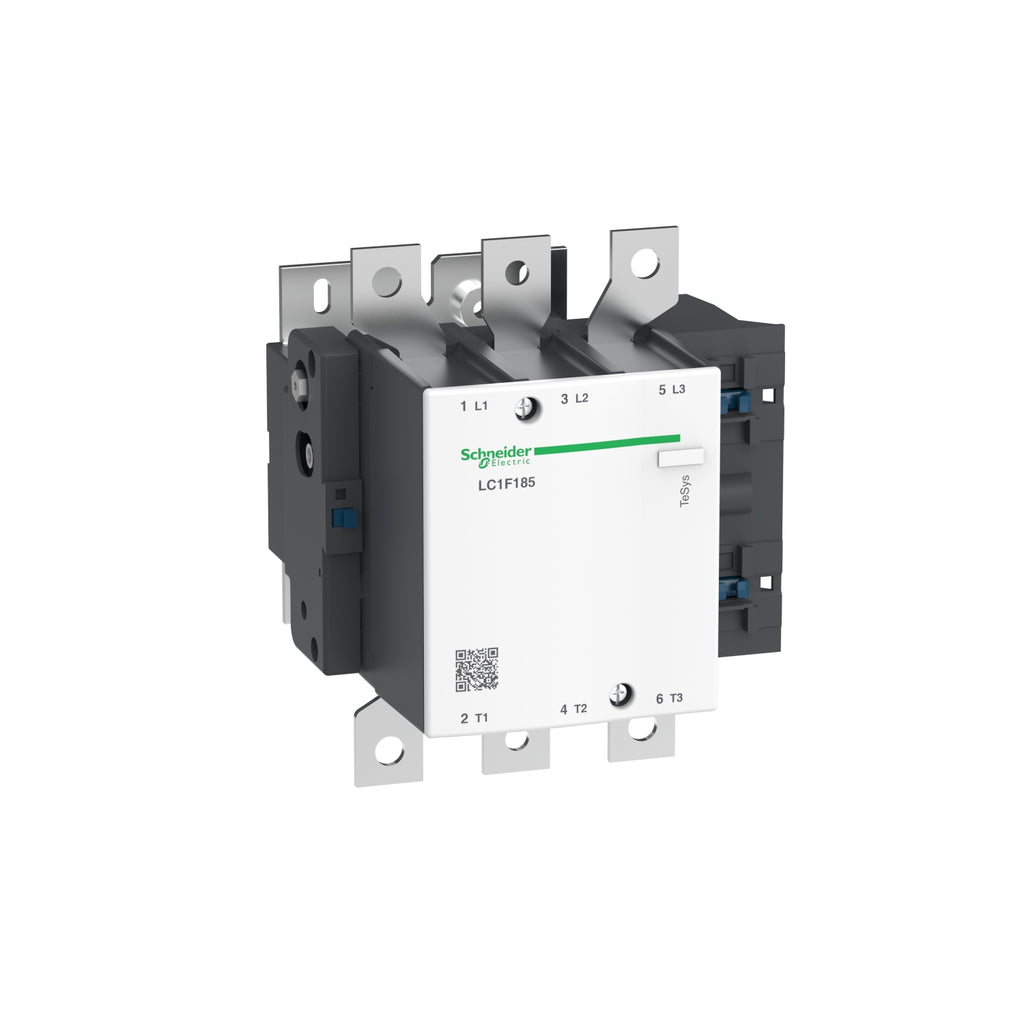

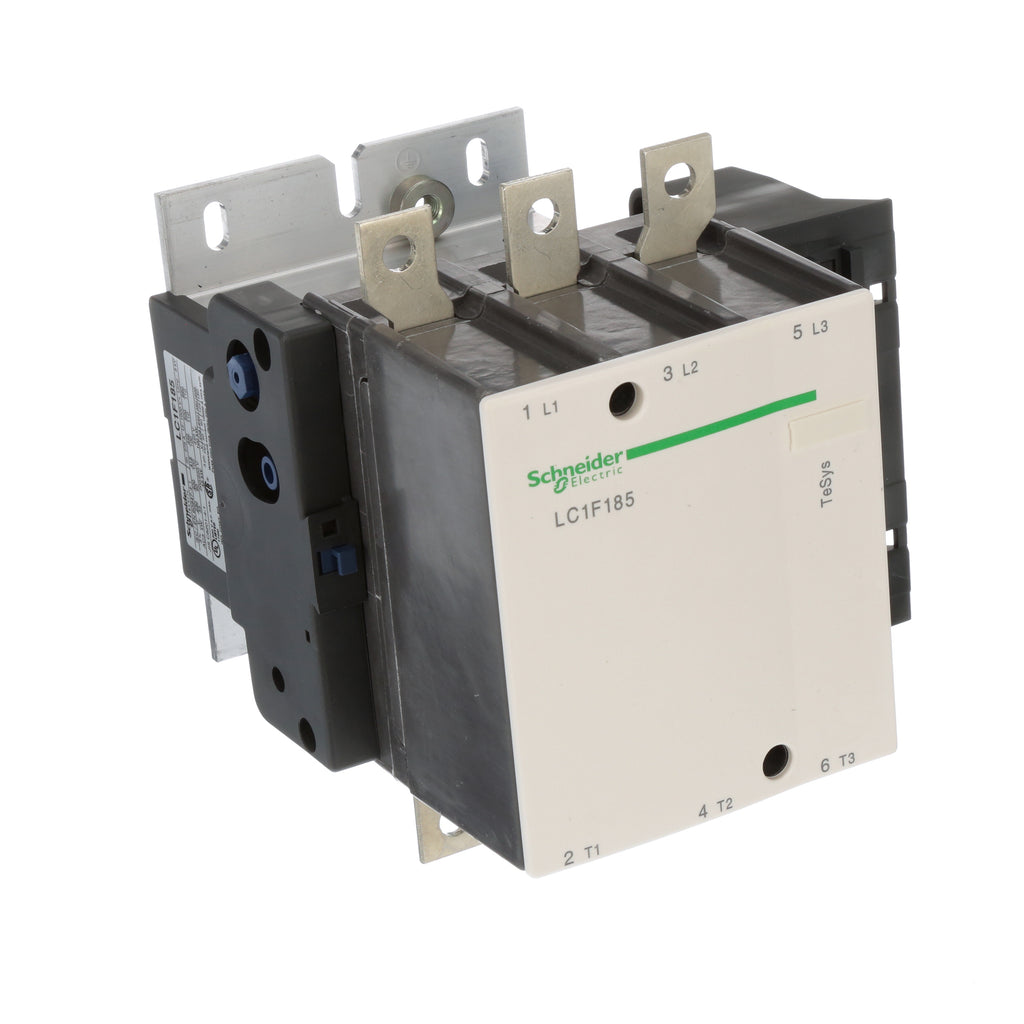

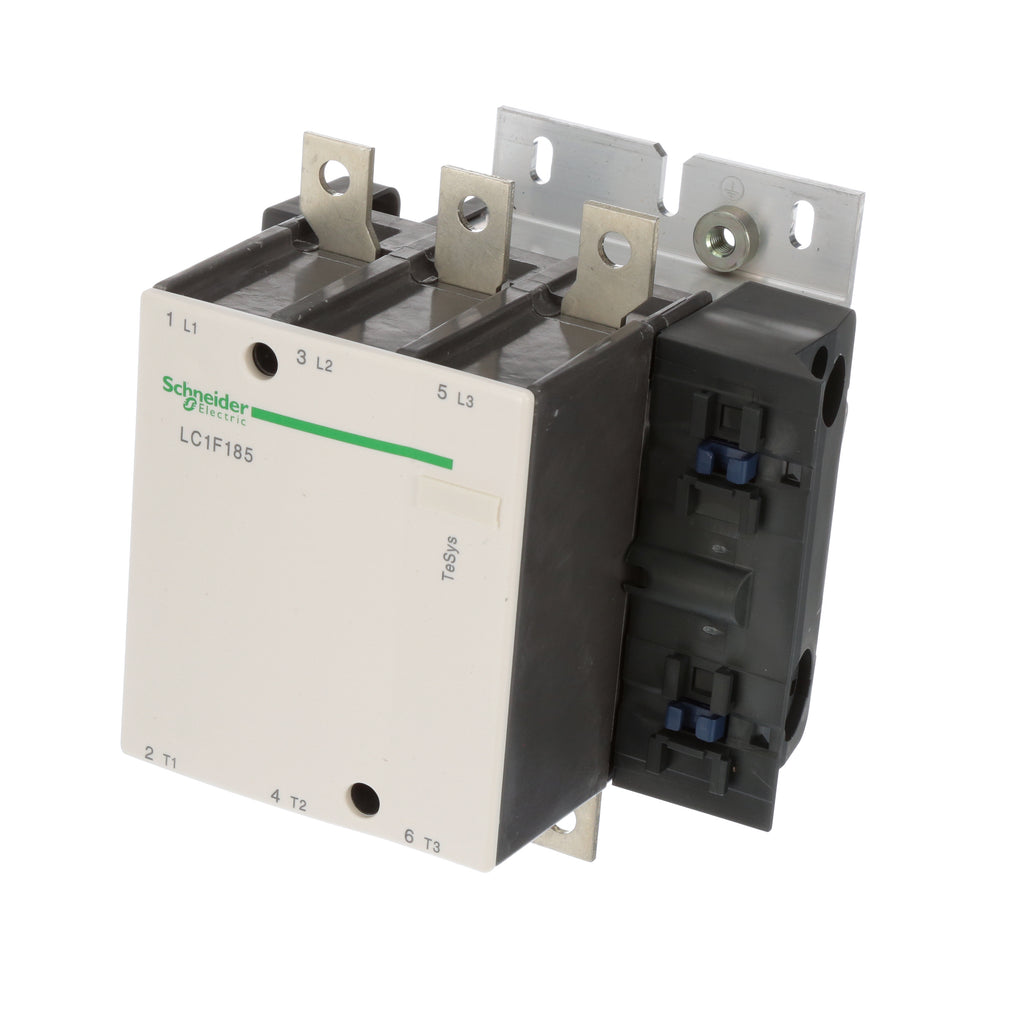

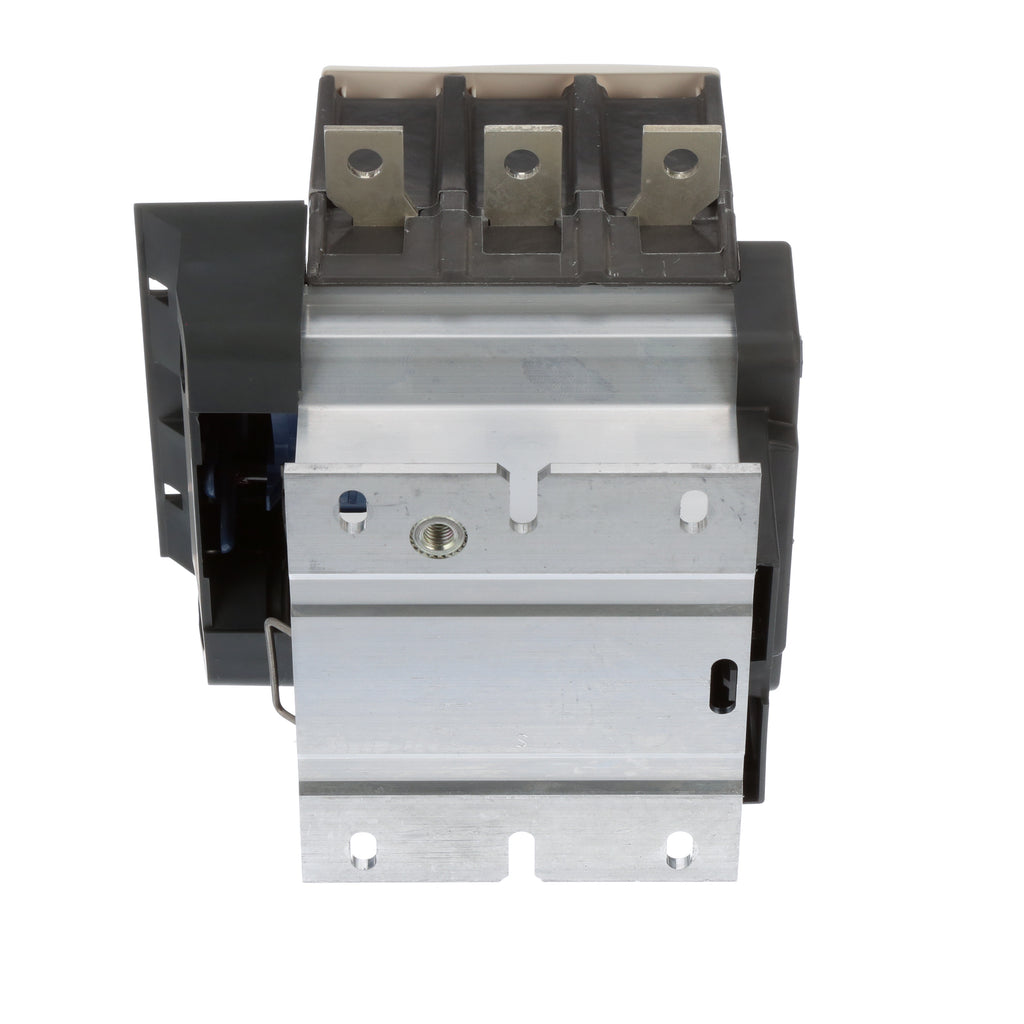

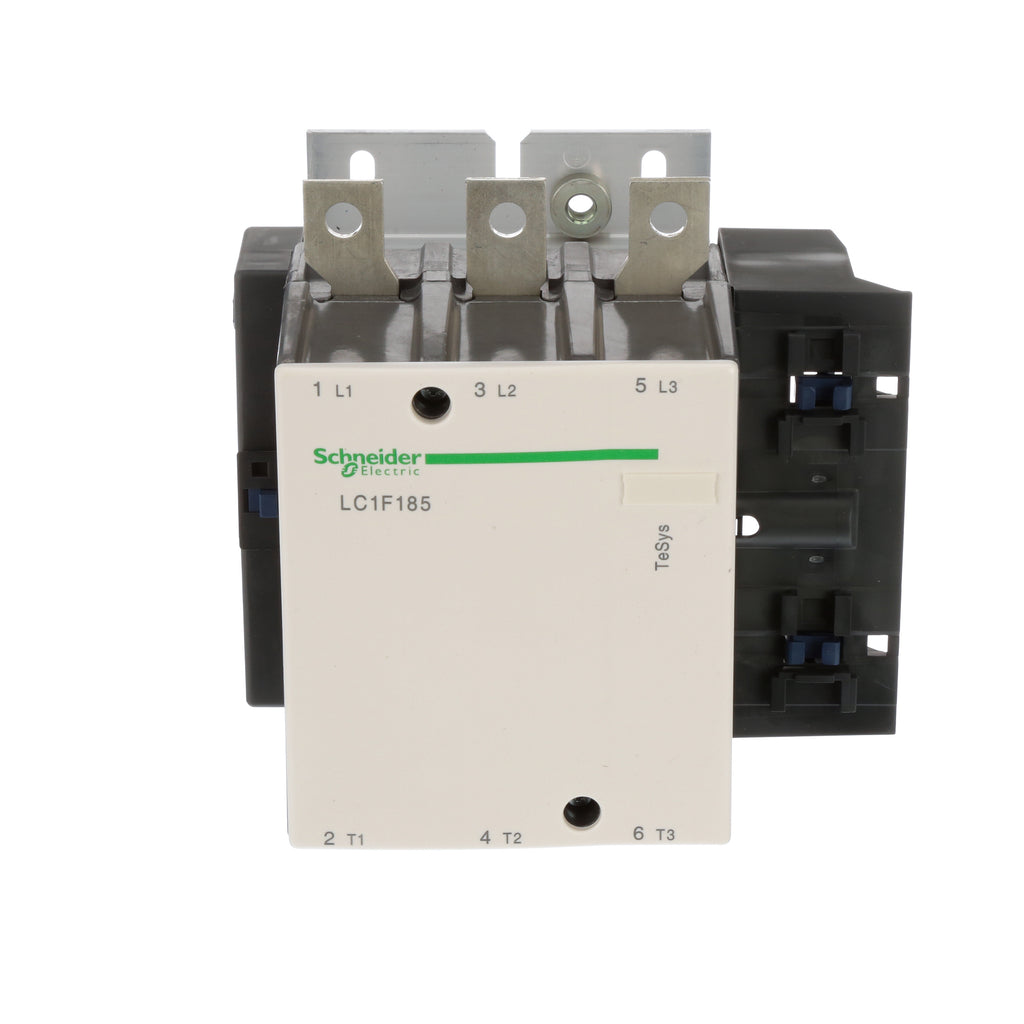

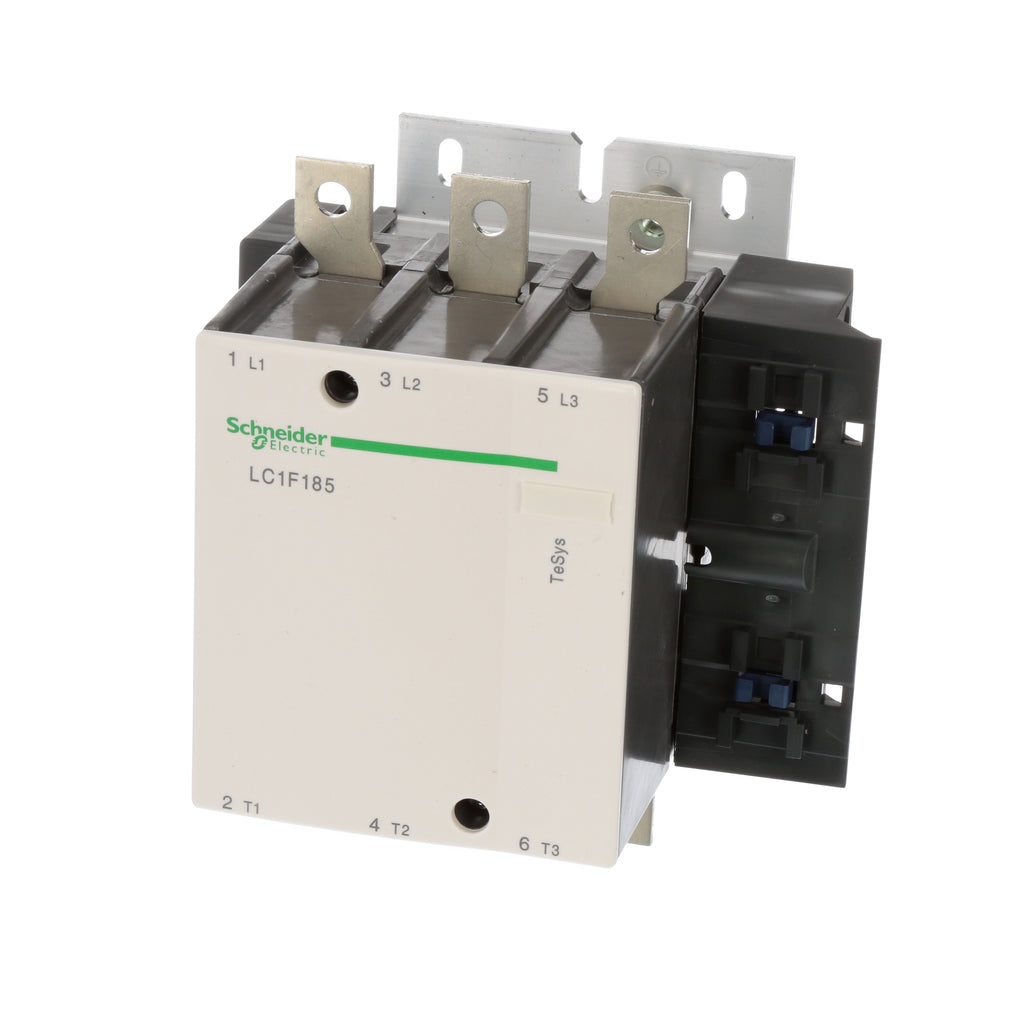

LC1F185 is a TeSys F series 3-pole motor control contactor body without coil, designed for motor and resistive load applications. This contactor allows for flexible coil selection and installation, making it ideal for a wide range of industrial control needs. The LC1F185 contactor is rated for up to 185A at 440V AC-3 and 275A at 440V AC-1, with a maximum motor power of 90kW at 400V. It features a robust 3-pole (3 NO) configuration and is suitable for both AC and DC power circuits. The contactor is built for reliable operation in demanding environments, with a high impulse withstand voltage and strong mechanical durability.
- Manufacturer: Schneider Electric
- Series: TeSys F
- Part Number: LC1F185
- Application: Motor control, resistive load
- Poles: 3P (3 NO)
- Rated Operational Current: 185A AC-3, 275A AC-1
- Rated Operational Voltage: <= 440V AC, <= 460V DC
- Rated Impulse Withstand Voltage: 8 kV
- Rated Short-Time Withstand Current: 1500A (10s), 920A (30s), 740A (1min), 500A (3min), 400A (10min)
- Mounting Type: Plate
- Power Circuit Connection: Bolted, 2 x (25 x 3 mm) bar
- Tightening Torque: 18 N.m
Specifications
- Part Number: LC1F185
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys F
- Type : LC1F
- Voltage : 600
- Amperage : 275
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 038911012238
- GTIN : 03389110122381
- Country of Origin : Czechia
- Weight : 9.654
