Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1F150F7

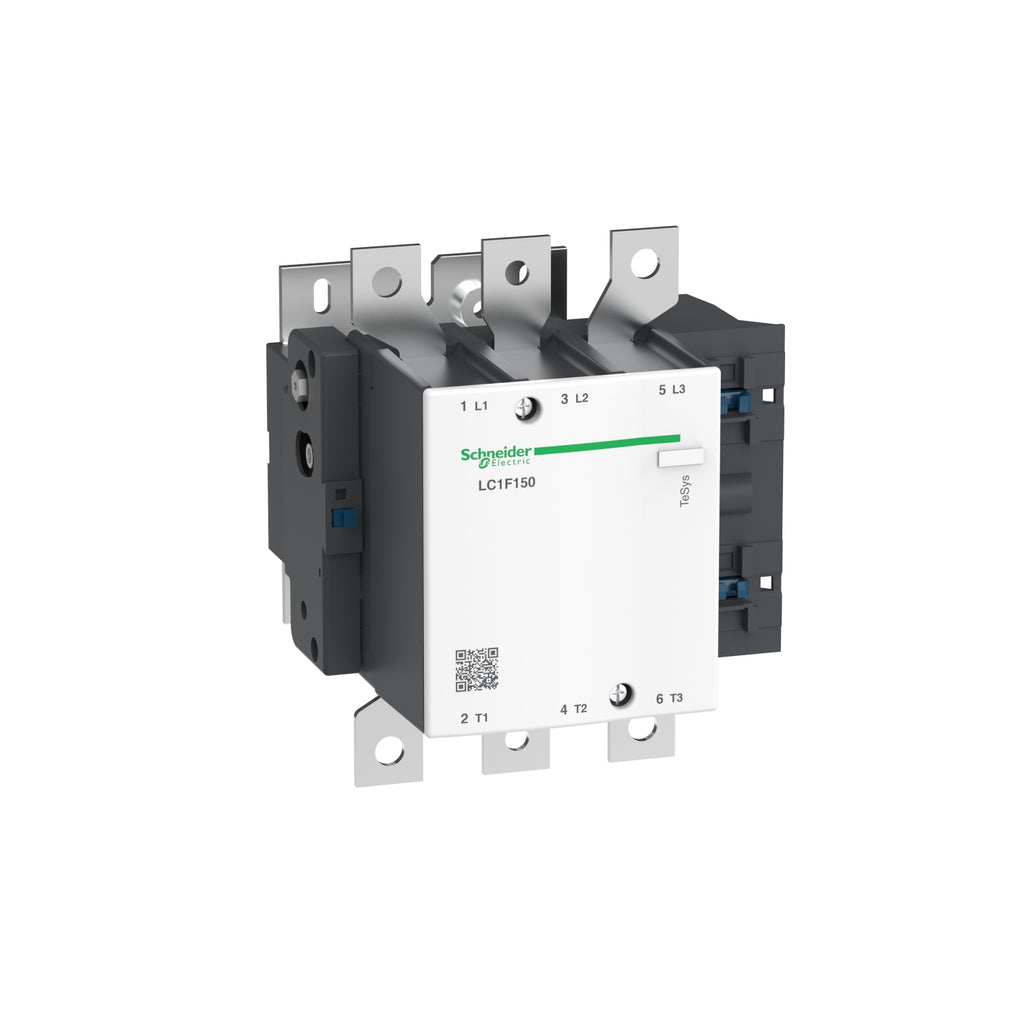

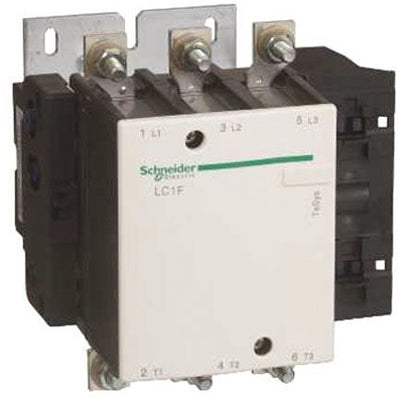

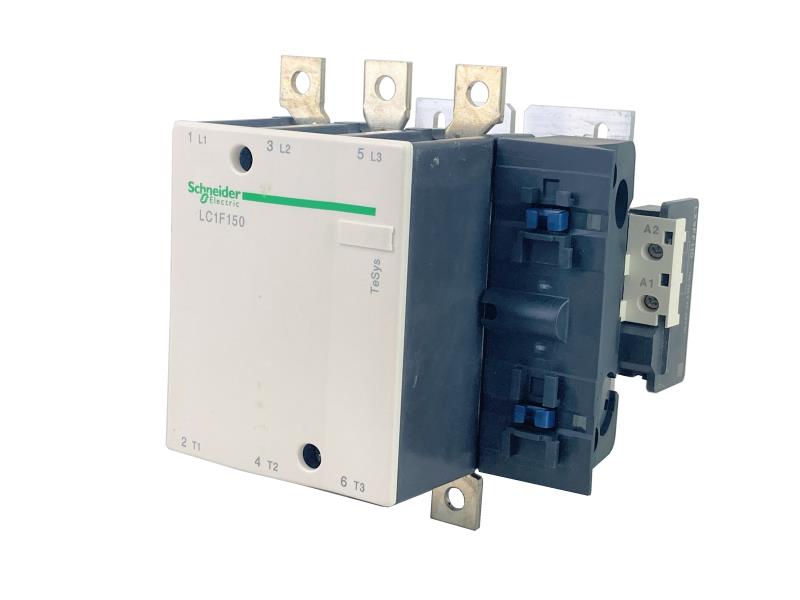

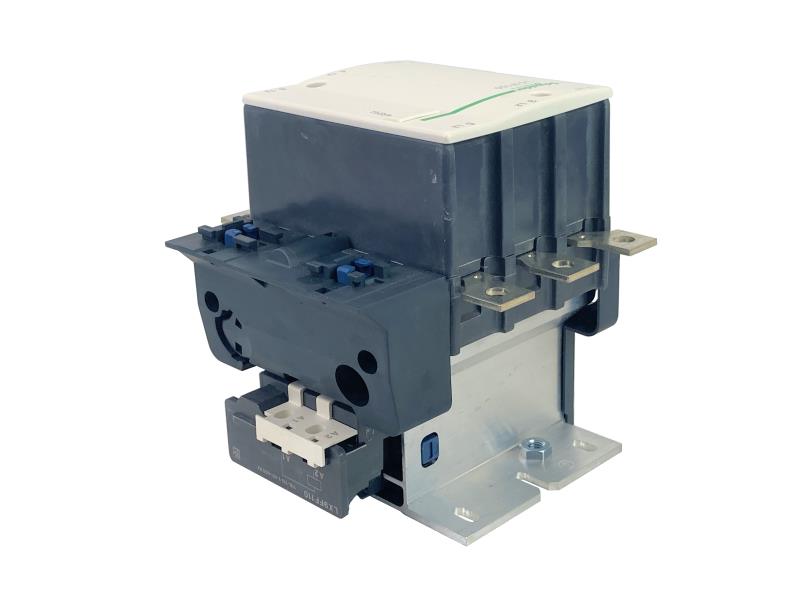

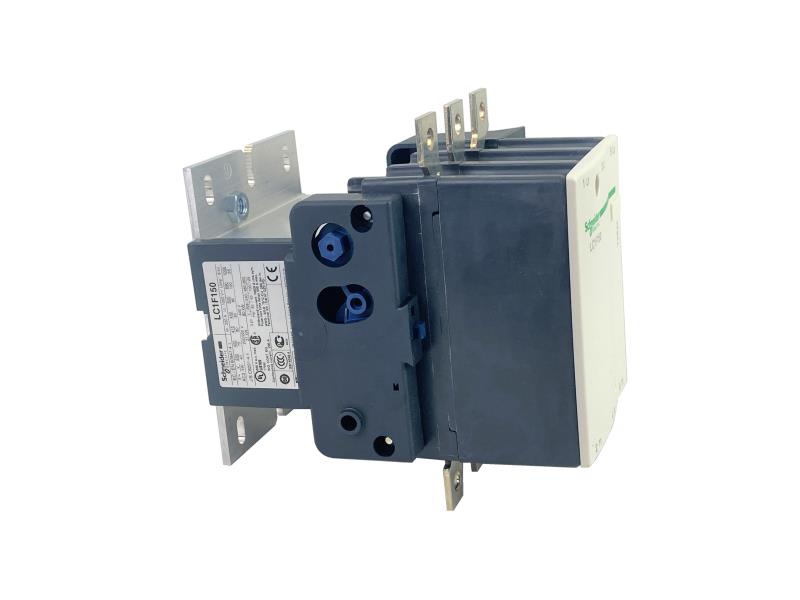

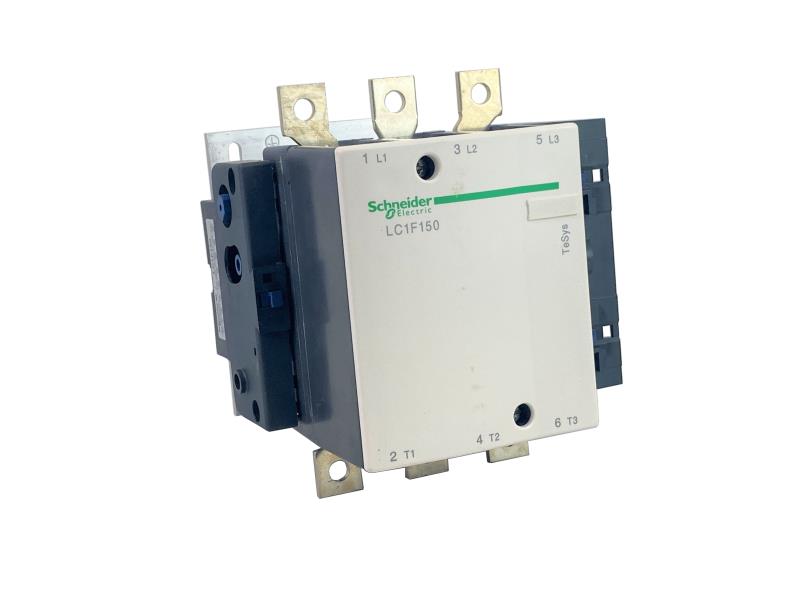

LC1F150F7 is a Schneider Electric TeSys F series 3-pole motor contactor designed for reliable motor control applications up to 75kW at 400V. This contactor features a 110V AC coil and is rated for 150A at 440V AC-3, making it ideal for industrial motor starters and control circuits.Engineered for durability and safety, the LC1F150F7 offers screw clamp terminals for both power and control circuits, a robust LC1F frame, and a mechanical life of up to 10 million cycles. It is suitable for use in motor control systems requiring high reliability and compliance with major international standards.
- Part Number: LC1F150F7
- Manufacturer: Schneider Electric
- Series/Frame: TeSys F / LC1F
- Amperage: 150A
- Voltage: 440V AC-3
- Poles: 3P (3 NO)
- Coil Voltage: 110V AC
- Mounting Type: Plate
- Terminal Connection: Screw Clamp
- Approvals: UL, CCC, CB, RINA, DNV, ABS, BV, LROS, RMRoS
- Interrupt Rating: 690V AC-3
- Operating Frequency: 40-400 Hz
Specifications
- Part Number: LC1F150F7
- Manufacturer : Schneider Electric
- Brand : Tesys F
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys F
- Type : LC1F
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 791617112681
- GTIN : 00785901181651
- Weight : 15
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : LROS, ABS, BV, CCC, CB, RMRoS, DNV, UL, RINA
