Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1DWK12P7

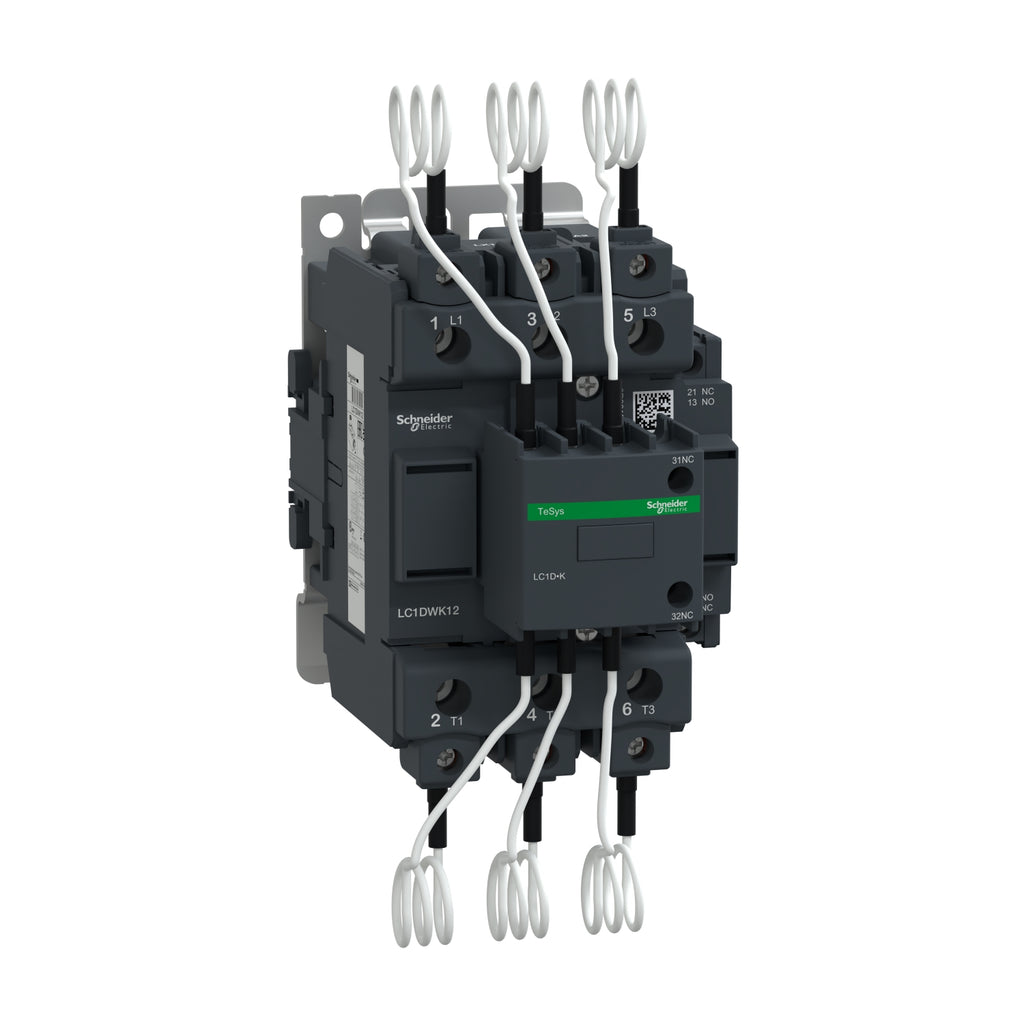

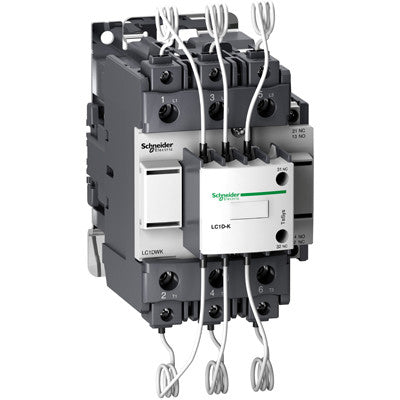

LC1DWK12P7 is a Schneider Electric TeSys D capacitor contactor designed for capacitor bank switching applications.
This contactor features a 63 kVAR rating at 400 V and 50 Hz, with a coil voltage of 230 V AC at 50/60 Hz. It is part of the TeSys D series and mounts on a DIN rail, providing reliable operation for motor control and power factor correction. The device includes screw clamp terminals for secure wiring connections.
- Key Specifications
- Capacitor rating: 63 kVAR at 400 V, 50 Hz
- Coil voltage: 230 V AC, 50/60 Hz
- Mounting style: DIN rail mount
- Series: TeSys D (Deca)
- Terminal type: Screw clamp terminals
- Control voltage range: up to 690 VAC
- Operating temperature minimum: -5¡C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This TeSys D Safety Capacitor Contactor includes a 230 VAC coil.
Specifications
- Part Number: LC1DWK12P7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Phase : 3
- Poles : 3
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
- Frequency : 50/60 Hz
Product Data
- UPC : 038911006057
- GTIN : 03389110060577
- Country of Origin : Czechia
- Weight : 3.948
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
