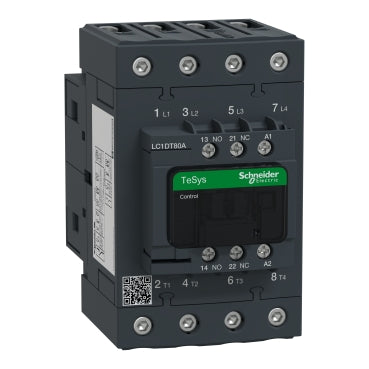

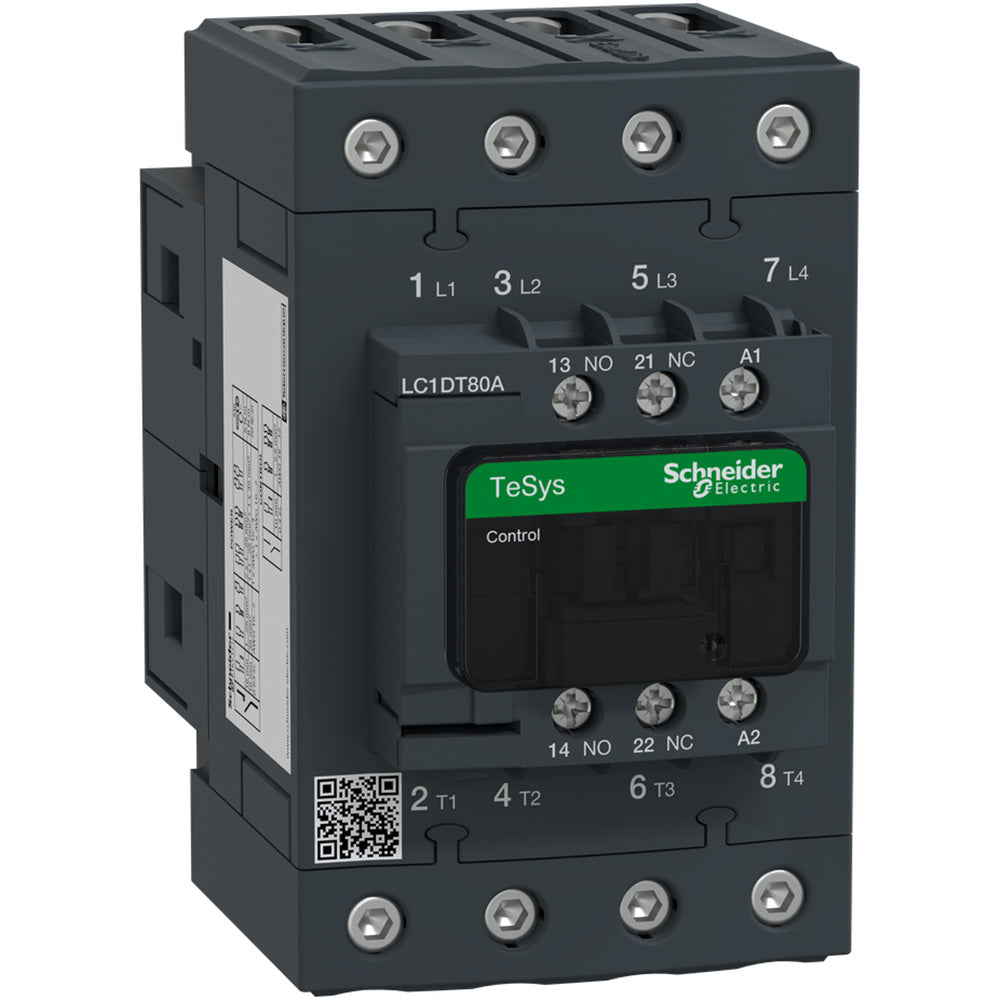

LC1DT80AG7 - Schneider Electric TeSys D 4 Pole 80A 440V AC-1 Contactor 120V AC 60Hz Coil Screw Clamp

LC1DT80AG7

LC1DT80AG7 is a Schneider Electric TeSys D 4 pole contactor designed for industrial and HVAC motor control applications.This contactor features a 4 normally open (NO) pole configuration, rated for 80 amps and up to 440 volts AC-1 utilization category. It includes a 120V AC 60Hz coil and screw clamp terminals for reliable wiring connections. The device offers a high interrupt rating of 1000A at 440V per IEC 60947 standards and supports an operating rate of 3600 cycles per hour at 60 ¡C. Mechanical durability is rated at 6 million cycles with a safety reliability level B10d of over 1.3 million electrical cycles. The contactor is part of the TeSys Deca series and is suitable for non-reversing motor starter applications.

Key Specifications
• Poles: 4 (4 NO)
• Current Rating: 80 Amps
• Voltage Rating: Up to 440V AC-1
• Coil Voltage: 120V AC 60Hz
• Mounting Type: Screw Clamp Terminals
• Interrupt Rating: 1000A at 440V (IEC 60947)
• Operating Rate: 3600 cycles/hour at 60 ¡C
• Mechanical Durability: 6 million cycles
• Safety Reliability: B10d = 1,369,863 electrical cycles
• Series/Fra(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 120 VAC coil.




  Specifications

  • Part Number: LC1DT80AG7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 80
  • Phase : 3
  • Poles : 4
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Aux Contacts : 4 NO
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 80A Full Load Amps-Resistive
  • Coil Voltage Minimum : 120
  • Frequency : 60 Hz



  Product Data

  • UPC : 785901661542
  • GTIN : 03389119409421
  • Country of Origin : Indonesia
  • Dimensions : 70 mm x 122 mm
  • Weight : 2.332
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
