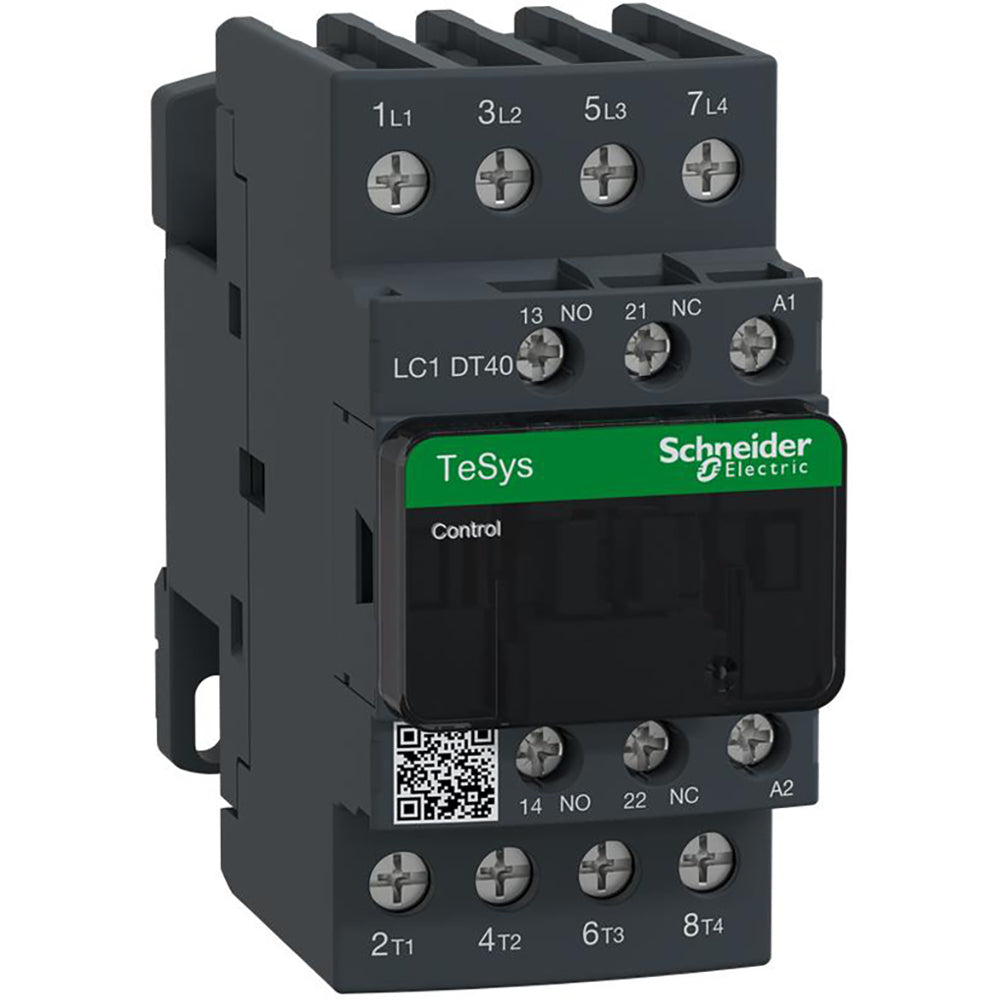

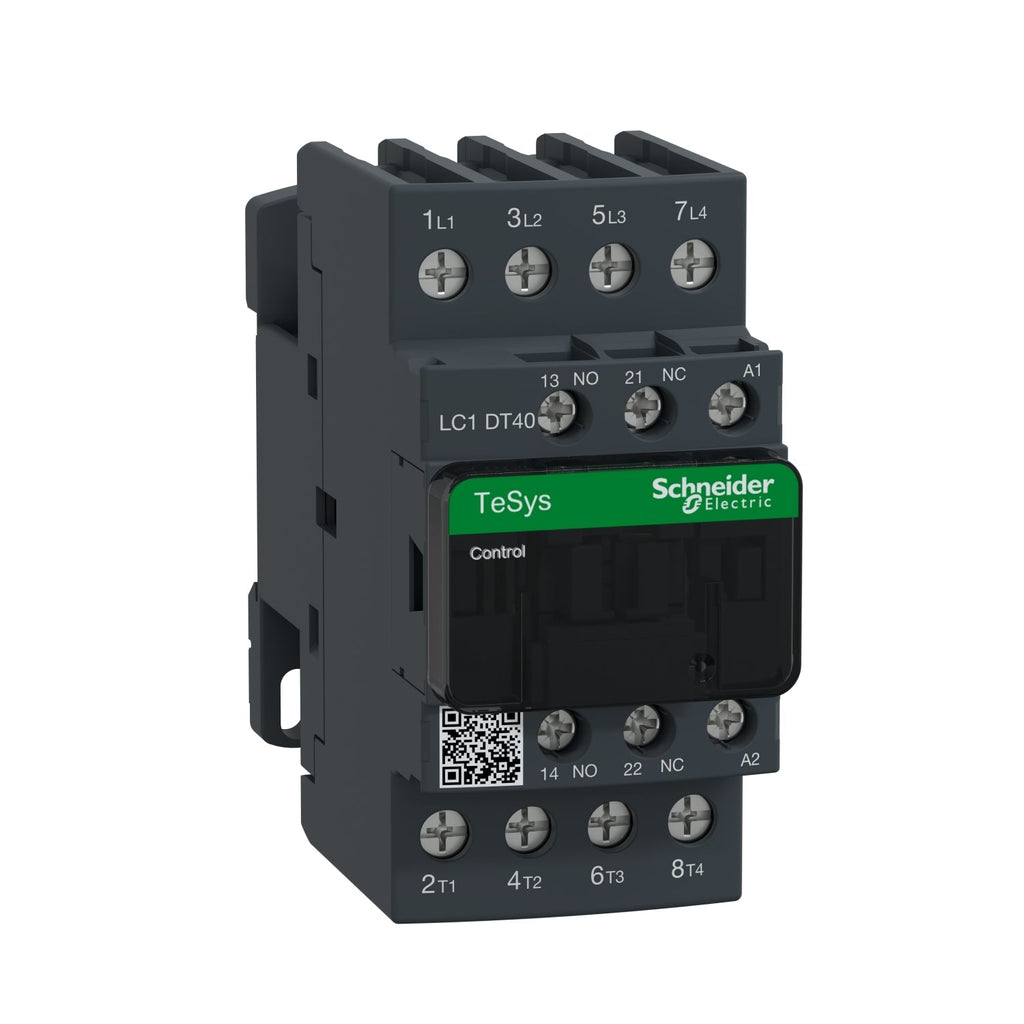

LC1DT40G7 - Schneider Electric 40A 4-Pole TeSys D Motor Contactor 120V AC Coil 440V AC Resistive Load

LC1DT40G7

This non-reversing contactor is designed for industrial and HVAC applications, featuring 4 normally open power poles rated for up to 440V AC resistive load. It includes 1 normally open and 1 normally closed auxiliary contact, screw clamp terminals, and complies with IEC 60947 standards. The device supports a control circuit voltage of 120V AC at 50/60 Hz and offers a rated insulation voltage of 600V with a rated impulse withstand voltage of 6 kV. It is suitable for mounting on DIN rails and provides reliable operation with a mechanical durability of up to 15 million cycles.

Key Specifications
• Amperage: 40 A resistive load
• Voltage: Up to 440 V AC power circuit, 120 V AC coil
• Poles: 4 poles (4 NO)
• Mounting Type: DIN rail mount
• Control Circuit Frequency: 50/60 Hz
• Auxiliary Contacts: 1 NO + 1 NC
• Rated Insulation Voltage: 600 V UL/CSA
• Impulse Withstand Voltage: 6 kV
• Standards: IEC 60947-1, IEC 60947-4-1, VDE 0660, EN 60947-1, EN 60947-4(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 120 VAC coil.




  Specifications

  • Part Number: LC1DT40G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 4
  • Aux Contacts : 4 NO
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 40A
  • Coil Voltage Minimum : 120
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911033956
  • GTIN : 03389110339567
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.58 in
  • Weight : 1.014 lb
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
