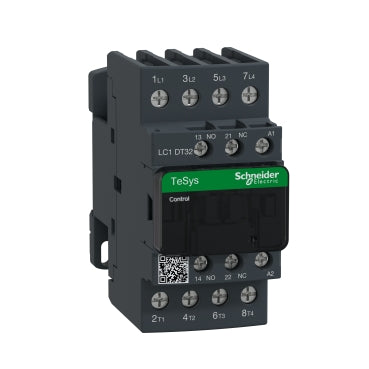

LC1DT32U7 - Schneider Electric 32A 4 Pole Contactor 240V AC Coil TeSys D Series

LC1DT32U7

LC1DT32U7 is a 4 pole, 32A contactor from the Schneider Electric TeSys D series, designed for reliable motor control and resistive load applications. This contactor features a 240V AC 50/60 Hz coil and is DIN rail mountable for easy integration into control panels. It includes built-in auxiliary contacts (1 NO + 1 NC) and is suitable for use in a wide range of industrial and commercial settings. The LC1DT32U7 offers robust performance with a rated operational voltage up to 690V AC and a conventional thermal current of 32A. It is built to meet IEC 60947-1 and IEC 60947-4-1 standards, ensuring safety and reliability. The screw terminal design allows for secure wiring, and the device is rated for overvoltage category III with an impulse withstand voltage of 6 kV.

• Part Number: LC1DT32U7
• Manufacturer: Schneider Electric
• Series: TeSys D
• Number of Poles: 4
• Rated Operational Current: 32A
• Rated Operational Voltage: 690V AC
• Coil Voltage: 240V AC 50/60 Hz
• Mounting Type: DIN Rail
• Auxiliary Contacts: 1 NO + 1 NC
• Interrupt Rating: 6 kV
• Standards:(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 240 VAC coil.




  Specifications

  • Part Number: LC1DT32U7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 4
  • Aux Contacts : 4 NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911033834
  • GTIN : 03389110338348
  • Country of Origin : Indonesia
  • Weight : 1.03
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
