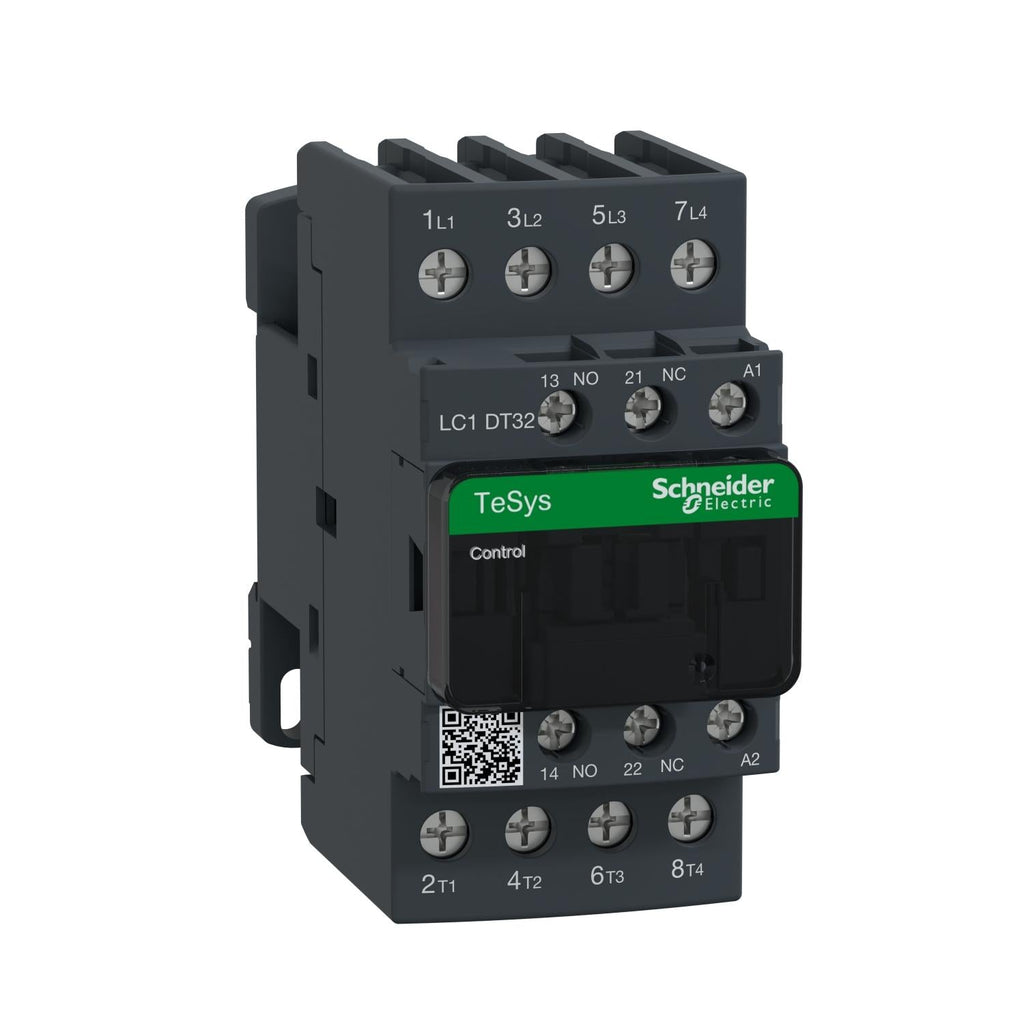

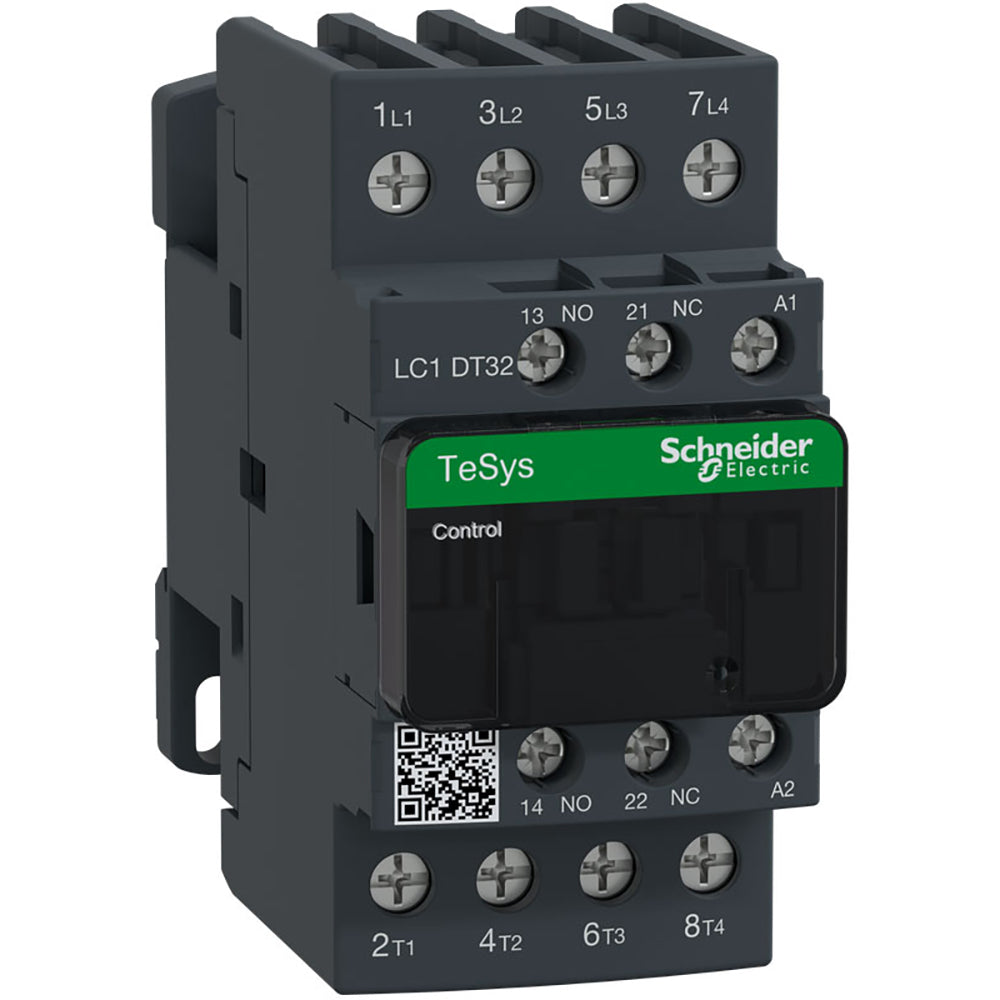

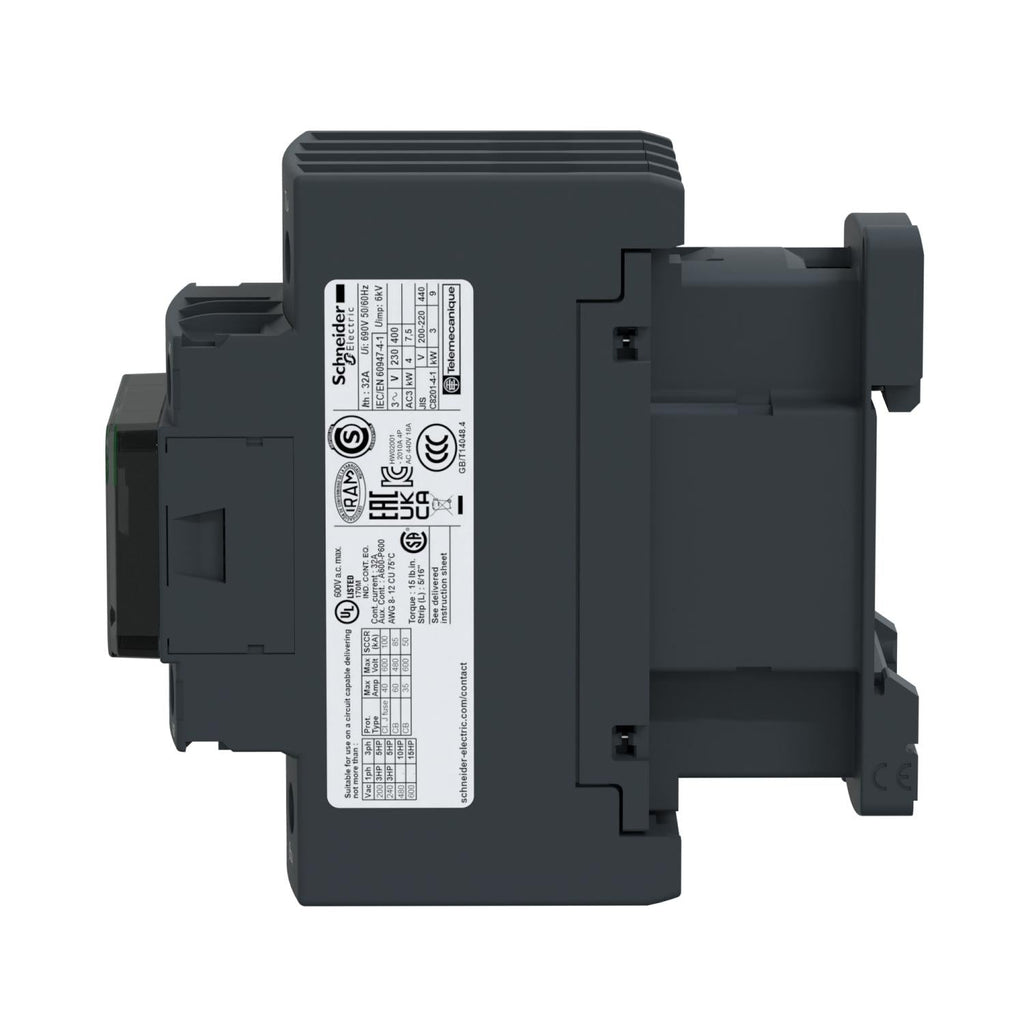

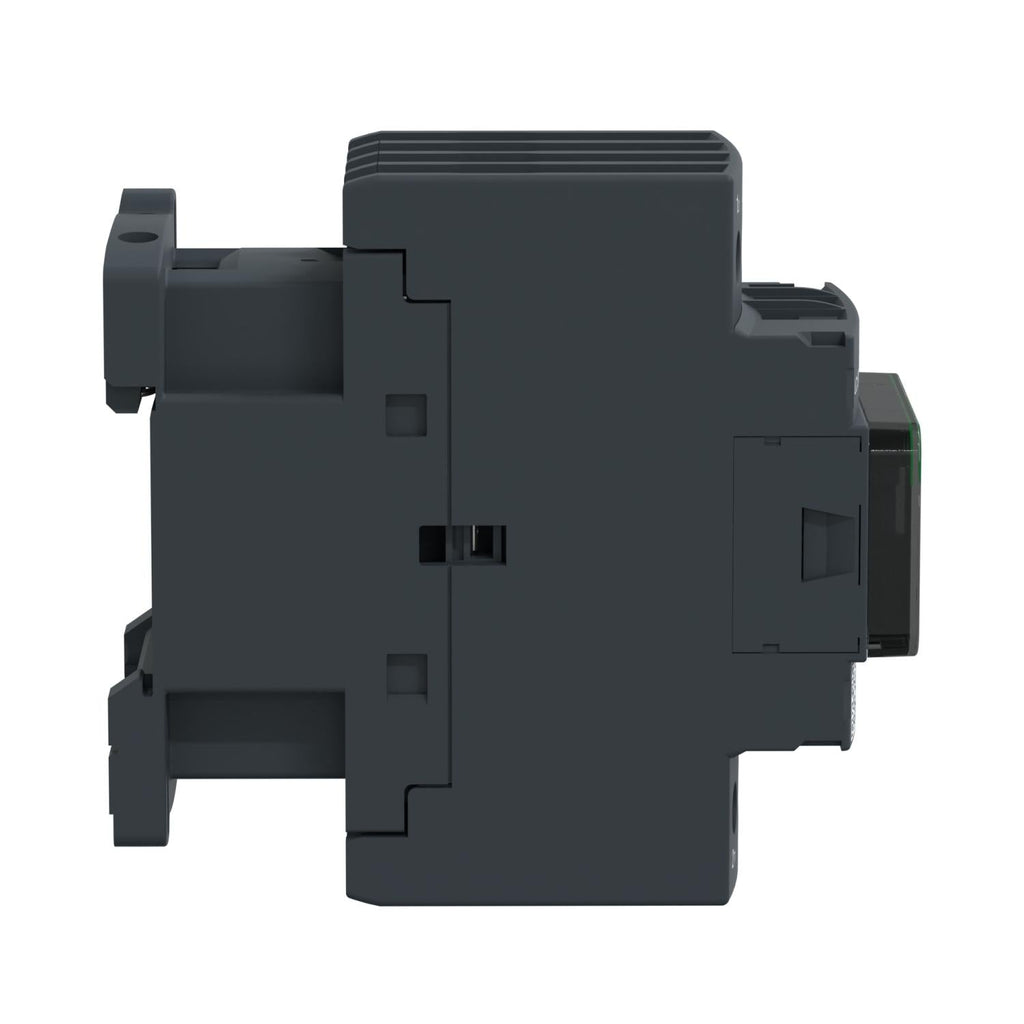

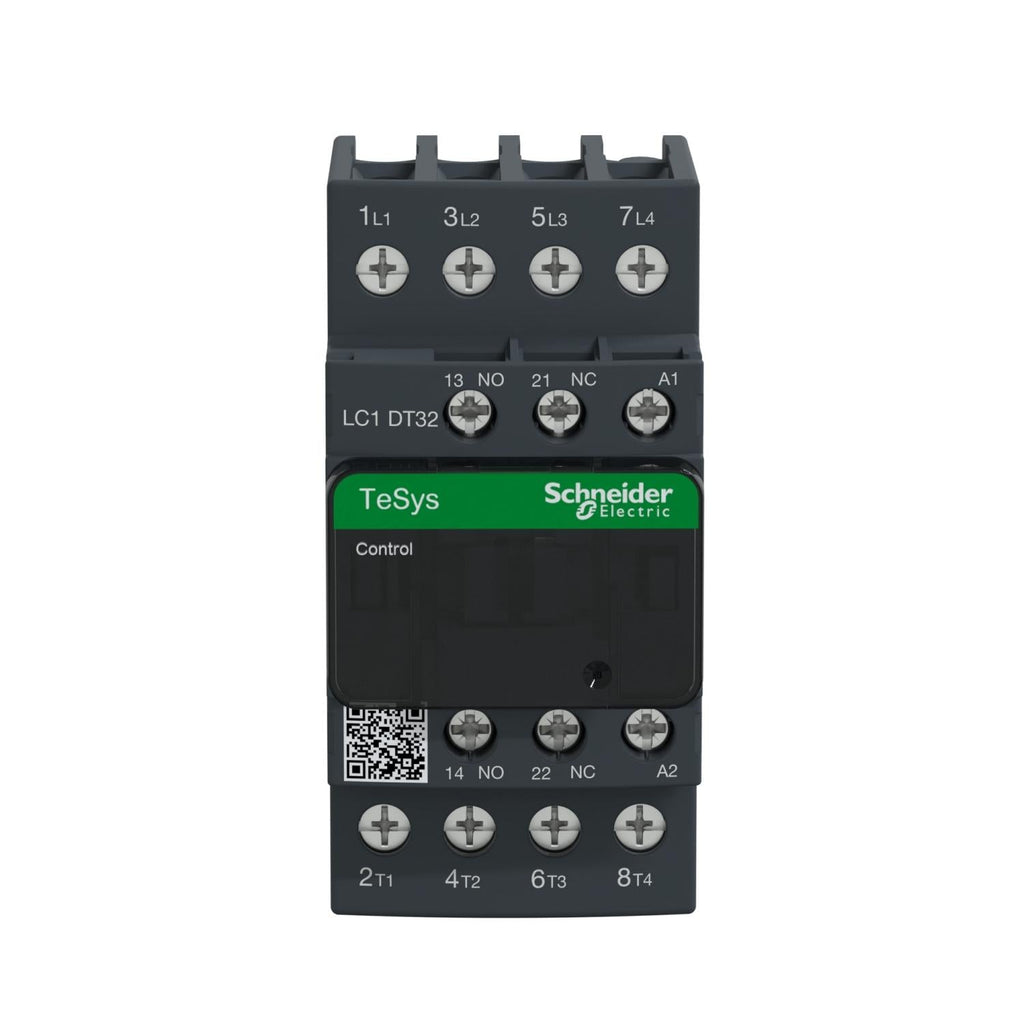

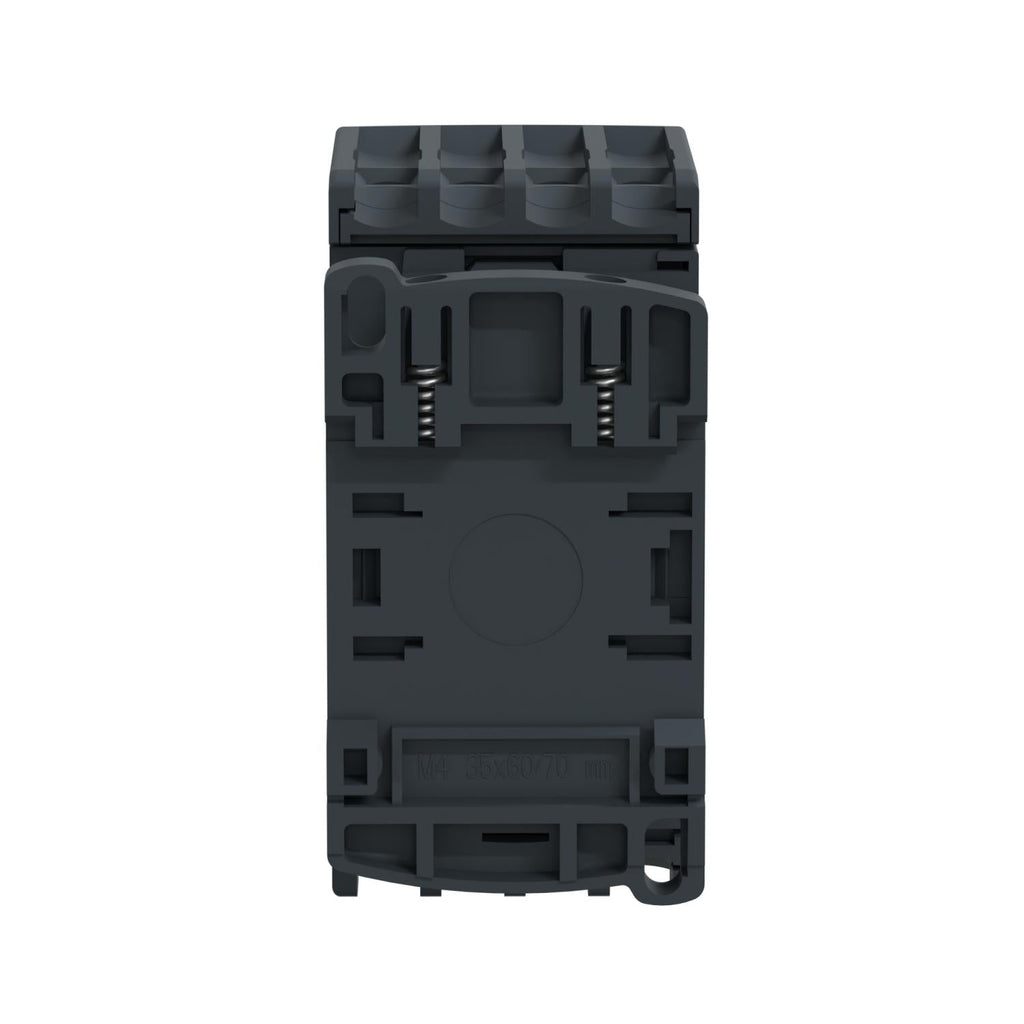

LC1DT32G7 - Square D 32A 4 Pole 120V Coil IEC Contactor TeSys D Motor Control

LC1DT32G7

LC1DT32G7 is a Square D 4 pole, 32 amp IEC contactor with a 120V AC coil designed for motor control applications.LC1DT32G7 features a nonreversing TeSys D design suitable for resistive loads up to 32A at 440V AC-1 utilization category. It includes 4 normally open power poles and a 120V 50/60 Hz coil. The contactor conforms to IEC 60947 standards and offers a rated operational voltage up to 690V AC and rated current of 32A. It has a rated impulse withstand voltage of 6 kV and an insulation voltage rating of 600V UL/CSA. The device is designed for industrial and HVAC applications with improved fire resistance and dustproof auxiliaries.

Key Specifications
• Amperage: 32 A
• Voltage: 120 V AC coil, up to 690 V AC operational voltage
• Poles: 4 poles (4 normally open)
• Phase: 3 phase
• Utilization Category: AC-1 (resistive load)
• Rated impulse withstand voltage: 6 kV
• Standards: IEC 60947-1, IEC 60947-4-1, UL/CSA
• Mounting Type: Open style, DIN rail compatible
• Auxiliary Contacts: 1 NO + 1 NC base mounted
• Degree of Protection: IP 2X
• Ser(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 120 VAC coil.




  Specifications

  • Part Number: LC1DT32G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 4
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Aux Contacts : 4 NO
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 32A Full Load Amps-Resistive 32A
  • Coil Voltage Minimum : 110
  • Mounting : Rail
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 038911033814
  • GTIN : 03389110338140
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.58 in
  • Weight : 1.019 lb
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
