LC1DT326BD - Schneider Electric 32A 4-Pole TeSys Deca Contactor 24VDC Coil Non-Reversing

LC1DT326BD

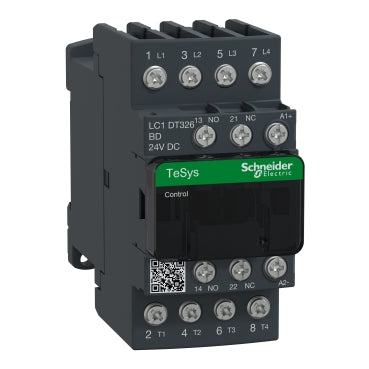

LC1DT326BD is a Schneider Electric TeSys Deca 4-pole (4 NO) contactor with a 32 amp rating and 24 VDC coil designed for industrial and HVAC applications.This non-reversing contactor supports AC-1 loads up to 440 V and 32 A with a 4 normally open pole configuration. It features multi-standard screws, EverLink terminal blocks, spring terminals, and ring-type connections for flexible wiring. The device is rated for 3 HP at 230/240 V single-phase and 5 HP at 200-240 V three-phase motors. It complies with IEC 60947-1 and IEC 60947-4-1 standards and is UL and CSA certified.

Key Specifications
• Amperage: 32 A
• Voltage: Up to 440 V AC-1
• Poles: 4 poles (4 NO)
• Coil Voltage: 24 VDC
• Mounting Type: Open style
• Interrupt Rating: Suitable for AC-1 non-inductive loads
• Series/Frame: TeSys Deca
• Trip Unit: Non-reversing
• Certifications: UL, CSA, IEC 60947-1, IEC 60947-4-1
• Horsepower Ratings: 3 HP @ 230/240 V 1-ph, 5 HP @ 200-240 V 3-ph
• Terminal Type: Multi-standard screws, EverLink terminal block, spring terminal, ring-type connection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.




Specifications

• Part Number: LC1DT326BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 4
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 38911073349
• GTIN : 03389110733495
• Country of Origin : Indonesia
• Weight : 1.013
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
