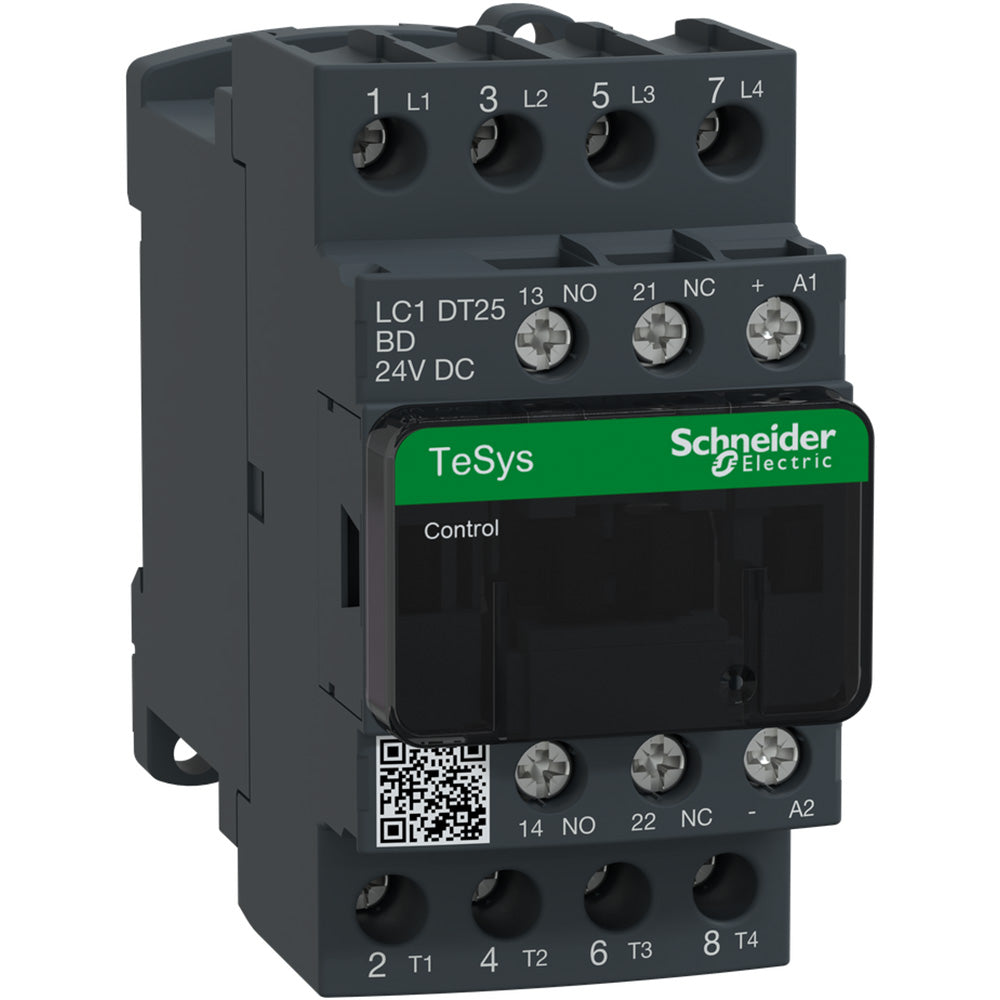

LC1DT25BD - Schneider Electric TeSys D 4 Pole 25A 24VDC Contactor AC-1 600V Non-Reversing

LC1DT25BD

LC1DT25BD is a 4 pole, 25A, 24VDC TeSys D contactor designed for industrial and HVAC applications requiring reliable switching and control. This non-reversing contactor features a 24VDC coil, 4 NO main contacts, and is rated for up to 600VAC. It is suitable for resistive and motor loads, with robust construction for demanding environments. The device is DIN rail mountable and includes 1NO+1NC auxiliary contacts for control circuit integration.

• Part Number: LC1DT25BD
• Manufacturer: Schneider Electric
• Series: TeSys D
• Number of Poles: 4P (4 NO)
• Rated Current: 25A AC-1
• Coil Voltage: 24VDC
• Power Circuit Voltage: 600VAC
• Mounting Type: DIN Rail
• Interrupt Rating: 600VAC
• Standards: IEC 60947-1, IEC 60947-4-1
• Control Circuit: Screw Clamp Terminals
• Dimensions: 1.77" W x 3.9" D x 3.35" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.

Specifications

• Part Number: LC1DT25BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Section : Contactors
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Aux Contacts : 1NO, 1NC
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 785901610649
• Country of Origin : Indonesia
• Dimensions : 1.77 in W x 3.9 in D x 3.35 in H 3.35 in H x 1.77 in W x 3.9 in D
• Weight : 1.226
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
