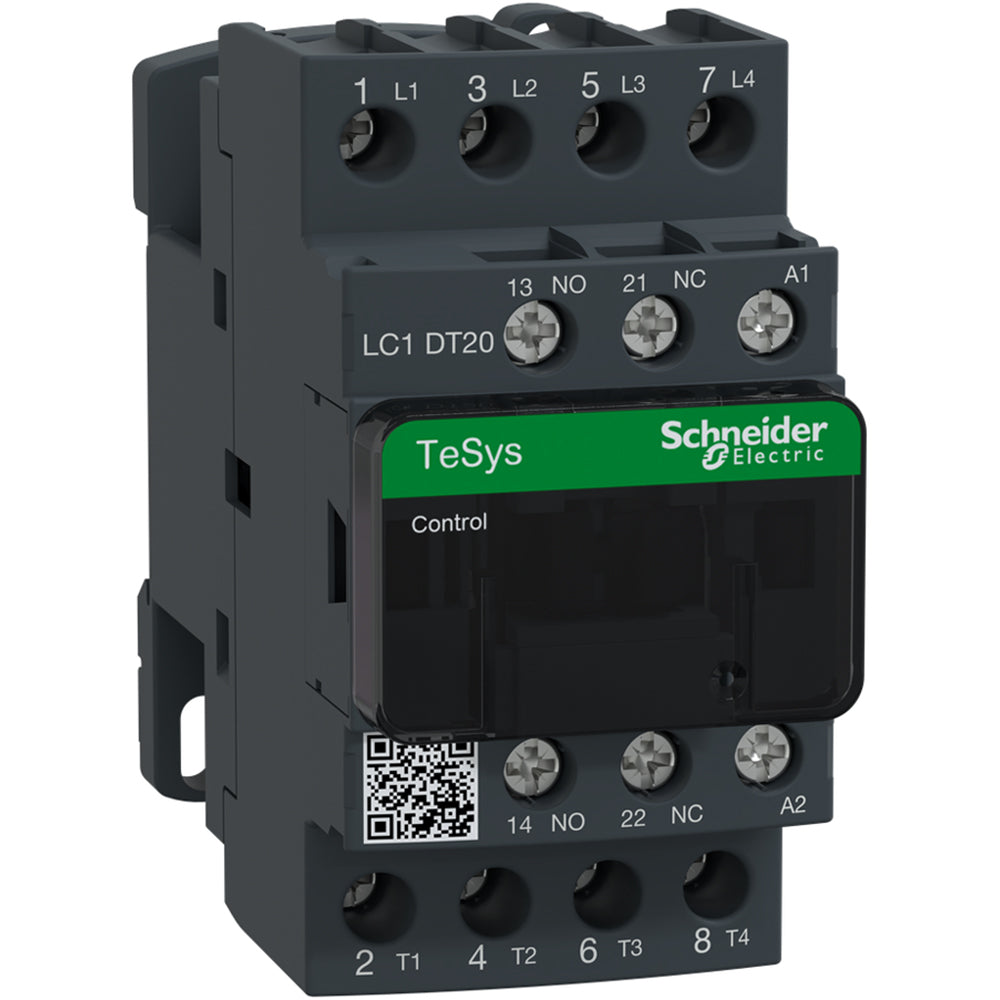

LC1DT20G7 - Schneider Electric TeSys D 20A 440V 4-Pole Contactor 120V AC Coil

LC1DT20G7

LC1DT20G7 is a Schneider Electric TeSys D non-reversing contactor designed for motor control applications.LC1DT20G7 features a 20 ampere rating, 4 poles with 4 normally open contacts, and supports AC-1 duty up to 440 volts. It includes a 120V AC coil operating at 50/60 Hz and uses screw clamp terminals for control circuit connections. This contactor is UL and CSA certified for 600V power circuits and complies with IEC 60947-1 standards.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 440 V AC (power circuit)
• Poles: 4 (4 Normally Open)
• Coil Voltage: 120 V AC, 50/60 Hz
• Mounting Type: Open style
• Interrupt Rating: Suitable for AC-1 duty
• Series/Frame: TeSys D
• Control Circuit Terminals: Screw clamp, 2 x 1Ð2.5 mm_ cable
• Certifications: UL, CSA, IEC 60947-1
• Contact Resistance: 2.5 mOhm
• Operating Frequency: 3600 cycles/hour at 60¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you (more...)

Additional Information

This TeSys D IEC Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC1DT20G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 21
• Phase : 3
• Poles : 4
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50/60 Hz

Product Data

• UPC : 785901503163
• GTIN : 3389110467758
• Country of Origin : Indonesia
• Dimensions : 45 mm x 85 mm
• Weight : 0.856
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
