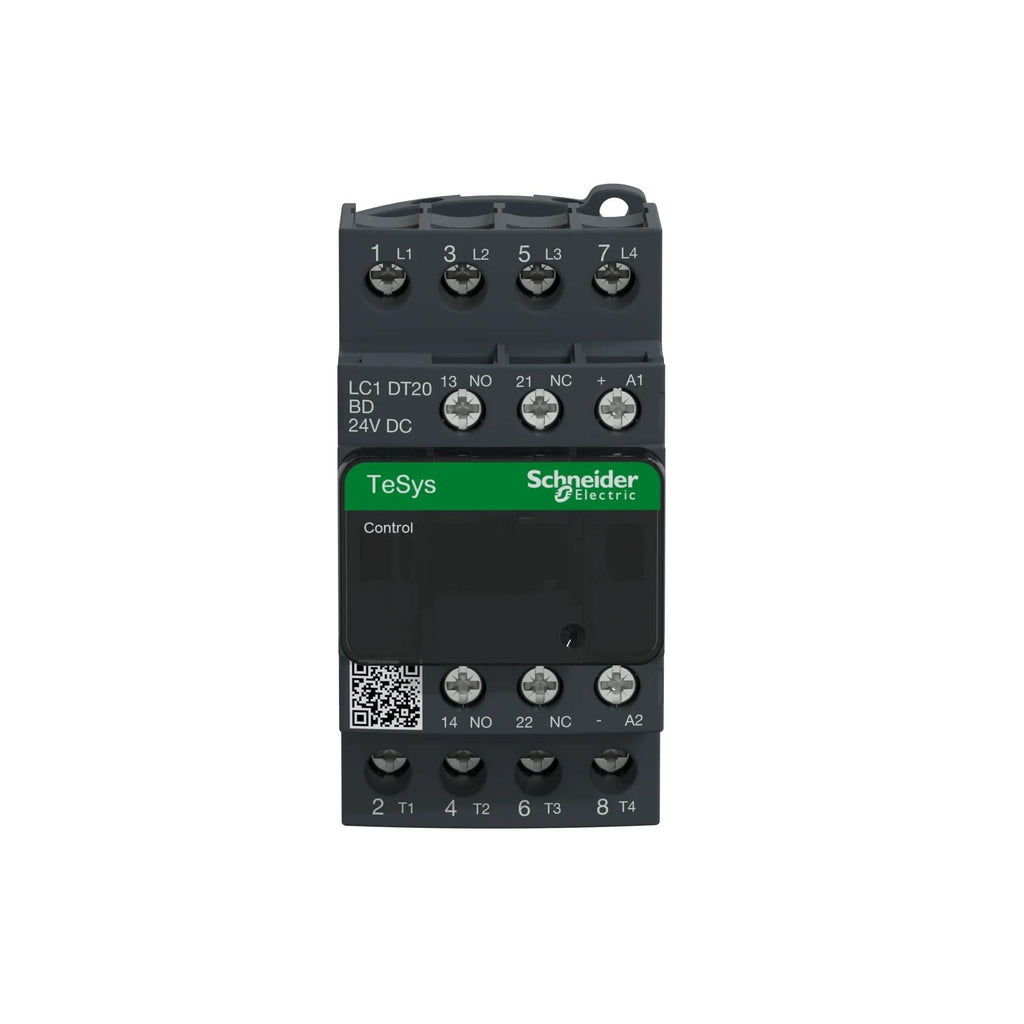

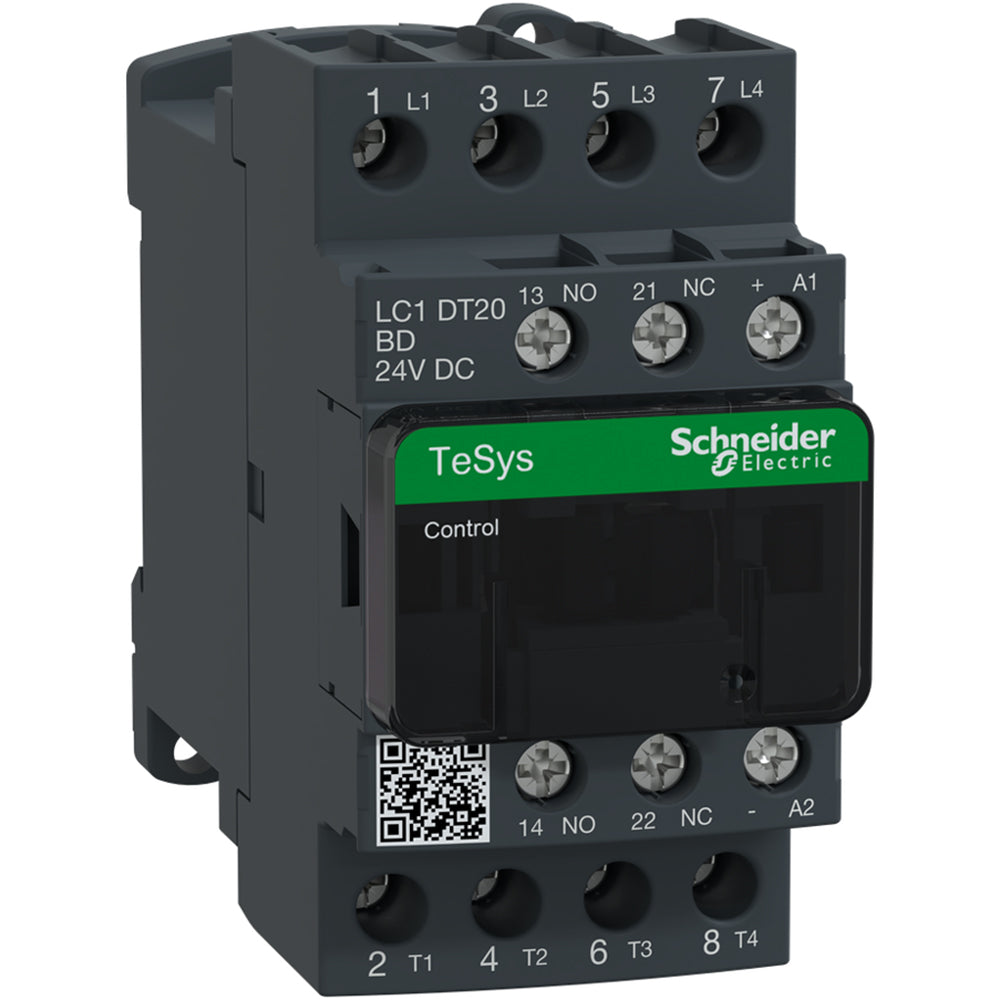

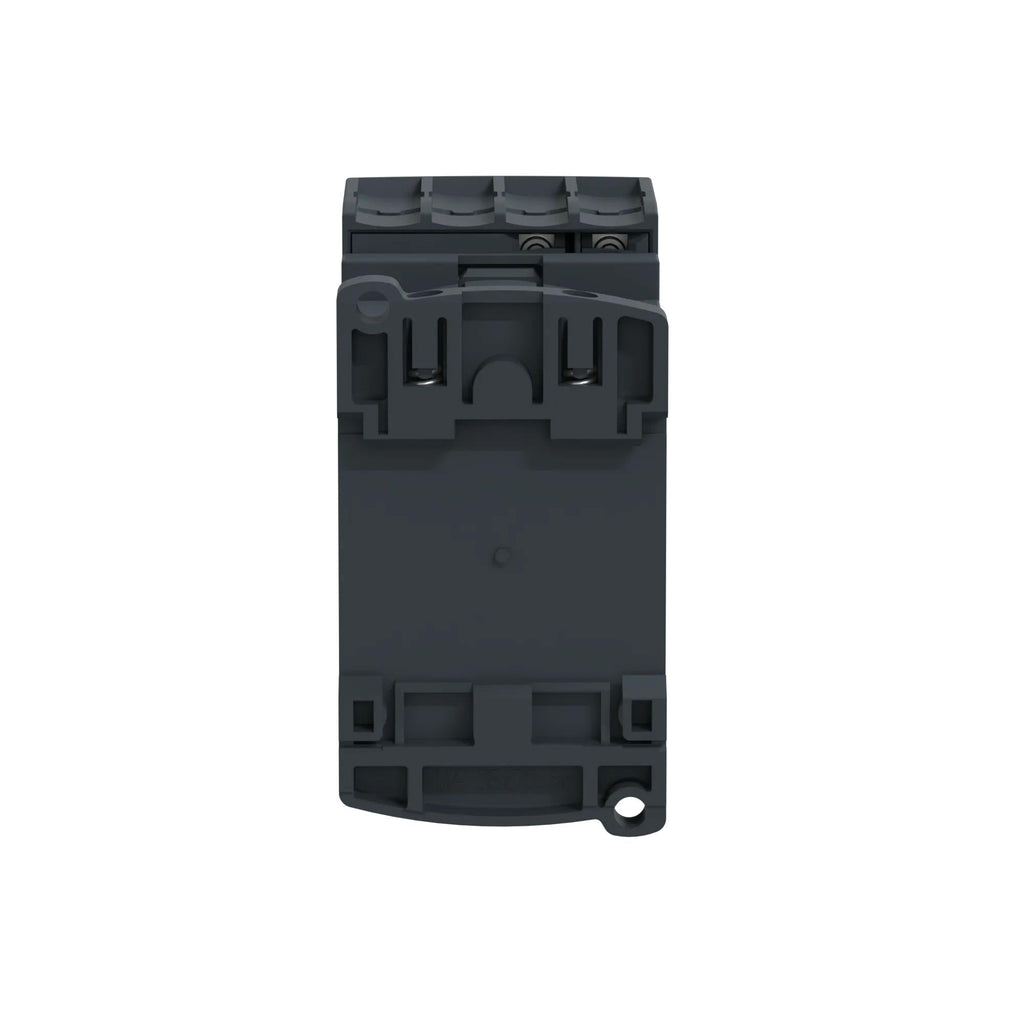

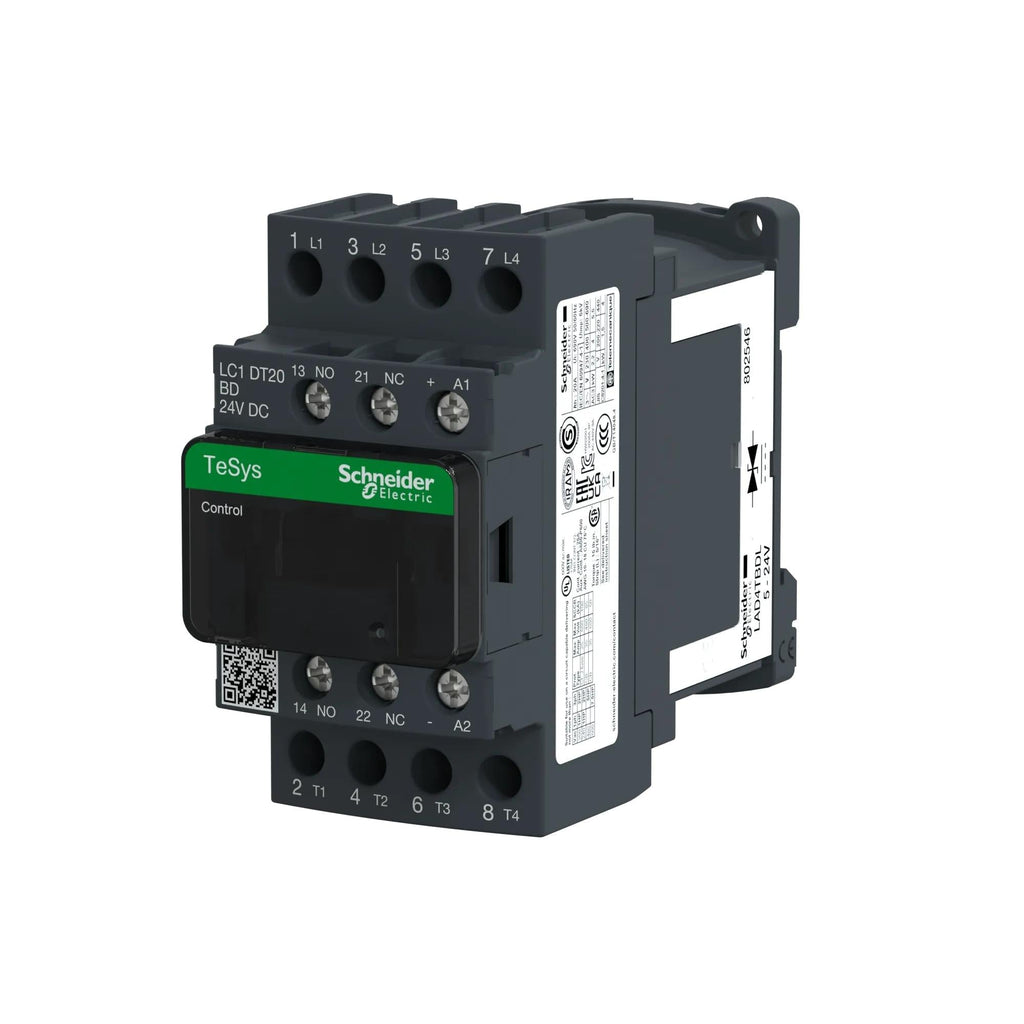

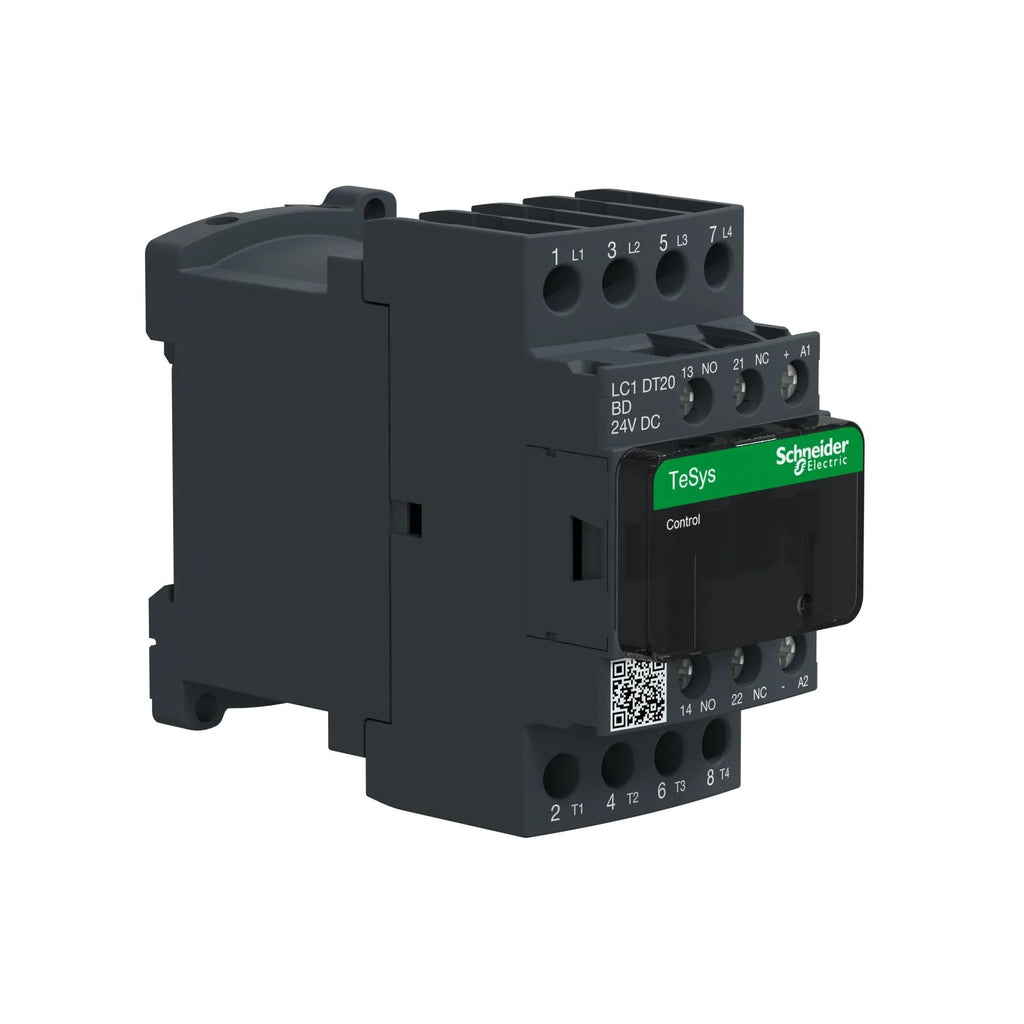

LC1DT20BD - Schneider Electric 20A 4 Pole IEC Contactor 24V Coil TeSys D Series

LC1DT20BD

LC1DT20BD is a Schneider Electric 20 amp 4 pole IEC contactor with a 24V DC coil, designed for motor control applications.LC1DT20BD features four normally open power contacts rated for 20A resistive load, suitable for 3-phase motor starters. It supports DIN rail or panel mounting and includes one normally open and one normally closed auxiliary contact. The contactor complies with UL, CSA, IEC, CCC, EAC, and Marine certifications and meets RoHS/REACh standards.

• Amperage: 20A resistive load
• Voltage: 24V DC coil
• Poles: 4 normally open power contacts
• Mounting Type: DIN rail or direct panel mount
• Series/Frame: TeSys D (LC1 series)
• Auxiliary Contacts: 1 NO, 1 NC built-in
• Interrupt Rating: Suitable for motor control applications
• Dimensions: 3.35 x 1.77 x 3.90 inches
• Weight: 0.8 lbs
• Certifications: UL, CSA, IEC, CCC, EAC, Marine
• Compliance: RoHS/REACh Green Premium

At Essential Parts, we offer fast shipping, lowest price, and expert support(more...)

Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.

Specifications

• Part Number: LC1DT20BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 4
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 38911024770
• GTIN : 03389110247701
• Country of Origin : Indonesia
• Dimensions : 45 mm x 85 mm
• Weight : 1.235
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
