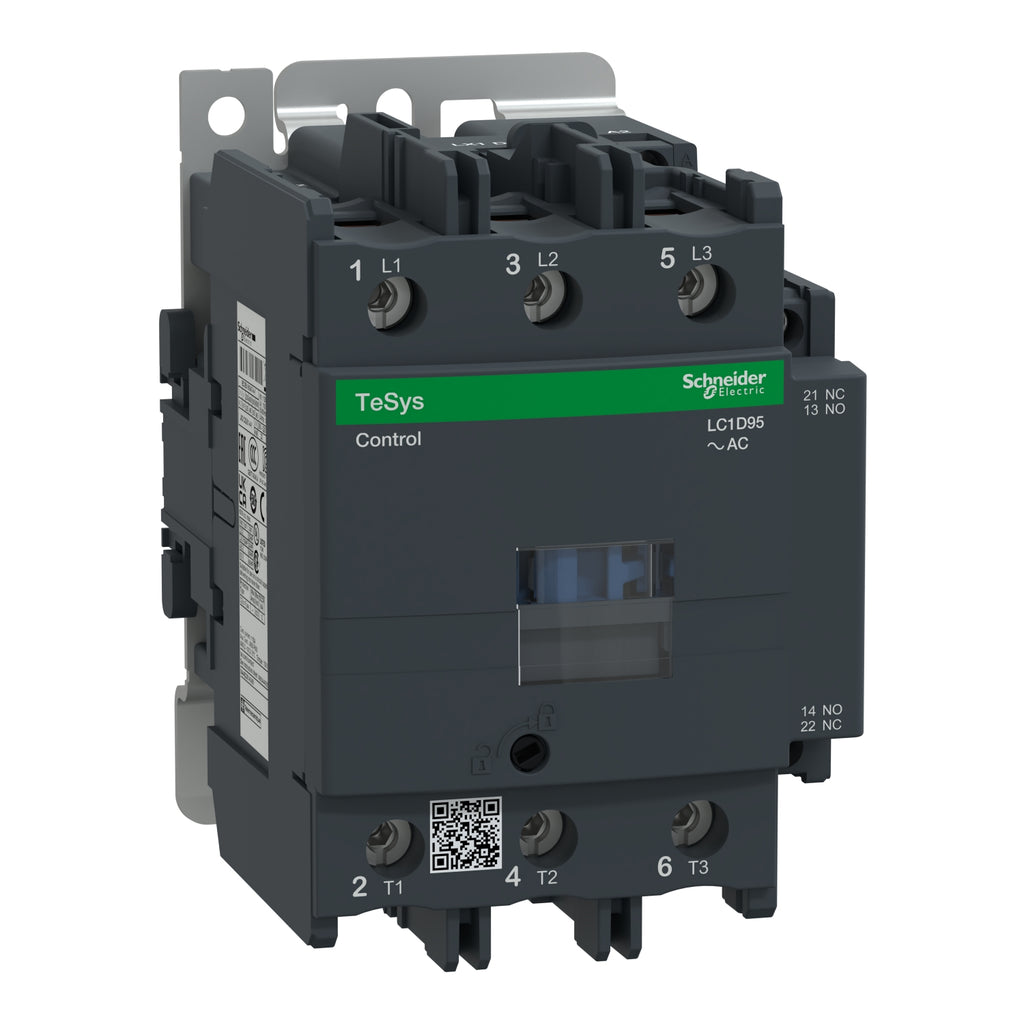

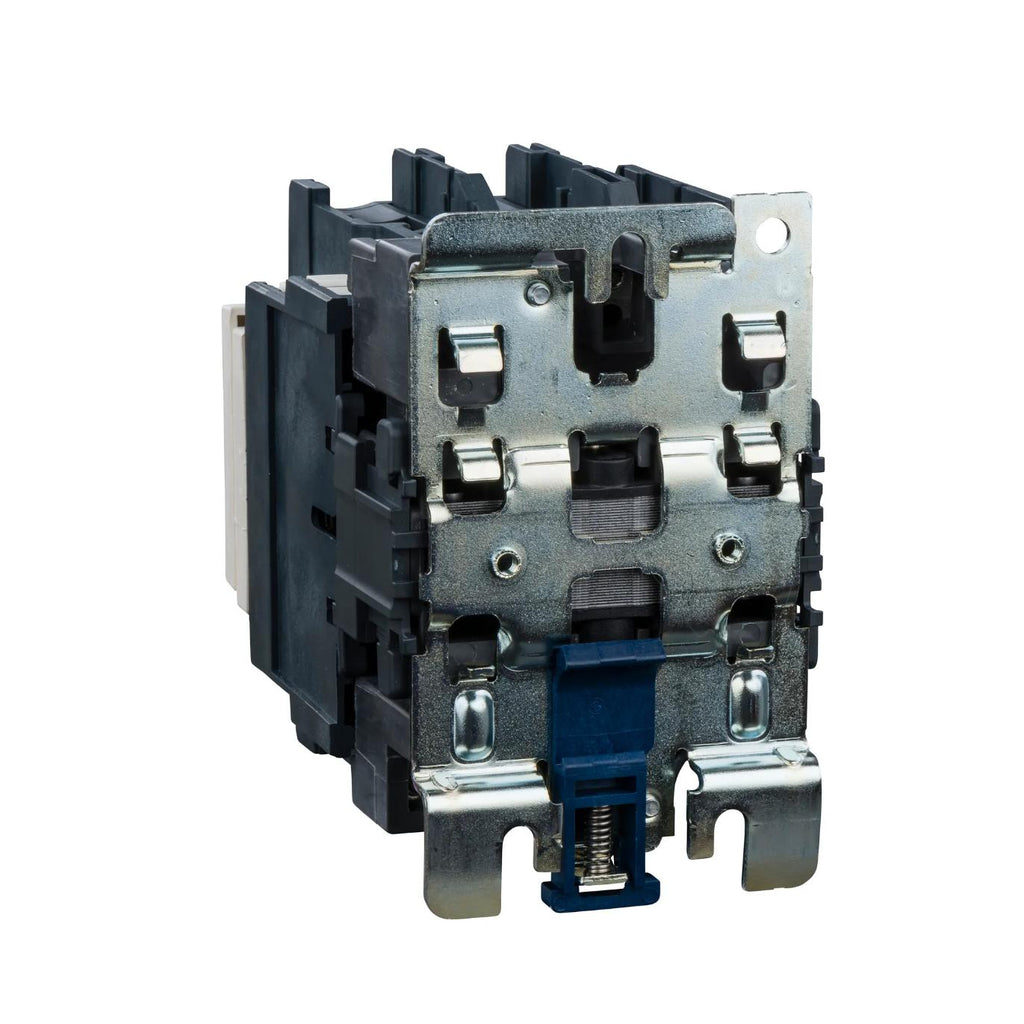

LC1D95F7 - Schneider Electric TeSys D 95A 3-Pole Motor Contactor 110V AC Coil 440V AC Power

LC1D95F7

LC1D95F7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications with a 95 amp rating and 3 poles.This contactor features a 3-pole (3 NO) configuration suitable for AC-3 utilization category, rated for up to 440V AC operational voltage and a 110V AC coil at 50/60 Hz. It supports motor loads up to 60 HP at 480V AC and offers flexible mounting options including DIN rail and screw fixing. The device complies with multiple international certifications such as IEC, UL, CSA, and RoHS, ensuring broad application and safety standards.

Key Specifications
• Amperage: 95 A (AC-3, 440 V)
• Voltage Rating: Up to 440 V AC power circuit, 110 V AC coil
• Poles: 3 (3 Normally Open contacts)
• Mounting Type: DIN rail or screw fixing
• Utilization Category: AC-3, AC-4, AC-1
• Motor Power: Up to 60 HP at 480 V AC
• Interrupt Rating: IEC 60947-4-1 compliant
• Series/Frame: TeSys D (LC1D series)
• Trip Unit: Non-reversing contactor
• Certifications: IEC, UL, CSA, RoHS, CCC, EAC, BV, DNV-GL
• Connection Type: Screw clamp terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys D IEC Contactor includes a 110 VAC coil.




Specifications

• Part Number: LC1D95F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 95
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50/60 Hz



Product Data

• UPC : 785901446019
• GTIN : 00389110451170
• Country of Origin : Czechia
• Dimensions : 3.35 in x 5 in
• Weight : 3.426
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
