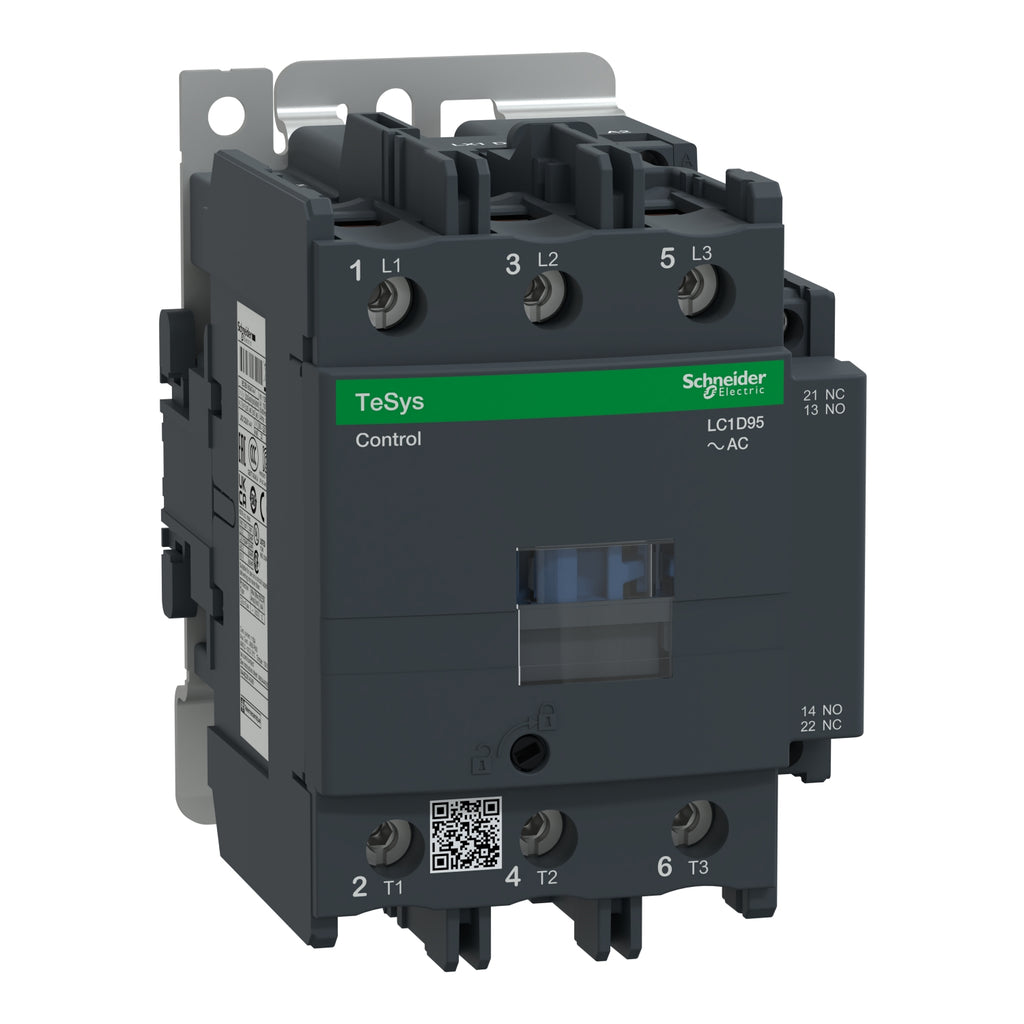

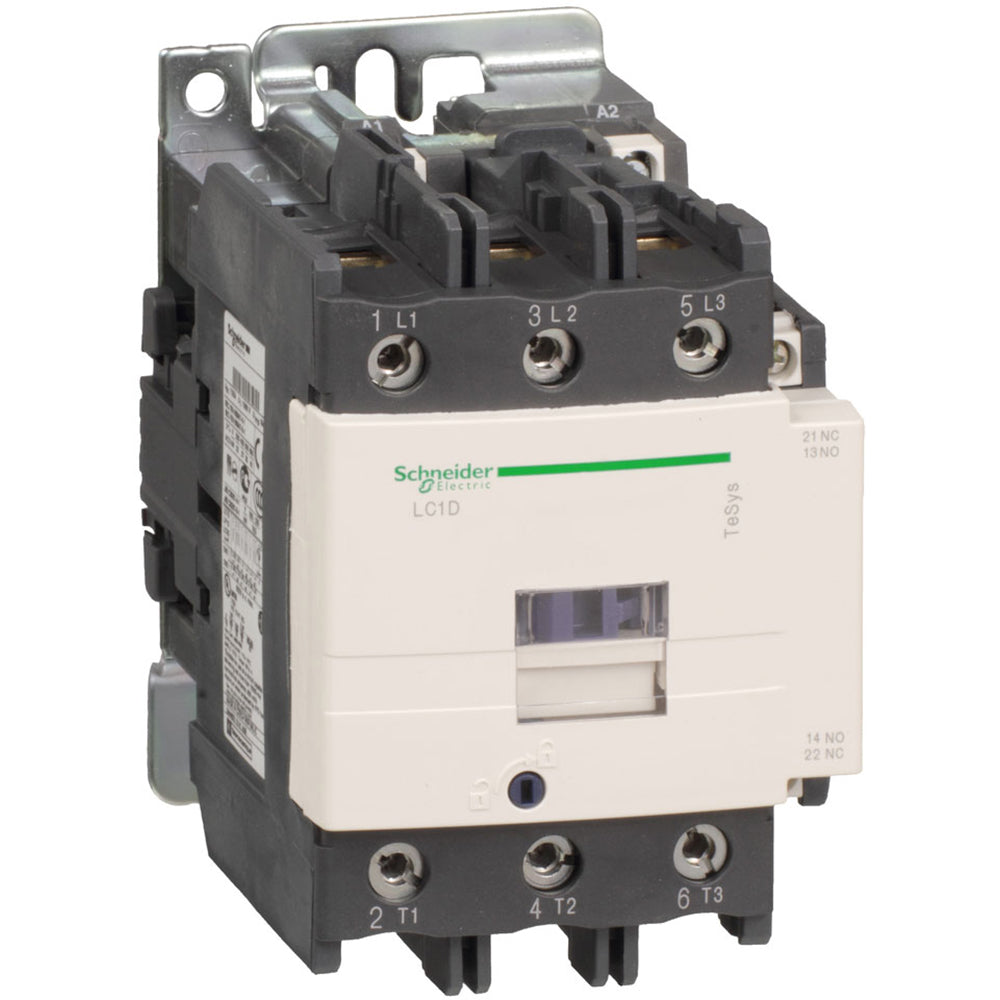

LC1D95B7 - Schneider Electric 95A 3-Pole IEC Contactor 24VAC Coil 60HP at 480V AC Motor Control

LC1D95B7

LC1D95B7 is a Schneider Electric 3-pole IEC contactor designed for motor control applications with a 24VAC coil and rated for 95A continuous current.This contactor supports motor loads up to 60 HP at 480V AC and complies with IEC 60947 standards. It features 3 normally open (NO) contacts, suitable for AC-3 duty, and offers reliable performance with a compact design for easy installation and maintenance. The device is certified for multiple standards and supports flexible mounting options.

• Rated current: 95A
• Poles: 3-pole (3 NO contacts)
• Coil voltage: 24 VAC, 50/60 Hz
• Motor power rating: 60 HP at 480V AC
• Standards compliance: IEC 60947
• Interrupt rating: Suitable for AC-3 duty
• Mounting type: Flexible mounting options
• Series/Frame: TeSys Deca
• Non-reversing contactor
• Durability: High operating rate and long life
• Certifications: Multi-standard certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right p(more...)

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1D95B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 95
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp at 120 V AC 60 Hz for 1 phase motors-15 hp at 230/240 V AC 60 Hz for 1 phase motors-30 hp at 200/208 V AC 60 Hz for 3 phases motors-30 hp at 230/240 V AC 60 Hz for 3 phases motors-60 hp at 460/480 V AC 60 Hz for 3 phases motors-60 hp at 575/600 V AC 60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : 50/60 Hz

Product Data

• UPC : 038911045065
• GTIN : 03389110450651
• Country of Origin : Czechia
• Weight : 3.448
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
