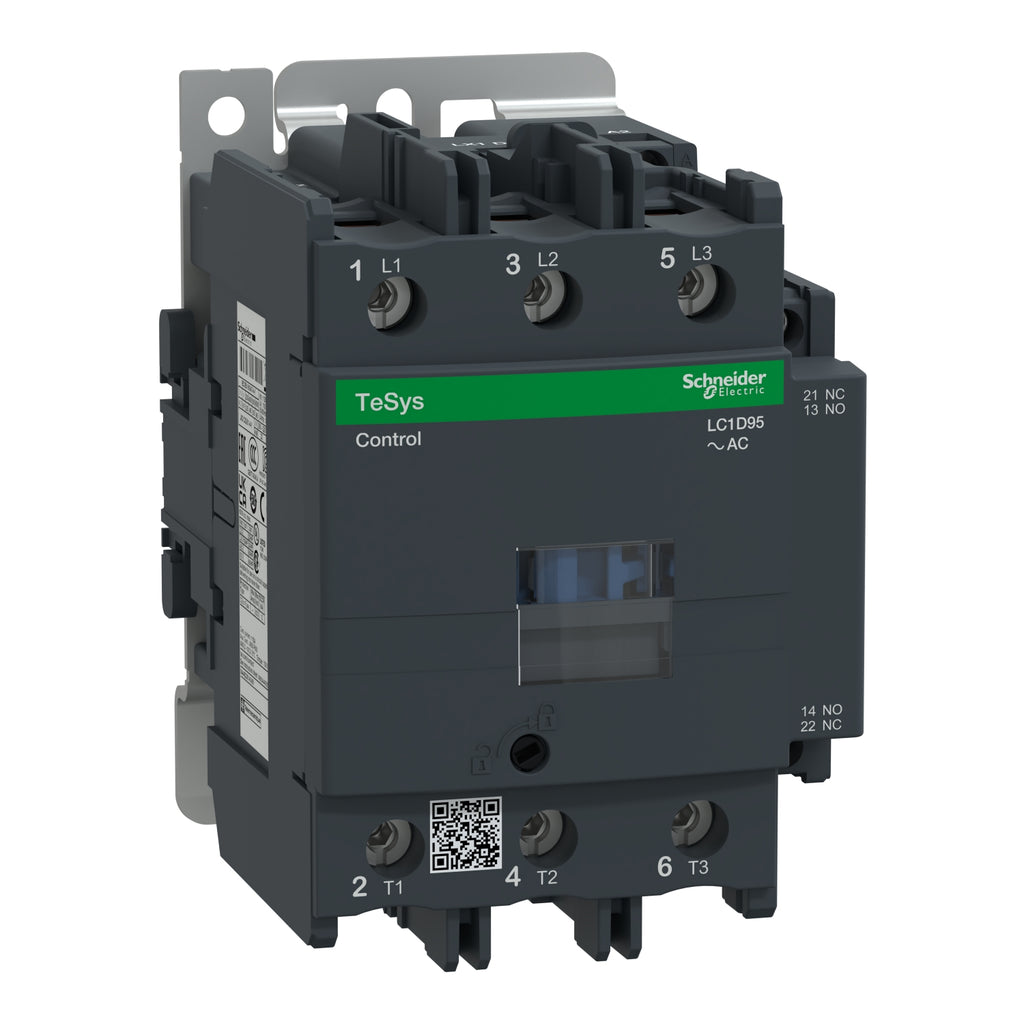

LC1D95-G7 - Schneider Electric 95A 3 Pole IEC Contactor 120V AC Coil TeSys Deca

LC1D95-G7

LC1D95-G7 is a 3 pole IEC contactor from Schneider Electric's TeSys Deca series, designed for reliable motor control in industrial applications. This contactor features a 120V AC 50/60 Hz coil and is rated for 95A operational current at 440V AC (AC-3), with a maximum operational voltage up to 690V AC. It includes 3 normally open (NO) main poles and 1 NO + 1 NC auxiliary contacts, making it suitable for a wide range of motor control circuits. The device is built for easy installation with both panel and DIN rail mounting options, and offers robust performance in demanding environments.

• 95A rated operational current (AC-3, 440V)
• 3 Pole (3 NO) main contacts
• 120V AC 50/60 Hz control coil
• Up to 690V AC rated operational voltage
• 1 NO + 1 NC auxiliary contacts
• TeSys Deca series
• Panel and DIN rail mounting
• Rated impulse withstand voltage: 8 kV
• Operating altitude: up to 3000 m
• Fire resistance: 850¡C
• Flame retardance: UL 94 V1
• Complies with IEC 60695-2-1

At Essential Parts, we offe(more...)

Specifications

• Part Number: LC1D95-G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 95
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120

Product Data

• UPC : 038911045126
• GTIN : 00389110451262
• Weight : 5
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
