Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D80Q7C

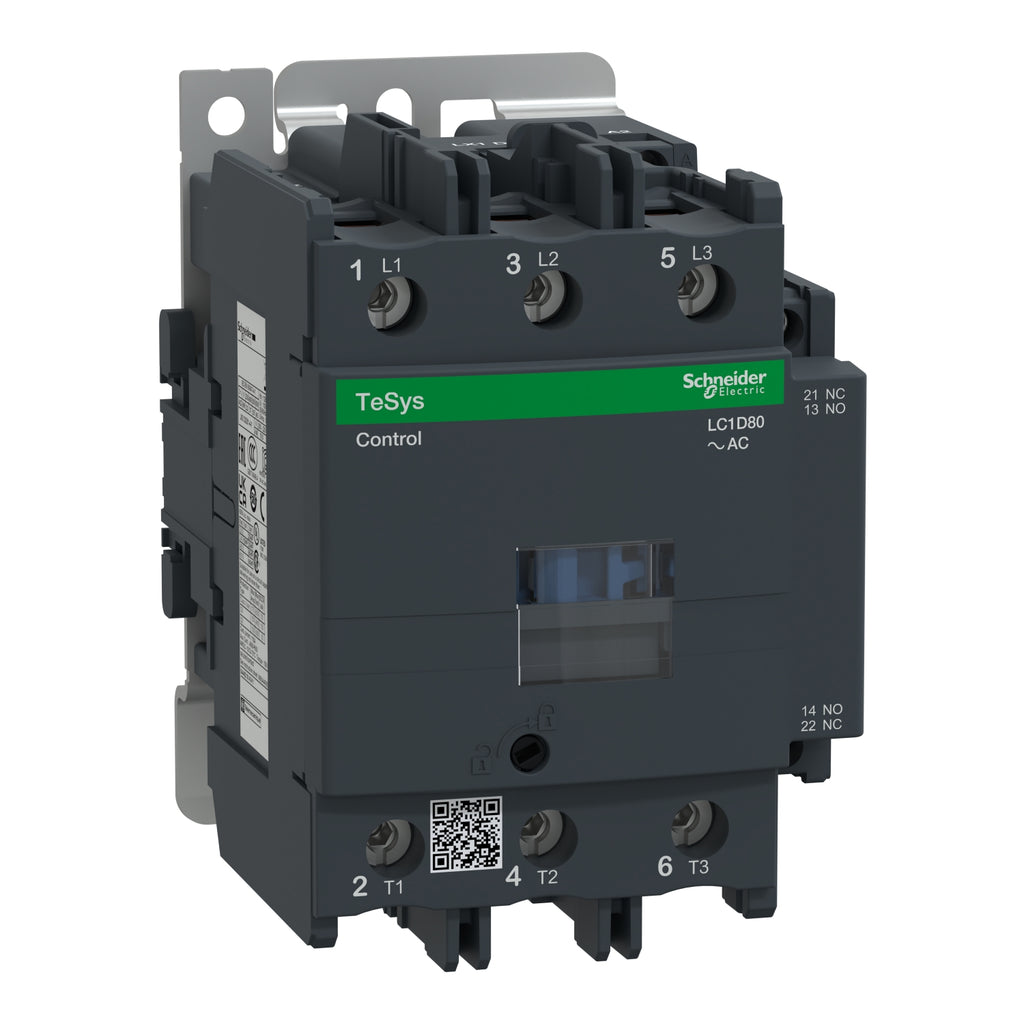

LC1D80Q7C is a Schneider Electric TeSys D series 3-pole contactor designed for motor control applications, featuring an 80A rating and a 380V AC coil. This non-reversing contactor is engineered for reliable switching in industrial environments, supporting up to 690V AC and providing robust performance for motor loads. It includes built-in auxiliary contacts and is suitable for a wide range of motor control and automation systems.
- 80A continuous current rating
- 3-pole configuration
- 690V maximum operating voltage
- 380V AC coil, 50/60 Hz
- TeSys D series
- Non-reversing design
- 1 NO and 1 NC auxiliary contacts
- Motor control application
- IEC compliance
- CE certification
Specifications
- Part Number: LC1D80Q7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum : 380
- Coil Voltage Minimum : 380
Product Data
- Weight : 3.632
- Certification : CE, UKCA, CCC
