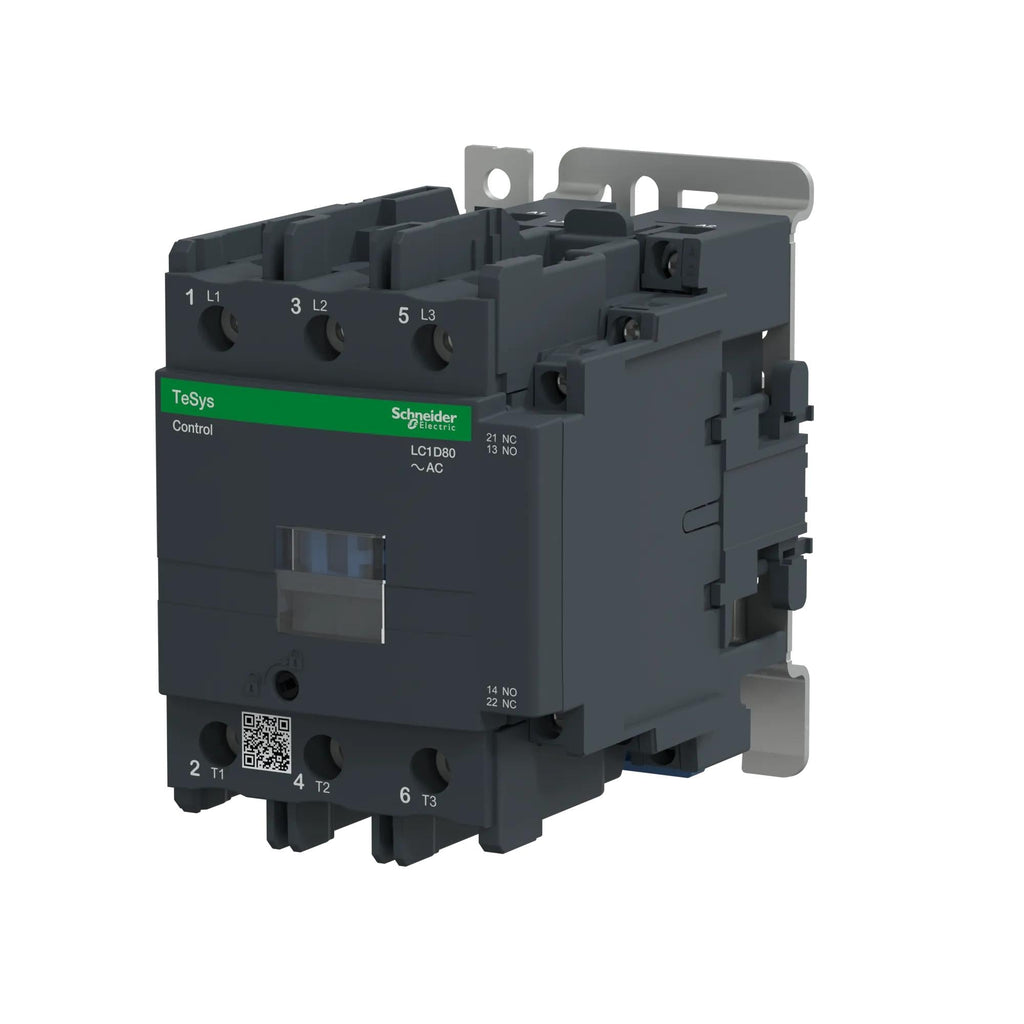

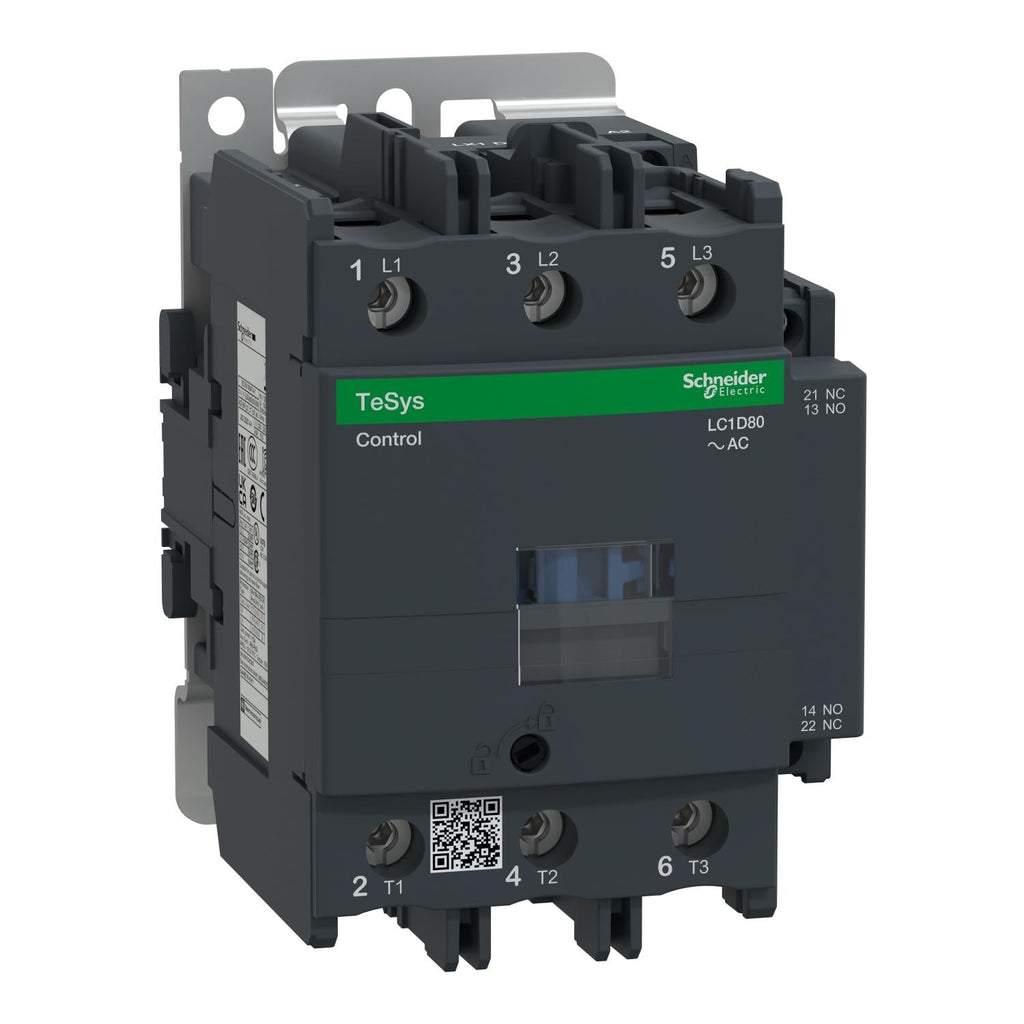

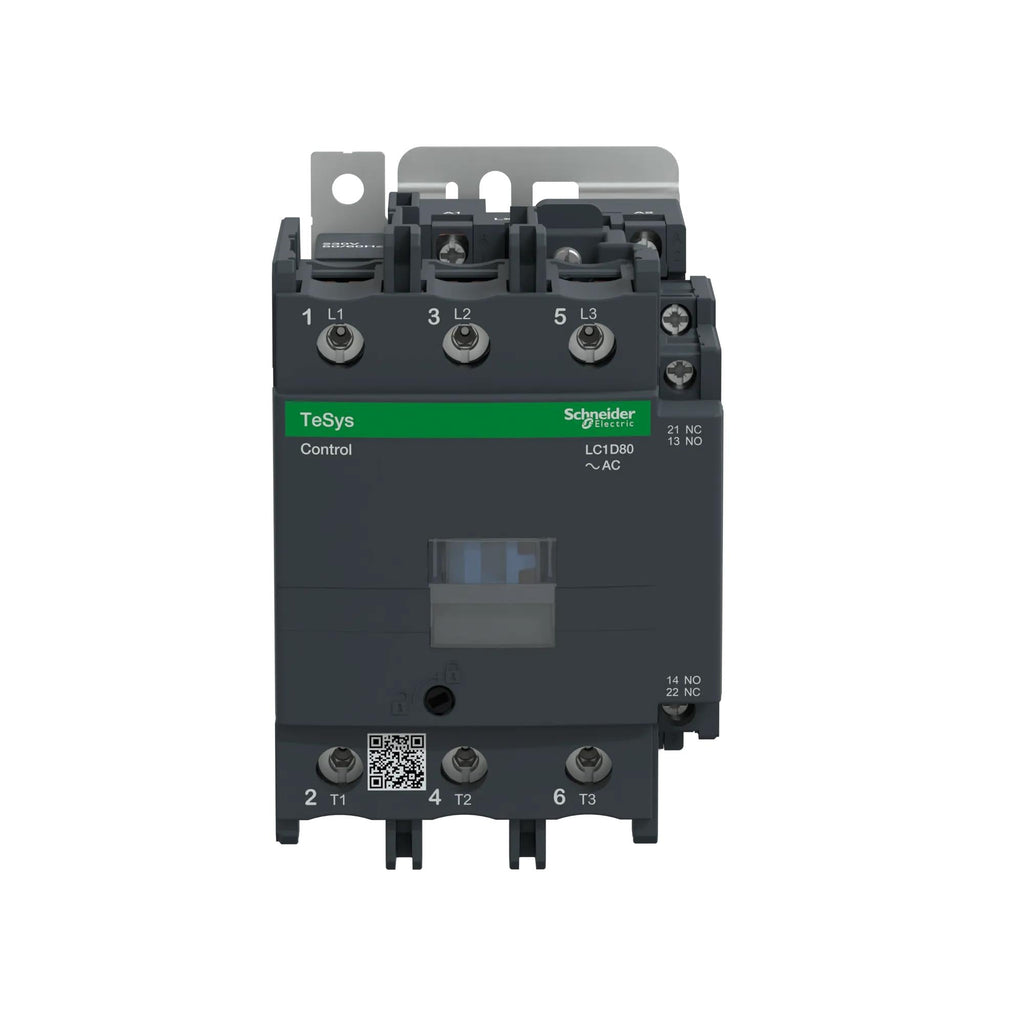

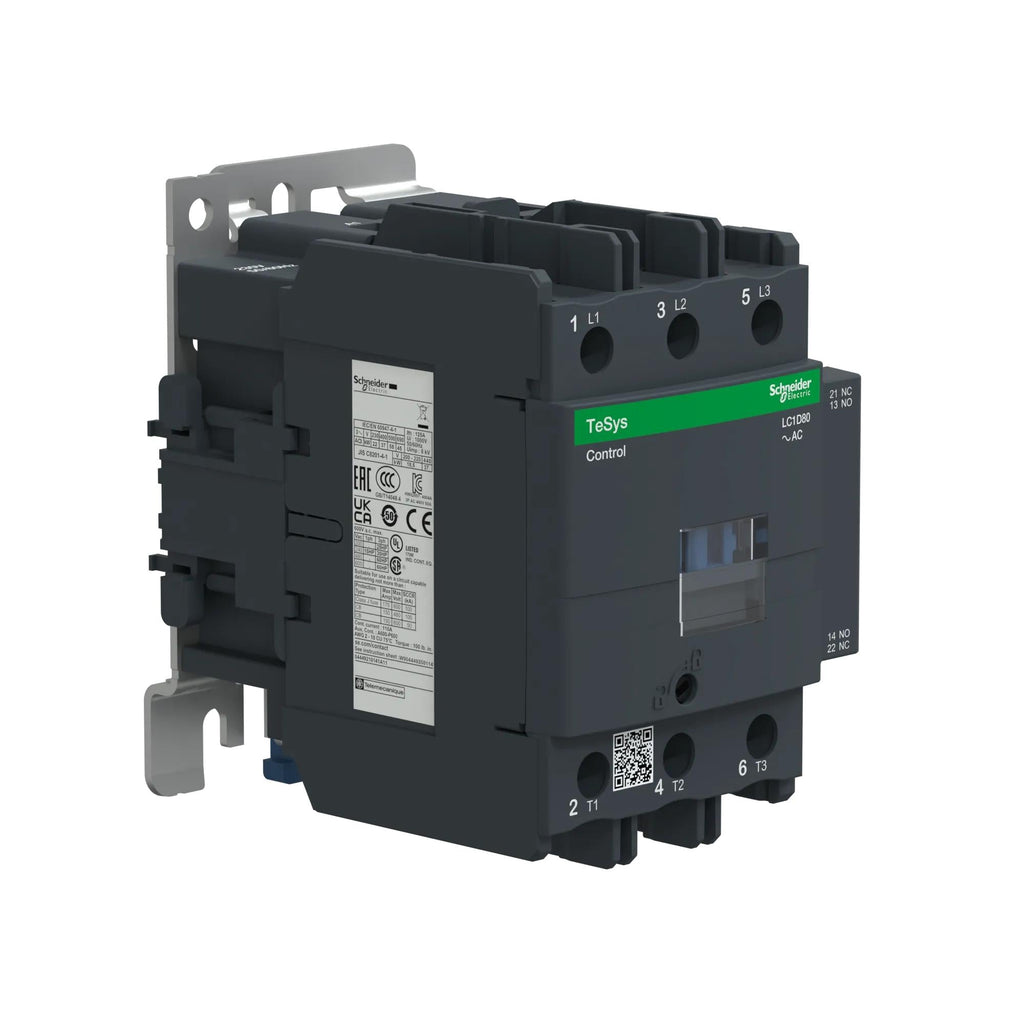

LC1D80P7 - Schneider Electric 80A 3 Pole Motor Contactor 230V Coil TeSys Deca Frame

LC1D80P7

LC1D80P7 is a Schneider Electric 3-pole motor contactor designed for reliable motor control applications.This contactor features an 80 ampere rating with a 230V AC coil and supports up to 600V power circuit voltage. It is part of the TeSys Deca series, offering a compact design with multiple mounting options including chassis and DIN rail. The contactor is rated for a 100kA short-circuit current rating (SCCR) and is UL and CSA certified. It supports motor horsepower ratings up to 60 HP at 480 VAC and 7.5 HP at 120 VAC single phase. The device is non-reversing with 3 normally open contacts (3 NO) and is suitable for AC-3 utilization category.

Key Specifications
• Amperage: 80 A
• Voltage: 230 V AC coil, 600 V power circuit
• Poles: 3

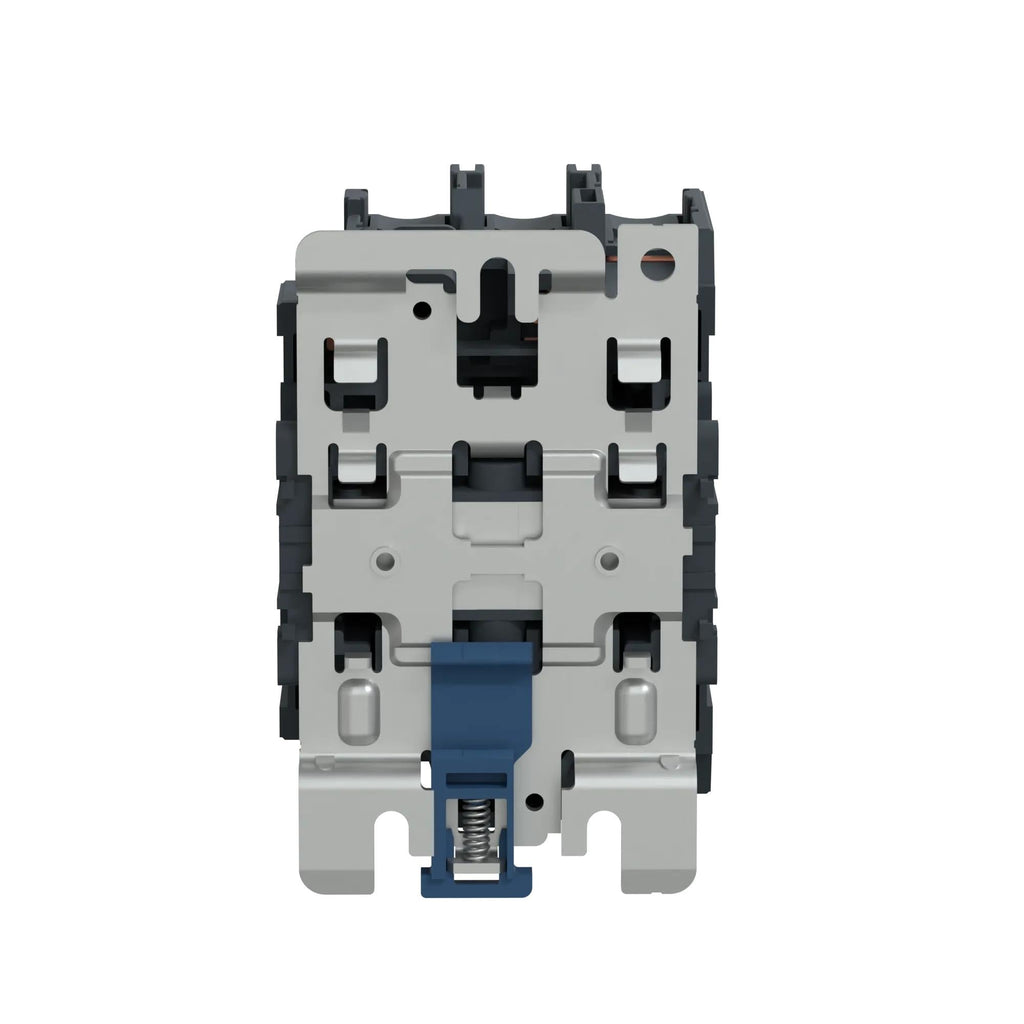

• Mounting Type: Chassis mount, DIN rail compatible
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: TeSys Deca
• Trip Unit: Non-reversing contactor
• Certifications: UL, CSA
• Horsepower Ratings: 60 HP at 480 VAC, 7.5 HP at 120 VAC (1 phase)
• Contact Form: 3 Normally Open (3 NO)
At Essential Parts, we (more...)


Additional Information

This TeSys D IEC Contactor includes a 230 VAC coil.




Specifications

• Part Number: LC1D80P7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230
• Frequency : 50/60 Hz



Product Data

• UPC : 038911044282
• GTIN : 03389110442823
• Country of Origin : Czechia
• Dimensions : 85 mm x 127 mm
• Weight : 3.452
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
