LC1D80M7 - Schneider Electric 80A 3-Pole TeSys D Motor Contactor 220V AC Coil 60HP 480V AC

LC1D80M7

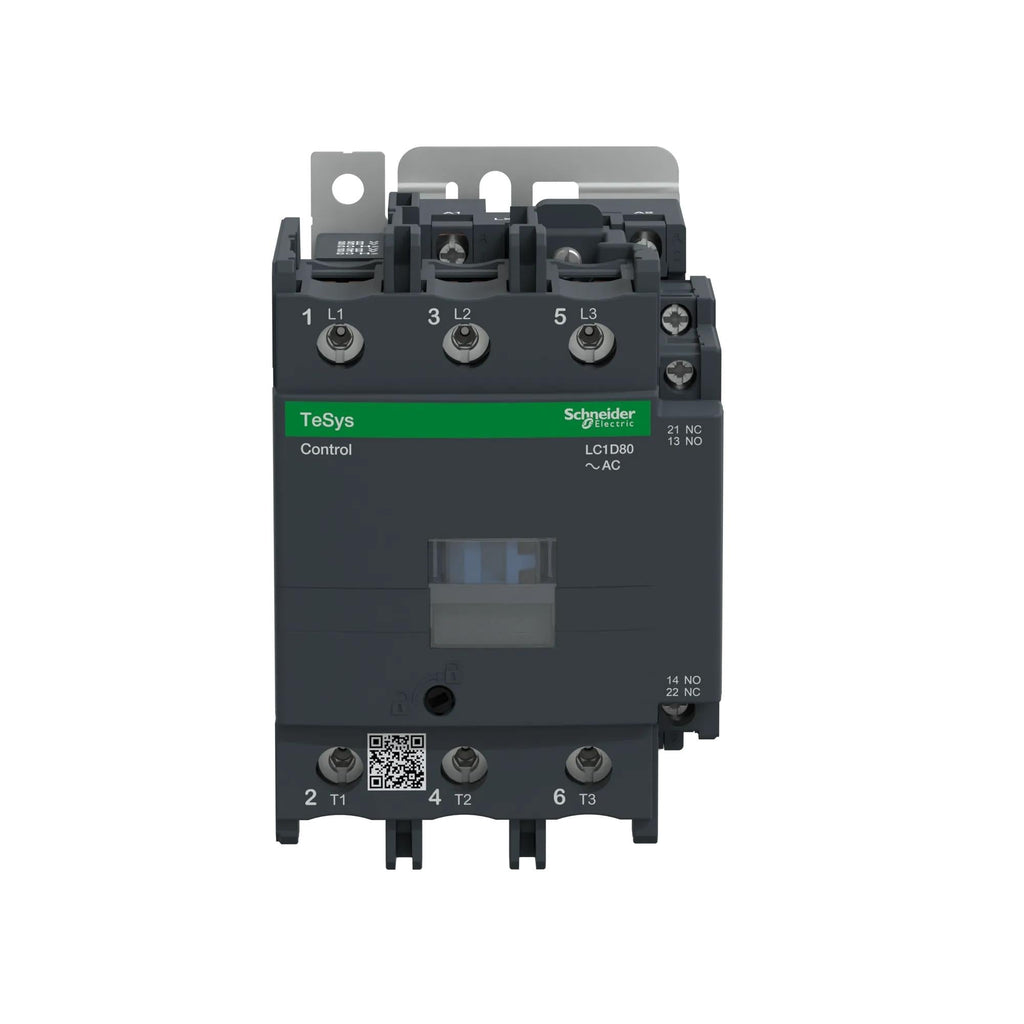

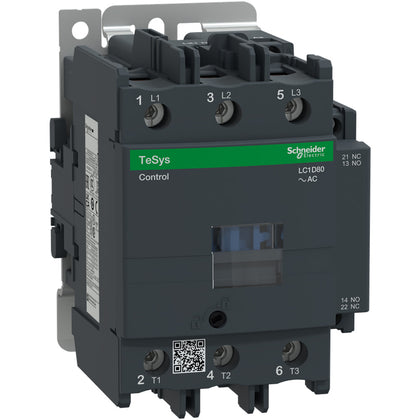

LC1D80M7 is a Schneider Electric 3-pole motor contactor designed for motor control applications with an 80 amp rating and a 220V AC 50/60 Hz coil.LC1D80M7 features a non-reversing TeSys D design suitable for motors up to 60 HP at 480V AC. It includes 3 normally open power contacts, 1 normally open and 1 normally closed auxiliary contact, and supports panel or DIN rail mounting. The contactor is rated for AC-3 utilization category with a maximum operational voltage of 440V and offers a short-circuit current rating up to 100kA. It complies with multiple certifications ensuring reliable performance and safety.

• Rated current: 80 A
• Poles: 3 (3 normally open)
• Coil voltage: 220 V AC, 50/60 Hz
• Maximum motor HP: 60 HP at 480 V AC
• Auxiliary contacts: 1 NO, 1 NC base mounted

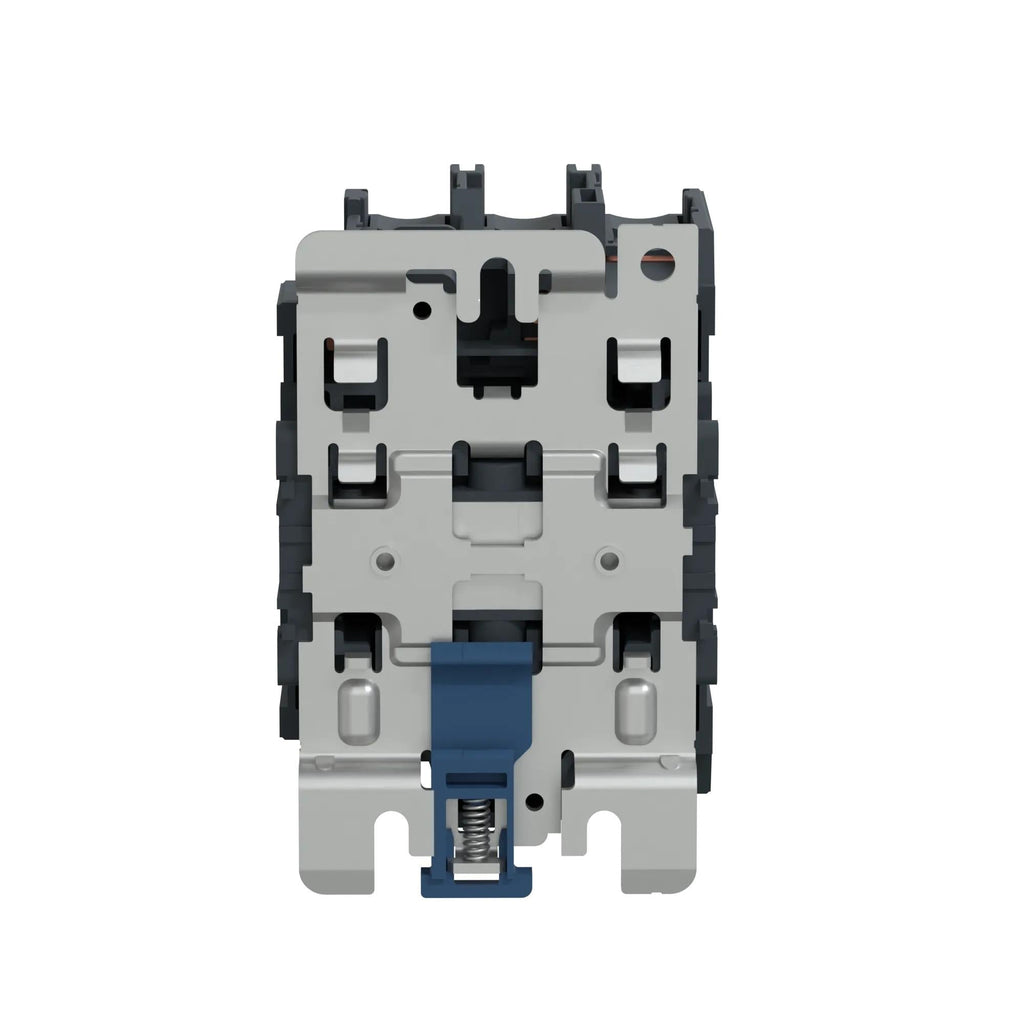

• Mounting: Panel or DIN rail
• Interrupt rating: Up to 100 kA SCCR
• Series/Frame: TeSys D
• Certifications: Multi-standard certified
• Application: Motor control and overload protection

At Essential Parts, we offer fast shipping,

Additional Information

This TeSys D IEC Contactor includes a 220 VAC coil.

Specifications

• Part Number: LC1D80M7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 220
• Coil Voltage Minimum : 220
• Frequency : 50/60 Hz

Product Data

• UPC : 38911044257
• GTIN : 03389110442571
• Country of Origin : Czechia
• Dimensions : 85 mm x 127 mm
• Weight : 3.408
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
