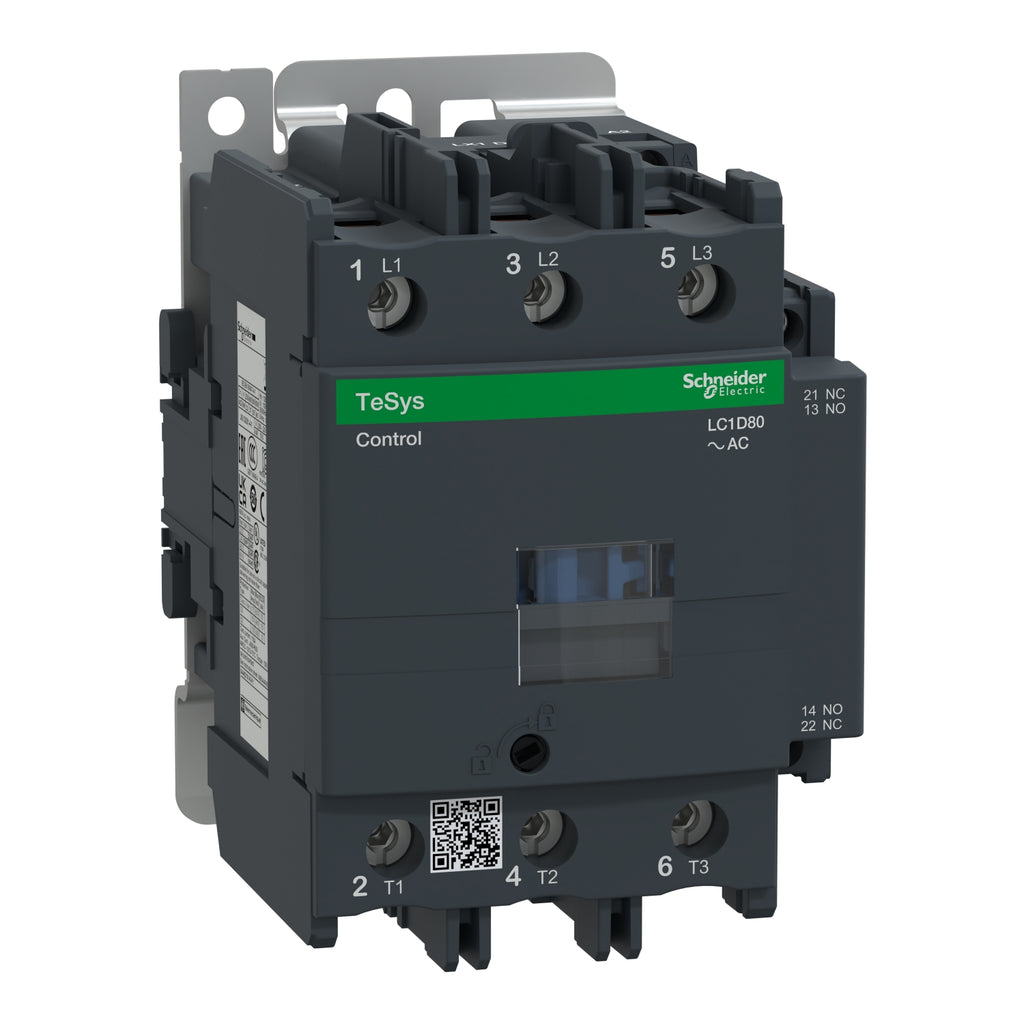

LC1D80F7C - Schneider Electric 3-Pole 80A 110V AC Non-Reversing IEC Contactor, TeSys Deca Series

LC1D80F7C

This non-reversing contactor from the TeSys Deca series supports up to 80A rated operational current at 440V AC and is suitable for controlling motors up to 60 HP at 480V AC. It features 3 normally open power poles and is rated for use with AC-1, AC-3, and AC-4 utilization categories. The contactor supports a maximum operational voltage of 690V AC and 300V DC, with a high interrupt rating and reliable performance under demanding conditions. It uses screw clamp terminals for control circuit wiring and has a mechanical endurance of 20 million cycles.

• Rated operational current: 80A at ²440V AC (AC-3)
• Rated operational voltage: ²690V AC, ²300V DC
• Poles: 3 normally open (3 NO)
• Coil voltage: 110V AC, 50/60 Hz
• Motor horsepower rating: 60 HP at 480V AC
• Non-reversing contactor type
• TeSys Deca series, IEC rated
• Control circuit: screw clamp terminals
• Mechanical endurance: 20,000,000 cycles
• Operating temperature range: -40¡C to 70¡C
&lt(more...)


Specifications

• Part Number: LC1D80F7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110



Product Data

• Weight : 3.735
• Certification : CE, UKCA, CCC
