Product Info
- Manufacturer:Schneider Electric||Telemecanique
- Sub-Category:Contactor
Description
LC1D80F7

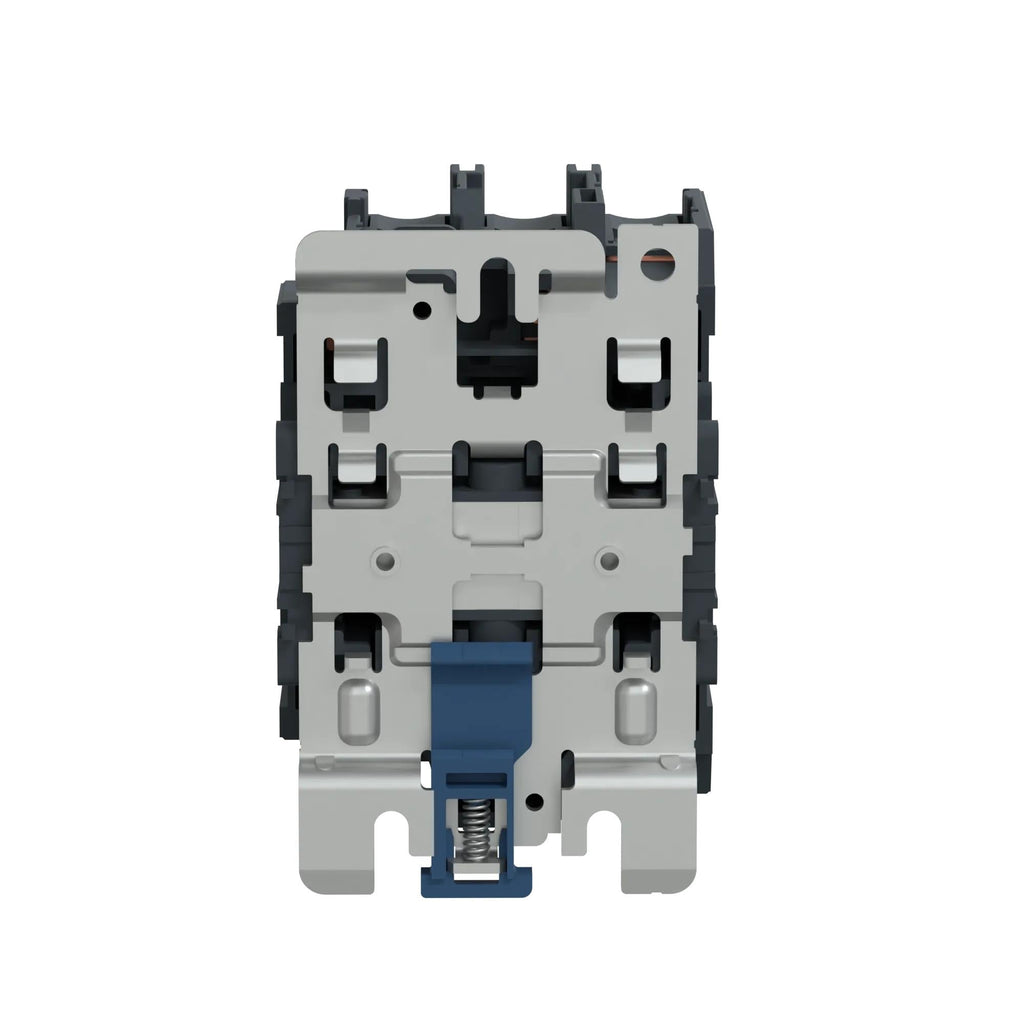

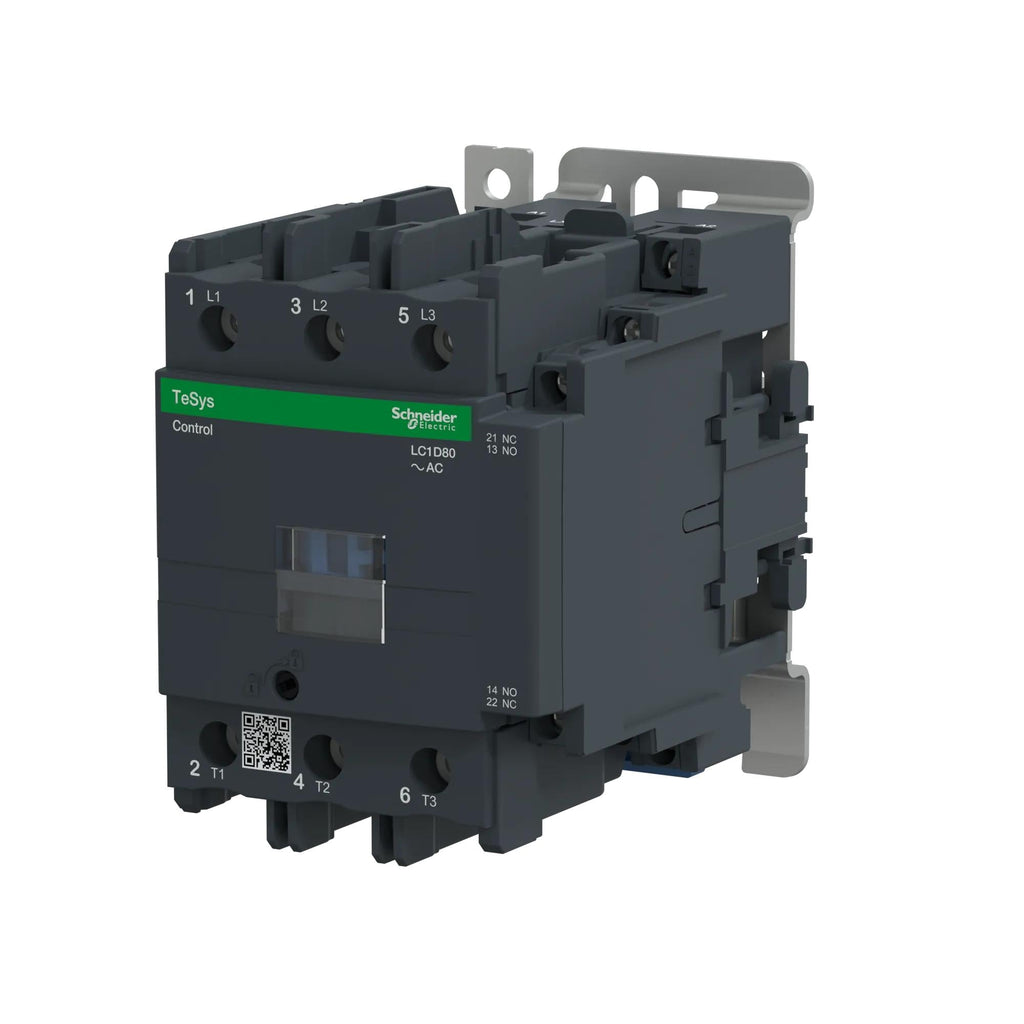

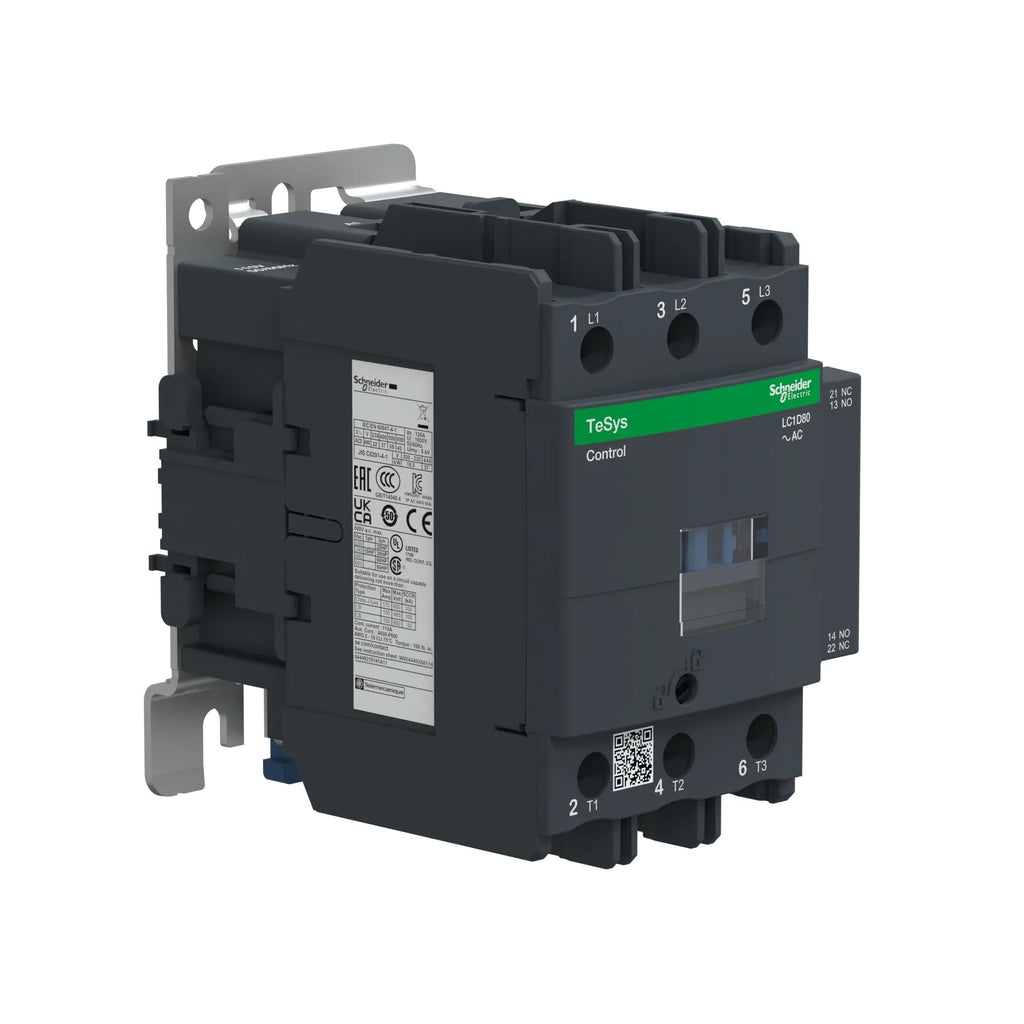

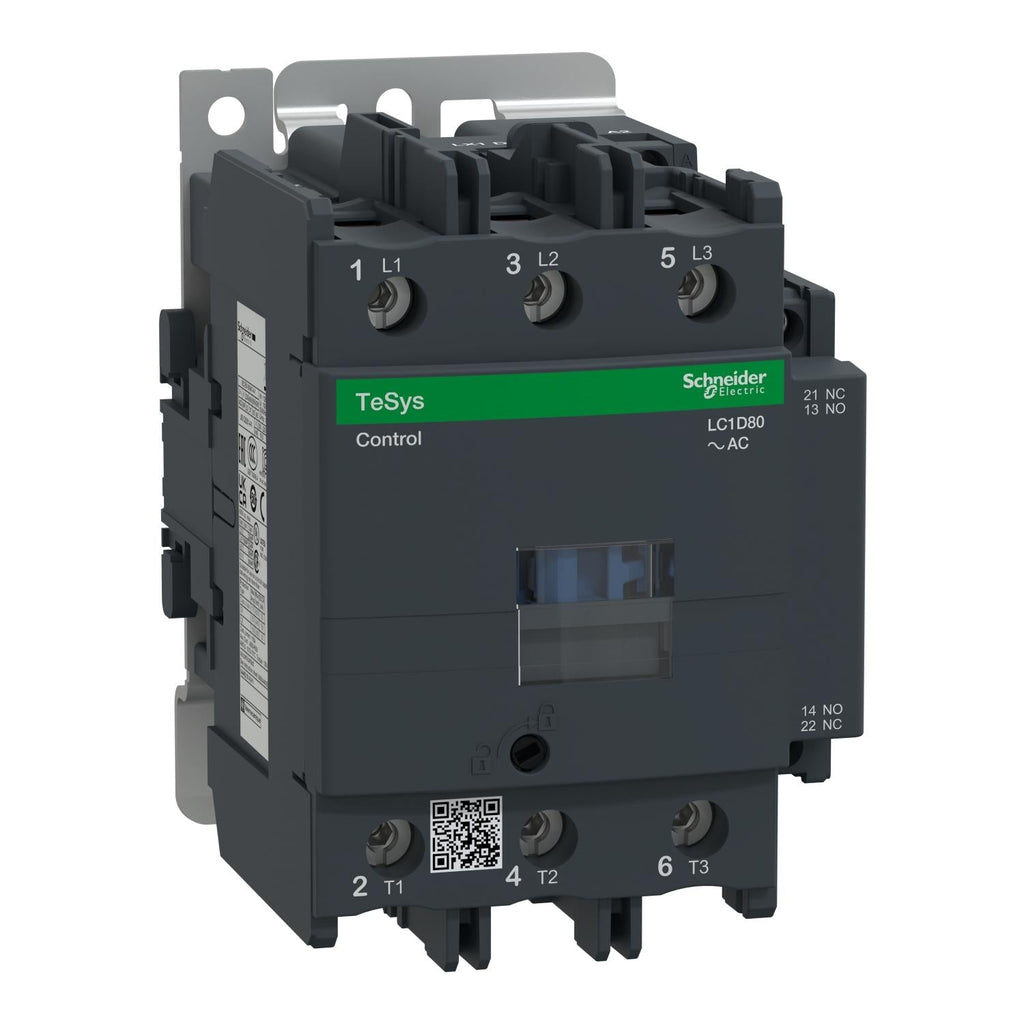

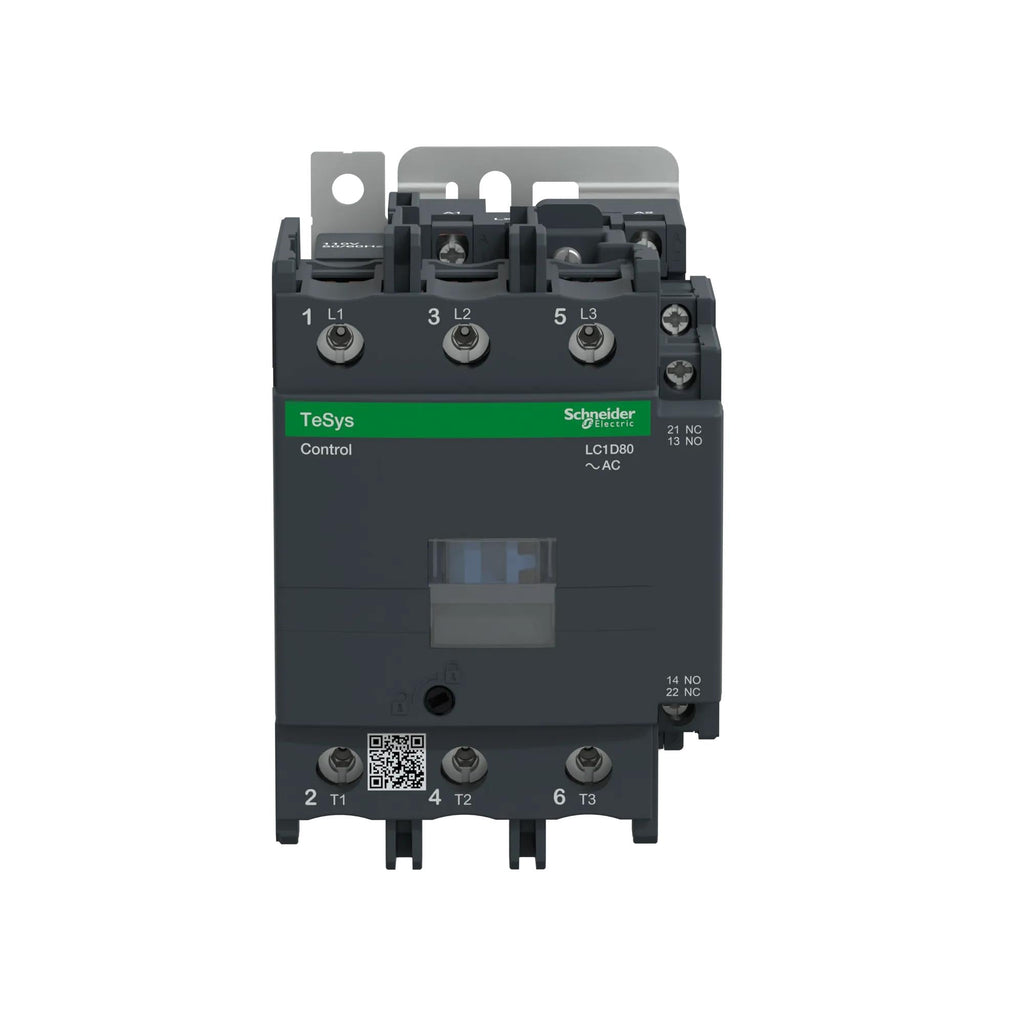

LC1D80F7 is a Schneider Electric TeSys D series 3-pole motor contactor designed for reliable motor control in industrial applications. This non-reversing contactor features a 110V AC coil and is rated for 80A at up to 440V AC-3, making it suitable for motor loads up to 60 HP at 480V. The contactor is built for durability and ease of installation with screw clamp terminals and flexible cable connections. Engineered for demanding environments, the LC1D80F7 offers high mechanical durability and fast operating times, supporting up to 3600 cycles per hour at temperatures up to 60¡C. It is certified to IEC 60947-4-1 and UL/CSA standards, ensuring compliance for a wide range of applications. The contactor is panel mountable or DIN rail mountable for flexible installation options.
- Manufacturer: Schneider Electric
- Series: TeSys D
- Number of Poles: 3
- Rated Current: 80A
- Rated Voltage: 440V AC-3
- Coil Voltage: 110V AC 50/60 Hz
- Mounting Type: Panel or DIN Rail
- Interrupt Rating: 100kA SCCR
- Power Circuit: 600V UL/CSA, 1000V IEC
- Control Circuit: Screw Clamp Terminals<(more...)
Additional Information
This TeSys D IEC Contactor includes a 110 VAC coil.
Specifications
- Part Number: LC1D80F7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : 50/60 Hz
Product Data
- UPC : 785901207986
- GTIN : 03389110440782
- Country of Origin : Czechia
- Dimensions : 85 mm x 127 mm
- Weight : 3.435
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
