LC1D80BD - Schneider Electric 80A 3P 24VDC Coil IEC Contactor for Motor Control

SKU: LC1D80BD-New
Condition: New
Price:
$663.65
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

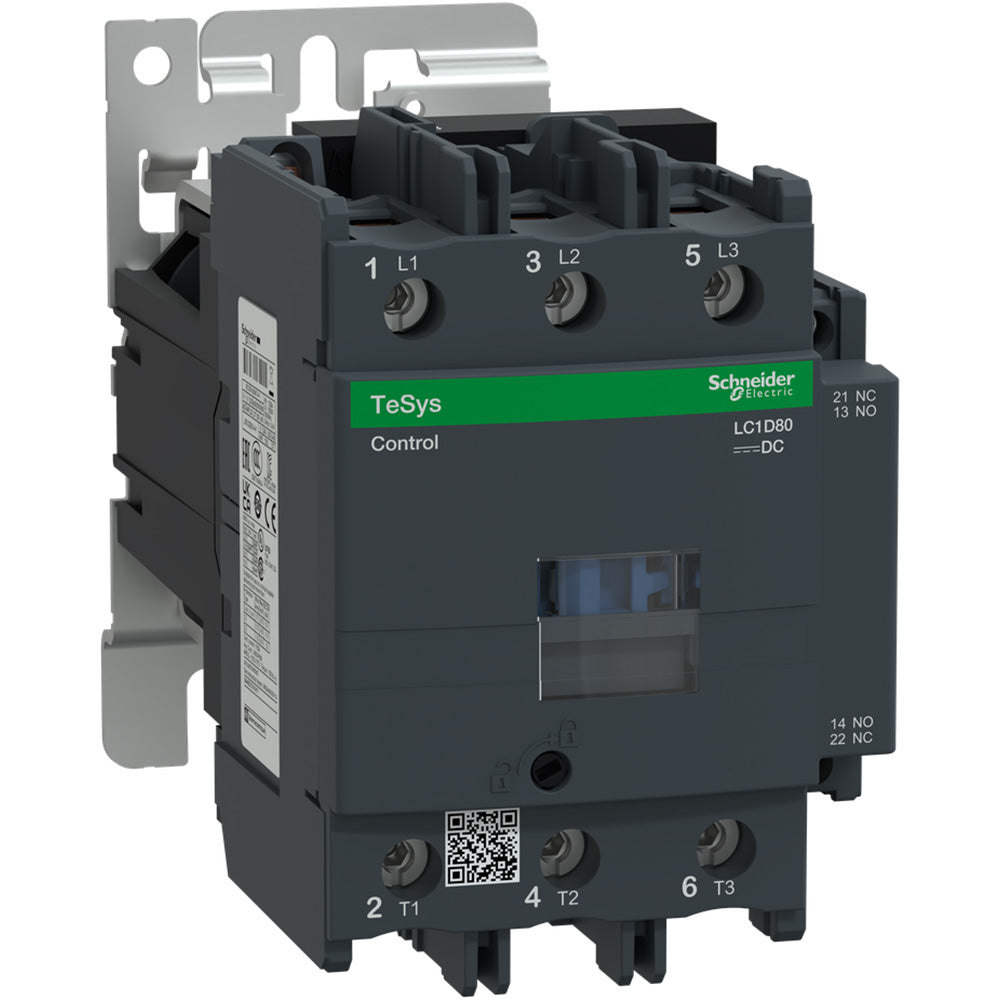

LC1D80BD Square D TeSys D Contactor 690V 80A 24V Coil - Essential Electric Supply
LC1D80BD Schneider Electric TeSys D Contactor 3 pole 3 phase 690V 80A 24V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LC1D80BD Square D TeSys D Contactor 690V 80A 24V Coil - Essential Electric Supply
LC1D80BD Schneider Electric TeSys D Contactor 3 pole 3 phase 690V 80A 24V coil - Essential Electric Supply

Description

LC1D80BD


LC1D80BD is a 3-pole IEC contactor designed for motor control and resistive load applications, featuring a 24VDC coil and robust performance in demanding environments.Engineered for reliability, the LC1D80BD contactor delivers 80A operational current at up to 440V AC, with a 125A thermal rating. It supports 3-phase motor control with 3 NO contacts, suitable for AC-3 and AC-4 utilization categories. This open-style contactor is part of the TeSys Deca series, offering easy installation, flexible mounting, and compliance with international standards.
  • Manufacturer: Schneider Electric
  • Series: TeSys Deca
  • Part Number: LC1D80BD
  • Application: Motor Control, Resistive Load
  • Rated Operational Current: 80A (AC-3), 125A (AC-1)
  • Rated Operational Voltage: up to 690V AC, 300V DC
  • Control Circuit Voltage: 24V DC
  • Poles: 3P (3 NO)
  • Utilization Category: AC-3, AC-4, AC-1
  • Mounting Type: Open Style, Multiple Options
  • Interrupt Rating: up to 100kA SCCR
  • Certifications: IEC 60946, Multi-standards Certified
At Essential Parts&l(more...)

Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.


Specifications

  • Part Number: LC1D80BD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 1NO, 1NC
  • Coil Voltage Maximum : 24
  • Full Load Amps : Full Load Amps-Inductive 80A Full Load Amps-Resistive 125A
  • Coil Voltage Minimum : 24

Product Data

  • UPC : 038911043997
  • GTIN : 03389110439977
  • Country of Origin : Czechia
  • Dimensions : 3.34 in x 5 in
  • Weight : 5.699
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
