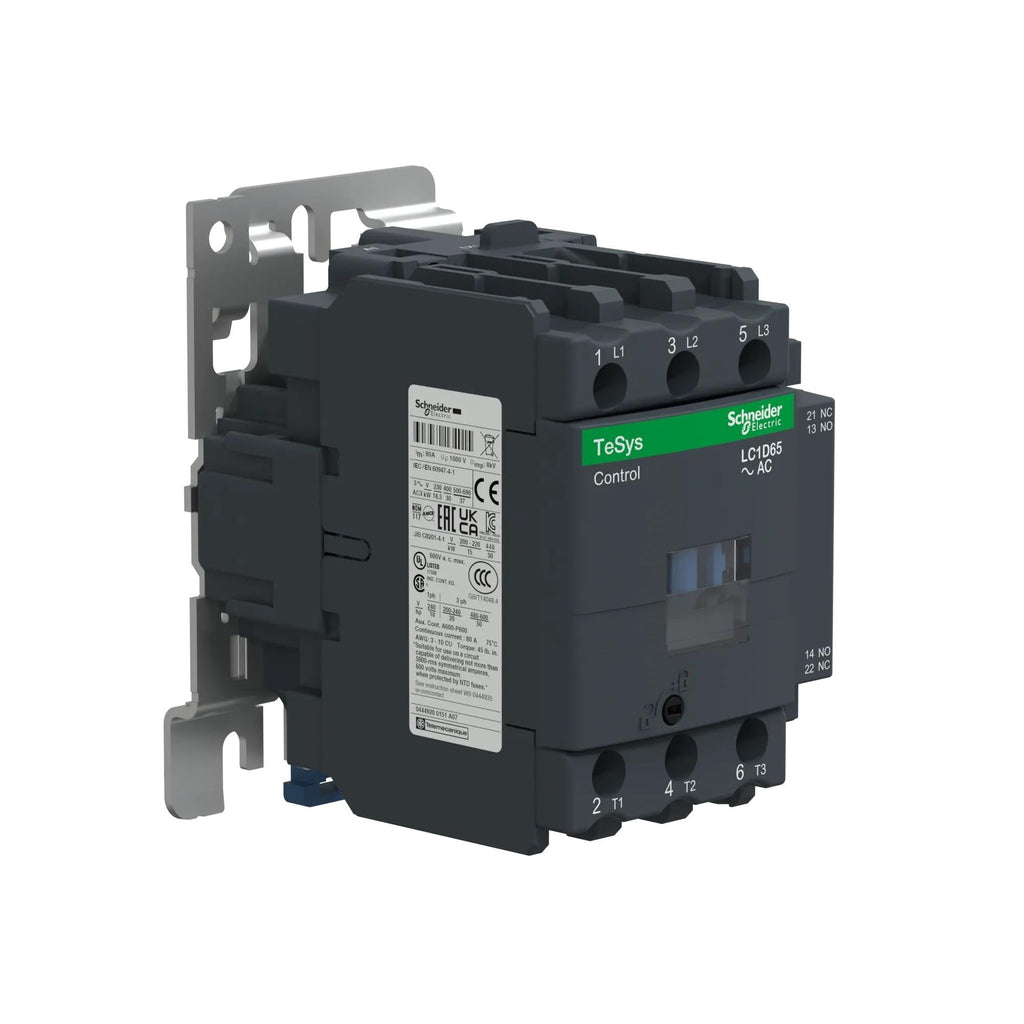

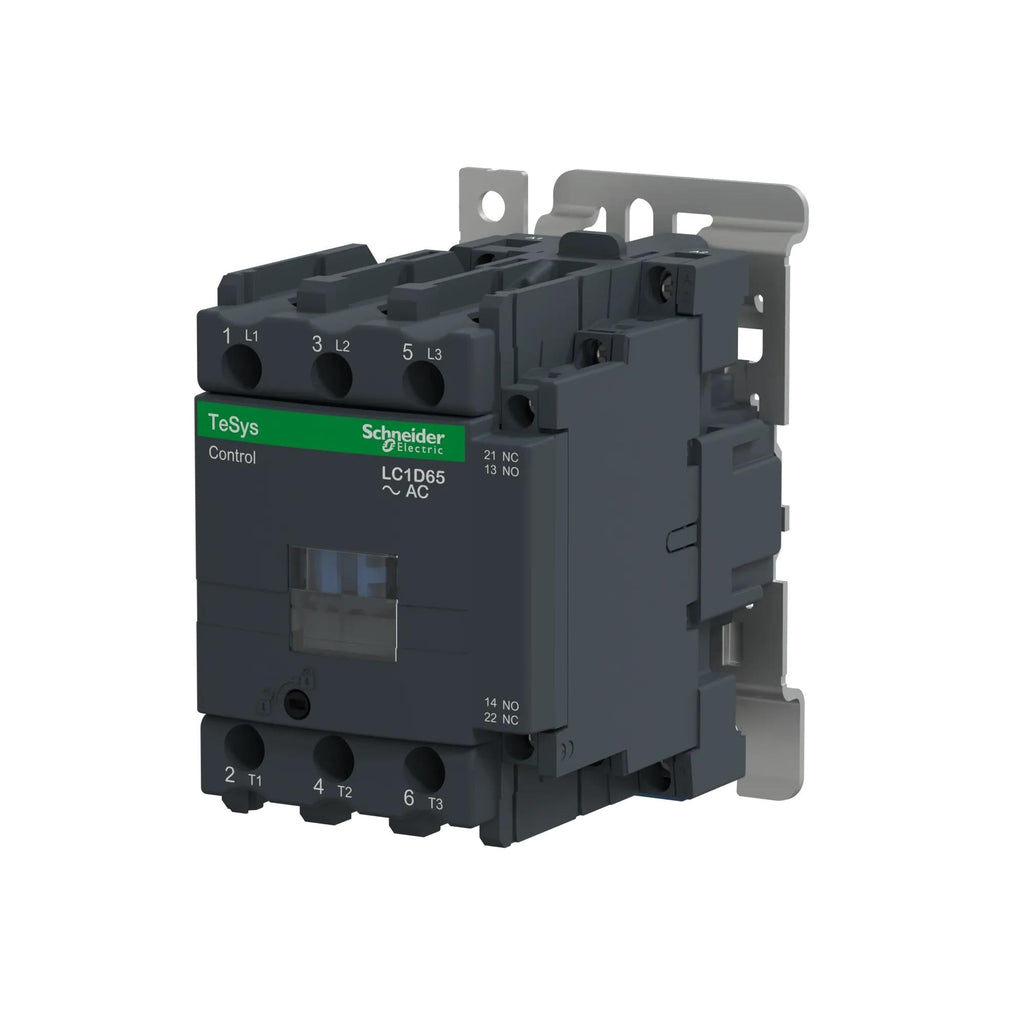

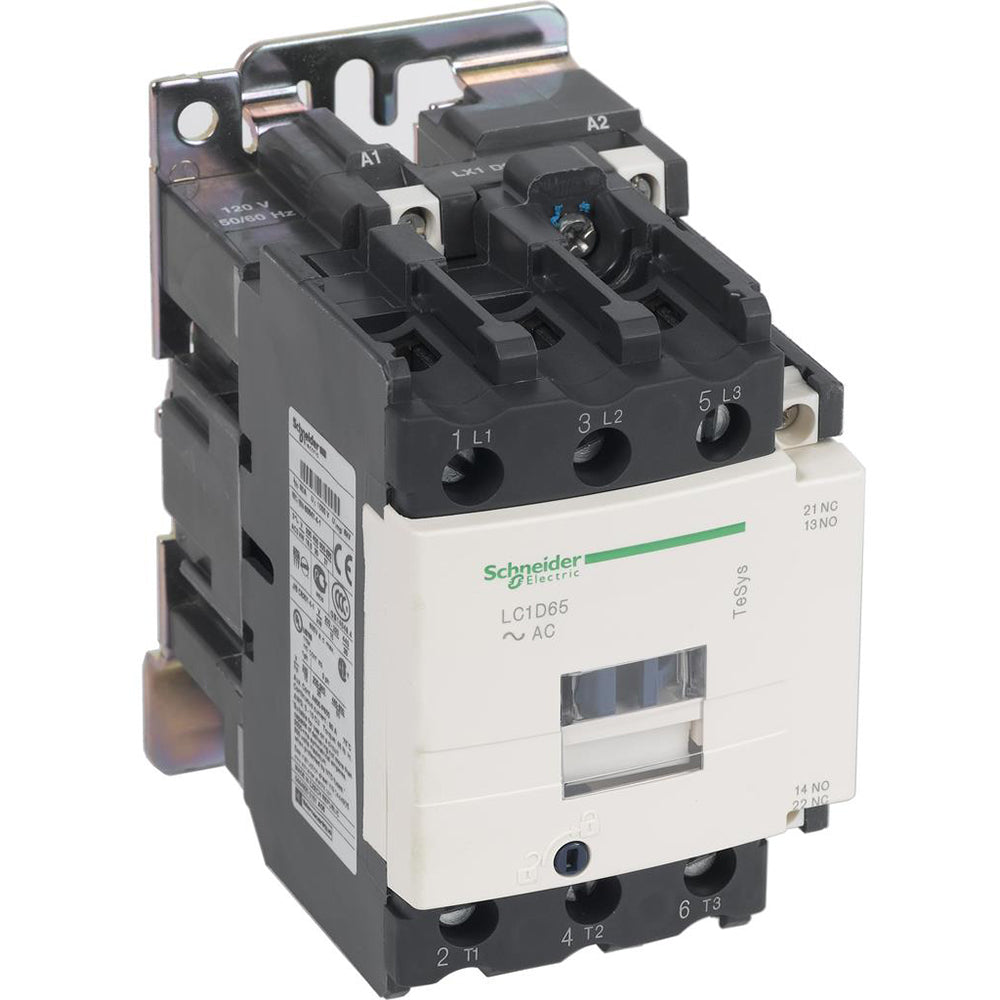

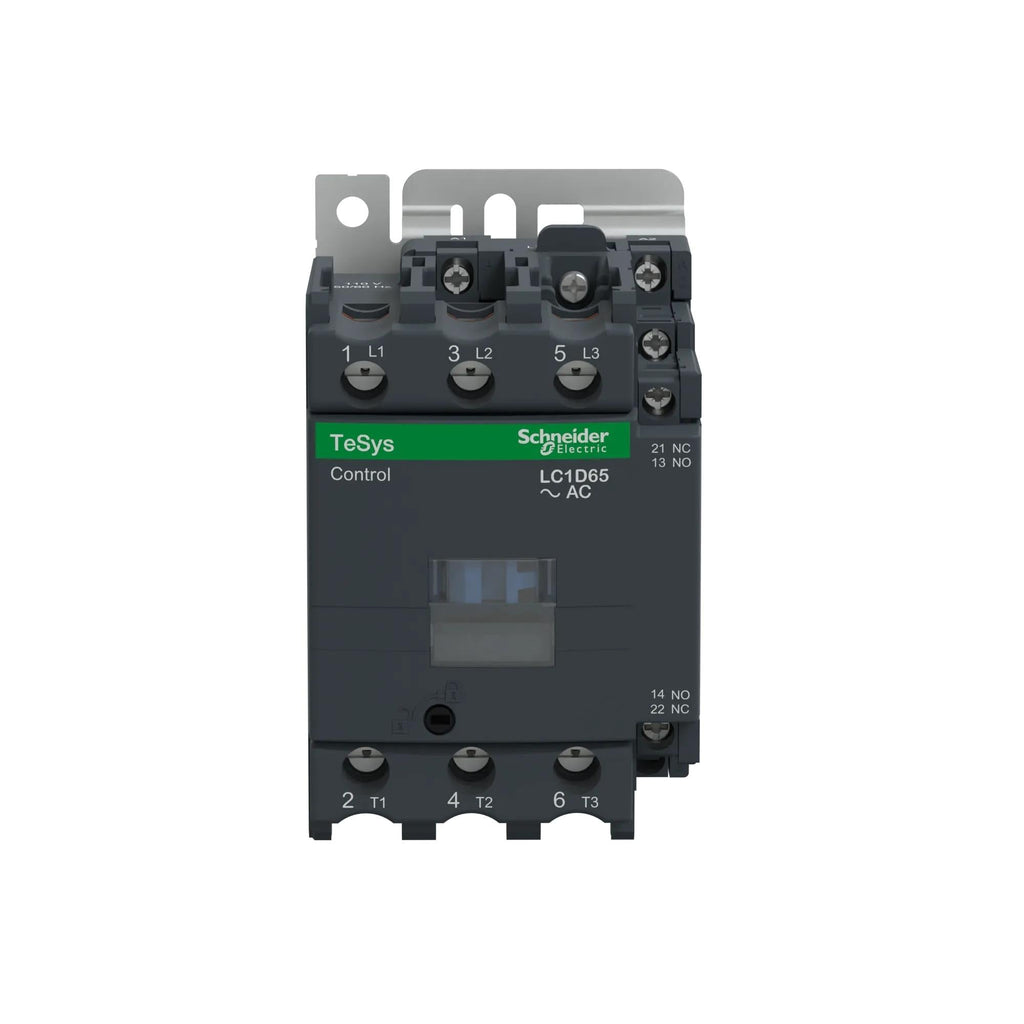

LC1D65U7 - Schneider Electric 65A 3-Pole IEC Contactor 600V 240V Coil TeSys D Series

LC1D65U7

LC1D65U7 is a Schneider Electric 65 amp, 3-pole IEC contactor designed for motor control applications with a 240V 50/60 Hz coil.This TeSys D series contactor supports up to 65A continuous current and is rated for 600VAC operation. It can handle motor loads up to 40 HP at 480VAC and 20 HP at 240VAC. The device features three normally open contacts and is suitable for panel or DIN rail mounting. It offers a high short-circuit current rating (SCCR) up to 100kA when paired with appropriate circuit protection. The contactor complies with IEC standards and is UL and CSA certified for control and power circuits.

Key Specifications
• Amperage: 65A continuous current
• Voltage Rating: 600VAC power circuit, 240V coil voltage (50/60 Hz)
• Poles: 3 normally open contacts
• Motor Ratings: 40 HP at 480VAC, 20 HP at 240VAC
• Mounting: DIN rail or direct panel mount
• Interrupt Rating: Up to 100kA SCCR with proper protection
• Series/Frame: TeSys D (LC1D series)
• Trip Unit: Non-reversing contactor (no built-in trip unit)
• Certifications: UL, CSA, IEC compliant
• Dimensions: Approx. 4.8 x 2.(more...)


  Additional Information

  This includes a 240 VAC coil.




  Specifications

  • Part Number: LC1D65U7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Section : Contactors
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 65
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220



  Product Data

  • UPC : 785901437833
  • Country of Origin : Czechia
  • Dimensions : 127 mm H x 75 mm W x 119 mm D
  • Weight : 3.159
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
