LC1D65G7 - Schneider Electric 65A 3-Pole TeSys D Motor Contactor 120V Coil 600VAC

LC1D65G7

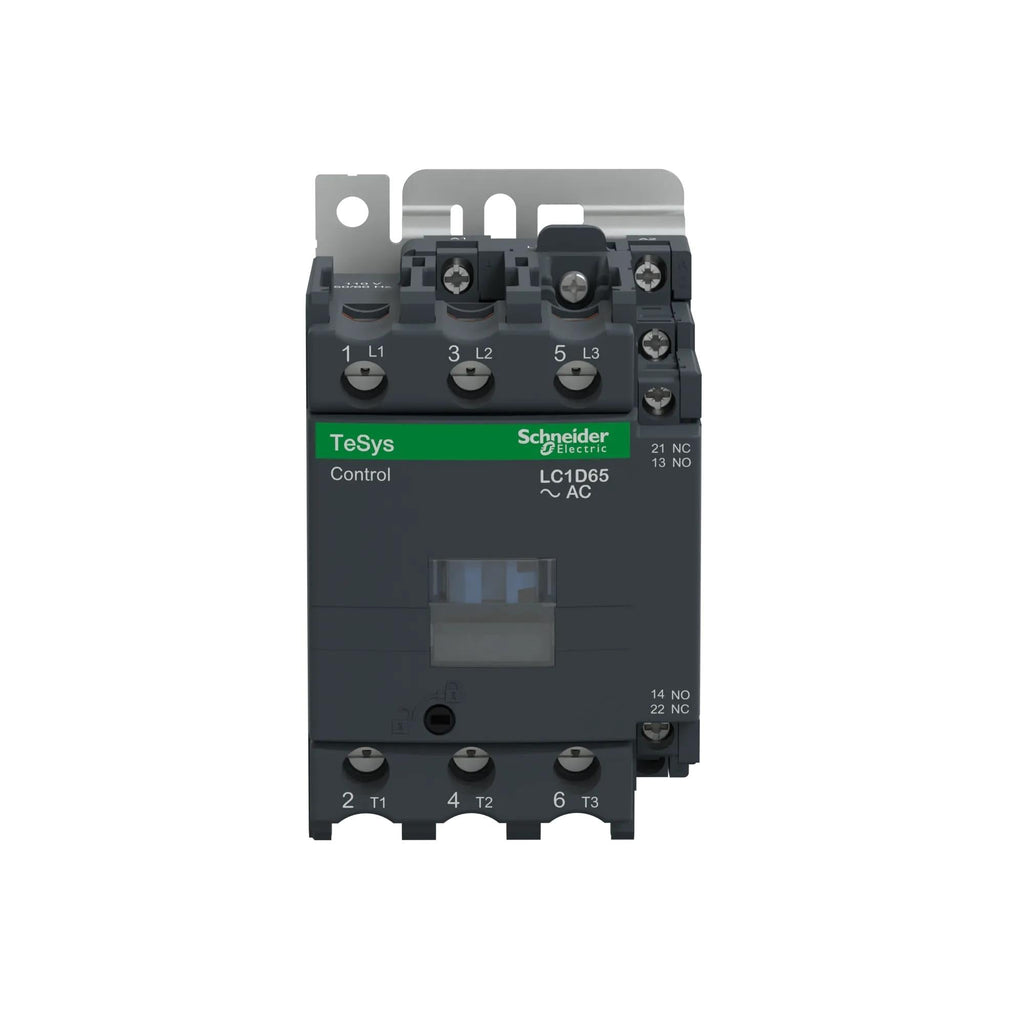

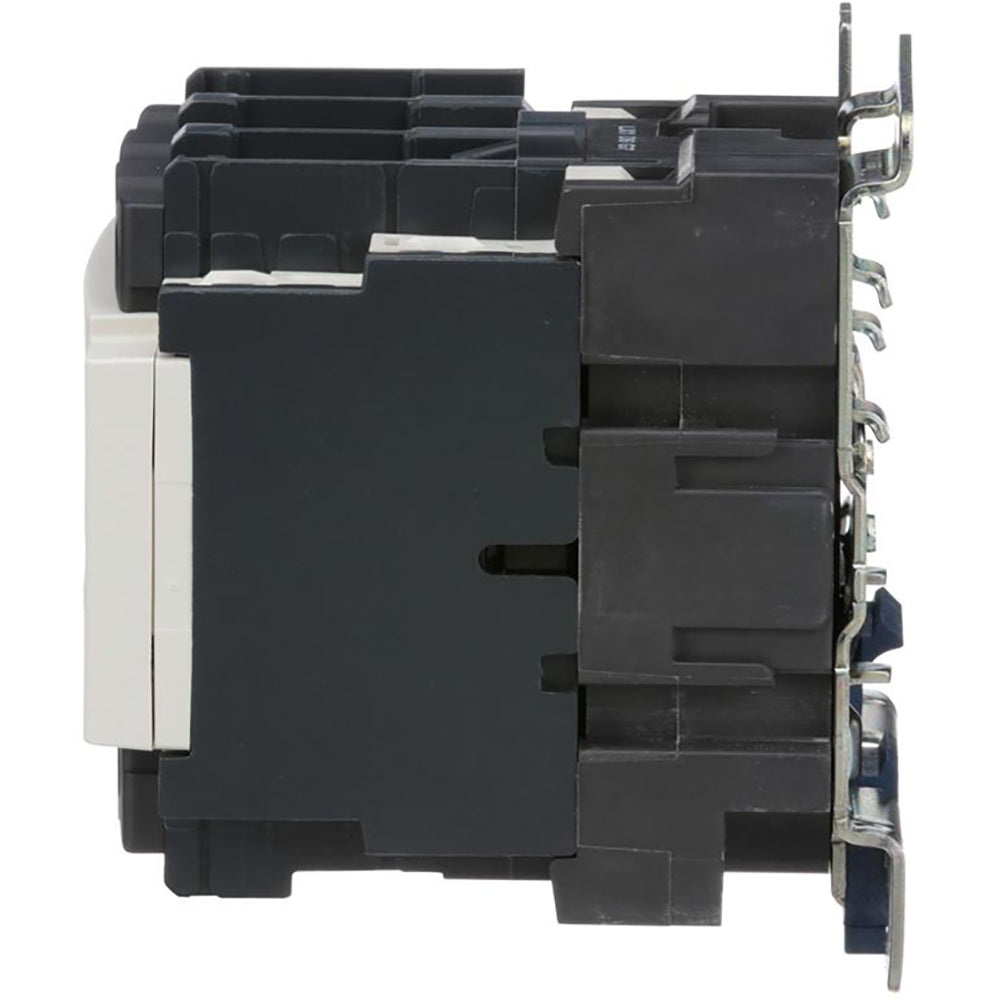

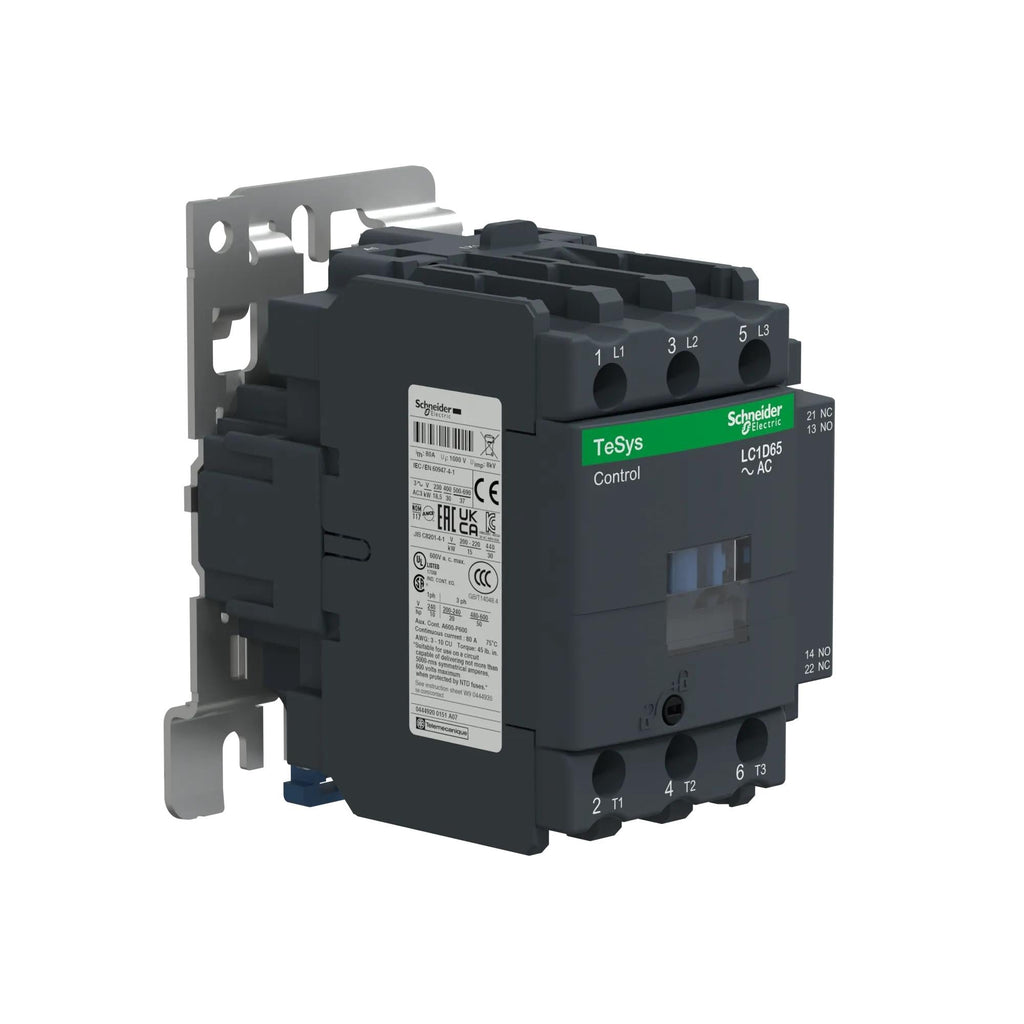

LC1D65G7 is a Schneider Electric 3-pole motor contactor rated for 65 amps with a 120V AC coil, designed for industrial and HVAC motor control applications.This TeSys D series contactor supports motor control up to 65A at 600VAC with 3 normally open poles (3NO). It features screw clamp terminals, 1 normally open and 1 normally closed auxiliary contacts, and is suitable for motors up to 50 HP at 480 VAC. The device complies with IEC standards and offers easy installation with multi-standard screws.

• Amperage: 65 A AC-3
• Voltage: 120 V AC coil, 600 VAC power circuit
• Poles: 3 poles (3 NO)

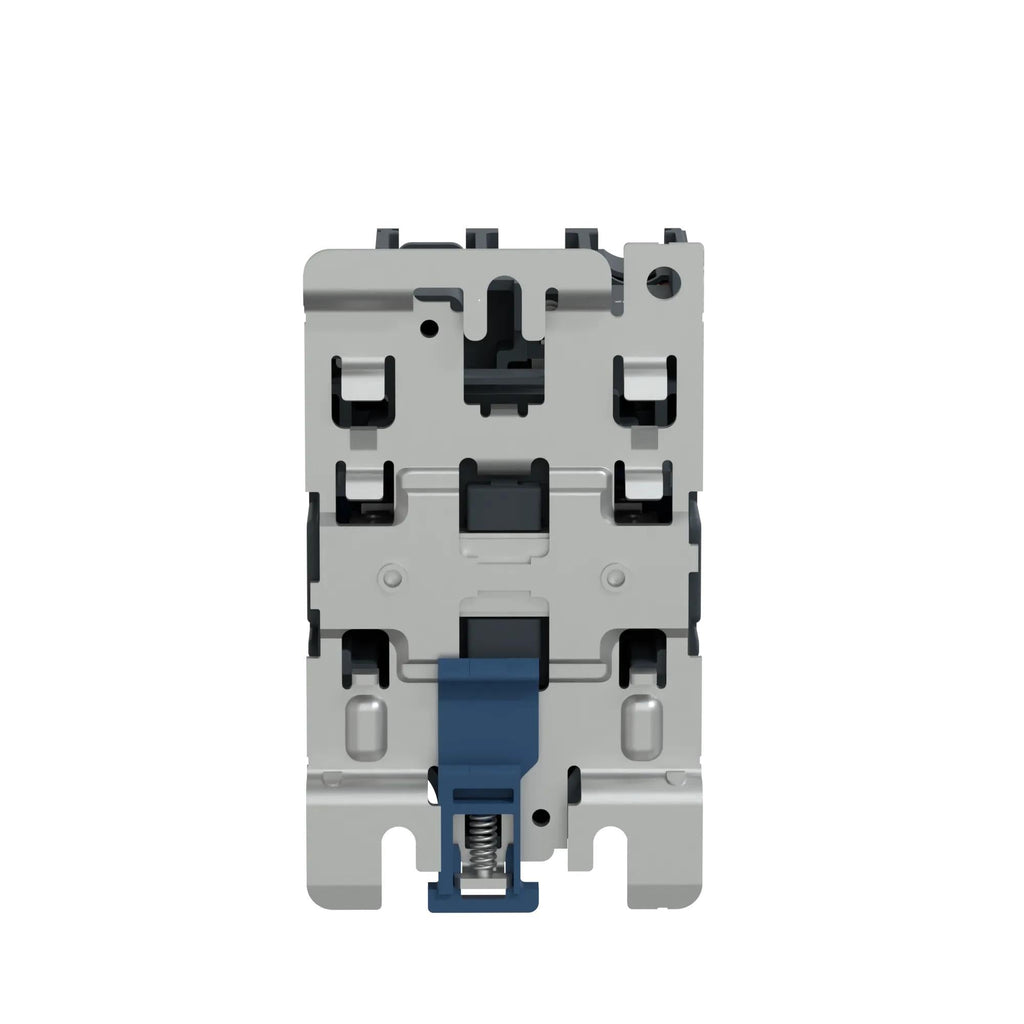

• Mounting Type: Base mounted with screw clamp terminals
• Interrupt Rating: 1000 A at 440 V IEC
• Series/Frame: TeSys D
• Auxiliary Contacts: 1 N.O. + 1 N.C.
• Horsepower Rating: 50 HP at 480 VAC
• Operating Frequency: 50/60 Hz coil
• Certifications: IEC, UL, CSA certified
• Application: Motor control, resistive and inductive loads

At Essential Parts, we offer fast shipping, lowest price, and expe(more...)

Additional Information

This includes a 120 VAC coil.

Specifications

• Part Number: LC1D65G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 65
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 38911043697
• GTIN : 03389110436976
• Country of Origin : Czechia
• Dimensions : 75 mm x 127 mm
• Weight : 3.172
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
