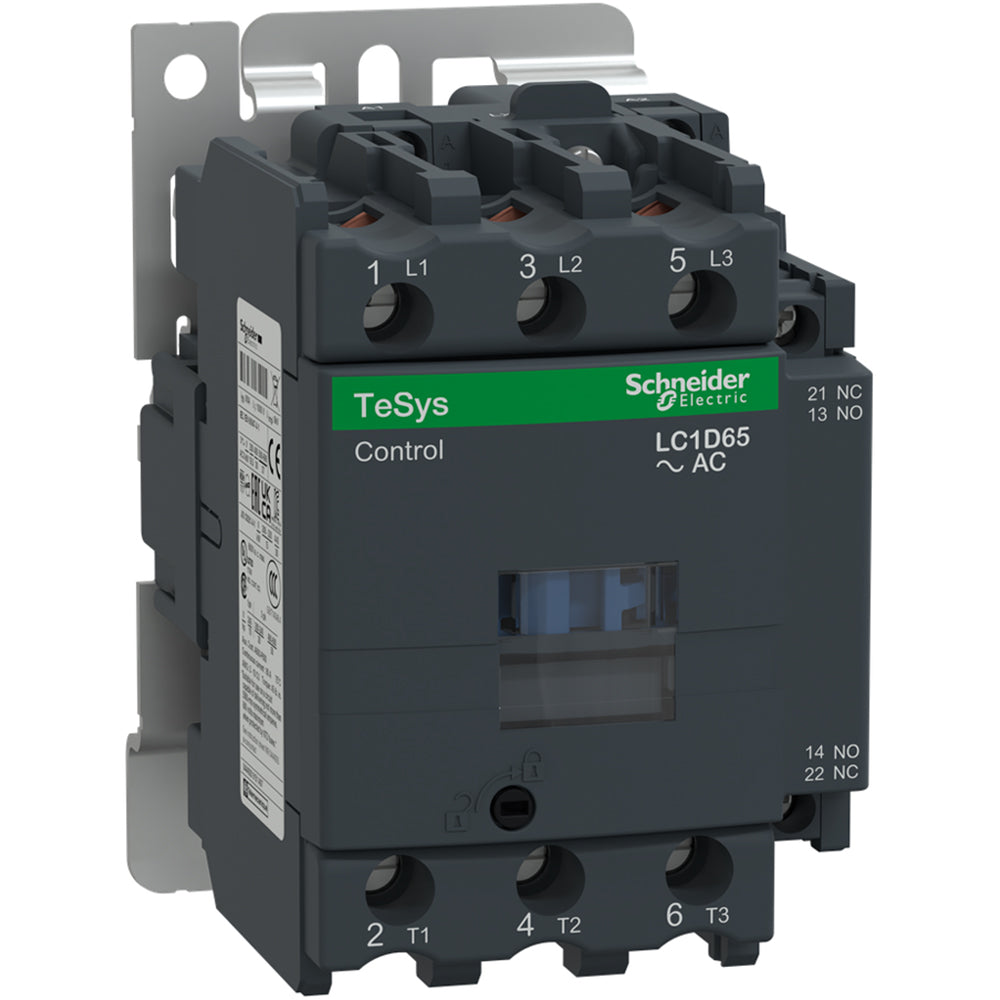

LC1D65F7 - Schneider Electric TeSys D 65A 3P 110VAC 50/60Hz IEC Contactor 3NO Screw Clamp Terminals

LC1D65F7

LC1D65F7 is a 3-pole, 65A, 110VAC 50/60Hz IEC contactor designed for motor control and resistive load applications. This TeSys D series contactor features 3 NO contacts, screw clamp terminals, and is rated for AC-3/AC-3e utilization up to 440V. It is suitable for panel or DIN rail mounting and offers reliable performance in industrial environments.Engineered for durability and ease of installation, the LC1D65F7 provides robust motor control with built-in auxiliary contacts and touch-safe terminals. Its compact frame and high interrupt rating make it ideal for a wide range of motor and load applications.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Part Number: LC1D65F7
• Rated Current: 65A
• Rated Voltage: 110VAC 50/60Hz coil, up to 440V power circuit
• Poles: 3P (3NO)
• Mounting: Panel or DIN rail
• Interrupt Rating: 100kA SCCR
• Utilization Category: AC-3/AC-3e
• Terminal Type: Screw clamp
• Motor HP: 40HP at 480VAC
• Standards: IEC 60947

At Essential Parts, we offer fast shipping(more...)

Additional Information

This includes a 110 VAC coil.

Specifications

• Part Number: LC1D65F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Section : Contactors
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 65
• Phase : 3
• Poles : 3
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 785901207696
• GTIN : 3389110233377
• Country of Origin : Czechia
• Dimensions : 127 mm H x 75 mm W x 119 mm D
• Weight : 3.188
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
