LC1D65B7 - Schneider Electric 65A 3-Pole TeSys D IEC Contactor 24VAC Coil 600VAC Rated

LC1D65B7

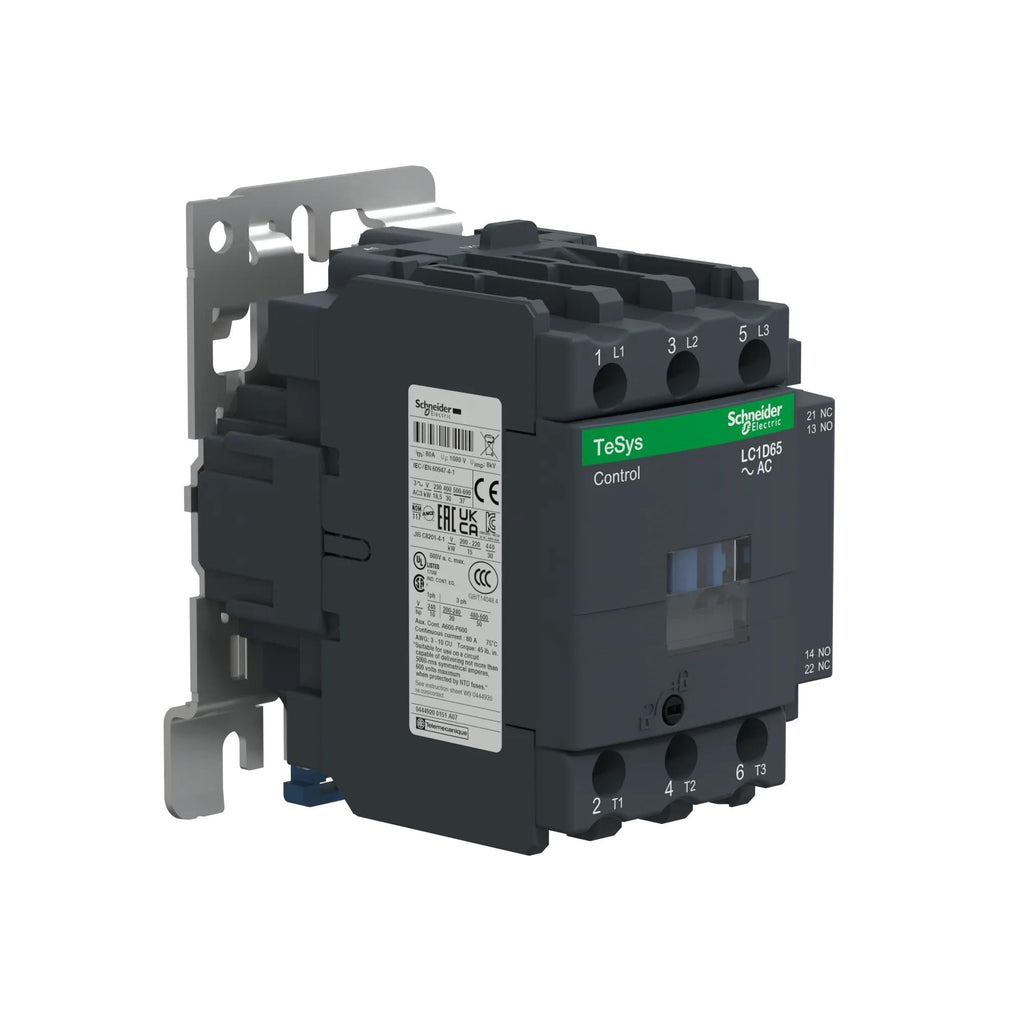

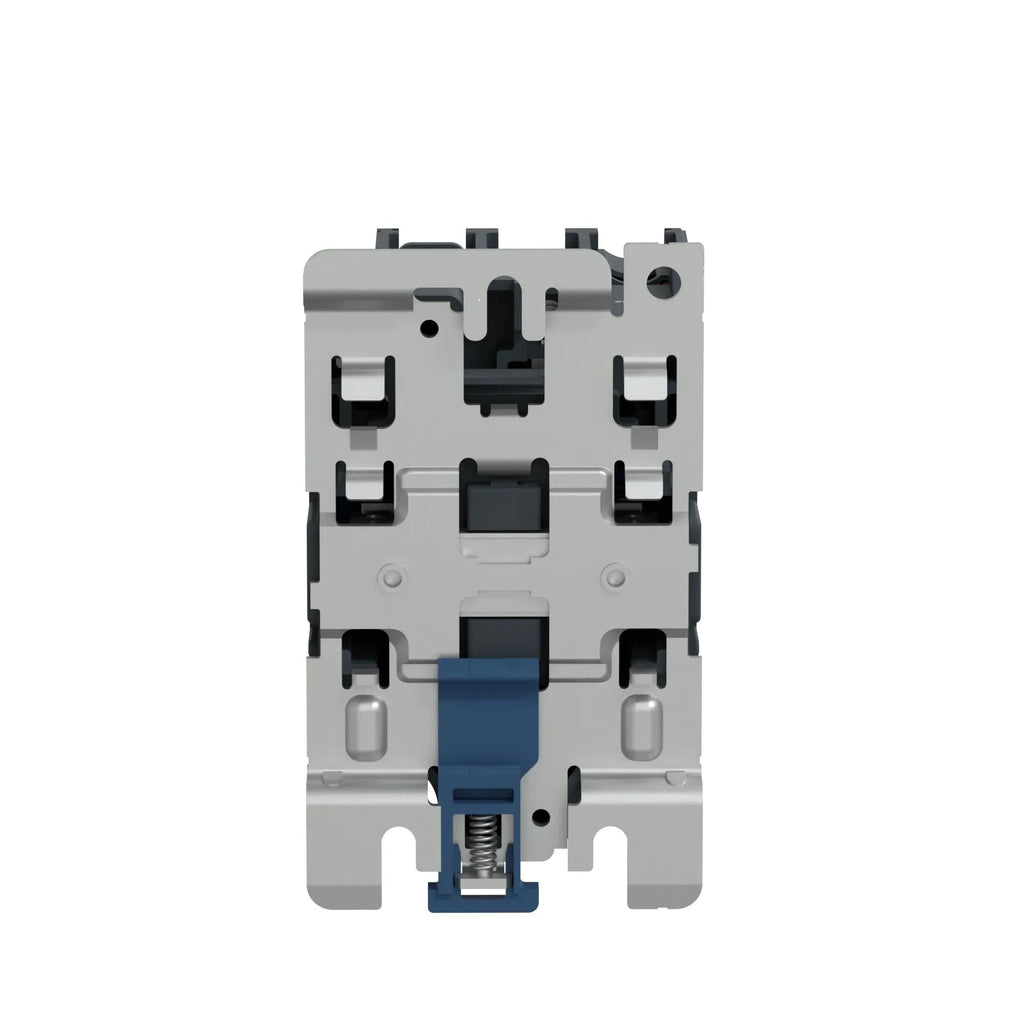

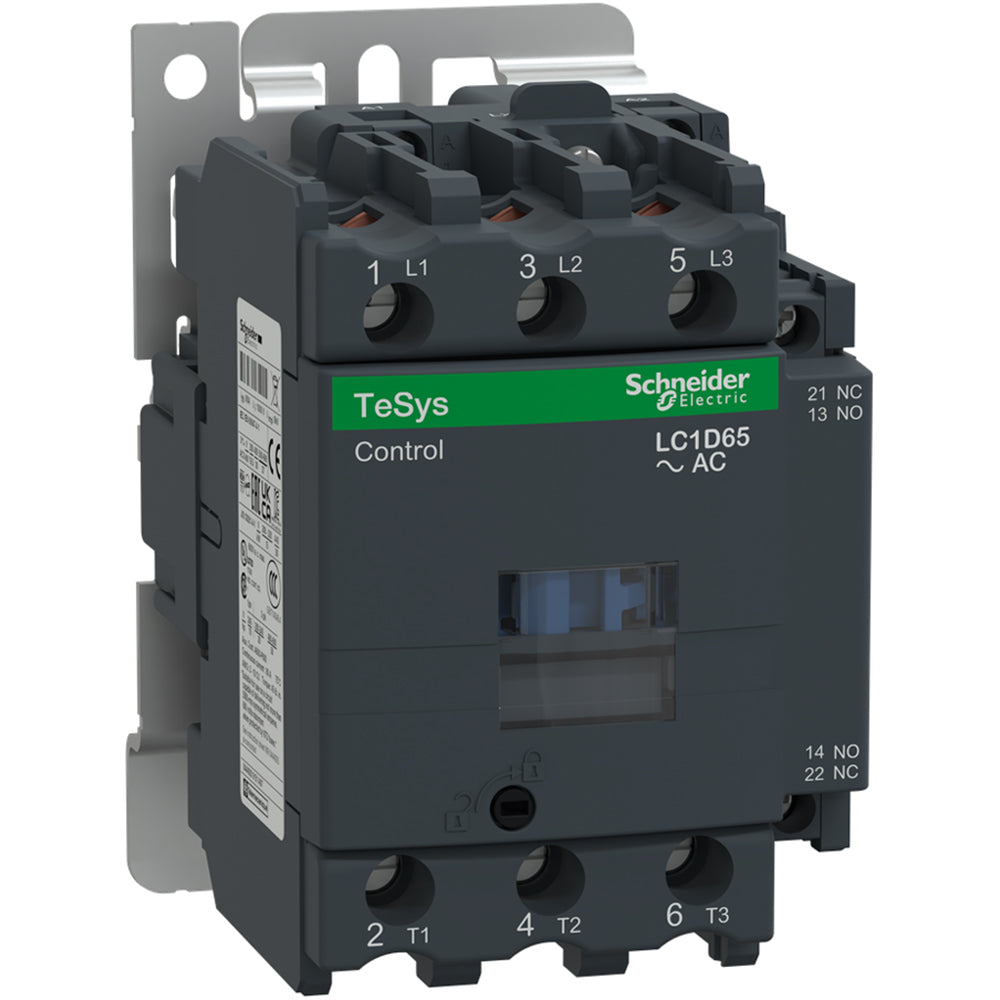

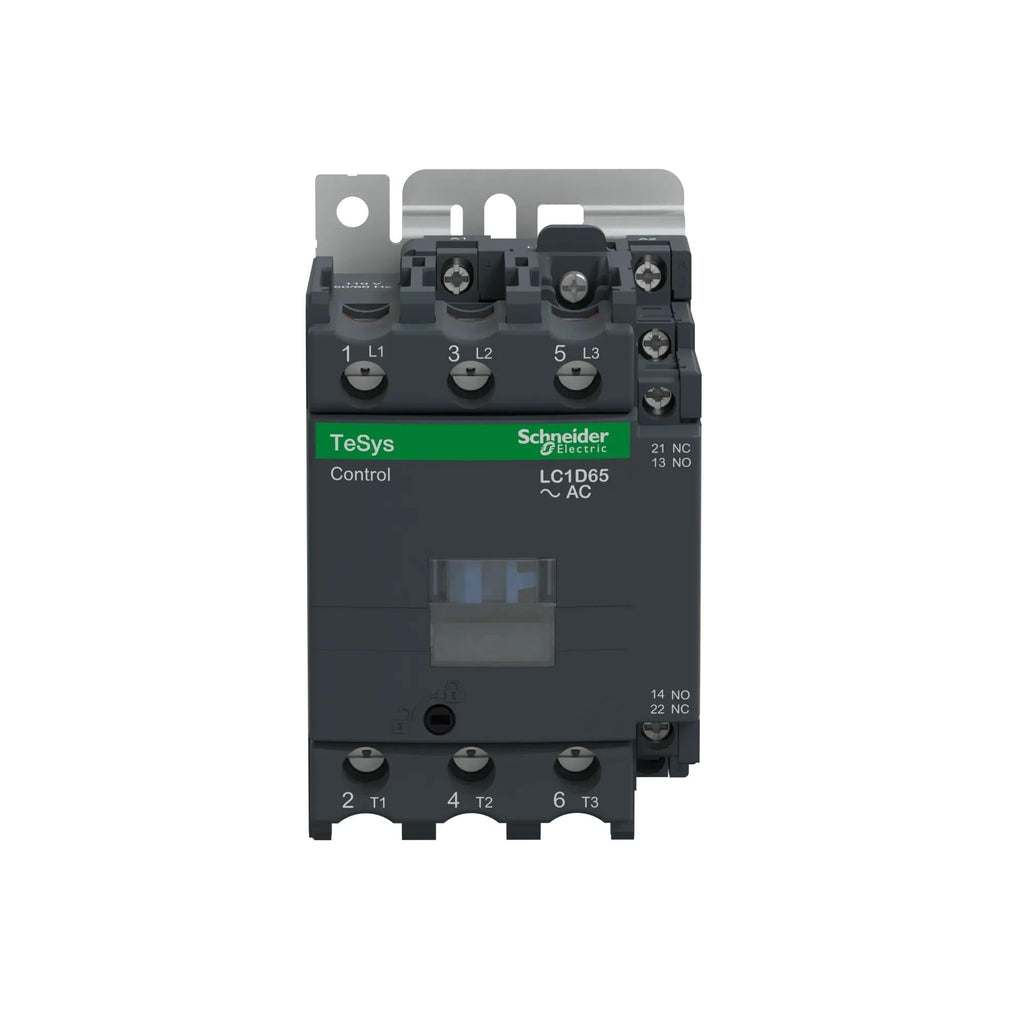

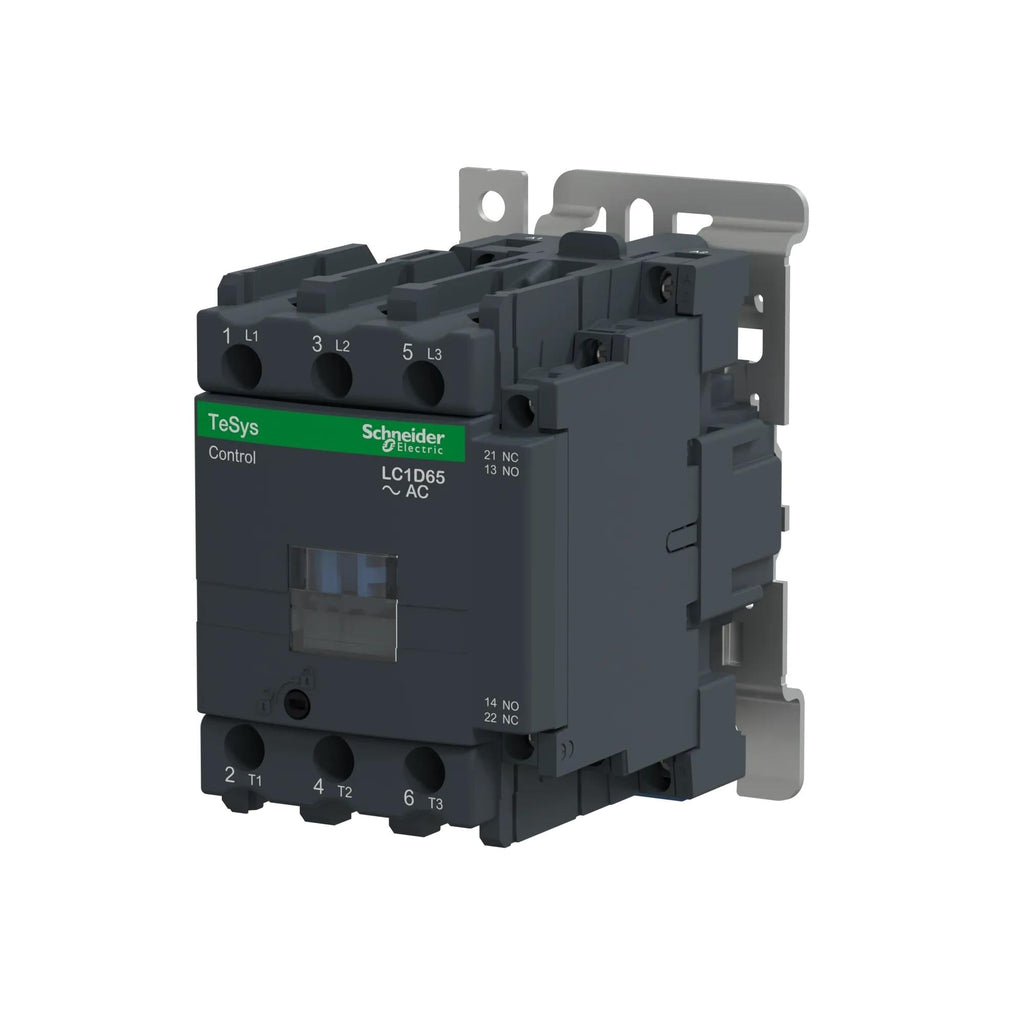

LC1D65B7 is a Schneider Electric TeSys D IEC contactor designed for motor control and resistive loads with a 65 amp rating and 3 poles.This contactor supports up to 40 HP at 480 VAC and 50 HP at 600 VAC three-phase motors. It features a 24 VAC coil operating at 50/60 Hz, screw clamp terminals, and a non-reversing 3NO contact configuration. The device is suitable for surface mounting and has an IP2X enclosure rating. It offers a high interrupt rating with a short-circuit current rating (SCCR) up to 100 kA when used with appropriate circuit breakers or fuses. The contactor is part of the D-Line LC1D series and includes 1 NO and 1 NC auxiliary contacts.

Key Specifications
• Amperage: 65 A
• Voltage Rating: 600 VAC max
• Poles: 3
• Coil Voltage: 24 VAC, 50/60 Hz
• Contact Configuration: 3 Normally Open (3NO)
• Mounting Type: Surface or DIN rail mount
• Interrupt Rating: Up to 100 kA SCCR with proper protection
• Series/Frame: TeSys D, D-Line LC1D
• Auxiliary Contacts: 1 NO, 1 NC
• Terminal Type: Screw clamp
• Enclosure Type: IP2X
• Operating Tem(more...)


  Additional Information

  This includes a 24 VAC coil.




  Specifications

  • Part Number: LC1D65B7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 65
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 38911043621
  • GTIN : 03389110436211
  • Country of Origin : Czechia
  • Dimensions : 70 mm x 122 mm
  • Weight : 3.201
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
