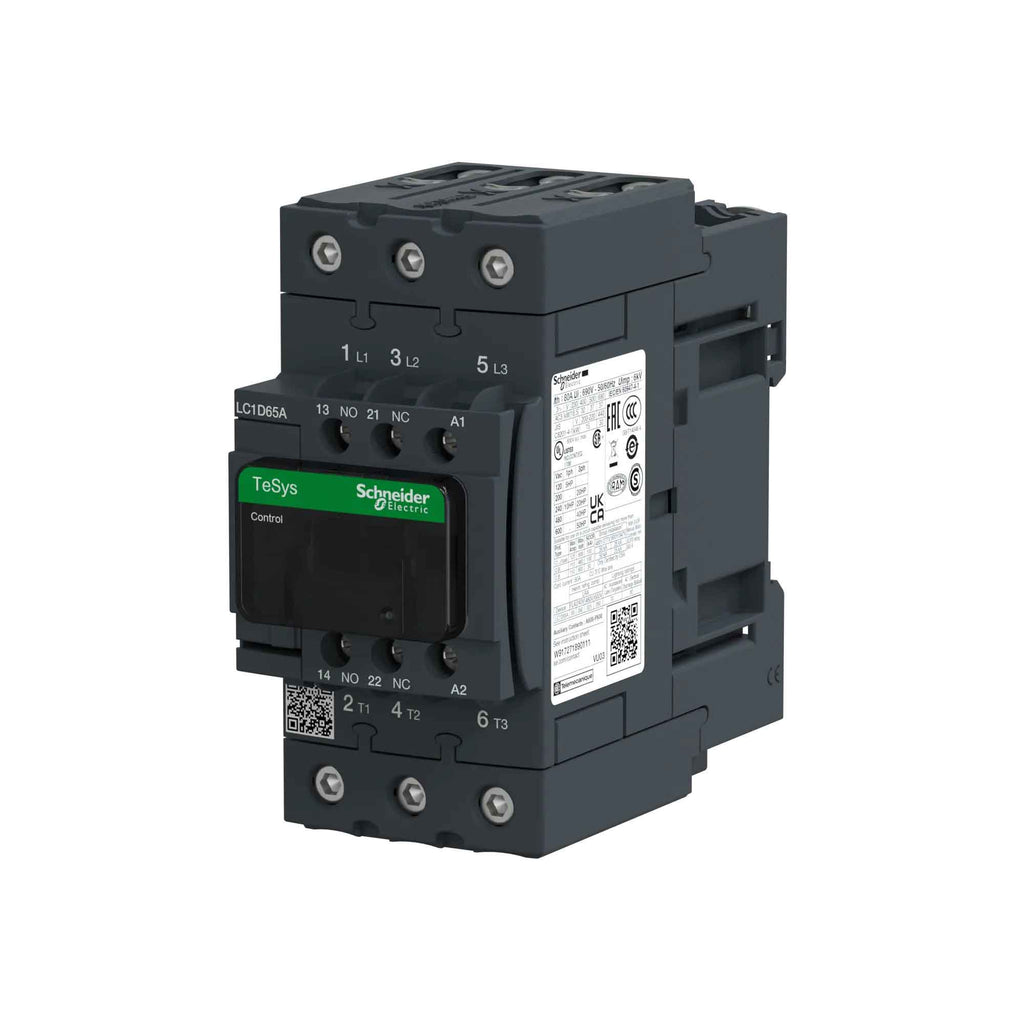

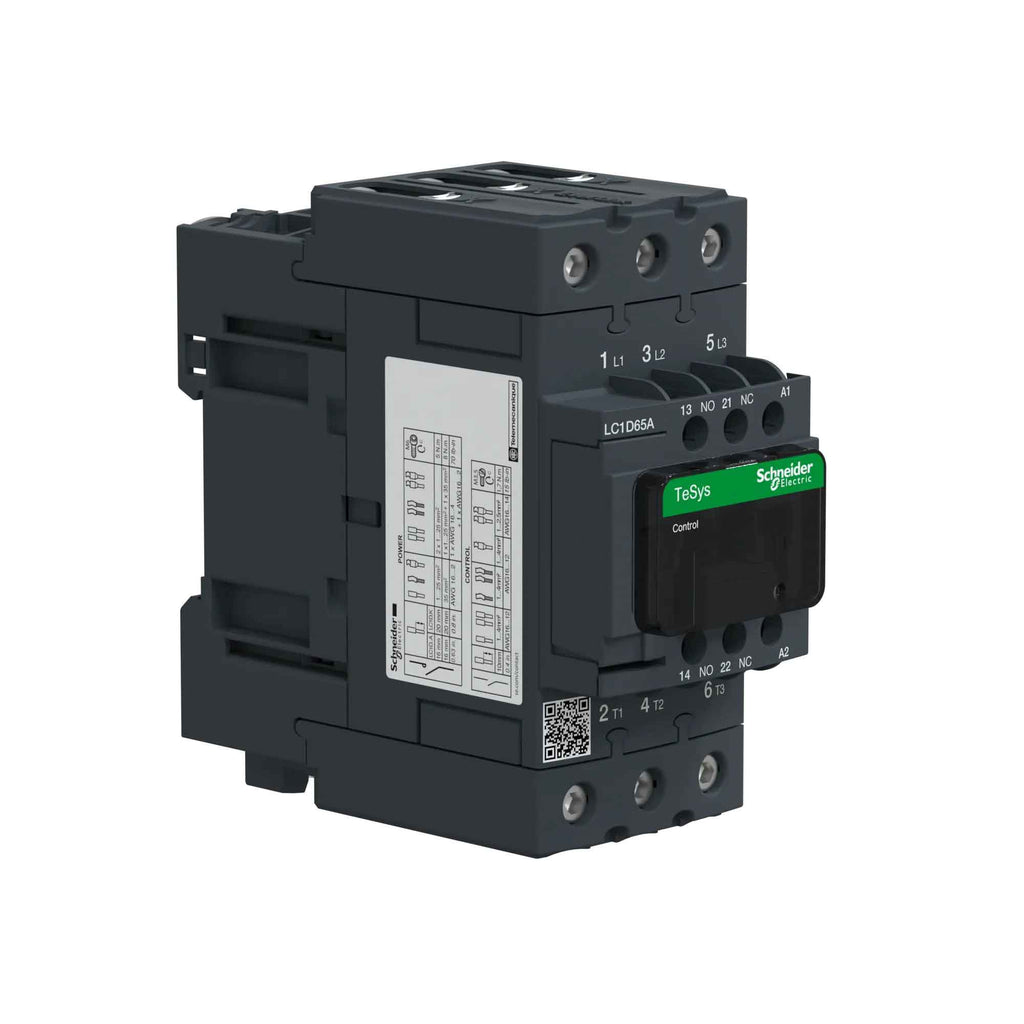

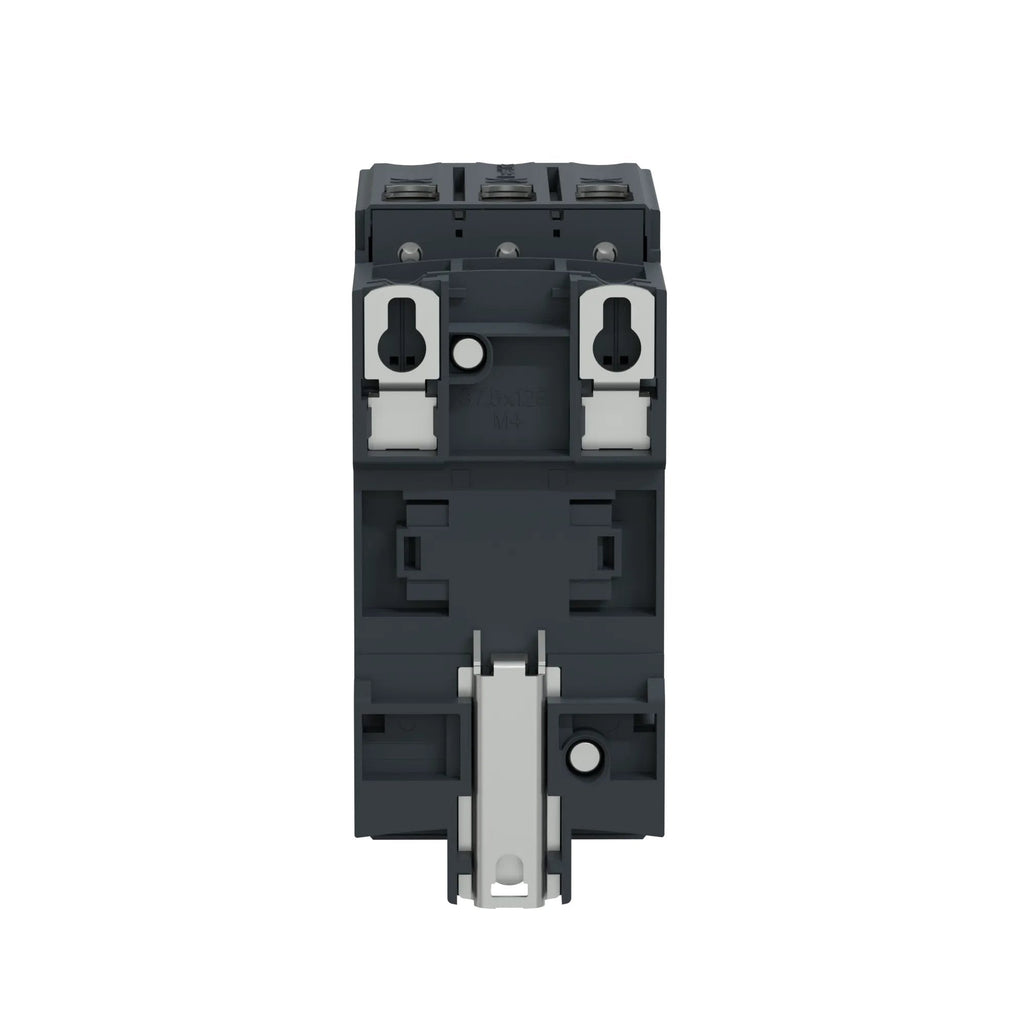

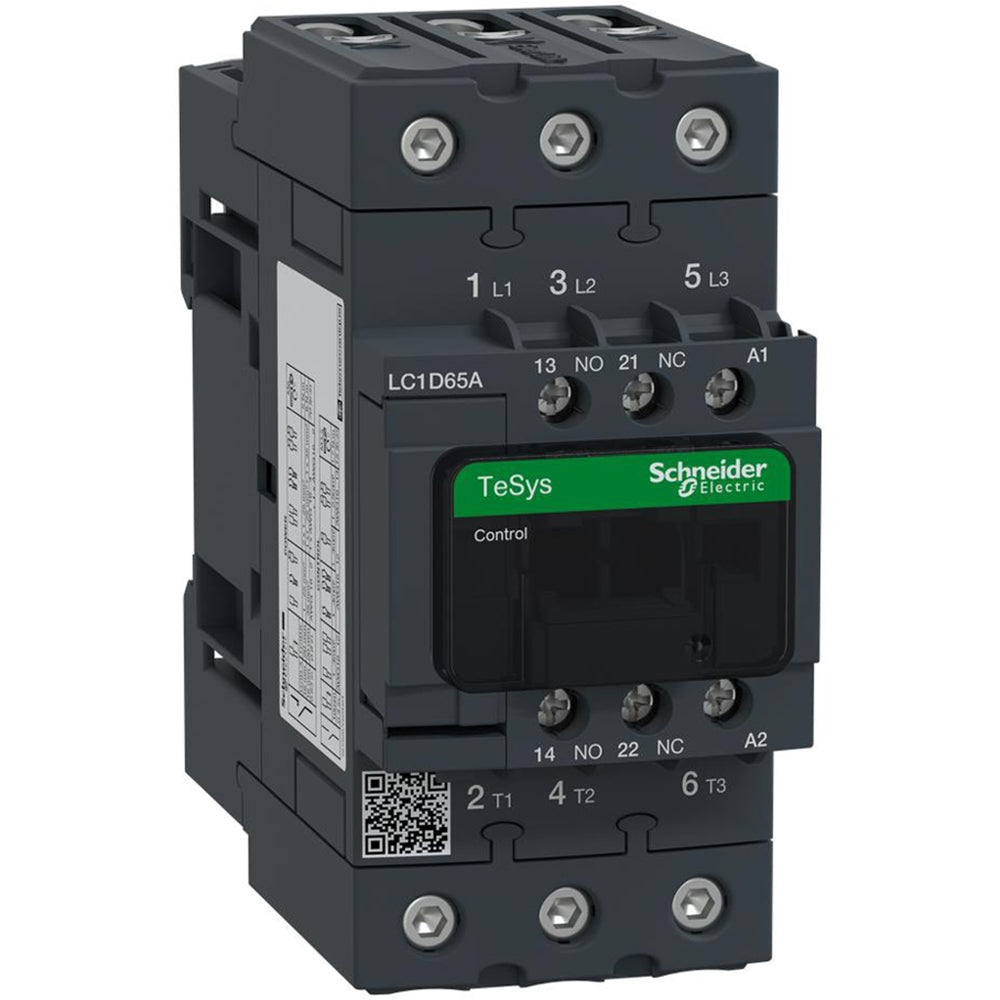

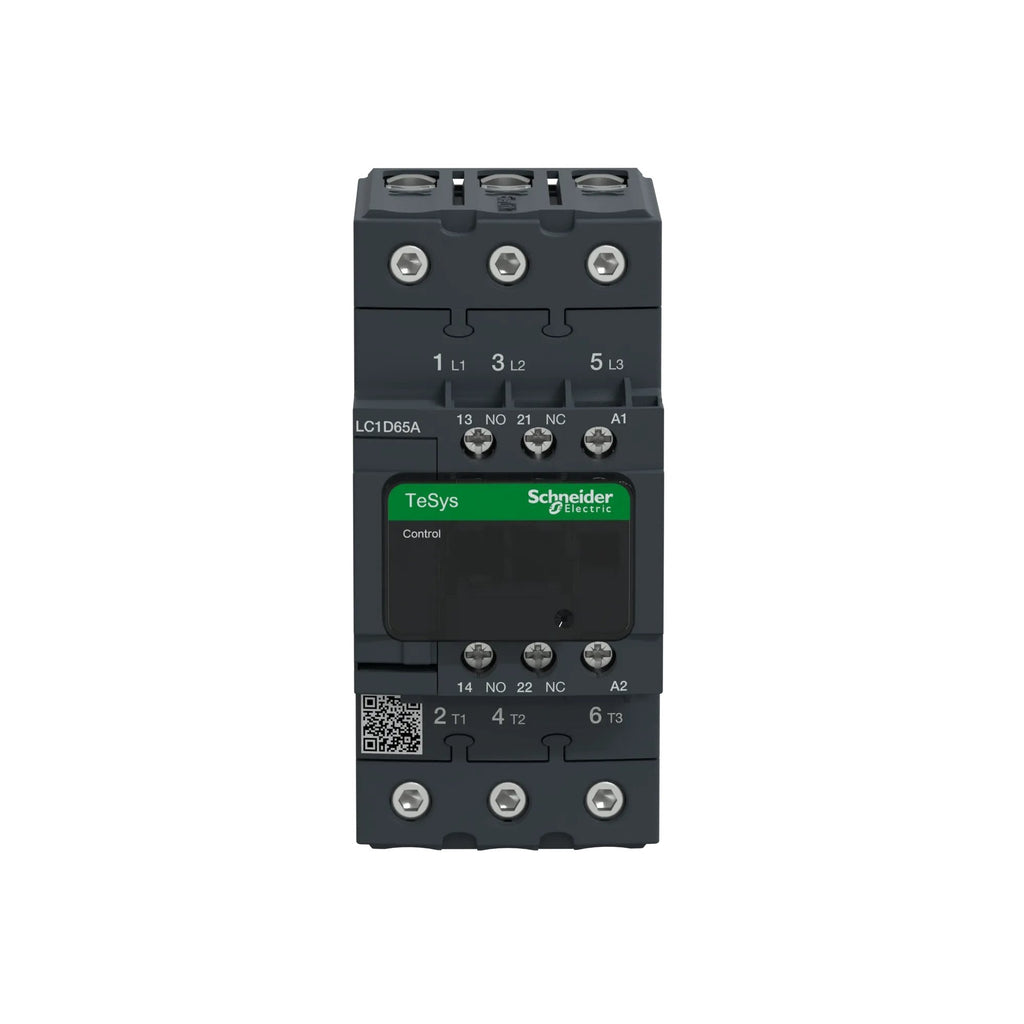

LC1D65AU7 - Schneider Electric 65A 3-Pole Motor Contactor, 240V AC Coil, TeSys D Series

LC1D65AU7

LC1D65AU7 is a Schneider Electric 3-pole motor contactor designed for motor control applications with a 65 amp rating and 240V AC coil.This TeSys D series contactor features 3 normally open poles, supports AC-3 utilization category up to 440V, and is suitable for motor loads up to 30 kW at 400V AC. It offers a rated operational current of 65A at 440V AC, with a coil voltage of 240V AC at 50/60 Hz. The device includes screw clamp terminals and complies with IEC 60947 standards. It has a rated insulation voltage of 690V and a rated impulse withstand voltage of 8kV, with an IP2X finger-safe degree of protection.

Key Specifications
• Amperage: 65 A (AC-3, 440 V)
• Voltage: Coil 240 V AC 50/60 Hz
• Poles: 3 poles (3 NO)
• Mounting Type: DIN rail or panel mount
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: TeSys D
• Trip Unit: Not applicable (contactor only)
• Certifications: IEC 60947-1, IEC 60947-4-1, UL, CSA
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 8 kV
• Degree of protection: IP2X
• Motor power rating: 30 kW(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 240 VAC coil.




  Specifications

  • Part Number: LC1D65AU7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 65
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 785901661498
  • Country of Origin : Indonesia
  • Dimensions : 2.17 in x 4.8 in
  • Weight : 2.1
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
