Description

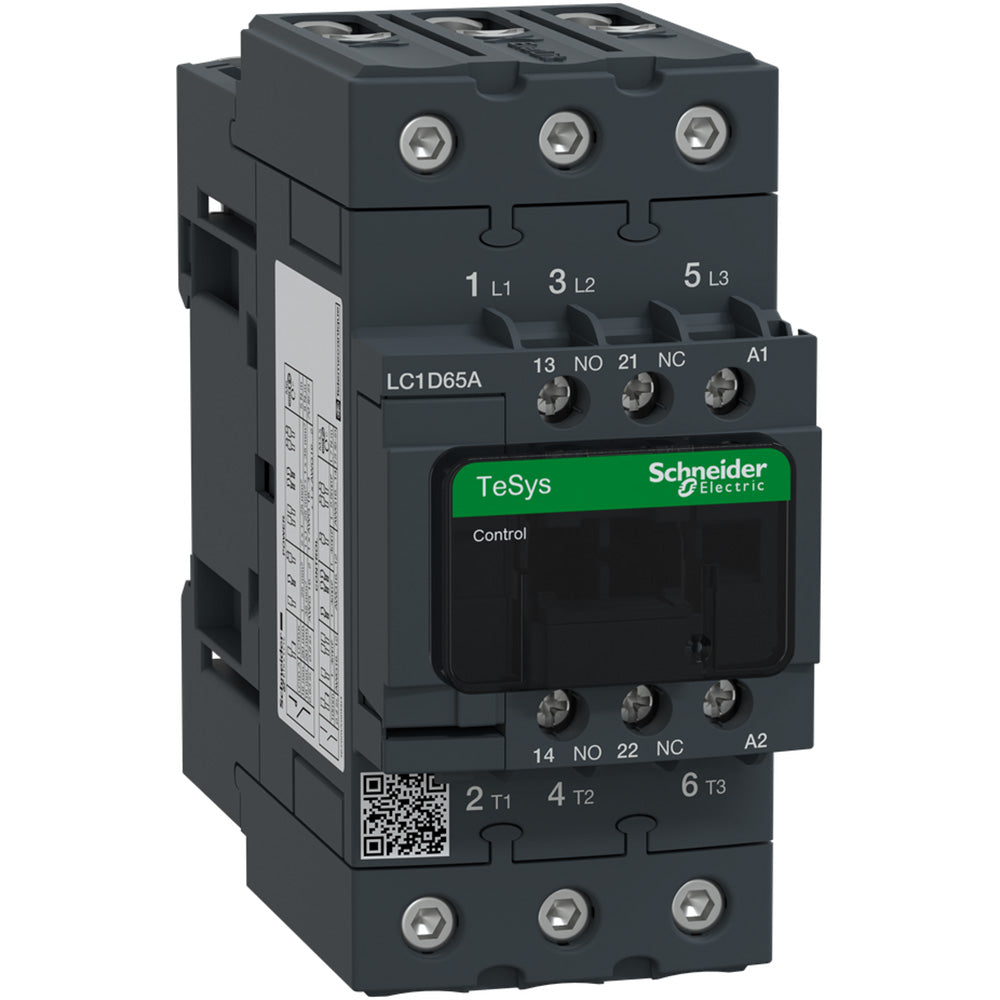

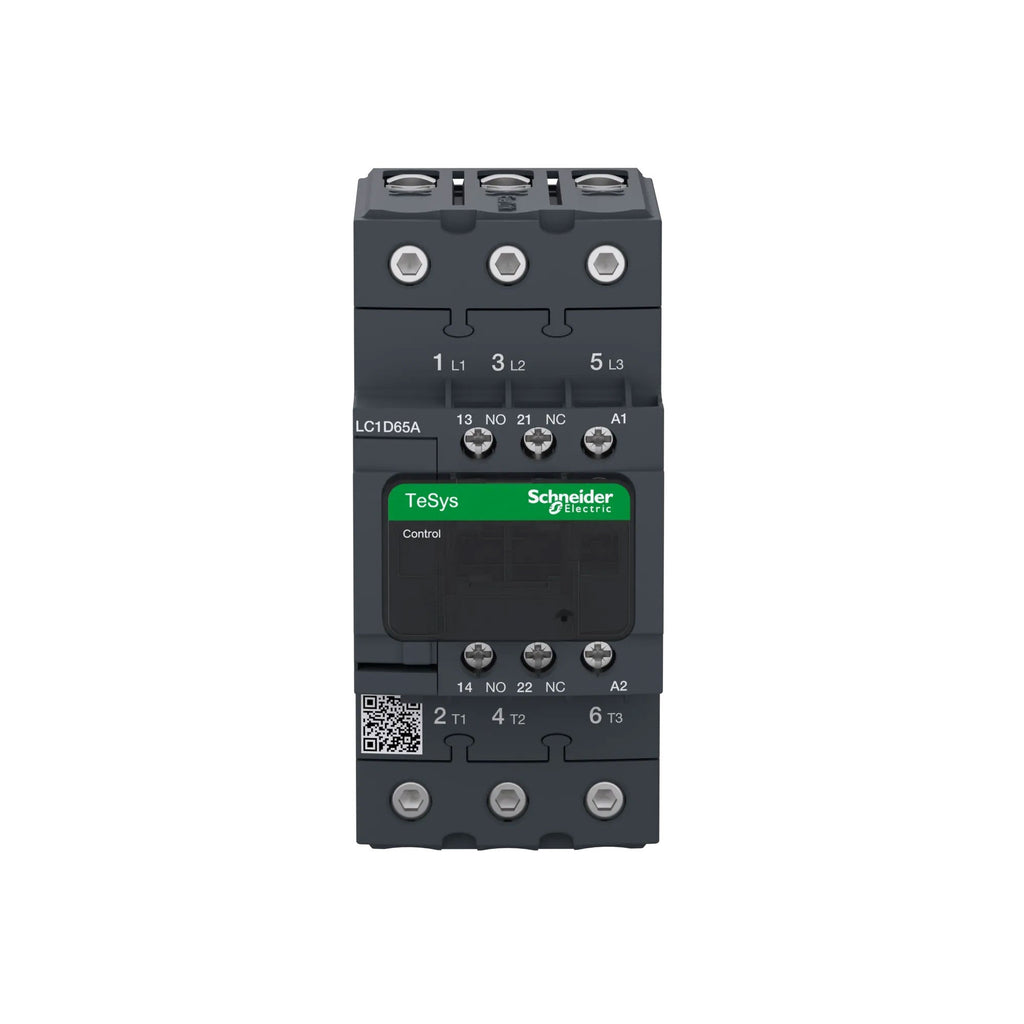

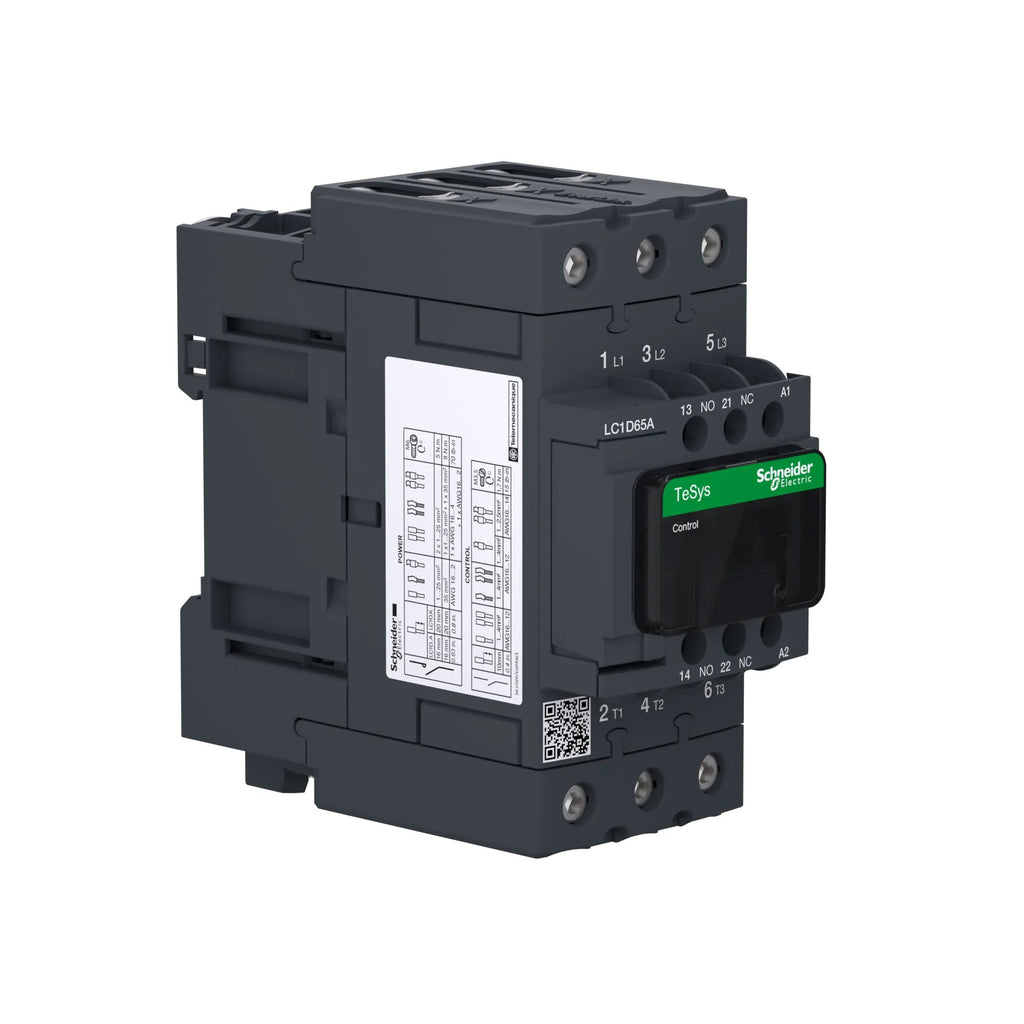

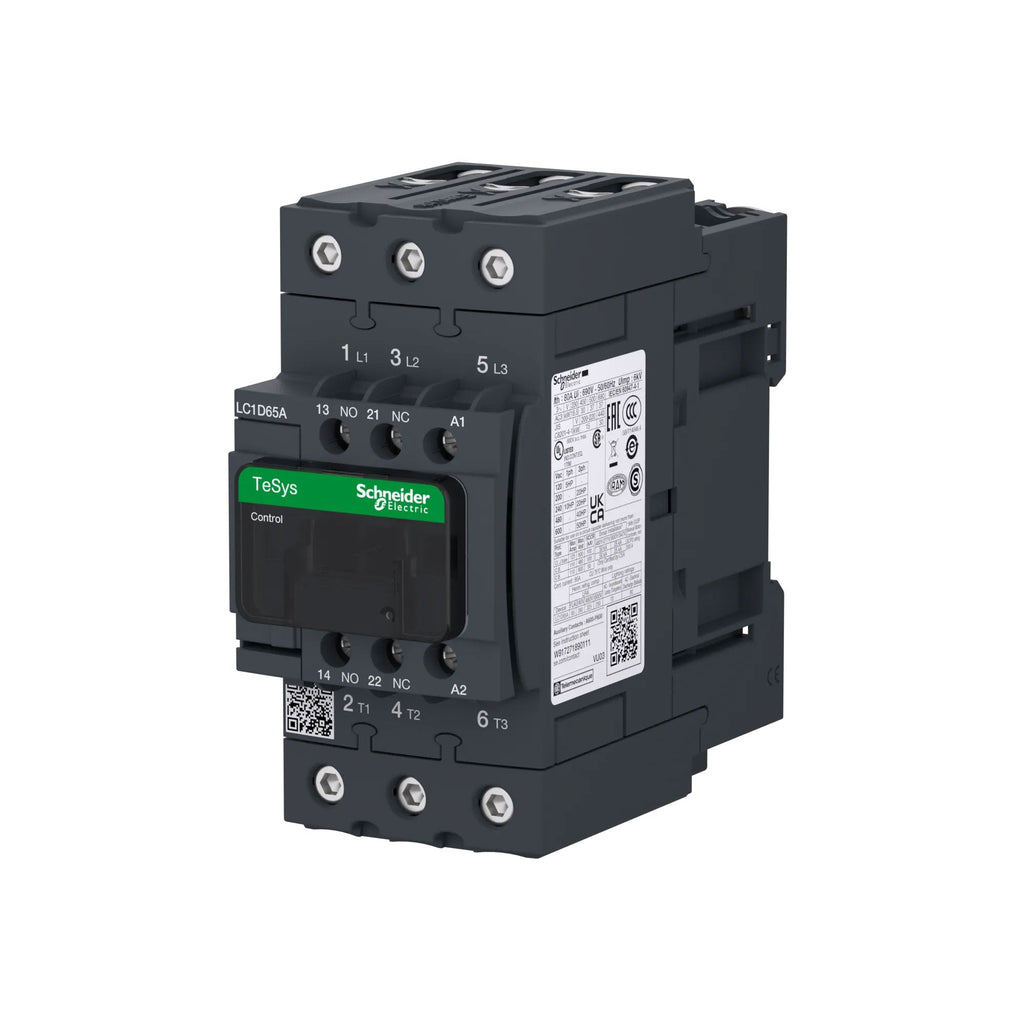

LC1D65AG7
LC1D65AG7 is a Square D TeSys D 3-pole IEC contactor designed for reliable motor control and resistive load applications in industrial and HVAC environments.
This non-reversing contactor features a 65A inductive rating, 120V AC 50/60 Hz control coil, and is rated for use up to 690V AC. It offers both DIN rail and direct panel mounting options, making it versatile for various installations. The LC1D65AG7 is engineered for high performance with a short-circuit current rating (SCCR) up to 100kA when used with the appropriate protective device. It is compliant with international standards and carries major certifications for global acceptance.
-
Key Specifications
- Amperage: 65A inductive (AC-3), 80A resistive (AC-1)
- Voltage: Up to 690V AC (power circuit), 120V AC (control coil)
- Poles: 3

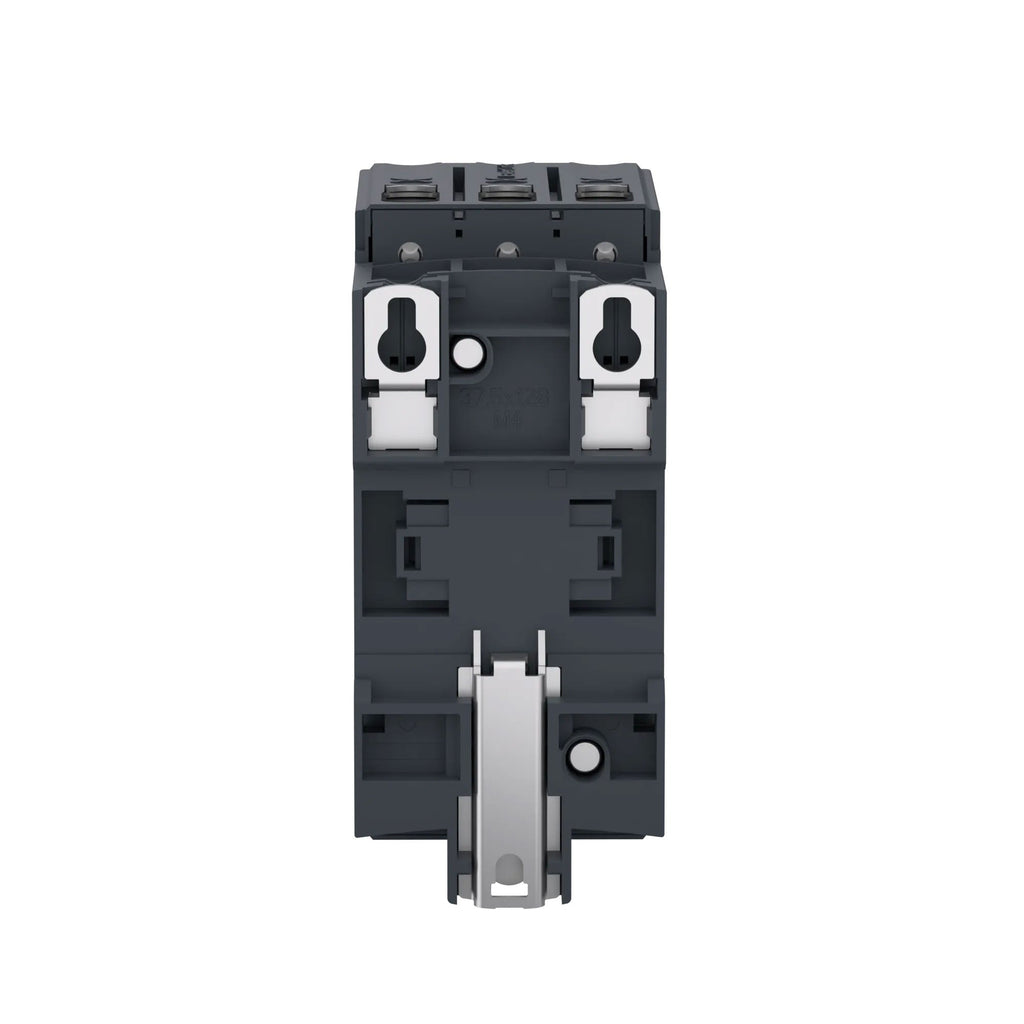

- Mounting Type: DIN rail or panel mount
- Interrupt Rating: Up to 100kA SCCR (with appropriate protection)
- Series/Frame: TeSys D
- Trip Unit: Not applicable (contactor only)
- Certifications: UL, CSA, CCC, GOST
- Standards: IEC 60947-4-1, EN 60947-4-1, CSA C22.2 No 14 <(more...)
- Part Number: LC1D65AG7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 65
- Phase : 3
- Poles : 3
- Horse Power : 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors-5 hp at 115 V AC 50/60 Hz for 1 phase motors-10 hp at 230/240 V AC 50/60 Hz for 1 phase motors-20 hp at 200/208 V AC 50/60 Hz for 3 phases motors-20 hp at 230/240 V AC 50/60 Hz for 3 phases motors-50 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 65A Full Load Amps-Resistive 80A
- Coil Voltage Minimum : 120
- UPC : 785901565529
- GTIN : 03389119408998
- Country of Origin : Indonesia
- Dimensions : 2.17 in x 4.8 in
- Weight : 2.079
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
