Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

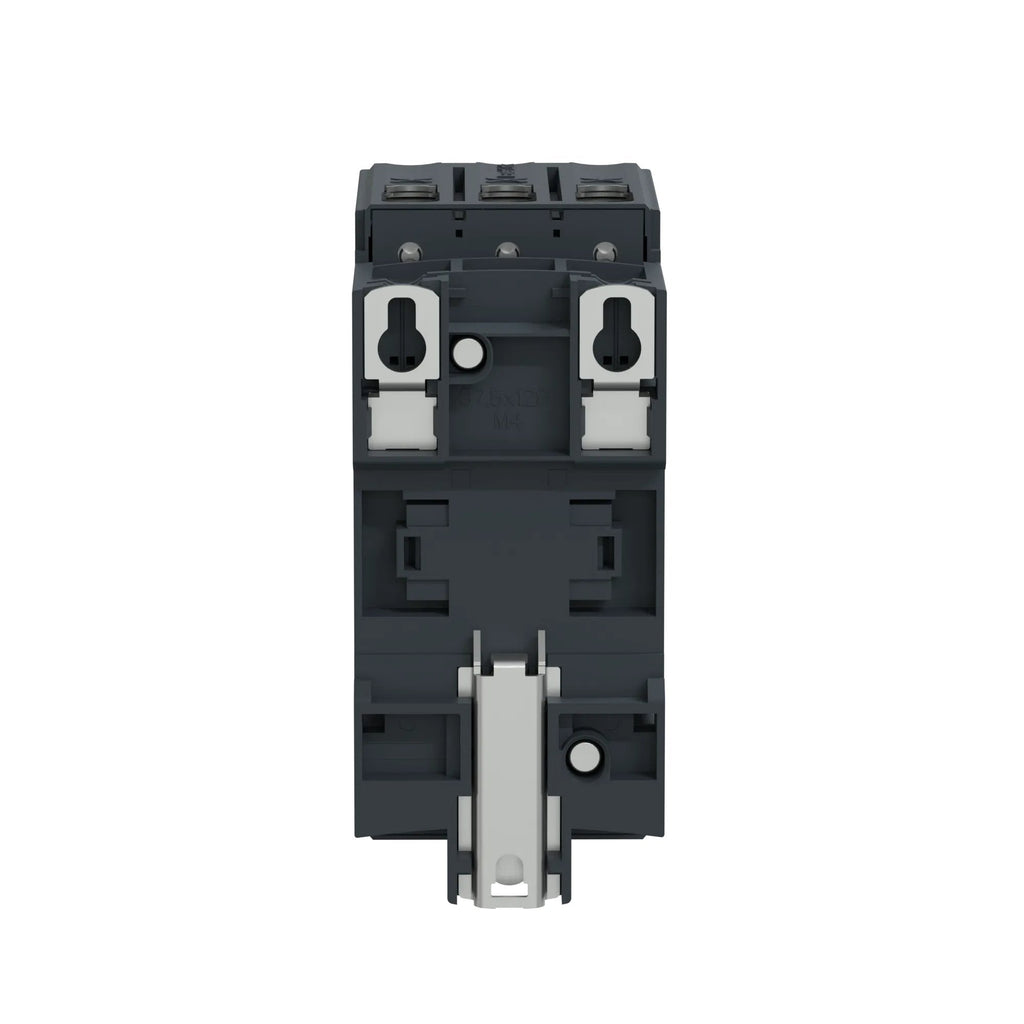

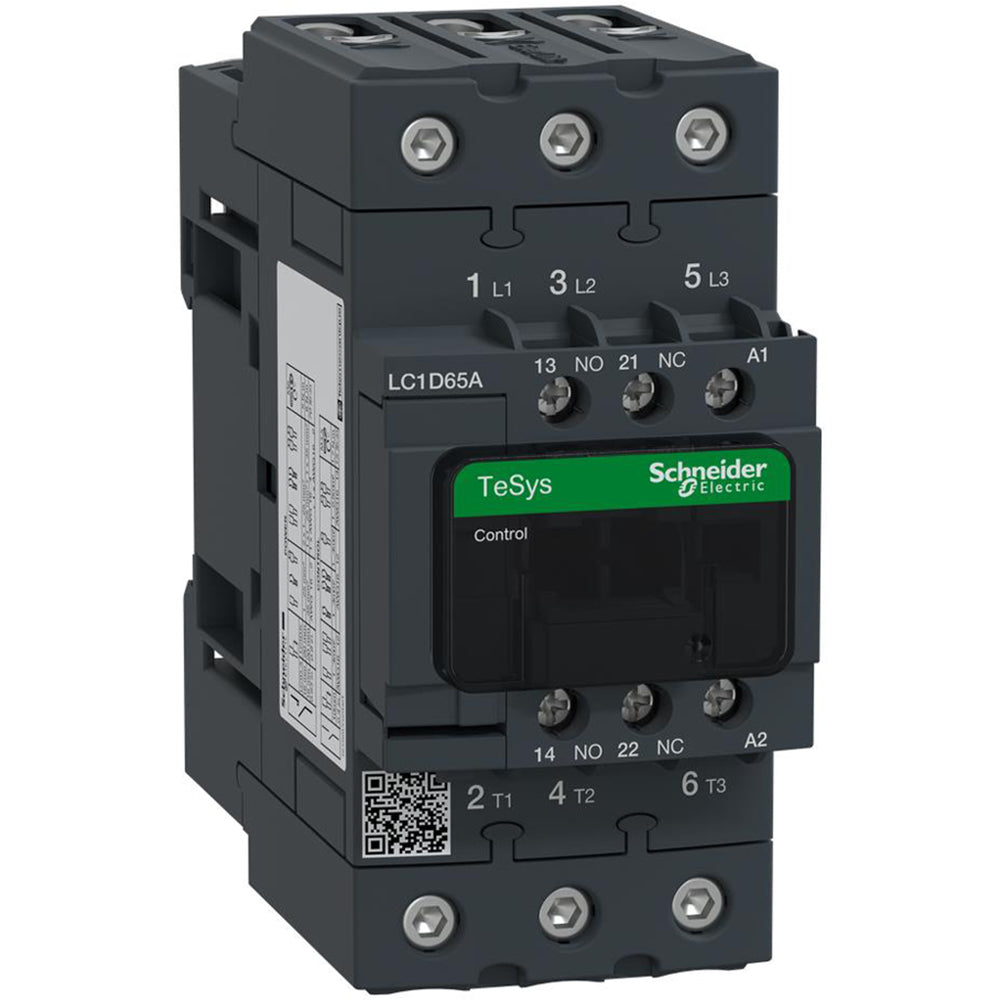

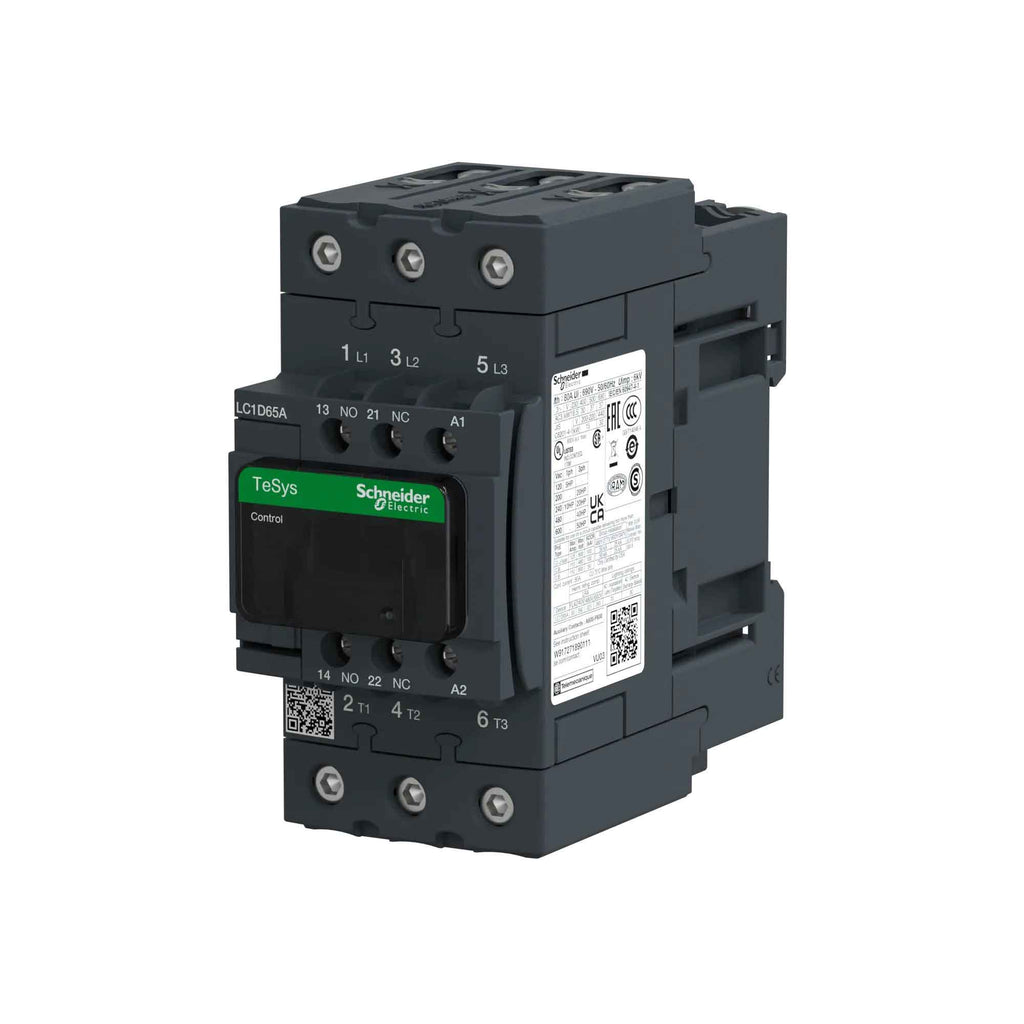

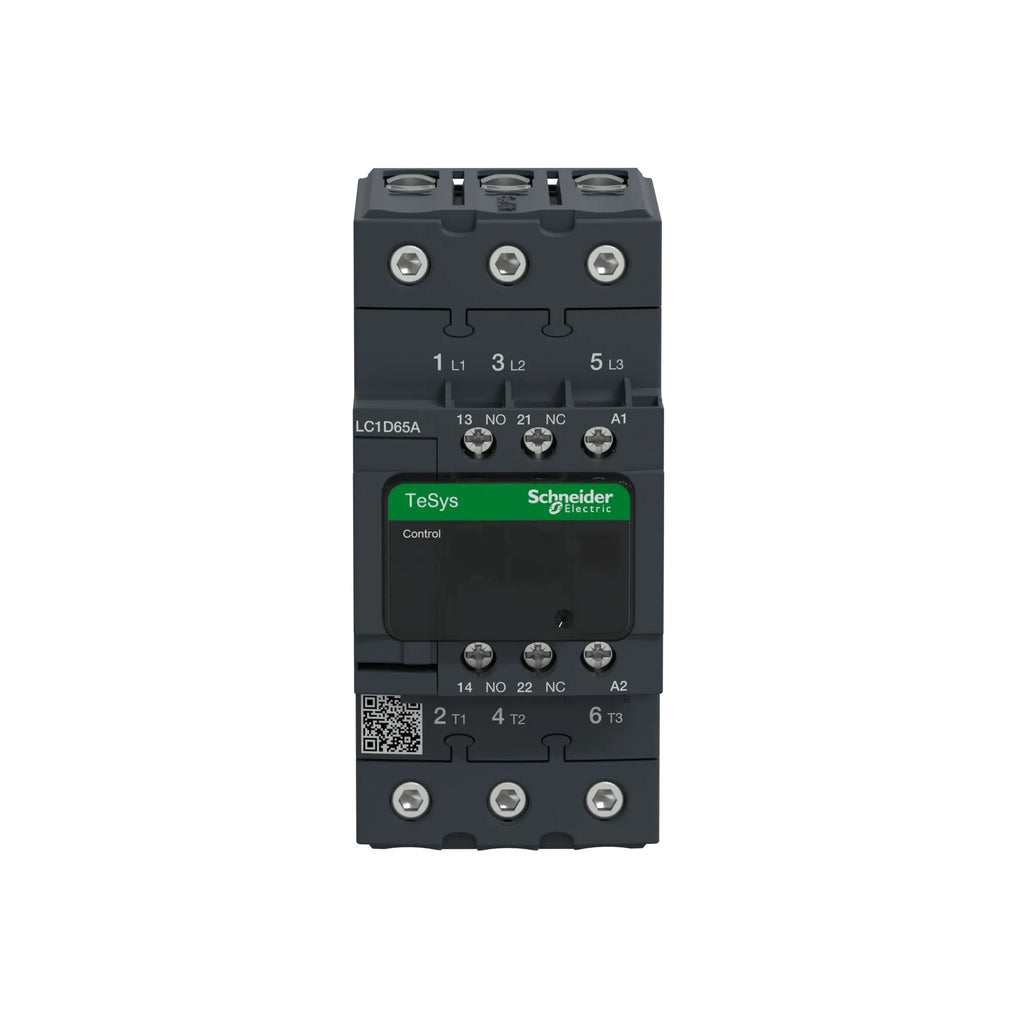

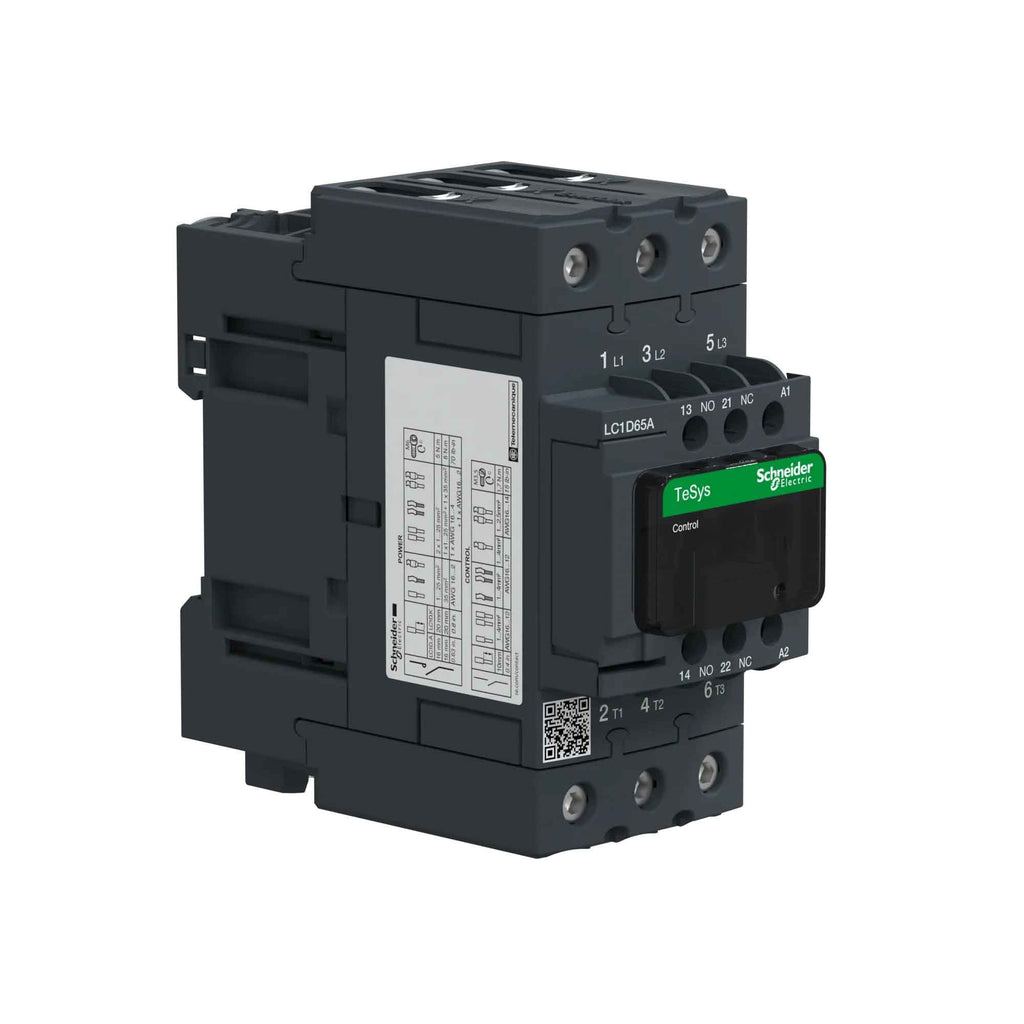

LC1D65AB7
LC1D65AB7 is a 3-pole, 65A IEC contactor from Schneider Electric's TeSys Deca series, designed for motor control and resistive load applications. This non-reversing contactor features a 24VAC 50/60Hz coil, 3 NO main contacts, and is suitable for industrial and HVAC systems requiring reliable switching up to 690VAC. The unit is built for durability and easy installation with multi-standard screws, and supports auxiliary contacts for expanded signaling options. Engineered for high performance, the LC1D65AB7 offers robust motor control with a compact design, making it ideal for demanding environments. The contactor is rated for AC-3, AC-1, and AC-4 utilization categories, ensuring compatibility with a wide range of motor and resistive loads. It is UL and IEC certified for safety and reliability.
- Part Number: LC1D65AB7
- Manufacturer: Schneider Electric
- Series: TeSys Deca
- Amperage: 65A
- Coil Voltage: 24VAC 50/60Hz
- Poles: 3P
- Main Contacts: 3 NO
- Rated Voltage: 690VAC
- Mounting Type: Screw Terminal
- Interrupt Rating: Up to 100kA SCCR
- Utilizatio(more...)
Additional Information
This TeSys D IEC Contactor includes a 24 VAC coil.
Specifications
- Part Number: LC1D65AB7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 65
- Phase : 3
- Poles : 3
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
- Frequency : 50/60 Hz
Product Data
- UPC : 785901565475
- GTIN : 3389119408936
- Country of Origin : Indonesia
- Dimensions : 2.17 in (55 mm) x 4.80 in (122 mm)
- Weight : 2.08 lb
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
