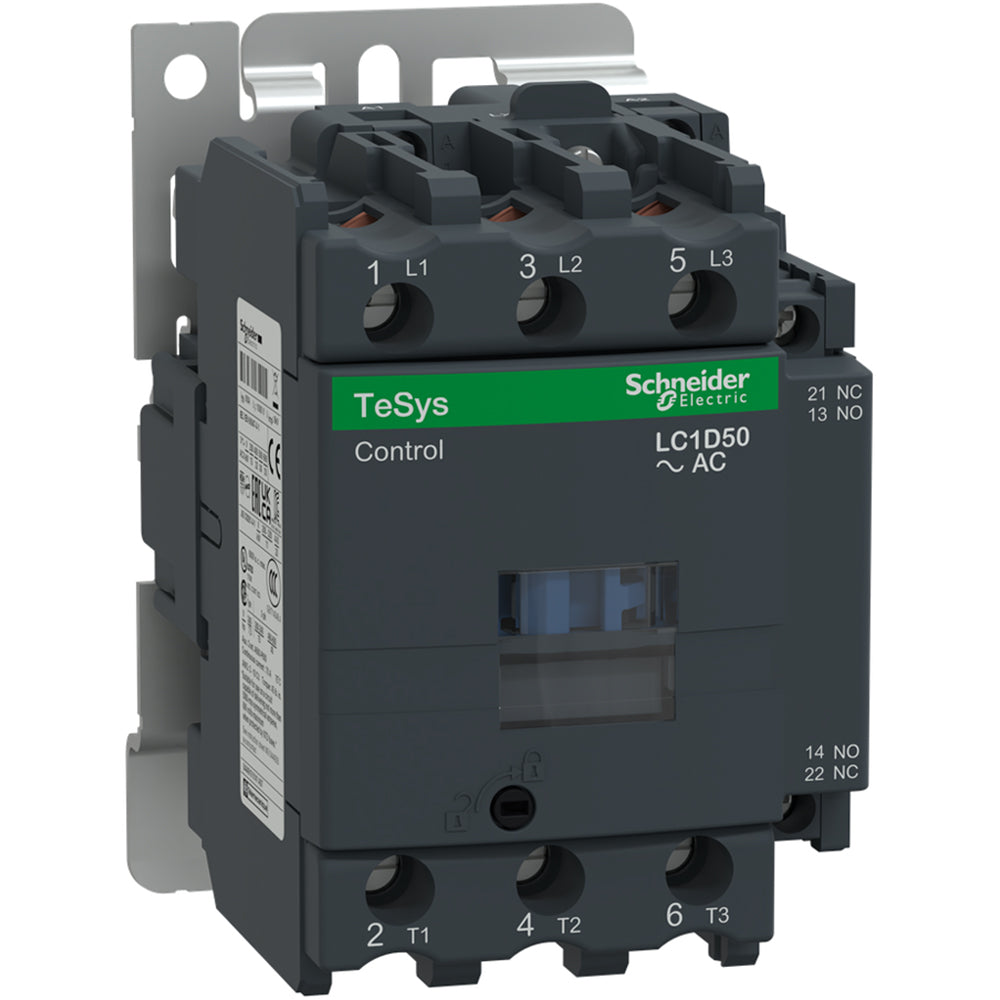

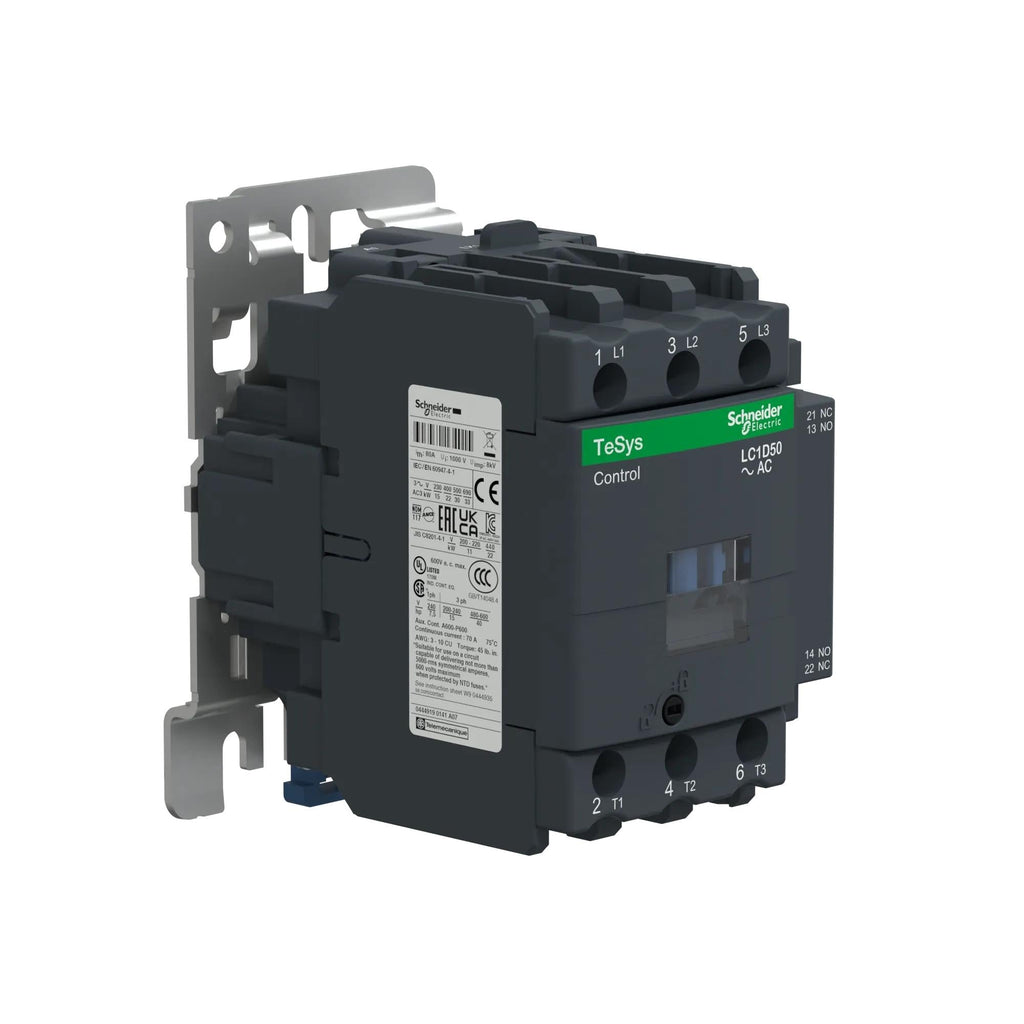

LC1D50U7 - Schneider Electric 50A 3-Pole 480V IEC Motor Contactor with 240VAC Coil

LC1D50U7

LC1D50U7 is a 3-pole, 50A IEC motor contactor designed for reliable motor control in industrial applications. This TeSys D series contactor features a 240VAC 50/60Hz coil and is suitable for 3-phase motor loads up to 40HP at 480VAC. It can be mounted on a DIN rail or panel for flexible installation. The LC1D50U7 contactor is rated for 50A inductive current and 480VAC maximum voltage, with a 3-pole configuration and screw clamp terminals for secure wiring. It is designed for motor control applications and meets international standards for safety and performance. The contactor is suitable for use with overload relays and circuit breakers for complete motor protection.

• Part Number: LC1D50U7
• Manufacturer: Schneider Electric
• Series: TeSys D
• Amperage: 50A
• Voltage: 480VAC (max)
• Poles: 3
• Mounting Type: DIN Rail or Panel
• Coil Voltage: 240VAC 50/60Hz
• Interrupt Rating: Up to 100kA SCCR
• Motor Rating: 40HP at 480VAC
• Standards: IEC 60947-4-1
• Terminals: Screw Clamp

At Essential Parts, (more...)

Additional Information

This includes a 240 VAC coil.

Specifications

• Part Number: LC1D50U7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Protection : Thermal Magnetic

Product Data

• UPC : 785901207641
• Country of Origin : Czechia
• Dimensions : 75 mm x 127 mm
• Weight : 3.155
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
