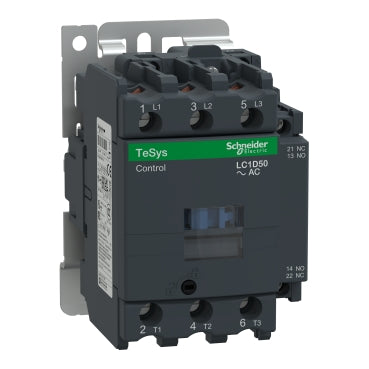

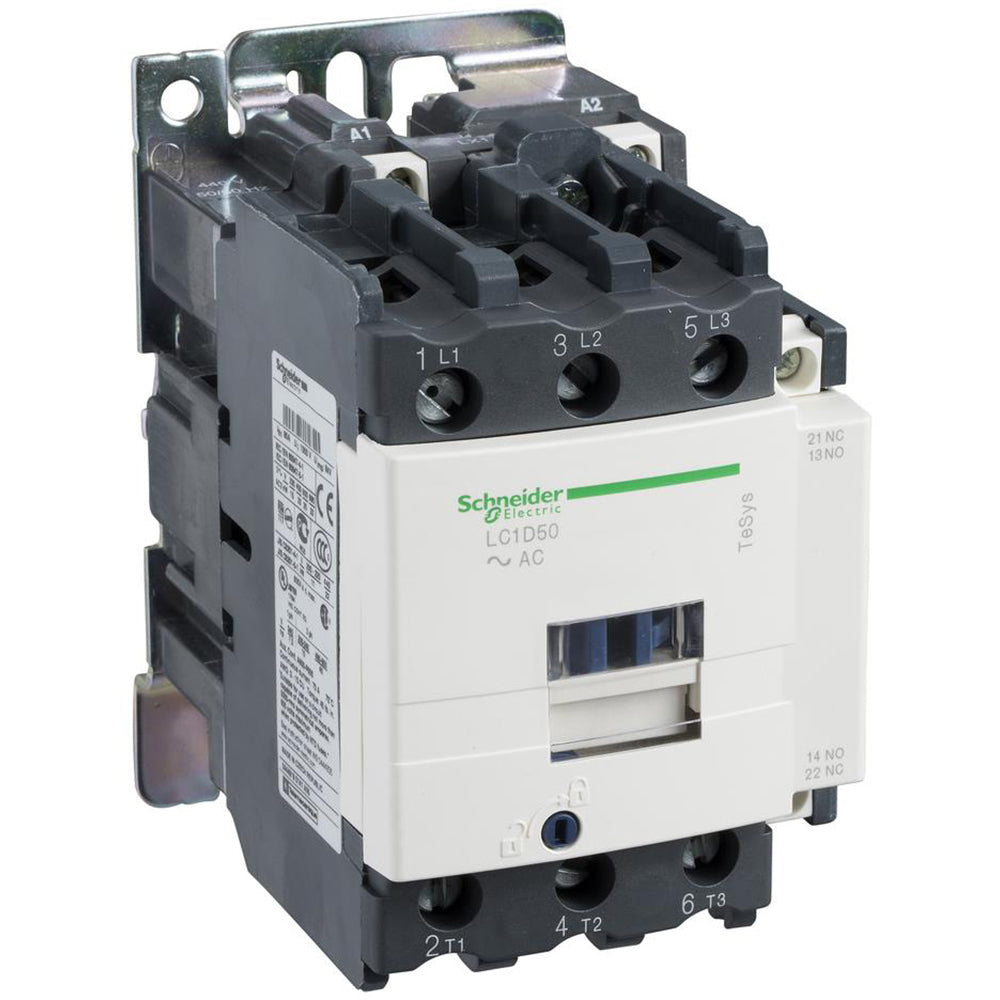

LC1D50T6 - Schneider Electric 50 Amp 3 Pole 480V AC Contactor

LC1D50T6

LC1D50T6 is a Schneider Electric TeSys D series 3 pole IEC contactor rated for 50 amps AC-3 (80 amps AC-1) with a 480 volt AC 60Hz coil and screw clamp terminals. This non-reversing motor control contactor features 1 normally open and 1 normally closed base mounted auxiliary contacts and is suitable for inductive motor applications up to 40 horsepower at 480 volts or 40 horsepower at 600 volts. The contactor can be mounted on standard 35mm DIN rail or base mounted with coil connections available on both top and bottom positions. Top and side mounted auxiliary contact blocks and load side direct mount thermal overload relays can be added for enhanced motor protection and control circuit flexibility.

• Amperage Rating: 50 AMPS AC-3, 80 AMPS AC-1
• Coil Voltage: 480 Volt AC 60Hz
• Number of Poles: 3
• Auxiliary Contacts: 1 NO / 1 NC base mounted
• Terminal Type: Screw clamp terminals
• Mounting: 35mm DIN rail or base mount
• Horsepower: 40 HP at 480V, 40 HP at 600V
• Series: TeSys Deca
• Closing Time: 12-26 ms
• Opening Time: 4-19 ms
• Maximum Voltage Rating: 600 Vac&lt(more...)


  Additional Information

  This includes a 480 VAC coil.




  Specifications

  • Part Number: LC1D50T6
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 480
  • Coil Voltage Minimum : 480



  Product Data

  • UPC : 785901426707
  • GTIN : 03389110426700
  • Country of Origin : Czechia
  • Weight : 3.086
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
