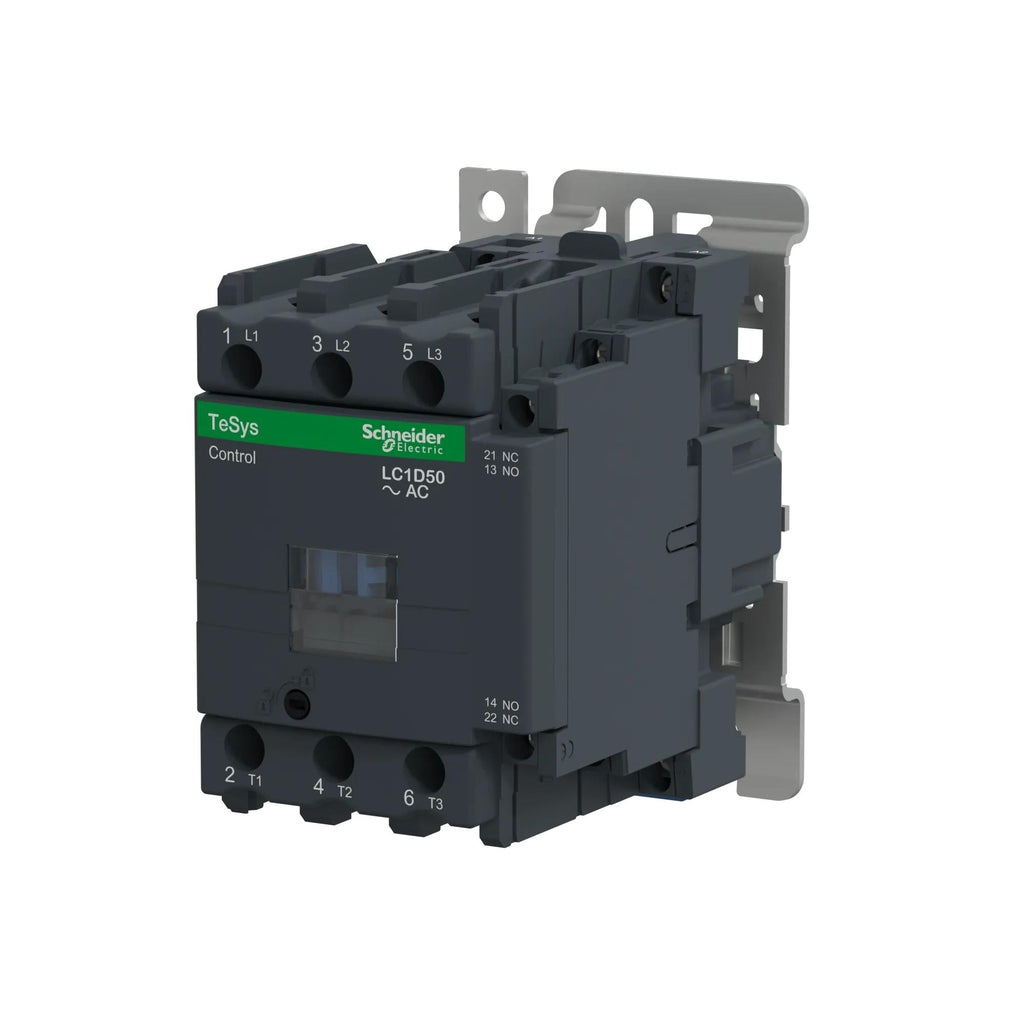

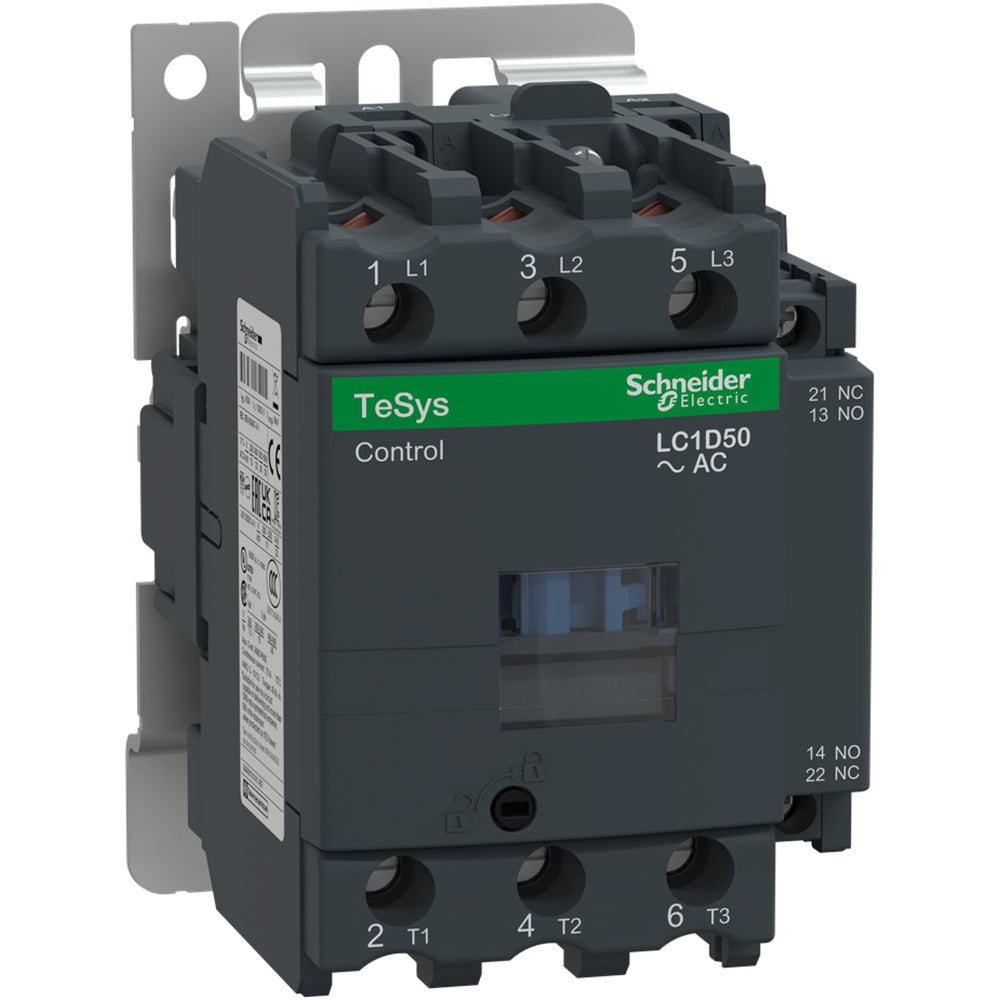

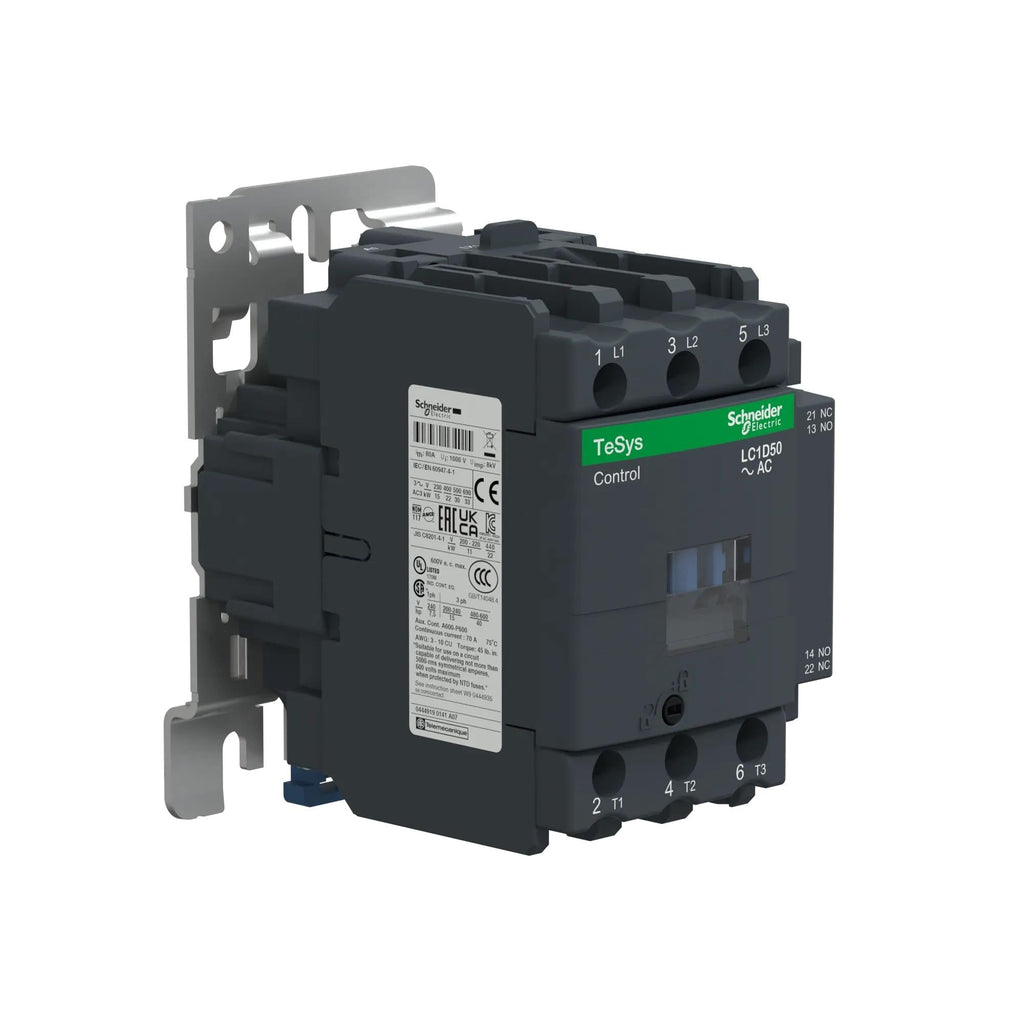

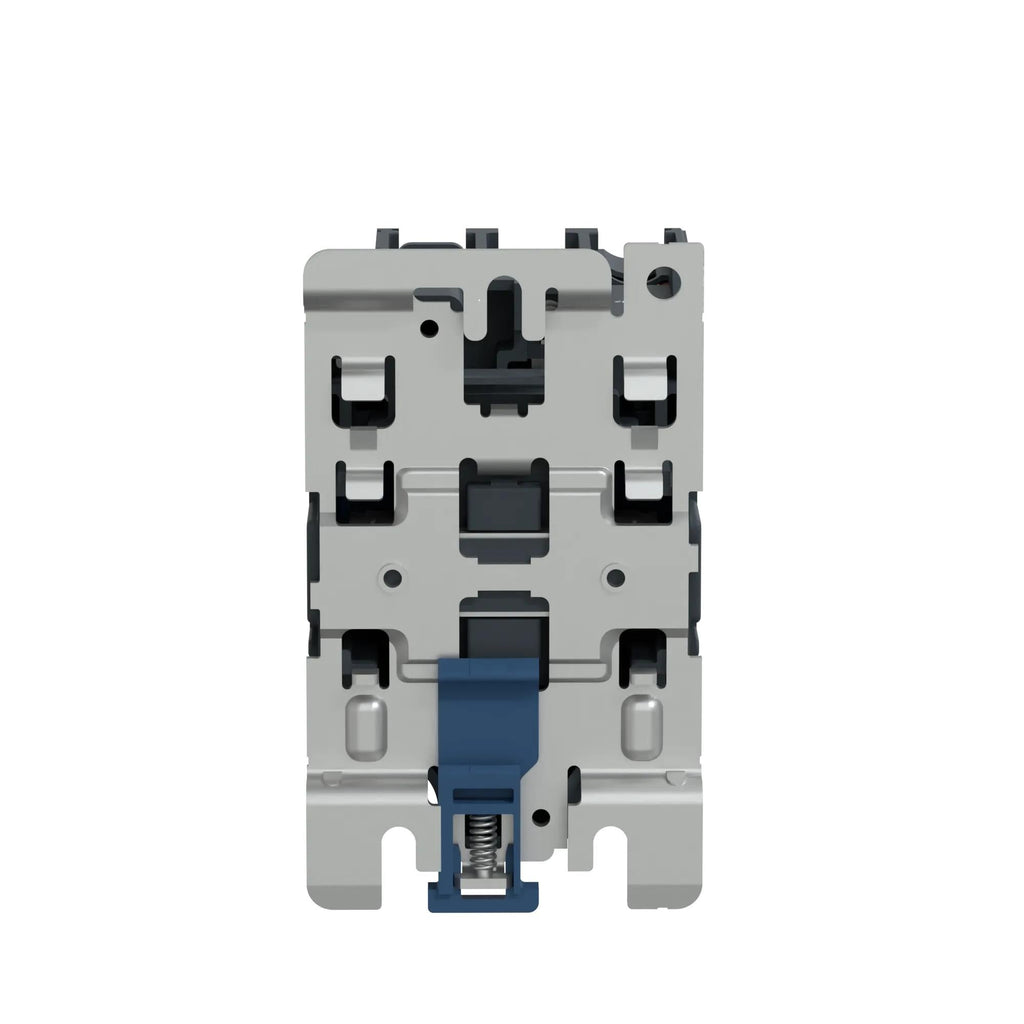

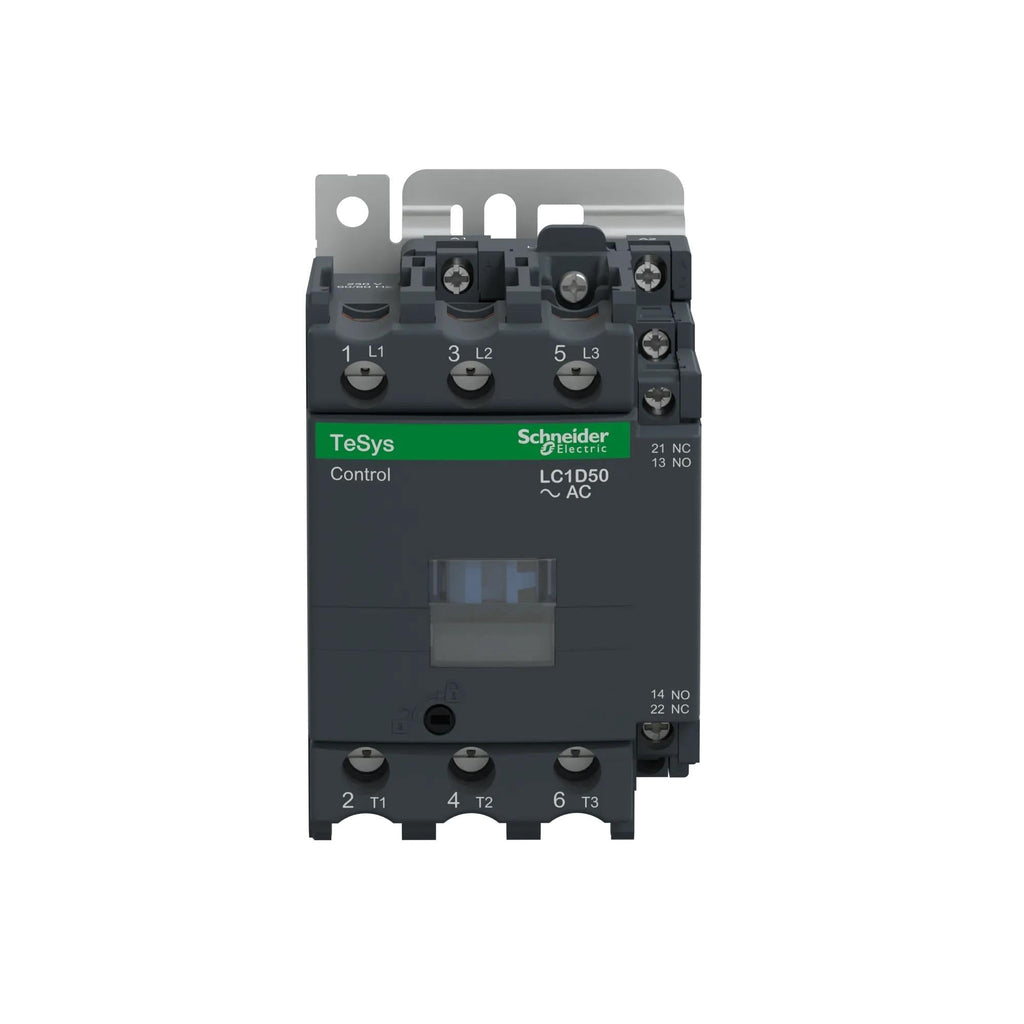

LC1D50G7 - Schneider Electric 50A 120VAC 3 Pole IEC Magnetic Contactor TeSys D Series

LC1D50G7

LC1D50G7 is a 3 pole IEC magnetic contactor from Schneider Electric's TeSys D series, designed for motor control and industrial applications. This contactor features a 120VAC coil, 50A current rating, and is suitable for use in 3-phase systems up to 440VAC. It provides reliable switching and is built for durability in demanding environments. The LC1D50G7 contactor is engineered for easy installation and operation, with screw clamp terminals and a robust design for industrial and HVAC use. It supports motor loads up to 40HP at 480VAC and offers a high short-circuit current rating (SCCR) of up to 100kA. The device is certified for UL and CSA standards, ensuring compliance with North American safety requirements.

• Part Number: LC1D50G7
• Manufacturer: Schneider Electric
• Series: TeSys D
• Amperage: 50A
• Voltage: 120VAC (coil), 440VAC (power)
• Poles: 3 Pole (3NO)
• Mounting Type: Screw Clamp Terminals
• Interrupt Rating: Up to 100kA SCCR
• Control Circuit: 120VAC 50/60Hz
• Power Circuit: 600VAC UL/CSA Certified
• Application: Motor Control, HVAC, Industr(more...)


  Additional Information

  This includes a 120 VAC coil.




  Specifications

  • Part Number: LC1D50G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • AIC rating : 100kA@480V
  • Connection : Feed-Thru
  • Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120
  • Protection : Solid State



  Product Data

  • UPC : 785901421450
  • Country of Origin : Czechia
  • Dimensions : 55 mm x 122 mm
  • Weight : 3.188
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
