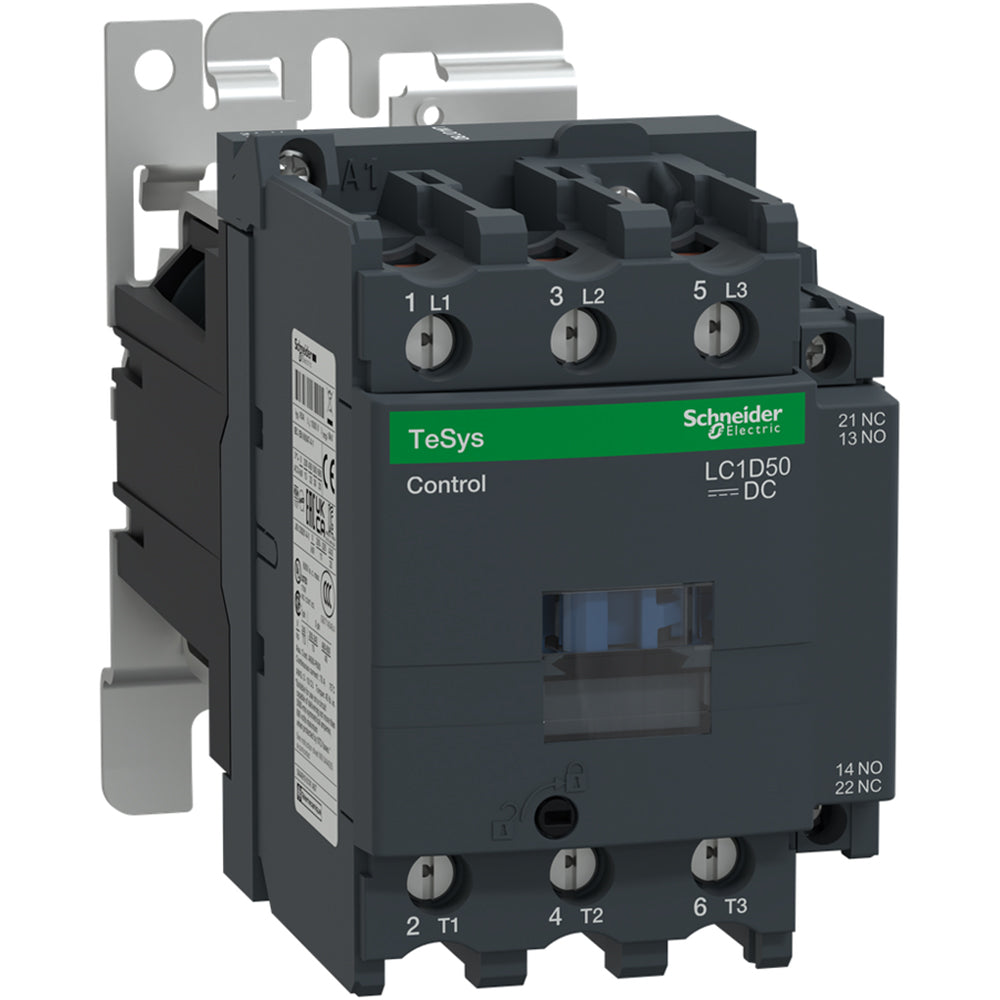

LC1D50BD - Schneider Electric 80A 600V 3 Pole IEC Contactor 24VDC Coil

LC1D50BD

LC1D50BD is a Schneider Electric IEC contactor designed for motor control applications with a 3-pole configuration and 80 ampere rating.This contactor features a 24 VDC coil and supports up to 600 volts AC operation. It is rated for 50 amps continuous current and is suitable for industrial and HVAC applications. The device includes 3 normally open (NO) contacts, screw clamp terminals for easy wiring, and a built-in bidirectional peak limiting diode suppressor. It complies with IEC standards and offers high electrical durability with up to 3,000,000 mechanical cycles. The contactor supports a high interrupt rating with up to 100kA short-circuit current rating (SCCR) and is designed for non-reversing motor control.

Key Specifications
• Amperage: 80A continuous current
• Voltage: Up to 600 VAC operational voltage
• Poles: 3 poles (3 NO contacts)
• Coil Voltage: 24 VDC coil
• Interrupt Rating: Up to 100kA SCCR
• Mounting Type: IEC standard mounting
• Series/Frame: TeSys D series
• Trip Unit: Non-reversing contactor
• Electrical Durability: 3,000,000 mechanical cycles
• Control Cir(more...)


  Additional Information

  This includes a 24 VDC coil.




  Specifications

  • Part Number: LC1D50BD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • Horse Power : 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors-15 hp at 200/208 V AC 60 Hz for 3 phases motors-15 hp at 230/240 V AC 60 Hz for 3 phases motors-40 hp at 460/480 V AC 60 Hz for 3 phases motors-40 hp at 575/600 V AC 60 Hz for 3 phases motors-3 hp at 115 V AC 60 Hz for 1 phase motors
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 038911042081
  • GTIN : 03389110420814
  • Country of Origin : Czechia
  • Weight : 4.782
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
