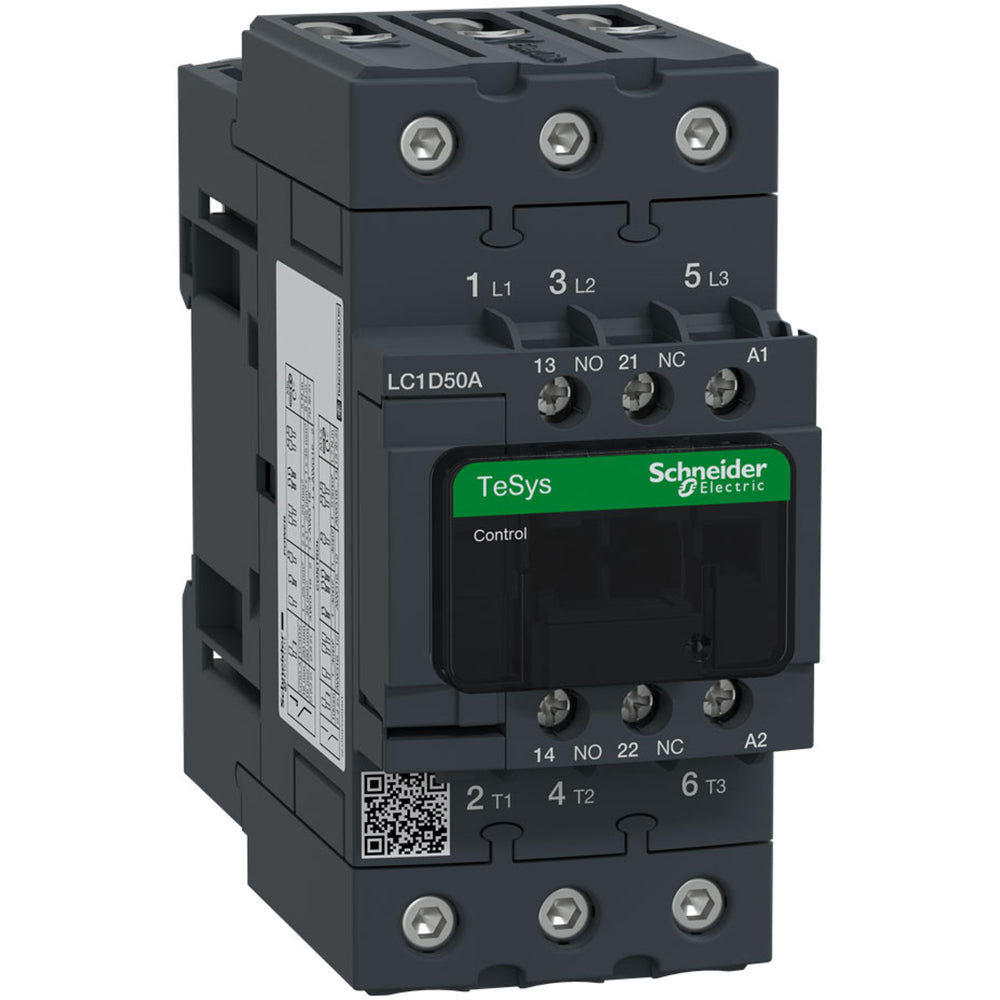

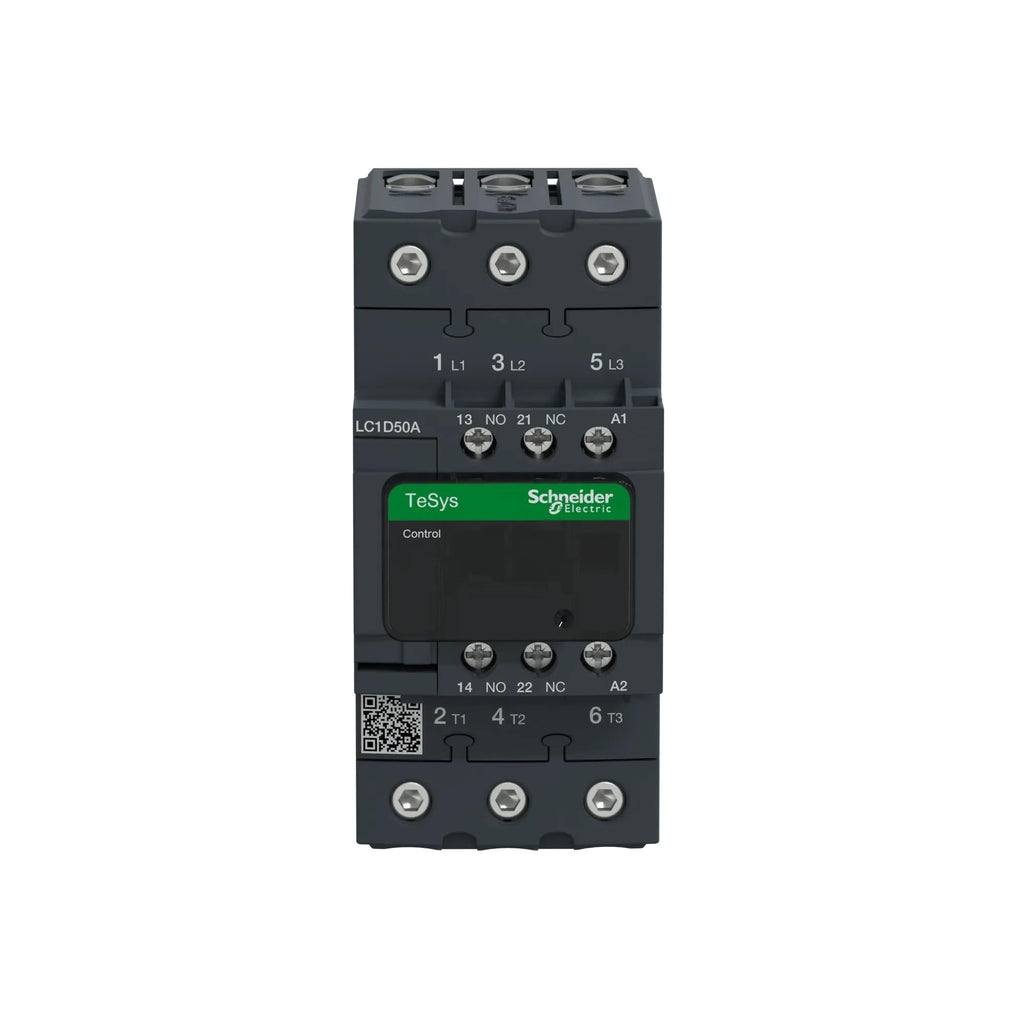

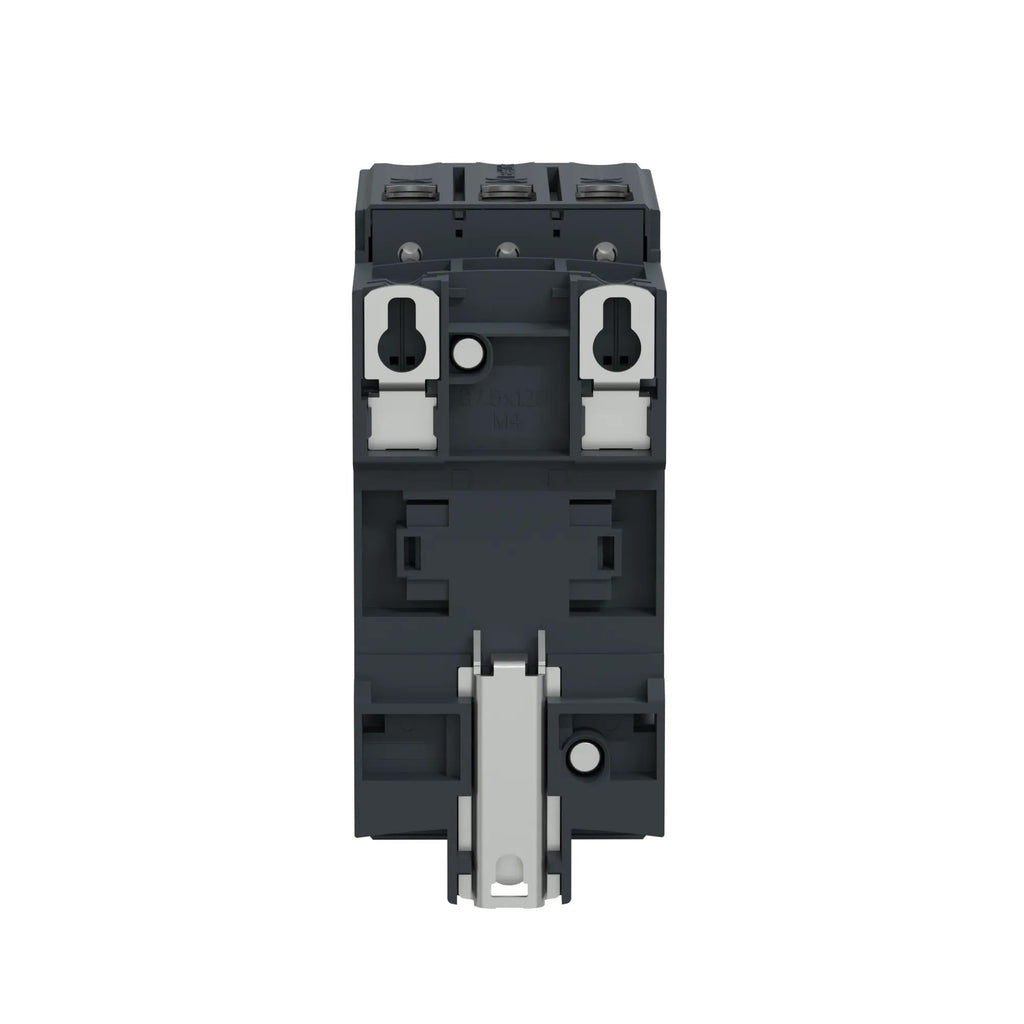

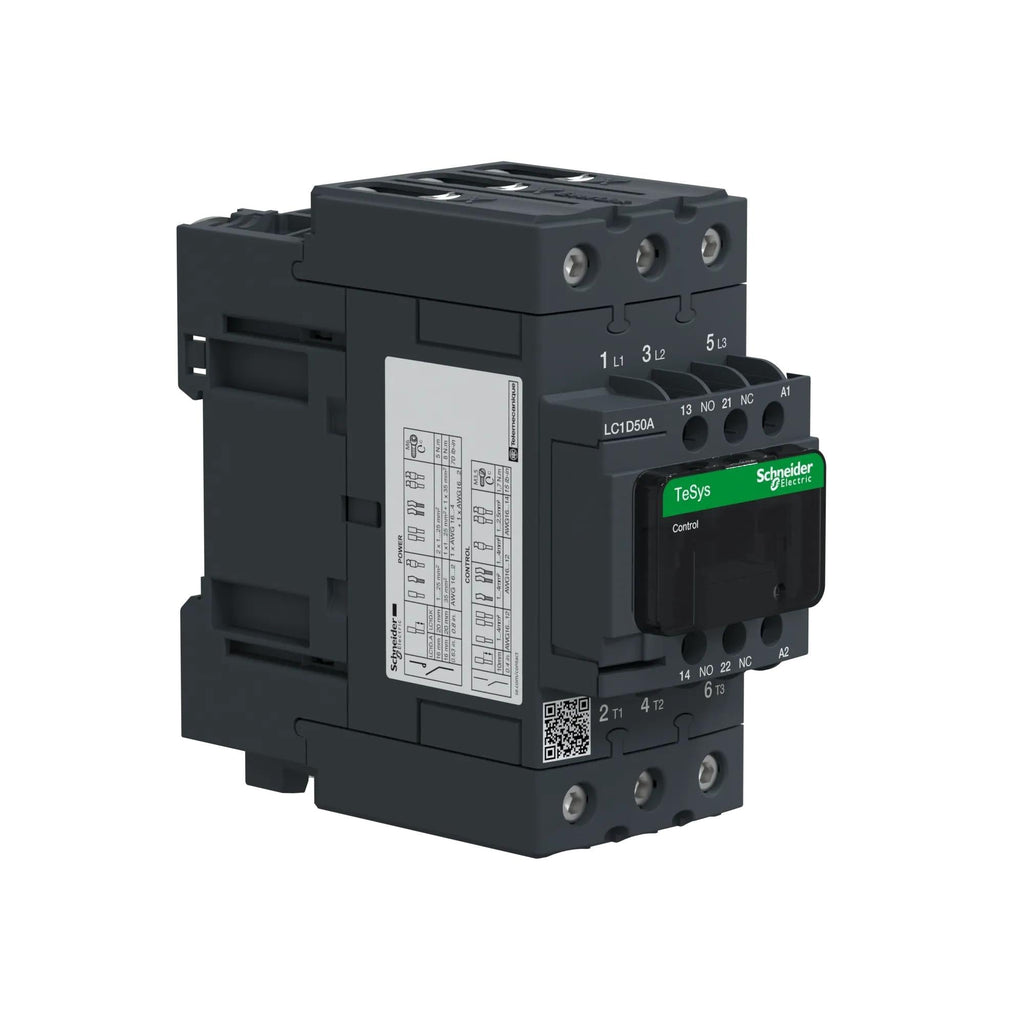

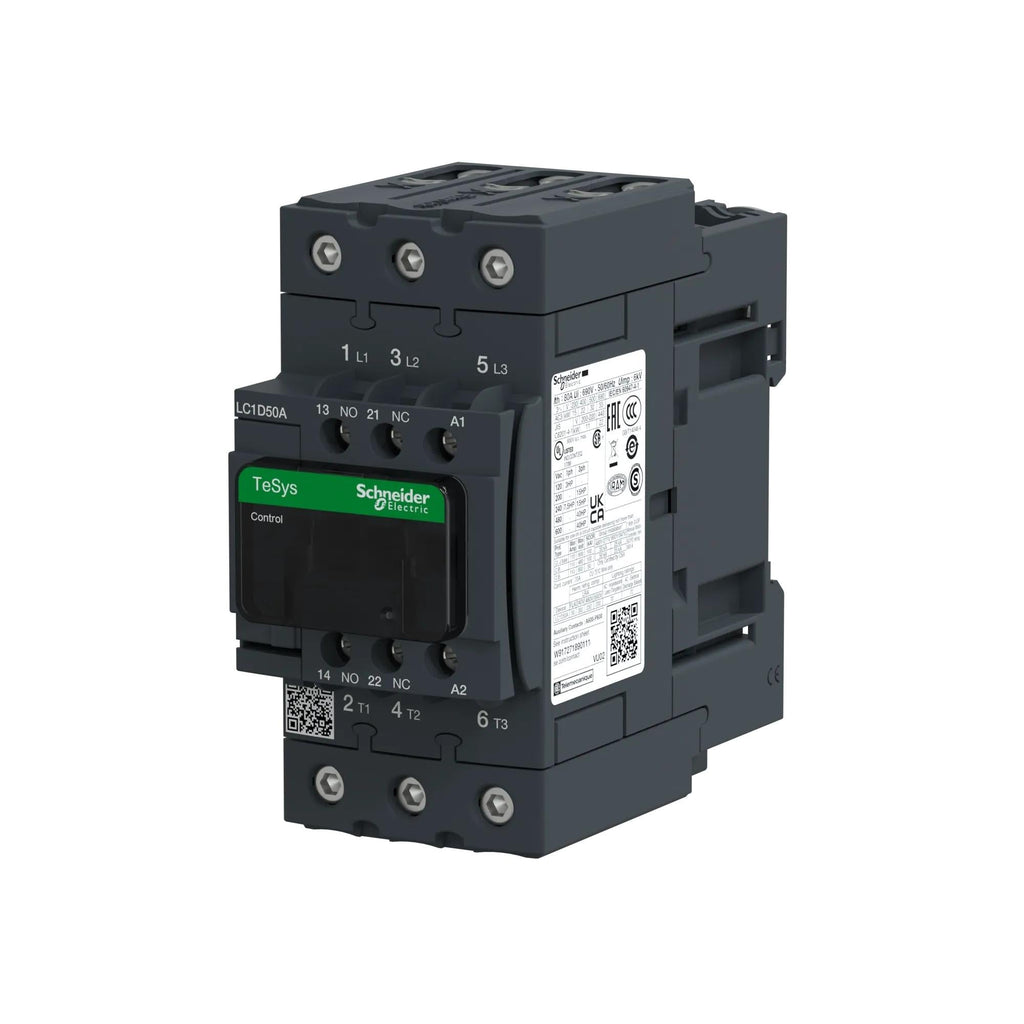

LC1D50AU7 - Schneider Electric 50A 3 Pole Motor Contactor 240V Coil 40HP 3 Phase TeSys Deca Series

LC1D50AU7

LC1D50AU7 is a Schneider Electric 50 Amp, 3 pole motor contactor with a 240V 50/60Hz AC coil designed for industrial motor control applications.The LC1D50AU7 features a nonreversing design with 3 normally open contacts, rated for 40 HP at 460/480 VAC 3-phase motors, and supports up to 100kA short-circuit current rating (SCCR). It belongs to the TeSys Deca series and offers screw clamp terminals for reliable connections. This contactor is suitable for HVAC and industrial environments, providing efficient motor switching and control.

Key Specifications
• Amperage: 50A
• Voltage: 240V AC coil, 50/60Hz
• Poles: 3 poles (3 NO contacts)
• Horsepower Rating: 40 HP at 460/480 VAC 3-phase
• Interrupt Rating: Up to 100kA SCCR
• Series/Frame: TeSys Deca
• Mounting Type: Base mounted with screw clamp terminals
• Auxiliary Contacts: 1 NO + 1 NC base mounted, expandable
• Certifications: IEC and UL compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support(more...)

Additional Information

This TeSys D IEC Contactor includes a 240 VAC coil.

Specifications

• Part Number: LC1D50AU7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Protection : Solid State
• Frequency : 50/60 Hz

Product Data

• UPC : 785901565314
• Country of Origin : Indonesia
• Dimensions : 2.17 in x 2.17 in
• Weight : 2.091
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
