Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

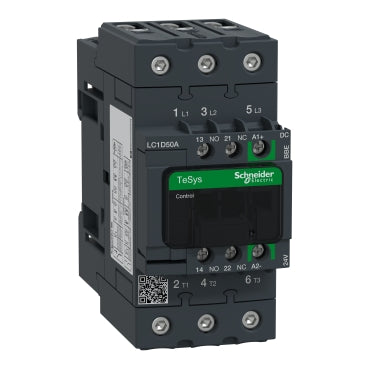

LC1D50AF7C
LC1D50AF7C is a 3-pole IEC contactor from Schneider Electric designed for motor control applications with a 50 amp rated current and 110VAC 50/60Hz control coil. This TeSys Deca nonreversing contactor provides reliable motor control and is rated for 40 HP at 480VAC and up to 100 HP at 480VAC for three-phase motors. The unit features 3 normally open main contacts and includes 1 normally open and 1 normally closed base-mounted auxiliary contacts for signaling and control feedback. LC1D50AF7C conforms to IEC 60947-1 and IEC 60947-4-1 standards with an impulse withstand voltage of 8kV and rated operational voltage of 1000V. The contactor offers exceptional mechanical durability with 16,000,000 mechanical operating cycles and 30,000,000 mechanical life cycles at rated control voltage. It operates reliably in ambient temperatures from -5 to +55 degrees Celsius and provides IP 2X protection against direct finger contact.
- Amperage: 50 Amps
- Poles: 3 Pole
- Control Voltage: 110VAC 50/60Hz
- Motor Rating: 40 HP at 480VAC, 15 HP at 230VAC
- Auxiliary Contacts: 1 NO and 1 NC base-mounted
- Impulse Withstand Voltage: 8kV
- Rated(more...)
Specifications
- Part Number: LC1D50AF7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- Weight : 2.112
- Certification : CE, UKCA, CCC
