LC1D50AF7 - Schneider Electric 50A 3-Pole TeSys D Motor Contactor 110V AC Coil 690V AC Rated Voltage

LC1D50AF7

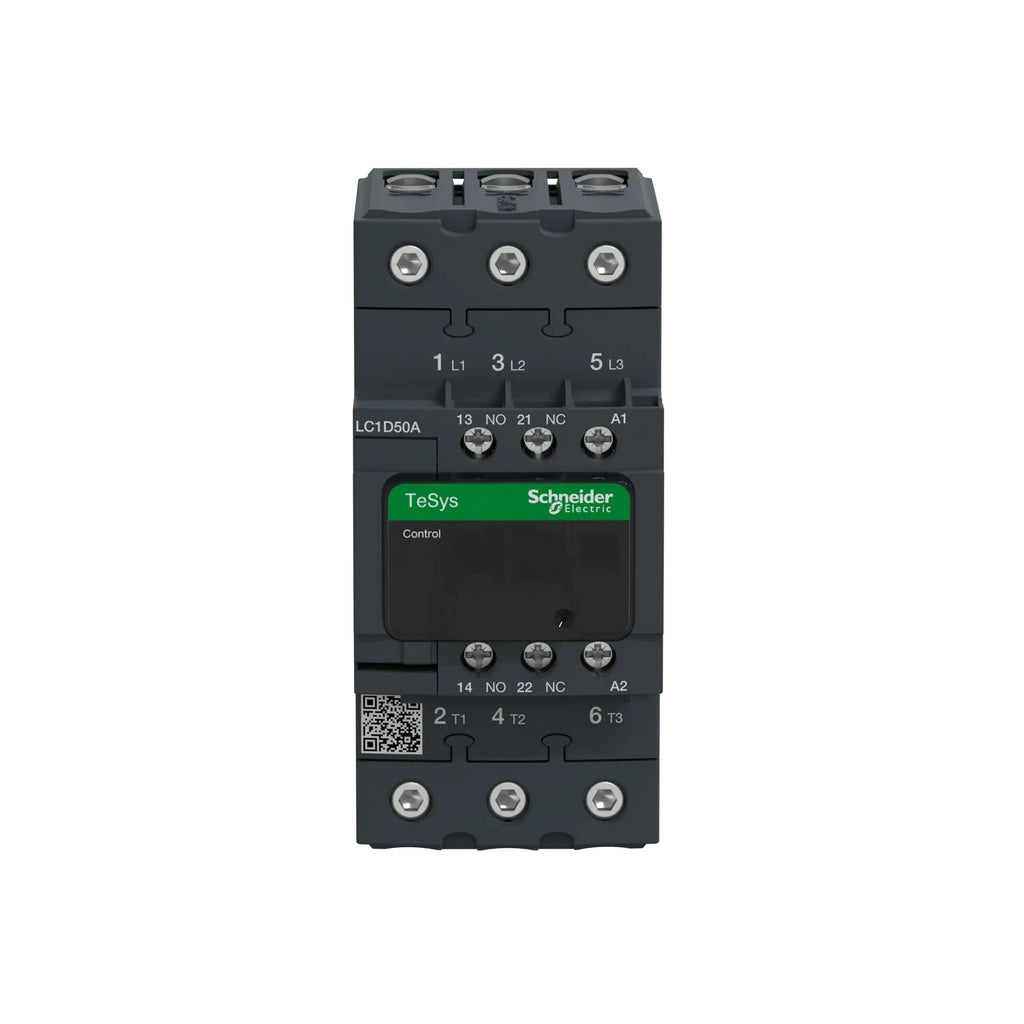

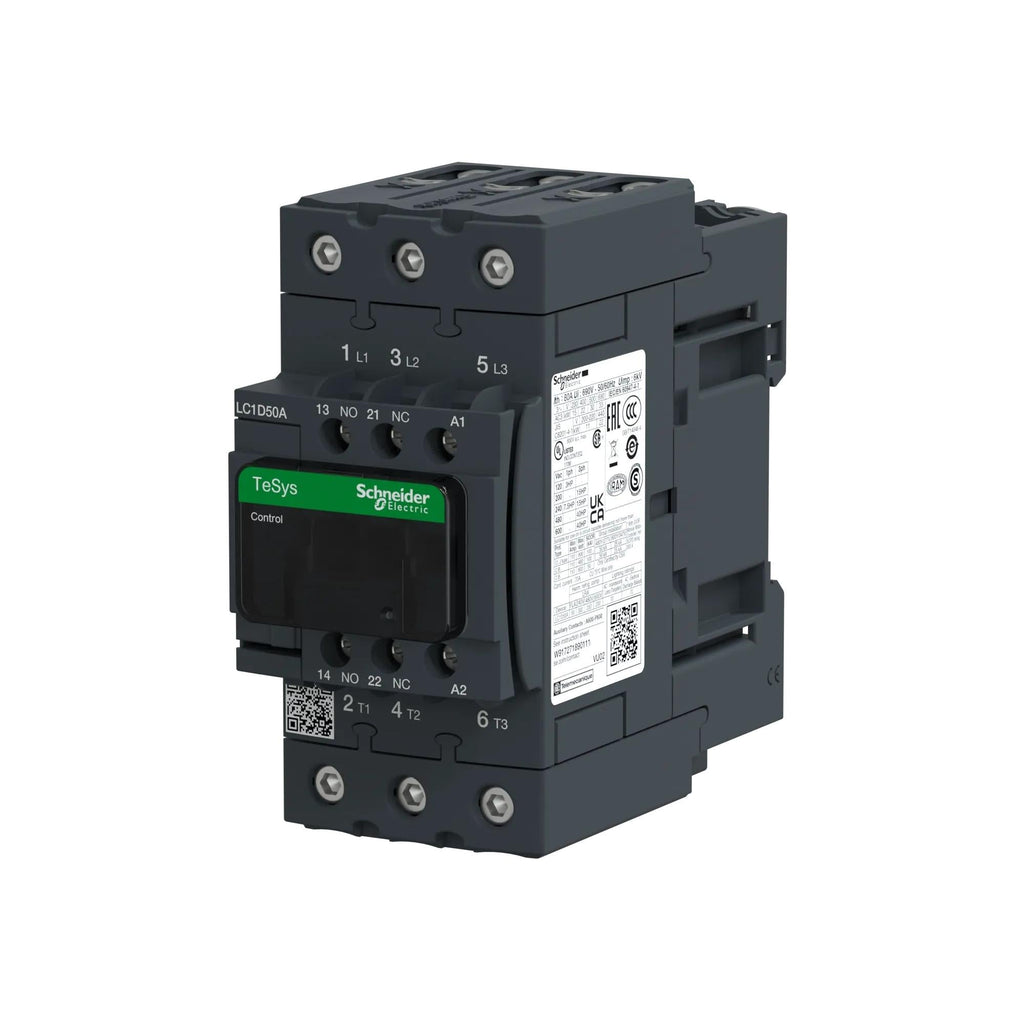

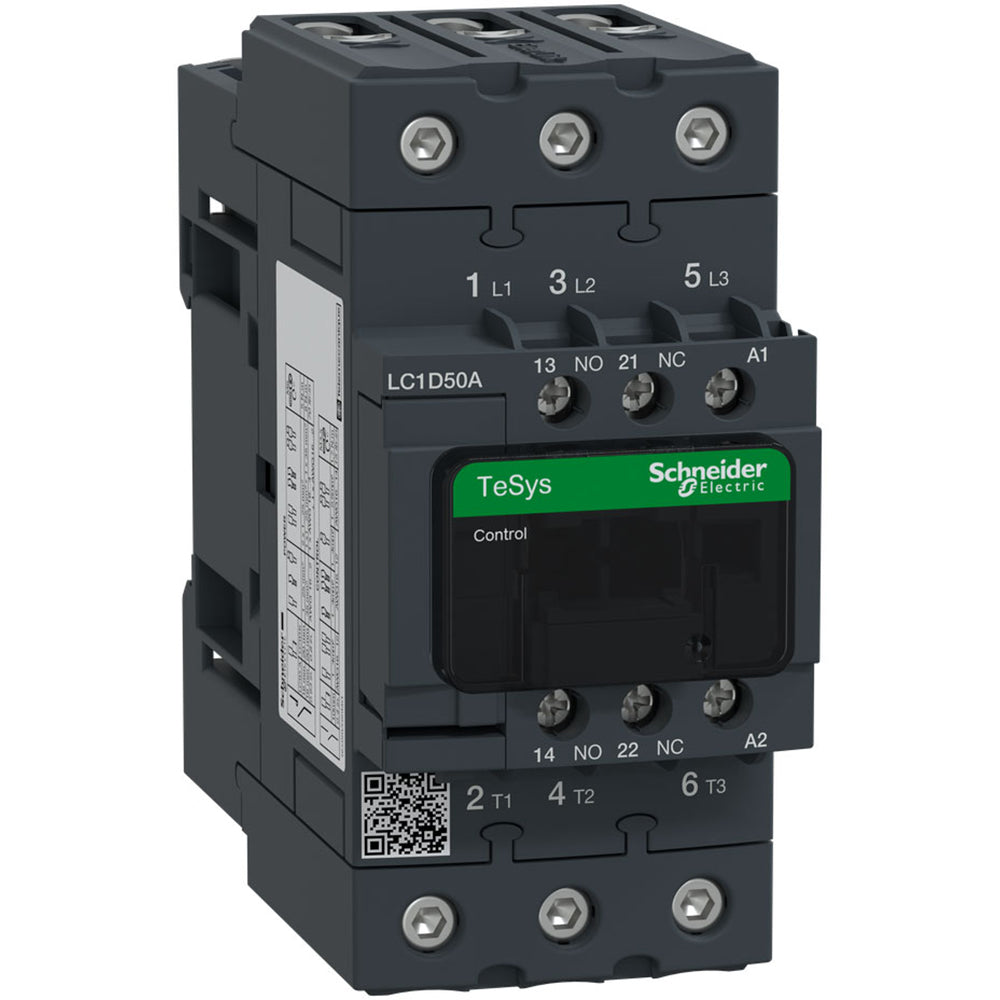

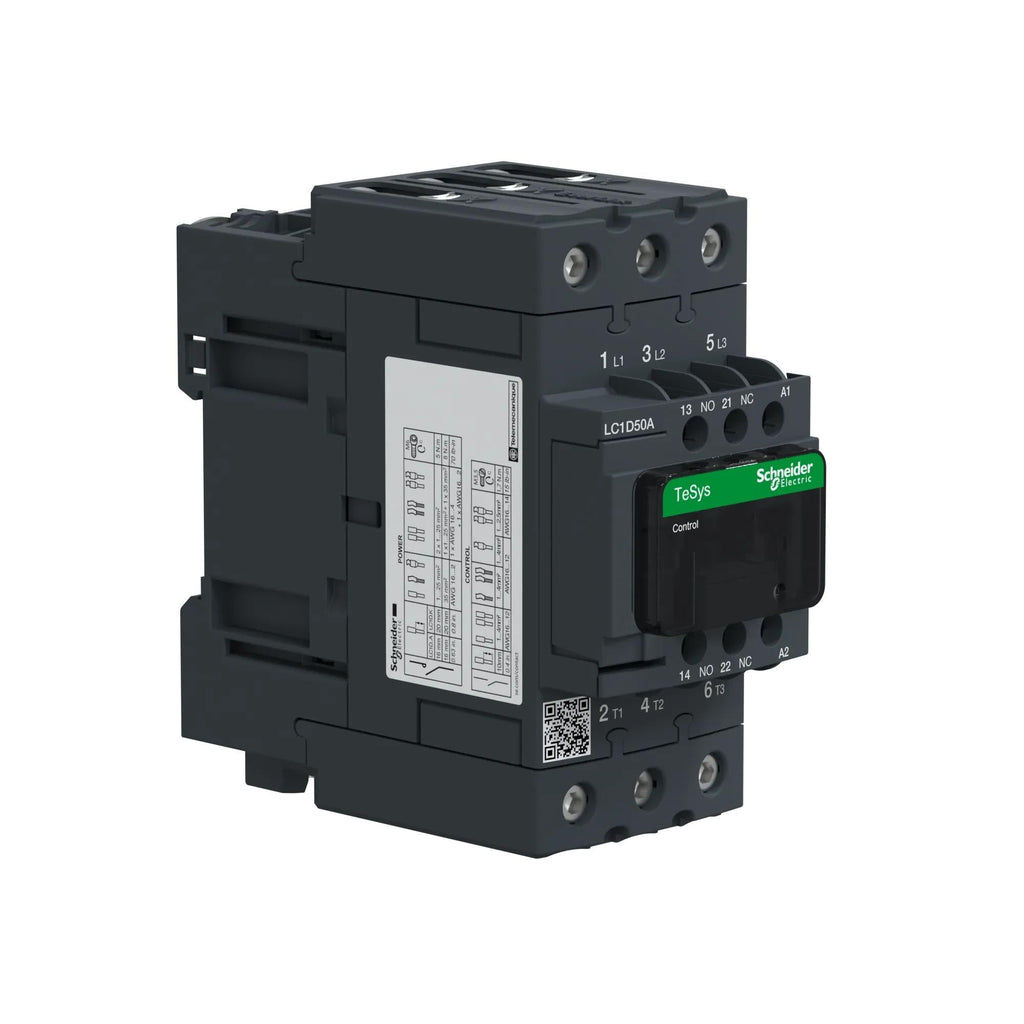

LC1D50AF7 is a Schneider Electric TeSys D 3-pole motor contactor with a 50 ampere rating and 110V AC coil voltage designed for motor control applications.This contactor features 3 normally open (3 NO) poles, supports a rated operational voltage up to 690V AC, and is suitable for AC-3 utilization category with a 50A rated current at 440V AC. It is designed for resistive and motor loads up to 40 hp at 480V AC. The device includes screw clamp terminals and offers protection degree IP2X. It complies with IEC 60947-1 and IEC 60947-4-1 standards and is suitable for DIN rail or panel mounting.

Key Specifications
• Rated operational current: 50 A (AC-3, 440V)
• Rated operational voltage: up to 690 V AC
• Number of poles: 3 (3 NO)
• Coil voltage: 110 V AC, 50/60 Hz
• Utilization categories: AC-1, AC-3, AC-4
• Motor power rating: up to 40 hp at 480 V AC

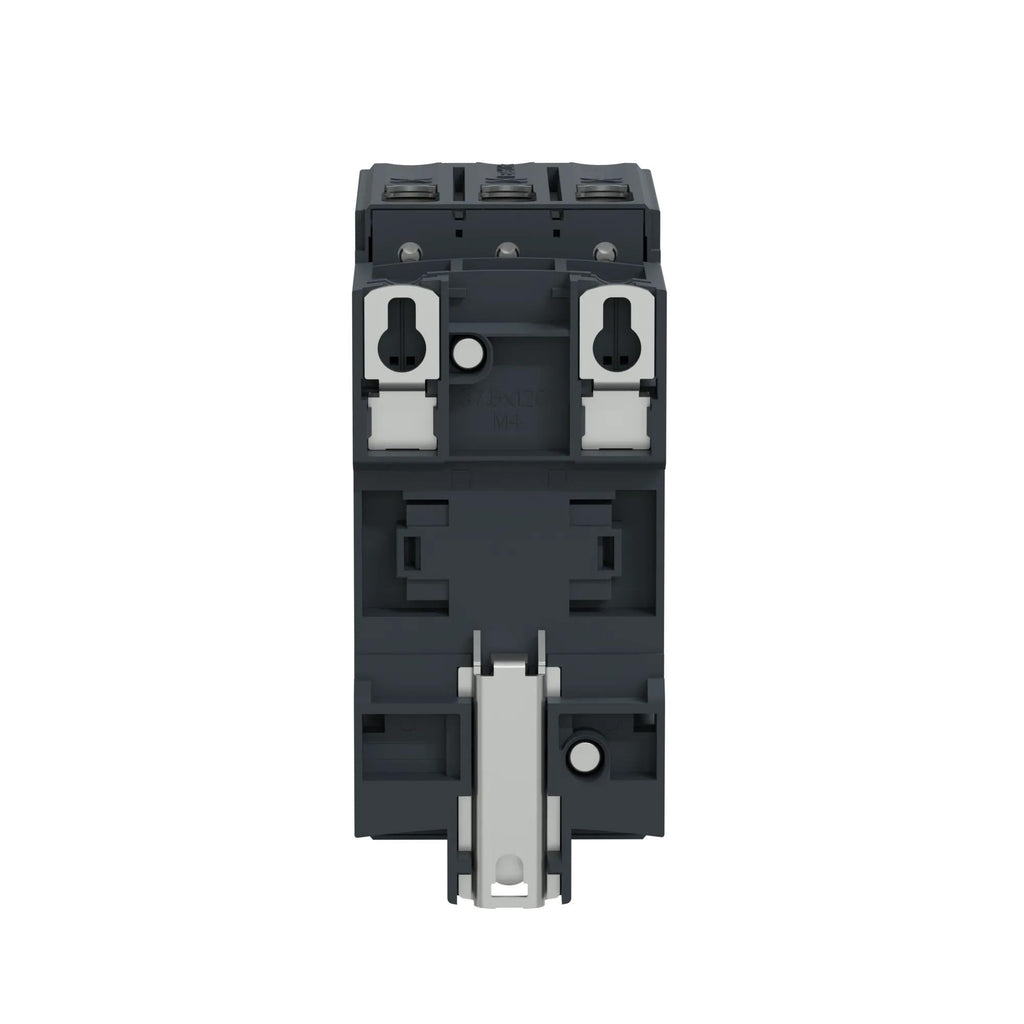

• Mounting type: DIN rail or panel
• Degree of protection: IP2X
• Standards: IEC 60947-1, IEC 60947-4-1, UL, CSA
• Dimensions: 55 mm W x 120 mm D x 122 mm H
• Rated insulation voltage: 690 V
• Rated im(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 110 VAC coil.




  Specifications

  • Part Number: LC1D50AF7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911940865
  • GTIN : 03389119408653
  • Country of Origin : Indonesia
  • Dimensions : 55 mm x 122 mm
  • Weight : 2.039
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
